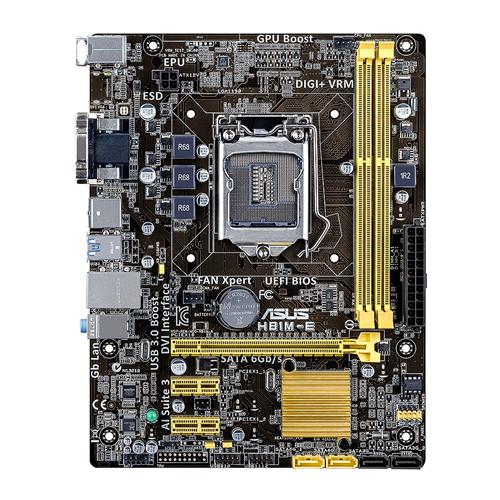

Intel H81チップセットを搭載するmixroATXマザーボード
- LGA1150
- Intel H81
- DDR3メモリ×2（最大16GB）
- PCIe 2.0 x16×1、PCIe 2.0 x1×2
- DVI-D×1、D-Sub 15ピン×1
- SATA 6Gb/s×2、SATA 3Gb/s×2
- 1000BASE-T×1
- USB 3.0×2、USB 2.0×8
- DIGI+ VRM 3フェーズ
- EPU、Fan Xpert
- Intel H81
- DDR3メモリ×2（最大16GB）
- PCIe 2.0 x16×1、PCIe 2.0 x1×2
- DVI-D×1、D-Sub 15ピン×1
- SATA 6Gb/s×2、SATA 3Gb/s×2
- 1000BASE-T×1
- USB 3.0×2、USB 2.0×8
- DIGI+ VRM 3フェーズ
- EPU、Fan Xpert
| CPU | Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors Supports Intel 22 nm CPU Supports Intel Turbo Boost Technology 2.0 * The Intel Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list |
| チップセット | Intel H81 |
| メモリ | 2 x DIMM, Max. 16GB, DDR3- 1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * Due to Intel chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz. |
| グラフィックス機能 | Integrated Graphics Processor Multi-VGA output support : DVI/RGB ports - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider |
| 拡張スロット | 1 x PCIe x16 2 x PCIe 2.0 x1 |
| ストレージ機能 | Intel H81 chipset : 2 x SATA 6Gb/s port(s), yellow 2 x SATA 3Gb/s port(s), dark brown Supports Intel Rapid Start Technology, Intel Smart Connect Technology *1 |
| LAN機能 | Realtek 8111G, 1000BASE-T/100BASE-TX/10BASE-T×1 |
| オーディオ機能 | Realtek ALC887 8-Channel High Definition Audio CODEC *2 - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| USB | Intel H81 chipset : 2 x USB 3.0/2.0 port(s) (2 at back panel, blue) Intel H81 chipset : 8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board) |
| Special Features | ASUS 5X Protection : - ASUS DIGI+ VRM - 3 Phase digital power design - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection - ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating ASUS EPU : - EPU ASUS Exclusive Features : - GPU Boost - AI Suite 3 - Ai Charger - Anti-Surge - Low EMI Solution - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Network iControl - USB 3.0 Boost - Disk Unlocker ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 ASUS Q-Design : - ASUS Q-Slot |
| Operating System Support | Windows 8.1 Windows 8 Windows 7 |

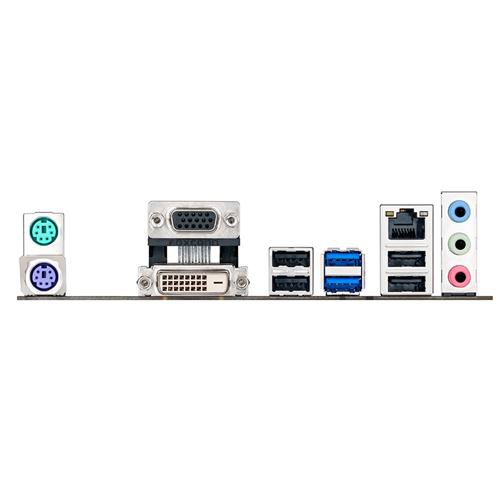

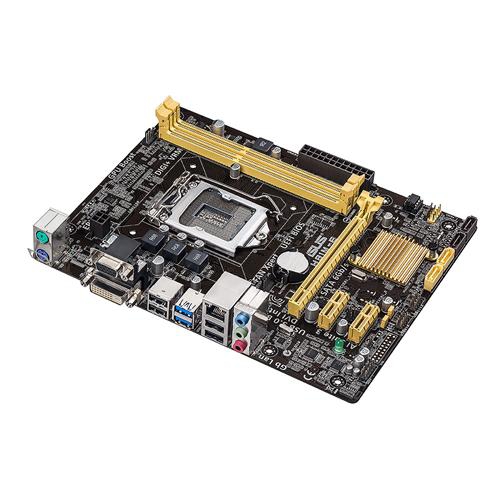

| 背面インターフェース | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI 1 x D-Sub 1 x LAN (RJ45) port(s) 2 x USB 3.0 (blue) 4 x USB 2.0 3 x Audio jack(s) |
| 基板上インターフェース | 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x SATA 6Gb/s connector(s) 2 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x Clear CMOS jumper(s) |
| 主な付属品 | User's manual I/O Shield 2 x SATA 6Gb/s cable(s) |
| BIOS | 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability | WfM 2.0, DMI 2.0, WOL by PME, PXE |
| サポートDVD | Drivers ASUS Utilities EZ Update Anti-Virus Software (OEM Version) |
| フォームファクター／サイズ（W×D） | uATX Form Factor 8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm ) |
| その他 | *1-1:Due to the limitation of the Intel H81chipset, Intel Rapid Start Technology can be configured only from the BIOS Setup program. *1-2:These functions will work depending on the CPU installed. *2:Use a chassis with HD audio module in the front panel to support an 8-channel audio output. |
