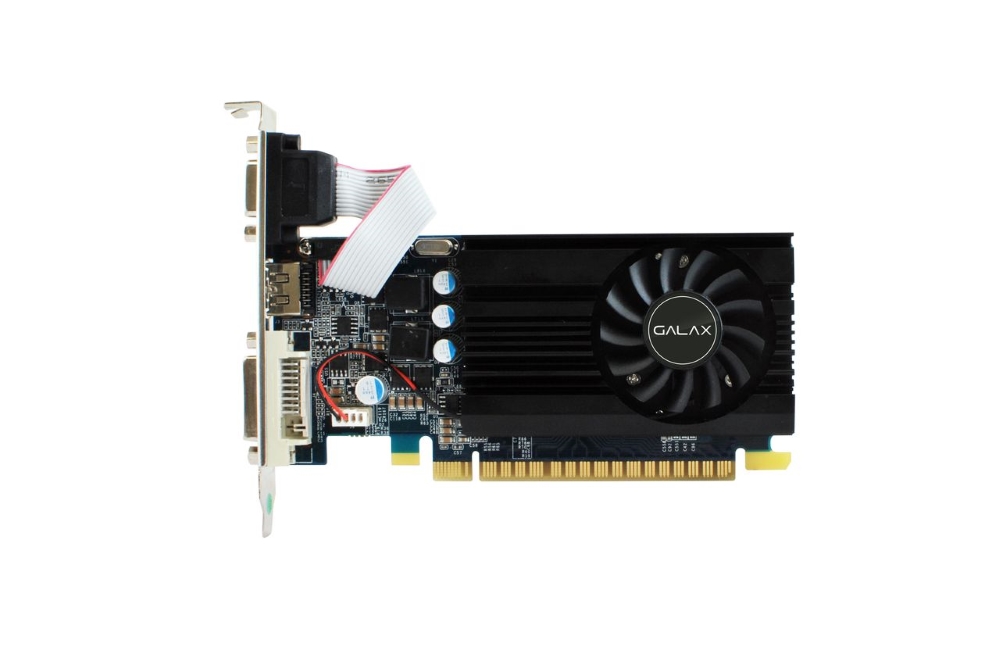

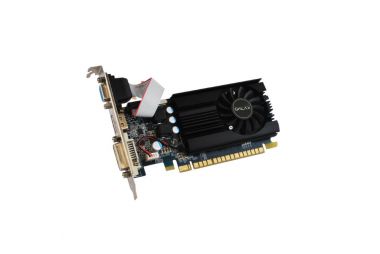

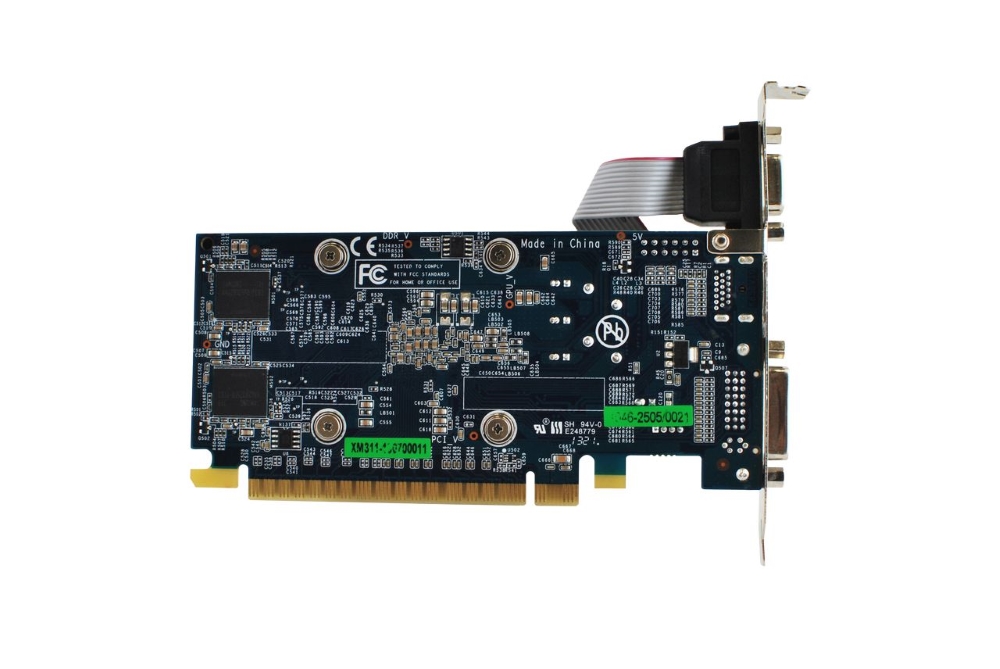

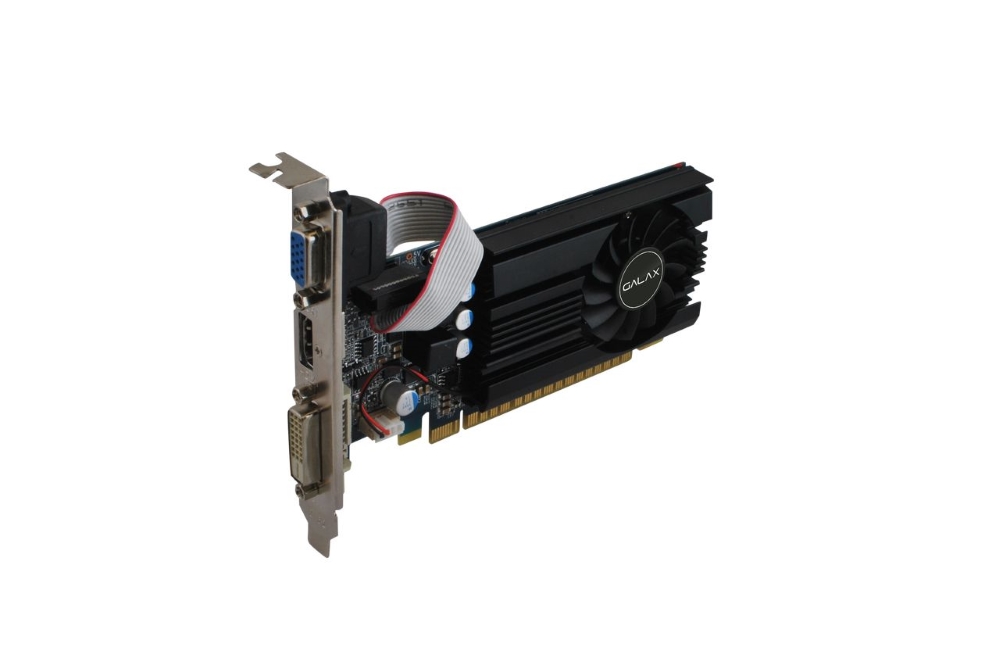

| GPU | GK208 |
| Process | 28 nm |
| Streaming Processing Unit | 384 SP |
| Idle Board Power | |
| Max Board Power | 49W |
| Power Connectors | |
| Idle GPU Temperature | 40℃ |
| Max GPU Temperature | 80℃ |
| Memory Size | 1024MB |
| Memory Type | DDR5 |
| Memory Width | 64-bit |
| Memory Bandwidth | 40 GB/s |
| Interface | PCI-E 2.0 x8 |
| Dimensions(with Bracket) | 158.7×85×28mm |
| Dimensions(without Bracket) | 144.7×68×25mm |
| Core Clock | 954MHz |
| Over Clock | O |
| Memory Clock (effective) | 5Gbps |
| Over Clock | × |

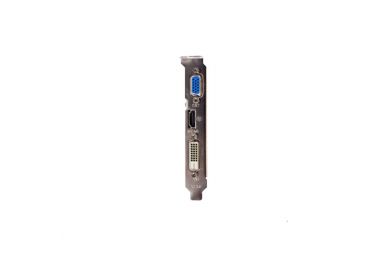

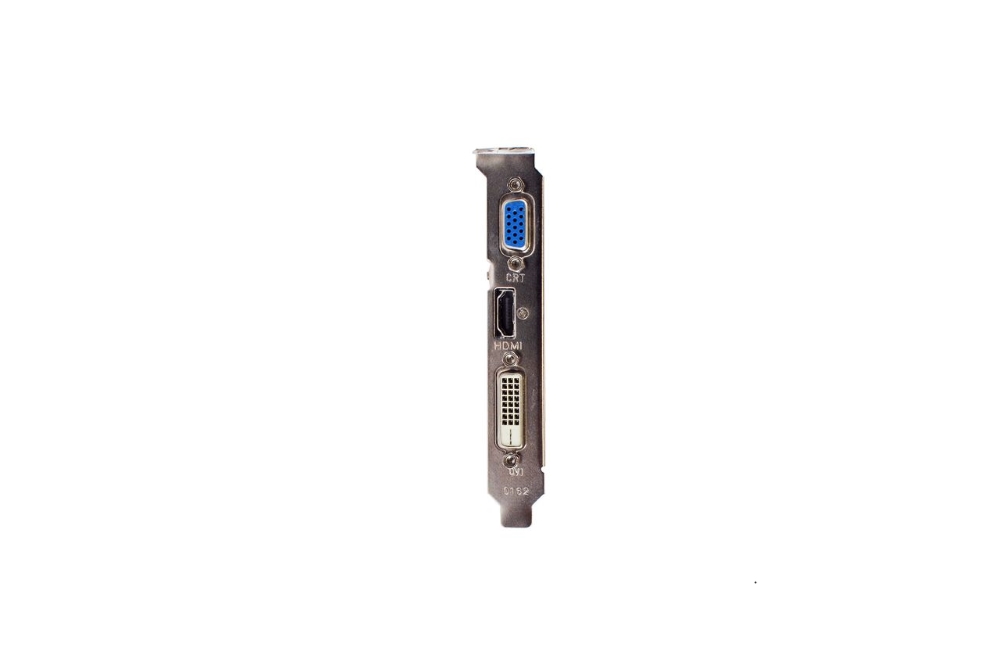

| 1st output | VGA |
| 2nd output | HDMI |
| 3rd output | Dual-link DVI-D |
| FAN | Custom Single Slot Fan |
| FAN Slot | 1 |
| FAN Control | ○ |
| Idle Noise Level (decibel) | 18.6dB |
| MAX Noise Level (decibel) | 34.5dB |
| DirectX | DirectX 12 API |
| Windows support | Windows XP / Vista / 7 / 8.1, 32/64-bit |
| Minimum Power Supply | 300W |
※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
