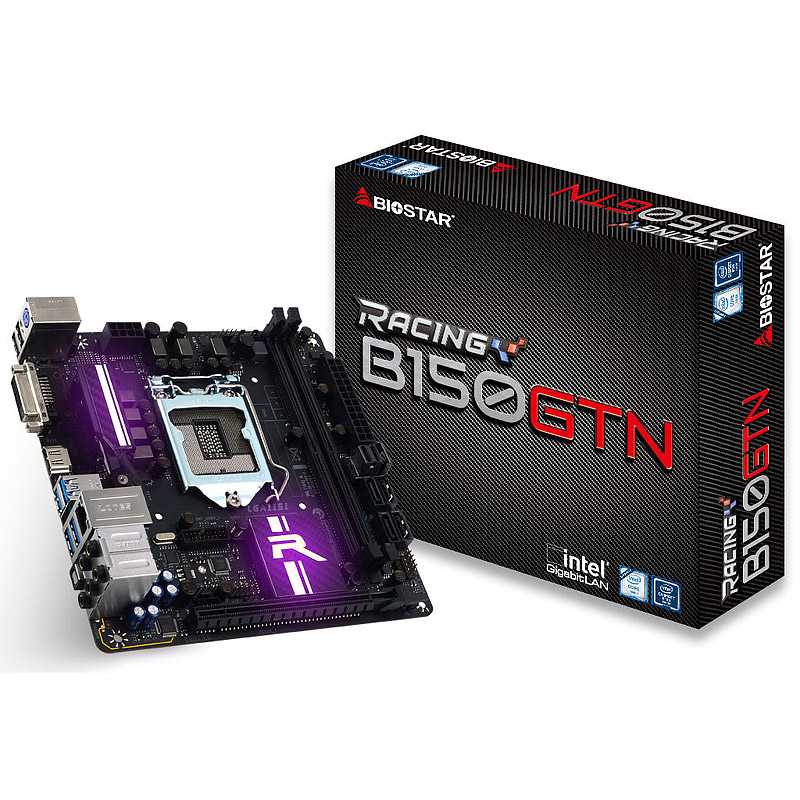

B150GTN

B150GTN

特徴

Supports 6th Generation Intel? Core? Processor
Intel B150 single chip architecture
Support 2-DIMM DDR4-2133/ 1866 up to 32G maximum capacity
BIOSTAR Hi-Fi Technology inside
Support USB 3.0
Support PCIe U.2(32Gb/s)
Support PCIe M.2(32Gb/s)

製品仕様

チップセットIntel B150
CPU SUPPORTIntel Core i7 LGA 1151 Processor
Intel Core i5 LGA 1151 Processor
Intel Core i3 LGA 1151 Processor
Intel Pentium LGA 1151 Processor
Intel Celeron LGA 1151 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt
メモリSupport Dual Channel DDR4 2133/ 1866 MHz
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory
拡張スロット1 x PCI-E x16 3.0 Slot
ストレージ4 x SATA3 Connector?
1 x U.2 32Gb/s Connector?

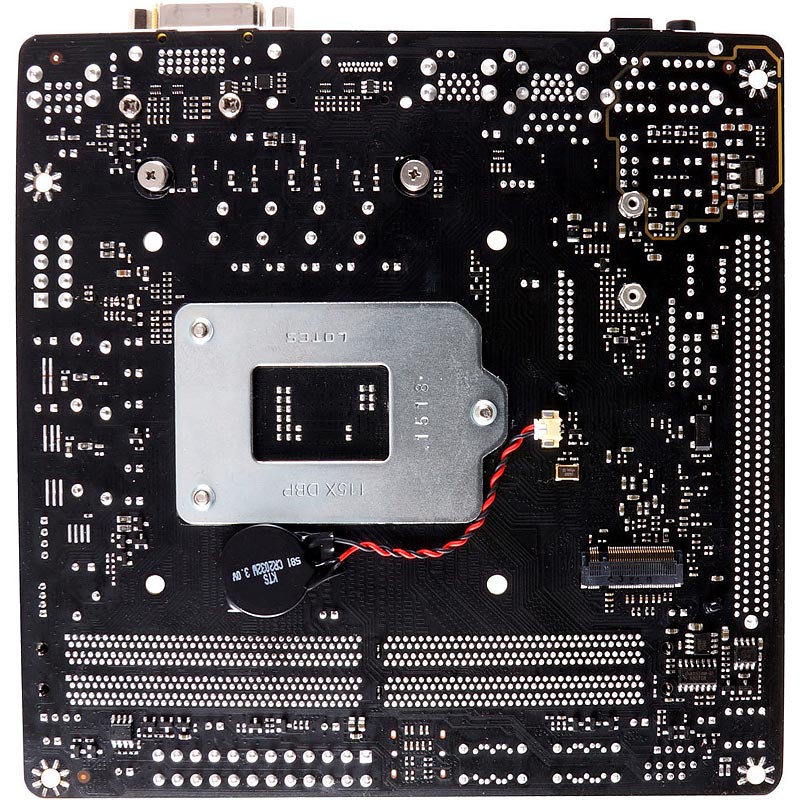

1 x M.2 Key M 32Gb/s Connector, support M.2 type 2260/ 2280 SATA 6Gb/s & PCI-E Storage(on the back of the motherboard)
USB4 x USB 3.0 Port
1 x USB 3.0 Header
2 x USB 2.0 Port
1 x USB 2.0 Header
LANIntel I219V - Gigabit Ethernet PHY
INTEGRATED VIDEOBy CPU model
Supports DX12
Supports HDCP
サウンドRealtek ALC892 8-Channel Blu-ray Audio
Support Biostar Hi-Fi

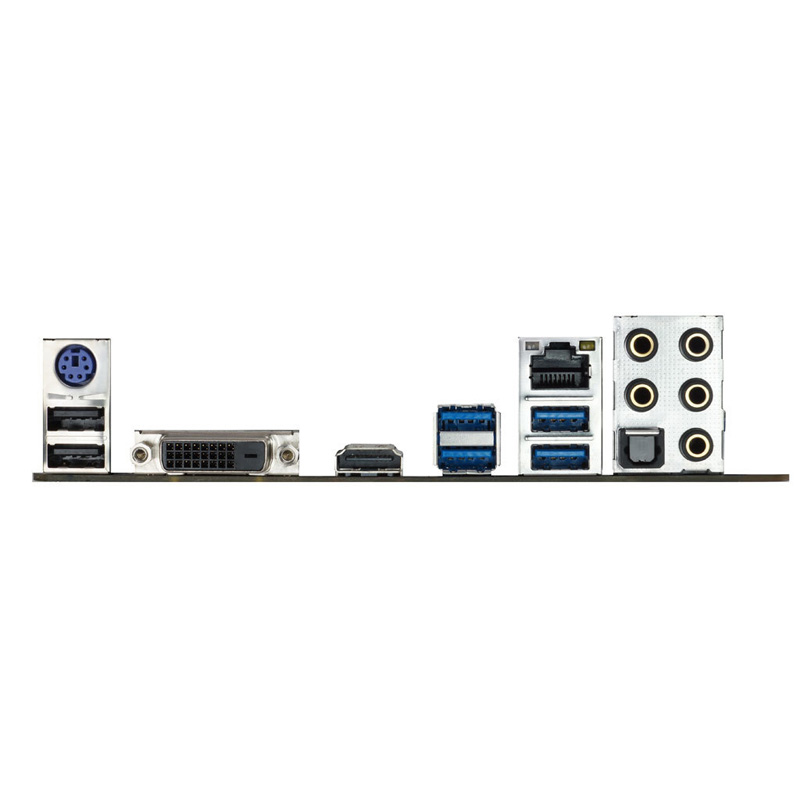

REAR I/O1 x PS/2 Keyboard/Mouse
4 x USB 3.0 Port
2 x USB 2.0 Port
1 x HDMI Connector, resolution up to 4096 x 2160 @24Hz, compliant with HDMI 1.4a
1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
1 x RJ-45 Port
5 x Audio Connector
1 x S/PDIF Out Port
INTERNAL I/O1 x USB 3.0 Header
1 x USB 2.0 Header
4 x SATA3 6Gb/s Connector
1 x U.2 32Gb/s Connector?
1 x M.2 Key M 32Gb/s Connector, support M.2 type 2260/ 2280 SATA 6Gb/s & PCI-E Storage(on the back of the motherboard)
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Header
1 x System Fan Header
1 x 5050 LED Header
H/W MONITORINGCPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU / System Fan Control
System Voltage Monitoring
マザーボードサイズMini ITX Form Factor Dimension: 17cm x 17cm ( W x L )
対応OSSupport Windows 7 / 8.1(x64) / 10(x64)
BUNDLE SOFTWARERacing GT Utility
BullGuard
BIO-Remote2
付属品4 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x User Manual
FEATURESSupports PURO Hi-Fi
Supports 100% Solid capacitor
Supports BIOS-Flasher
Supports Charger Booster
Supports BIOS Online Update

※製品の仕様・付属品は予告なく変更する場合があります、予めご了承下さい。
