【MAG B560M BAZOOKAの主な特徴】

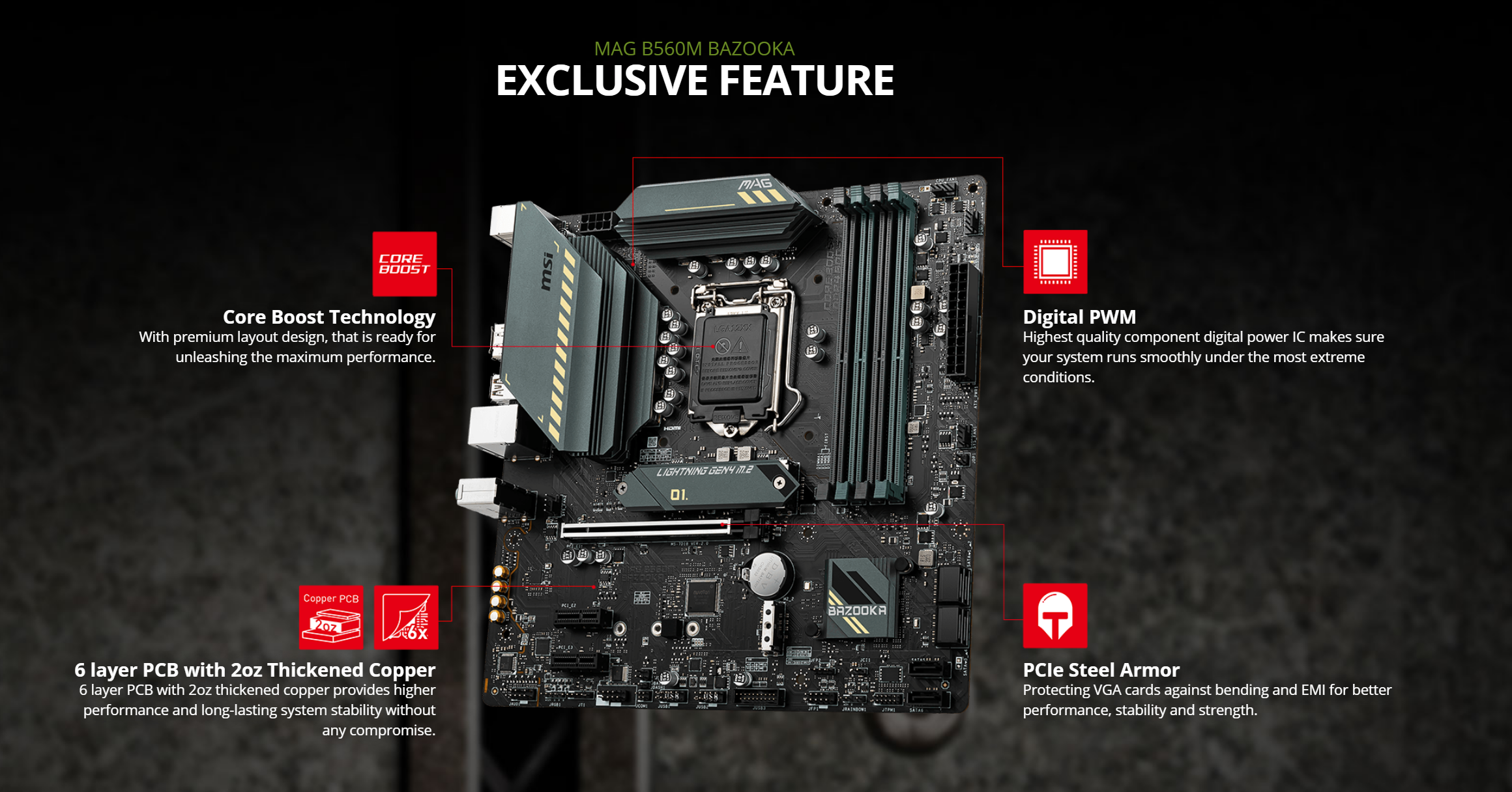

・5+2+1フェーズの電源回路を搭載するコンパクトなMicro-ATXサイズ対応のゲーミングマザーボード
・アーミーをイメージしたミッドナイトグリーンのカラーリングでケースに調和するデザイン

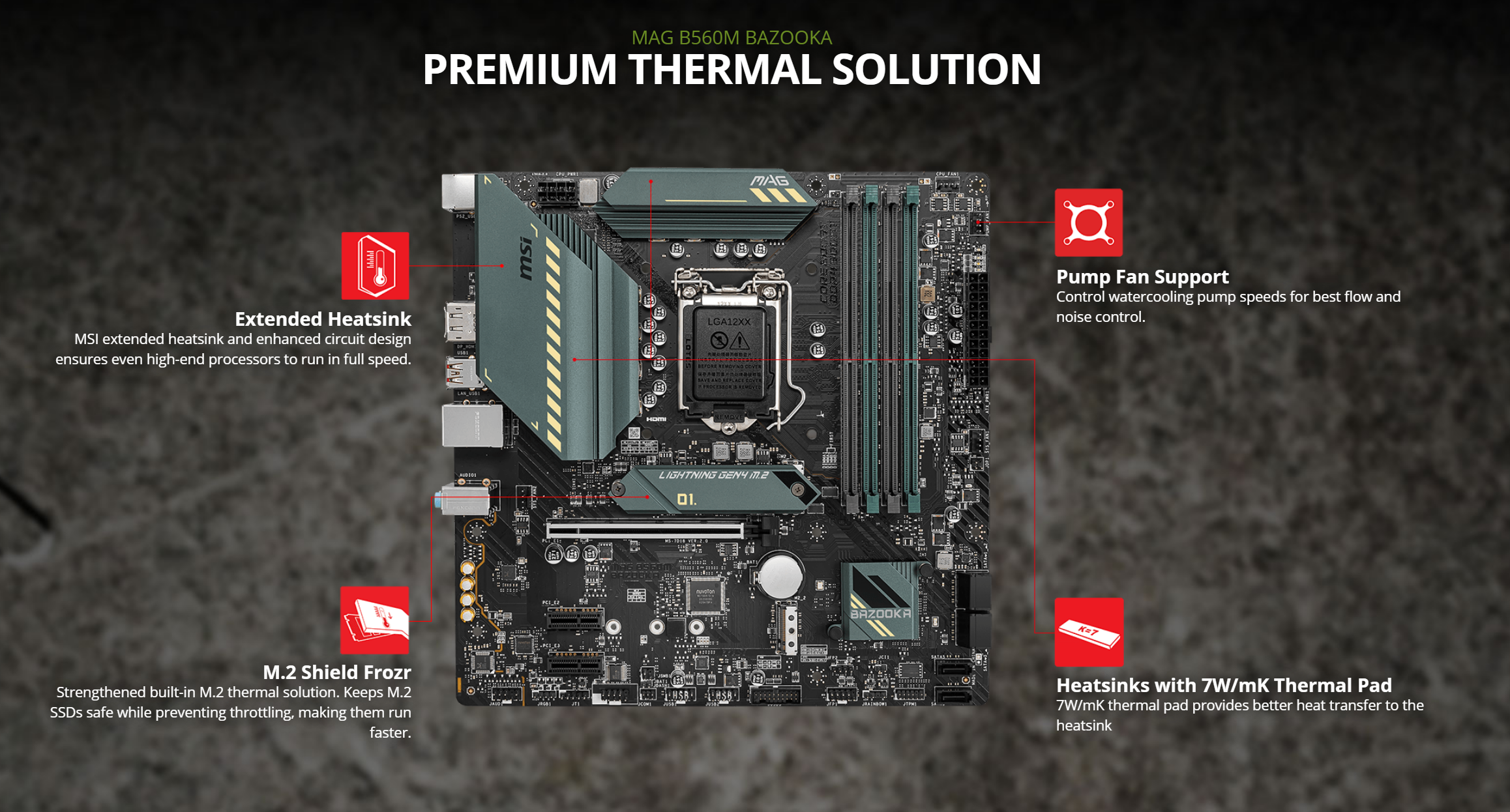

・放熱性と導電性に優れた2オンス厚の銅を採用し、基板上の熱を強力に冷却

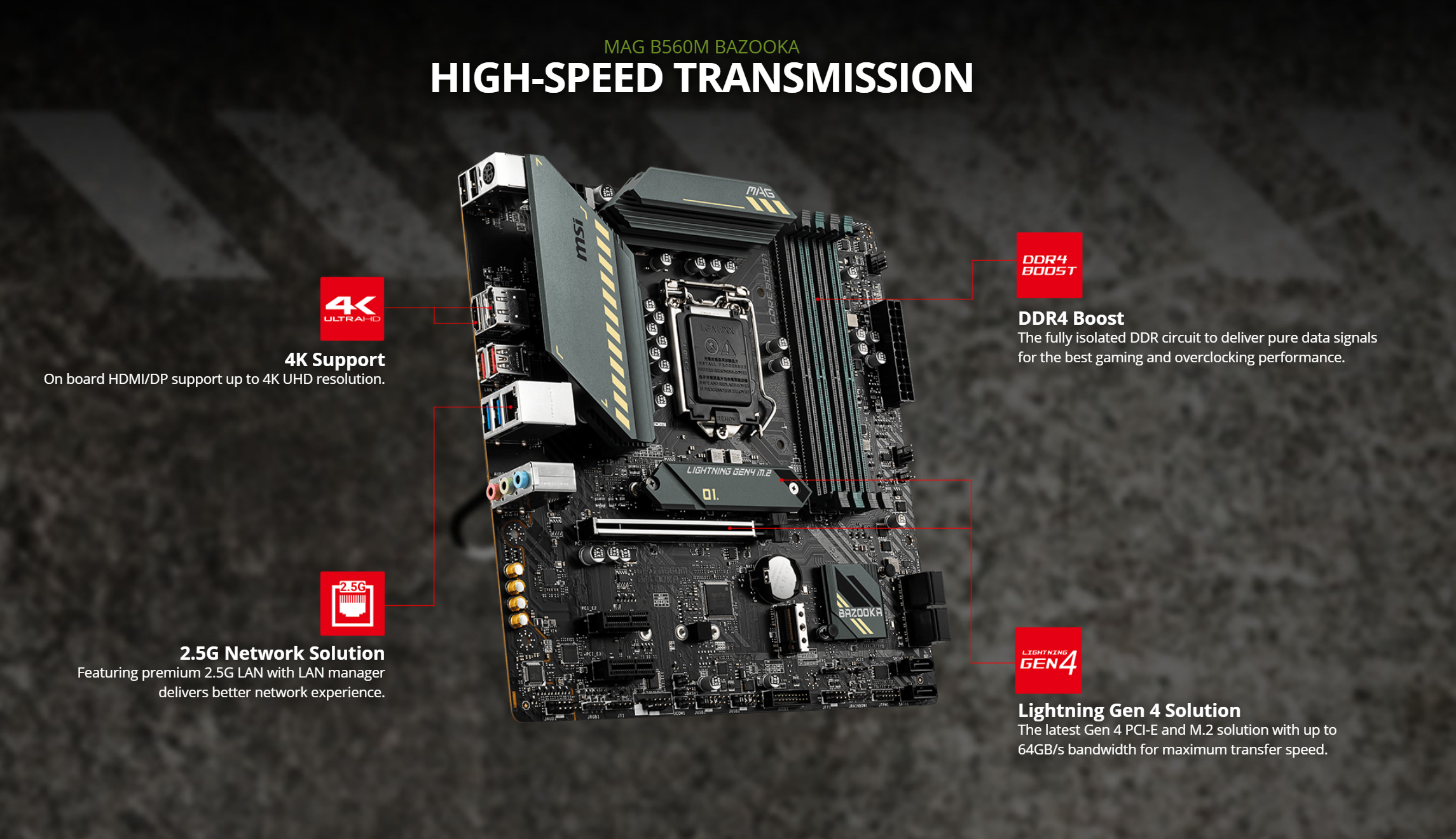

・Realtek 2.5G LANを採用し、AAAタイトルゲームなどの大容量のデータを高速に扱うことが可能
MEG Z790 GODLIKE MAX
MEG Z790 GODLIKE
MEG Z790 ACE MAX
MPG Z790 CARBON WIFI II
MPG Z790 CARBON WIFI
MPG Z790 EDGE TI MAX WIFI
MPG Z790I EDGE WIFI
MAG Z790 TOMAHAWK MAX WIFI
PRO Z790-A MAX WIFI
PRO Z790-P WIFI
PRO Z790-A WIFI DDR4
PRO Z790-S WIFI
Z790 GAMING PLUS WIFI
MPG Z790 EDGE MONSTER HUNTER EDITION
B760M PROJECT ZERO
MPG B760M EDGE TI WIFI
MAG B760 TOMAHAWK WIFI
MAG B760M MORTAR WIFI II
PRO B760M-A WIFI DDR4
PRO B760M-E DDR4
B760 GAMING PLUS WIFI
B760M GAMING PLUS WIFI
Z390-A PRO
MPG Z390 GAMING PLUS
MAG Z390 TOMAHAWK
MPG Z390I GAMING EDGE AC
MPG Z390 GAMING EDGE AC
MPG Z390 GAMING PRO CARBON
MEG Z390 ACE
MEG Z390 GODLIKE
GeForce RTX 4070 Ti SUPER 16G GAMING X SLIM
GeForce RTX 4070 Ti SUPER 16G GAMING X SLIM WHITE
GeForce RTX 4070 Ti SUPER 16G VENTUS 3X OC
GeForce RTX 4070 Ti SUPER 16G VENTUS 2X OC
GeForce RTX 4070 Ti SUPRIM X 12G
GeForce RTX 4070 Ti GAMING X TRIO 12G
GeForce RTX 4070 Ti GAMING X TRIO WHITE 12G
GeForce RTX 4070 Ti GAMING TRIO 12G
GeForce RTX 4070 TI VENTUS 3X 12G OC
GeForce RTX 4060 Ti GAMING X TRIO 8G
GeForce RTX 4060 Ti 8G VENTUS 2X BLACK E1 OC
GeForce RTX 4060 Ti VENTUS 2X BLACK 16G OC
GeForce RTX 4060 Ti VENTUS 2X BLACK 8G OC
GeForce RTX 4060 Ti 8G MONSTER HUNTER EDITION
GEFORCE GTX1080 ARMOR 8G OC
GEFORCE GTX 1080 GAMING Z 8G
GEFORCE GTX 1080 SEA HAWK X
GEFORCE GTX 1080 GAMING X 8G
GEFORCE GTX 1080 TI ARMOR 11G OC
GEFORCE GTX 1080 TI GAMING X 11G
GEFORCE GTX 1060 GAMING X 6G
GEFORCE GTX1060 6G OC
GEFORCE GTX1060 3G OC
GEFORCE GTX1060 ARMOR 6G OCV1
GEFORCE GTX1060 ARMOR 3G OCV1
GeForce GTX 1060 GAMING X 3G
GEFORCE GTX 1060 ARMOR 6G OC
GEFORCE GTX 1060 AERO ITX 3G OC
GEFORCE GTX 1060 AERO ITX 6G OC
MPG VELOX 100P AIRFLOW
MPG GUNGNIR 110R WHITE
MPG GUNGNIR 110R EVA e-PROJECT
MPG GUNGNIR 300 MONSTER HUNTER EDITION
MAG FORGE 320R AIRFLOW WHITE
MAG FORGE 320R AIRFLOW
MPG GUNGNIR 300R AIRFLOW WHITE
MPG GUNGNIR 300R AIRFLOW
MEG CORELIQUID S280
MEG CORELIQUID S360
MPG CORELIQUID D240
MPG CORELIQUID D360
MAG CORELIQUID C240 EVA e-PROJECT
MAG CORELIQUID 240R V2
MAG CORELIQUID 240R V2 WHITE
MAG CORELIQUID 360R V2
MAG CORELIQUID M240
MAG CORELIQUID M360
MAG CORELIQUID E240 WHITE
MAG CORELIQUID E240
MAG CORELIQUID E360 WHITE
MAG CORELIQUID E360
MAG CORELIQUID E360 MONSTER HUNTER EDITION
MAG CORELIQUID 280R V2
MEG Ai1300P PCIE5
MPG A1000G PCIE5
MPG A850G PCIE5
MAG A1250GL PCIE5
MAG A1000GL PCIE5
MAG A850GL PCIE5 WHITE
MAG A850GL PCIE5
MAG A750GL PCIE5
MAG A650BN EVA e-PROJECT
MAG A650BN
MAG A550BN
MAG A650BNL
VIGOR GK50 ELITE TKL LR JP
VIGOR GK71 SONIC BLUE
VIGOR GK71 SONIC JP
VIGOR GK50 LOW PROFILE TKL JP
VIGOR GK50 ELITE BOX WHITE
VIGOR GK20 JP
VIGOR GK30 COMBO WHITE JP
Intel B560チップセット搭載・MicroATXマザーボード
5+2+1フェーズ電源回路を搭載、2.5G LANに対応
CPU | Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors* Processor socket LGA1200 *Please go to intel.com for compatibility information. See supported processors |
チップセット | Intel® B560 Chipset |
メモリー | 4x DDR4 memory slots, support up to 128GB* Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)* Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)* Max overclocking frequency: 1DPC 1R Max speed up to 5066 MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) *Please refer www.msi.com for more information on compatible memory. See supported memory |
拡張スロット | 1x PCIe x16 slot PCI_E1 (from CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU 2x PCIe 3.0 x1 slots PCI_E2 & PCI_E3 (From B560 chipset) |
映像出力 | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics Graphics specifications may vary depending on the CPU installed. |
ストレージ | 6x SATA 6Gb/s ports (from B560 chipset) 2x M.2 slots (Key M) M2_1 slot Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU(From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)* Supports 2242/ 2260/ 2280 storage devices M2_2 slot**(from B560 chipset) Supports up to PCIe 3.0 x4 Supports SATA up to 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready* Supports Intel® Smart Response Technology for Intel Core™ processors *SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. **Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
USB | Intel® B560 Chipset 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 2x USB 2.0 Type-A ports on the back panel USB Hubs GL850G 4x USB 2.0 ports are available through the internal USB 2.0 connectors |
オーディオ | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
LAN | 1x Realtek® RTL8125B 2.5Gbps LAN controller |
INTERNAL CONNECTORS | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Serial port connector 1x Tuning Controller connector |
BACK PANEL PORTS | Mouse / Keyboard DisplayPort 2.5G LAN Port Audio Connectors HD Audio Connectors HDMI USB 3.2 Gen 2 10Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A |
フォームファクター | Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
OS | Support for Windows® 10 64-bit |
※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
