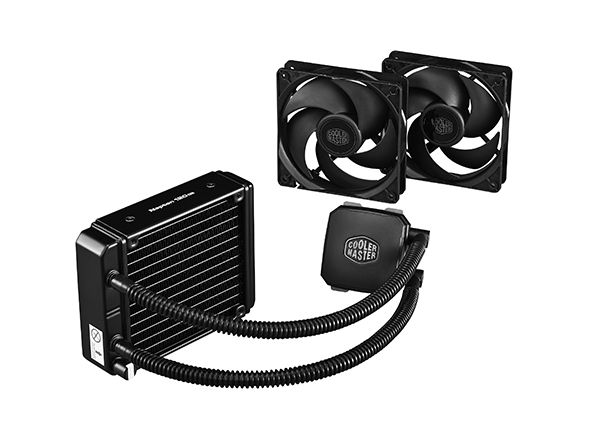

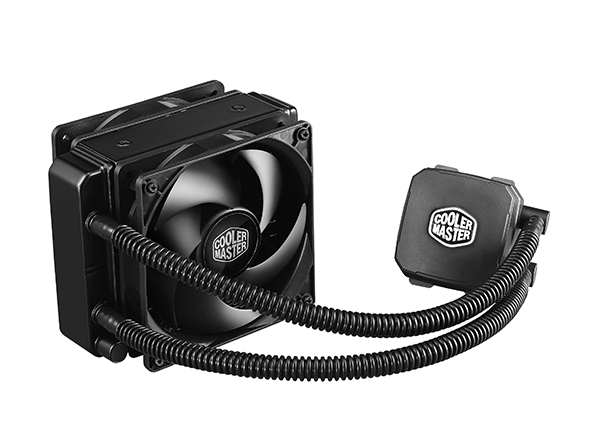

Nepton 120XL

Nepton 120XL

Factory filled with coolant, then sealed and pressure tested - requires zero maintenance for years.

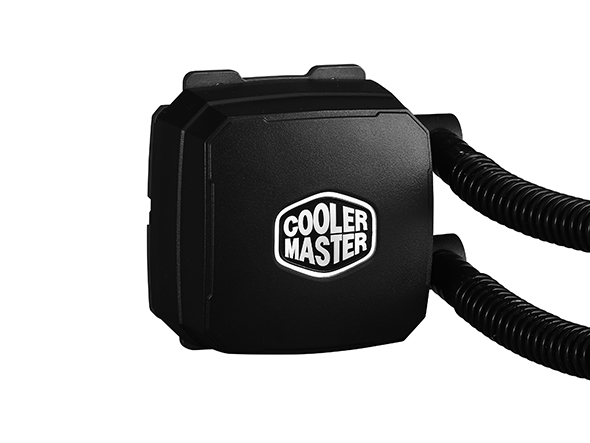

CM self-designed pump and waterblock guarantees the best water flow and system performance.
Bigger tubing and radiator size provide superior heat dissipation performance.
Exclusive design 120mm fan application to ensure that it helps dissipate heat efficiently and effectively.
Unique LED illumination on the water block lens as a styling accent

CPU Socket Intel LGA 2011-3 / 2011 / 1366 / 1150 / 1156 / 1155 / 775
AMD Socket FM2 / FM2+ / FM1 / AM3+ / AM3 / AM2+
Dimensions 75 x 69.8 x 49.1 mm (3 x 2.7 x 1.9 inch)
Radiator Dimensions 150 x 119 x 38 mm (5.9 x 4.7 x 1.5 in)
Radiator Material Aluminum
Fan Dimensions 120 x 120 x 25 mm (4.9 x 4.9 x 1 inch)
Fan Speed 800~2400 RPM (PWM) ± 10%
Fan Air Flow 16.5 - 76 CFM (28 – 128 m3/h) ± 10%
Fan Air Pressure 0.48~4.8 mmH2O
Fan Life Expectancy 160,000 hours
Fan Noise Level 6.5~27 dBA
Fan Bearing Type Loop Dynamic Bearing (LDB)
Fan Connector 4-Pin
Fan Rated Voltage 12 VDC
Pump Life Expectancy 70,000 hours
Pump Noise Level < 15 dBA
Pump Rated Voltage 12VDC
Pump Power Consumption 4.8W

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
