Red Dragon Radeon RX 560 2GB 16CU GDDR5 OC V3 [AXRX 560 2GBD5-DHV3/OC]

Red Dragon Radeon RX 560 2GB 16CU GDDR5 OC V3 [AXRX 560 2GBD5-DHV3/OC]

型番：TUL-AXRX560/2GBD5-DHV3/OC

特徴

Part Number: AXRX 560 2GBD5-DHV3/OC
Graphics Engine: RADEON RX 560
Compute Units: 16
Streaming Processor: 1024
Video Memory: 2GB GDDR5
Engine Clock: up to 1180MHz with boost
Memory Clock: 1750MHz x4 (7.0Gbps)
Memory Interface: 128bit
DirectX Support: 12
Bus Standard: PCIE 3.0

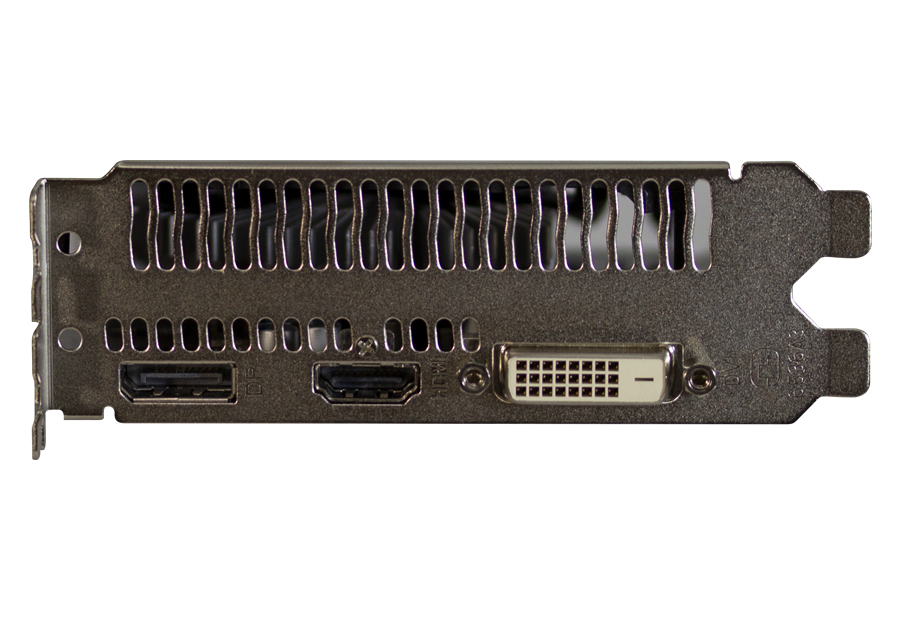

Display Connectors: DL DVI-D/ HDMI/ DisplayPort



製品仕様

Graphics Engine RADEON RX 560
Compute Units 16
Streaming Processor 1024
Video Memory 2GB GDDR5
Engine Clock up to 1180MHz with boost
Memory Clock 1750MHz x4 (7.0Gbps)
Memory Interface 128bit
DirectX(R) Support 12
Bus Standard PCIE 3.0
Standard Display Connecors DL DVI-D/ HDMI/ DisplayPort
OpenGL Support
CrossFireX(TM) Technology Support
ATI Stream Technology Support
ATI Eyefinity Technology Support
ATI Hypermemory Technology
VGA Output
DVI Output DL DVI-D
DisplayPort DisplayPort
HDMI On Board
TV Output
HDTV Output
HDCP Support Support
VGA
DVI 2560x1600
DisplayPort 4096x2160
HDMI 4096x2160
Board Dimensions 225mm*128mm*38mm
Minimum System Power requirement (W) 400W
Extension Power Connector

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
