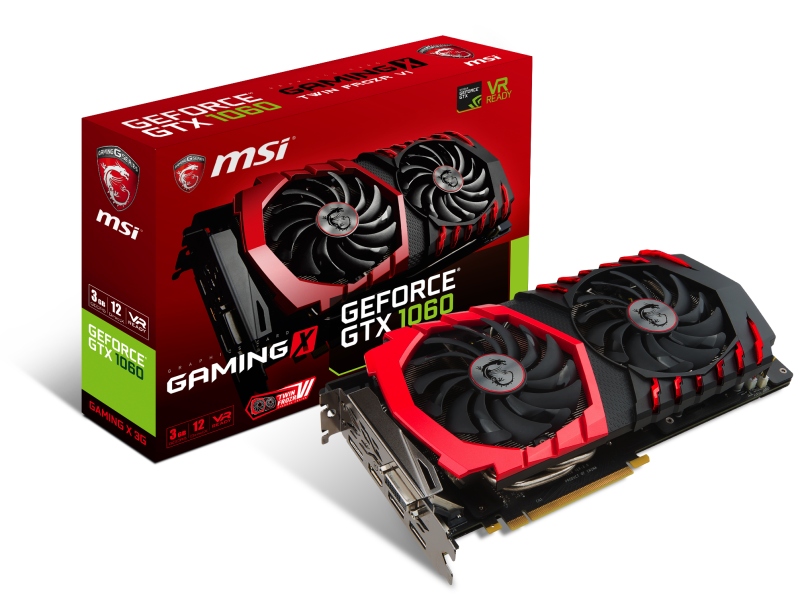

型番:MSI-GEFORCE/GTX1060/GAMING/X/3G

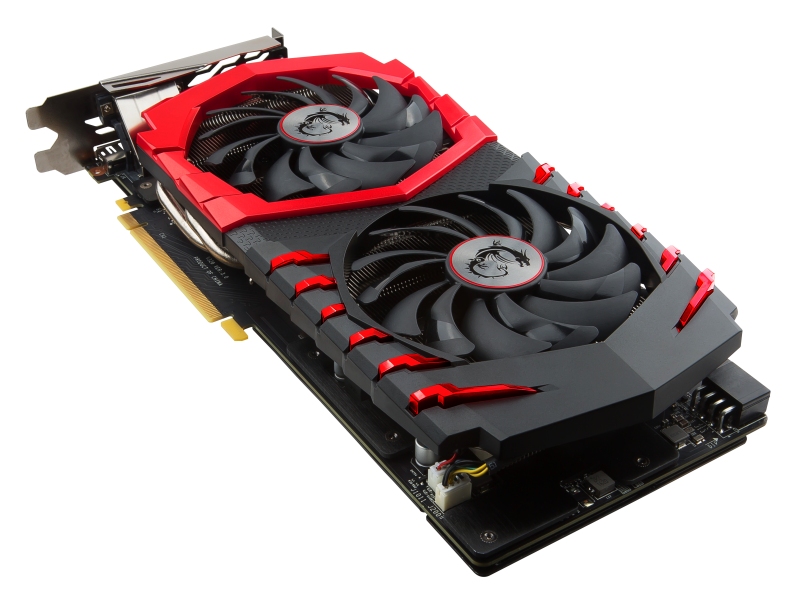

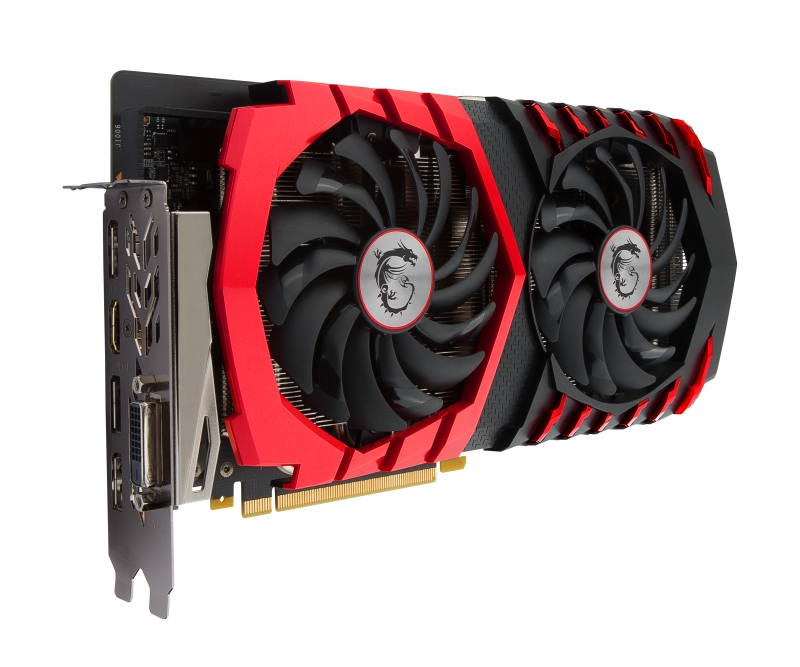

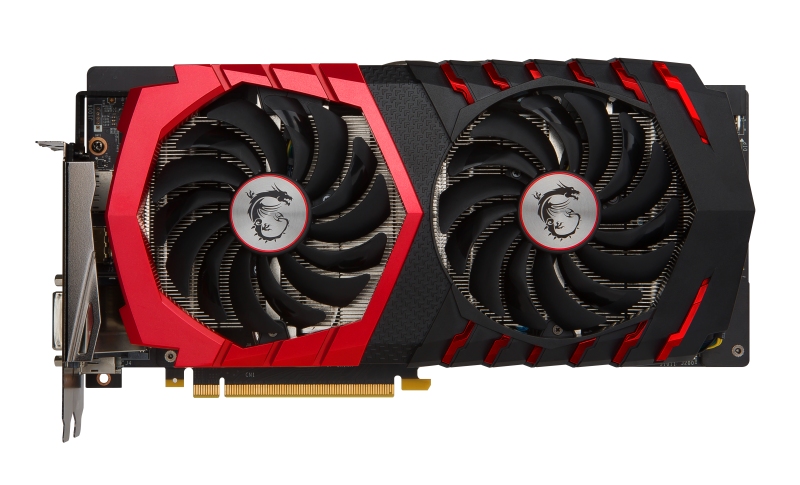

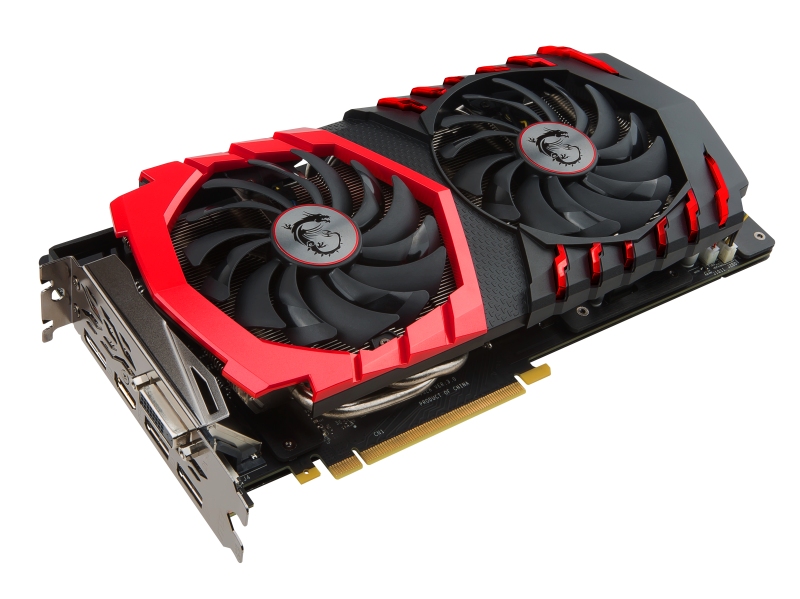

The Ultimate GAMING: TWIN FROZR VI
?Smooth heat pipes
Squared shape at bottom maximize heat
transfer from the copper base plate
?Zero Frozr
Stopping the fan in low-load situations,
keeping a noise-free environment
?Airflow Control technology
Deflectors thrusts air onto heat pipes for lower temperatures and better gaming
TORX FAN 2.0: Supremely silent
?Dispersion fan blade Steeper curved blade accelerating the airflow
?Traditional fan blade Provides steady airflow to massive heat sink below
Gaming App
?Instant Performance Gain Unlock extra performance or keep your card silent during light use in one click
?LED control Full control on your RGB GAMING LEDs to set the mood
?Mobile APP Control your graphics card from your phone
Model Name | GeForce GTX 1060 GAMING X 3G |
Graphics Processing Unit (GPU) | NVIDIA GeForce GTX 1060 |
Interface | PCI Express x16 3.0 |
Core name | GP106-300 |
CUDA Core | 1152 Units |
Boost / Base Core Clock | 1809 / 1594 MHz (OC) 1784 / 1569 MHz (Gaming) 1708 / 1506 MHz (Silent) |
Memory Clock | 8108 MHz (OC) 8008 MHz (Gaming / Silent) |
Memory Size / Bus | 3GB GDDR5 / 192-bit |

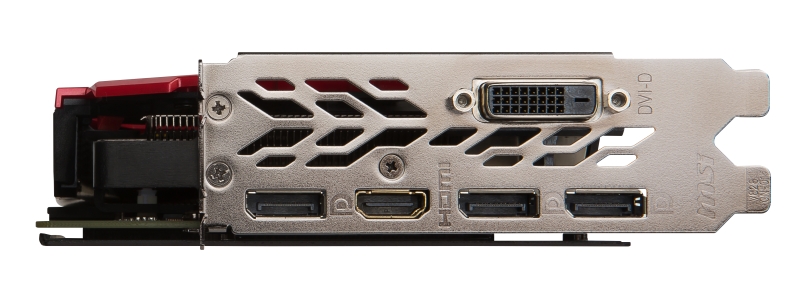

Output | DisplayPort x 3 / HDMI / DL-DVI-D |
Power Consumption / Connector | 120 W / 8-pin x 1 |
Recommended PSU | 400 W |
Card Dimension | 277*140*39 mm |
Form Factor | ATX |
Afterburner OC | Y |
DirectXTM | 12 |
OpenGL | 4.5 |
Multi-GPU technology | N |
Multi-Display technology | Simultaneous Multi-Projection |
Maximum Displays | 4 |
VR Ready | Y |
GameWorksTM technology | Y |
GameStreamTM technology | Y |
G-SYNCTM technology | Y |
Adaptive Vertical Sync | Y |
HDCP Capable | 2.2 |
NVIDIA Ansel | Y |
Power Saving technology | GPU BoostTM 3.0 |
Driver CD | Y |
Installation Guide | Y |
※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
