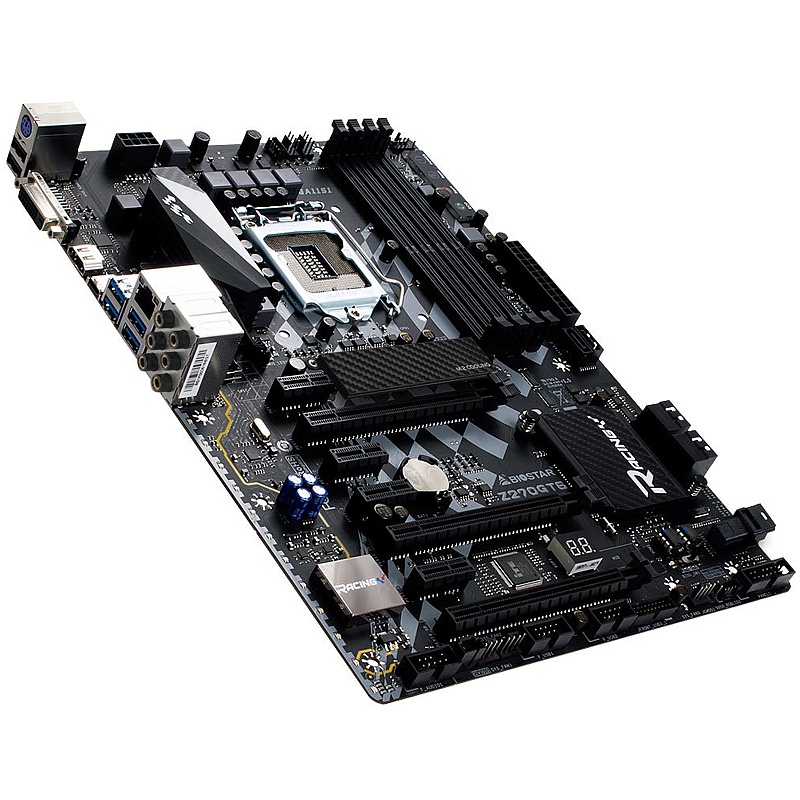

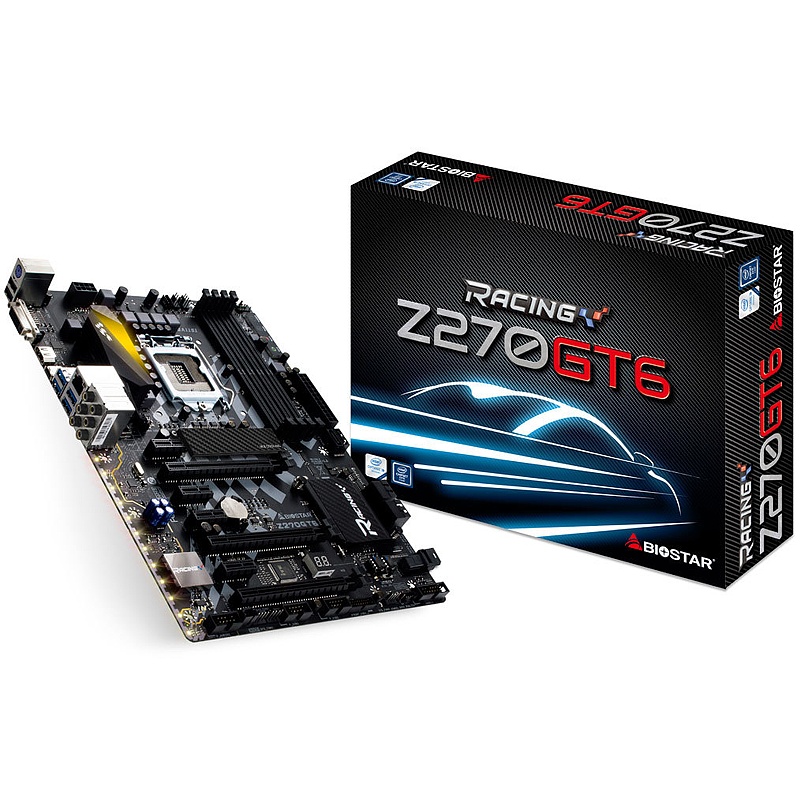

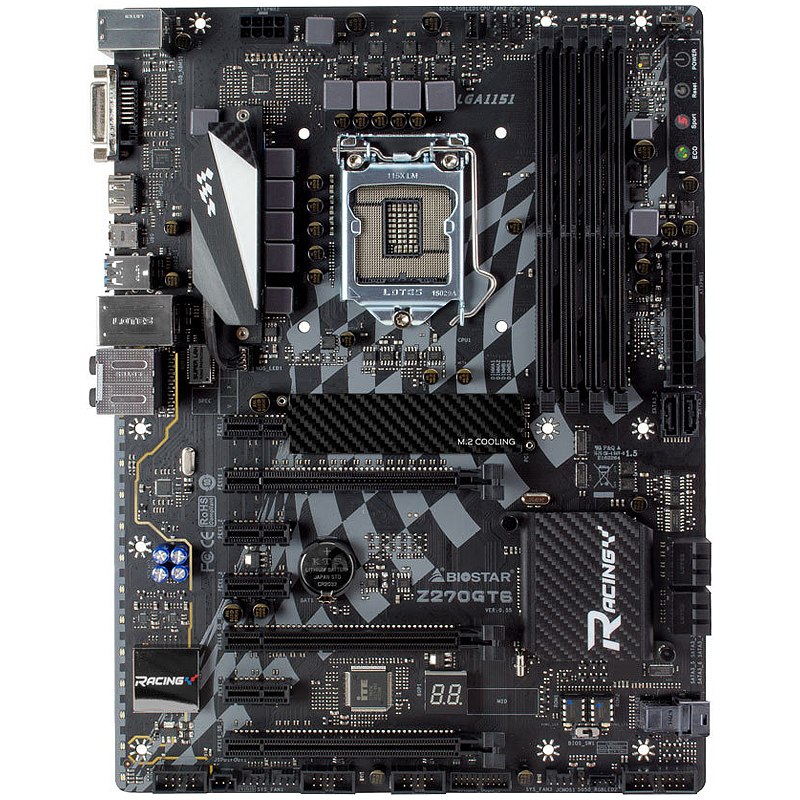

RACING Z270GT6

RACING Z270GT6

型番：BIO-Z270GT6/G300/240G

特徴

第7世代 Intel Core プロセッサー 対応
Intel Z270 シングルチップアーキテクチャ
240GB SSD (BIOSTAR G300 240GB)付属
4-DIMM DDR4-3200(OC)/ 2400/ 2133/ 1866 合計64GBまで対応
BIOSTAR Hi-Fi テクノロジー
M.2(32Gb/s Intel Optane Technology Ready)対応
U.2(32Gb/s Intel Optane Technology Ready)対応
HDMI 4Kレゾリューション



製品仕様

Chipset Intel Z270
CPU SUPPORT Intel Core i7 LGA 1151 Processor
Intel Core i5 LGA 1151 Processor
Intel Core i3 LGA 1151 Processor
Intel Pentium LGA 1151 Processor
Intel Celeron LGA 1151 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt
MEMORY Support Dual Channel DDR4 3200(OC)/ 2400/ 2133/ 1866 MHz
4 x DDR4 DIMM Memory Slot
Max. Supports up to 64GB Memory
EXPANSION SLOT 1 x PCI-E x16 3.0 Slot(x16)
2 x PCI-E x16 3.0 Slot(x4)(Intel Optane Technology ready)
4 x PCI-E x1 3.0 Slot
STORAGE 6 x SATA3 Connector
Support SATA RAID: 0,1,5,10
1 x U.2 32Gb/s Connector, support PCI-E Storage(share w/ SATA3_4U,4L)(Intel Optane Technology ready)
1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s(share w/ SATA3_1) & PCI-E Storage(share w/ PEX16_SB_1)(Intel Optane Technology ready)
Support PCI-E Storage RAID: 0,1,5
USB 1 x USB 3.0 Type-C Port
4 x USB 3.0 Port
1 x USB 3.0 Header
2 x USB 2.0 Port
2 x USB 2.0 Header
LAN Intel I219V - Gigabit Ethernet PHY
Support Super LAN Surge Protection
INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
CODEC Realtek ALC892 8-Channel Blu-ray Audio
Support Blu-ray Audio
Support HD Audio
Support Biostar Hi-Fi

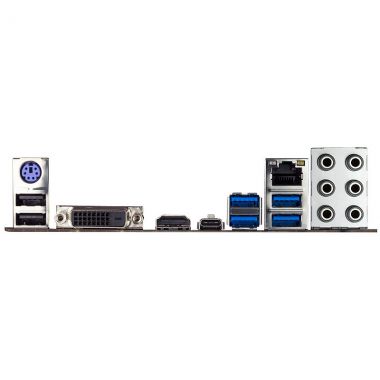

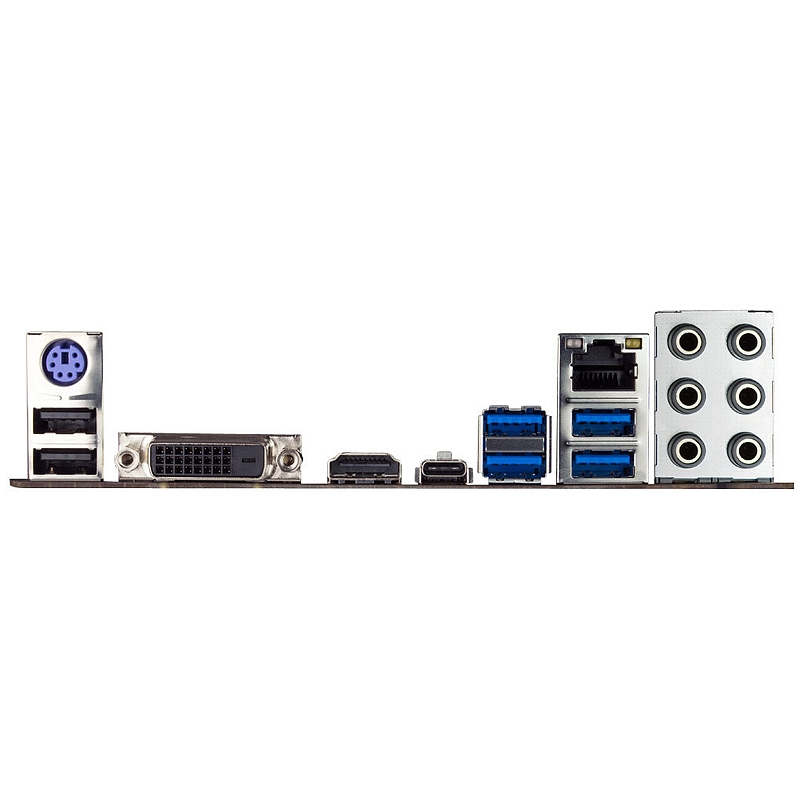

REAR I/O 1 x PS/2
1 x USB 3.0 Type-C Port
4 x USB 3.0 Port
2 x USB 2.0 Port
1 x HDMI Connector, resolution up to 4096 x 2160 @30Hz, compliant with HDMI 1.4
1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
1 x RJ-45 Port
6 x Audio Connector
INTERNAL I/O 1 x USB 3.0 Header
2 x USB 2.0 Header
6 x SATA3 6Gb/s Connector
1 x U.2 32Gb/s Connector, support PCI-E Storage(share w/ SATA3_4U,4L)(Intel Optane Technology ready)
1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s(share w/ SATA3_1) & PCI-E Storage(share w/ PEX16_SB_1)(Intel Optane Technology ready)
1 x Front Audio Header
1 x Front Panel Header
1 x S/PDIF-Out Header
2 x CPU Fan Header
3 x System Fan Header
1 x LN2 Switch
2 x 5050 LED Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU / System Fan Control
System Voltage Monitoring
OVERVOLTAGE CPU Vcore/ VSA/ VCC_IO/ VGT/ VCC_PLL_OC/ DDR/ DDR VPP/ PCH 1.0V
DIMENSION ATX Form Factor Dimension: 30.5cm x 22.5cm ( W x L )
OS SUPPORT Support Windows 10(x64) for Intel 7th Generation Processor
※Support Windows 7 / 8.1(x64) / 10(x64) for Intel 6th Generation Processor
BUNDLE SOFTWARE Racing GT Utility
BullGuard
Intel Rapid Storage Technology
ACCESSORIES 4 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x User Manual
1 x RGB LED Adapter Cable(Optional)
FEATURES VIVID LED DJ
5050 LED FUN ZONE
M.2 Cooling Protection
Supports Double Hi-Fi
GT TOUCH
Supports 100% Solid capacitor
Supports Rapid Debug3
Supports Charger Booster
Supports BIOS Online Update

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
