Racing Z370GT6

Racing Z370GT6

特徴

インテル第8世代Coreプロセッサー対応
インテルZ370チップセット
DDR4 4スロット対応 (最大 64GB)
BIOSTAR Hi-Fi テクノロジー
USB 3.1対応
M.2(32Gb/s)対応
HDMI 4K解像度対応

製品仕様

チップセットIntel Z370
CPU SUPPORT8th Gen Intel(R) Core(TM) i7 LGA 1151 Processor
8th Gen Intel(R) Core(TM) i5 LGA 1151 Processor
8th Gen Intel(R) Core(TM) i3 LGA 1151 Processor
8th Gen Intel(R) Pentium(R) LGA 1151 Processor
8th Gen Intel(R) Celeron(R) LGA 1151 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt
メモリSupport Dual Channel DDR4 3866(OC)/ 3600(OC)/ 3200(OC)/ 2933(OC)/ 2666(OC)/ 2400/ 2133/ 1866 MHz
4 x DDR4 DIMM Memory Slot
Max. Supports up to 64GB Memory
拡張スロット3 x PCI-E x16 3.0 Slot(x8,x8,x4)(x4 shared bandwidth with M.2_2, support Intel Rapid Storage Technology)
3 x PCI-E x1 3.0 Slot
ストレージ6 x SATA3 Connector
Support SATA RAID: 0,1,5,10
1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s & PCI-E Storage(Intel Optane Technology ready)
1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280/ 22110 PCI-E Storage(Intel Optane Technology ready)
Support PCI-E Storage RAID: 0,1
USB2 x USB 3.1 Gen2 Port
1 x USB 3.1 Gen1 Type-C Port
2 x USB 3.1 Gen1 Port
2 x USB 3.1 Gen1 Header
2 x USB 2.0 Port
2 x USB 2.0 Header
LANIntel I219V - Gigabit Ethernet PHY
Support Super LAN Surge Protection
MULTI GRAPHICS3-way AMD Crossfire Technology
INTEGRATED VIDEOBy CPU model
Supports DX12
Supports HDCP
サウンドRealtek ALC1220 8-Channel Blu-ray Audio
Support Blu-ray Audio
Support HD Audio
Support Biostar Hi-Fi

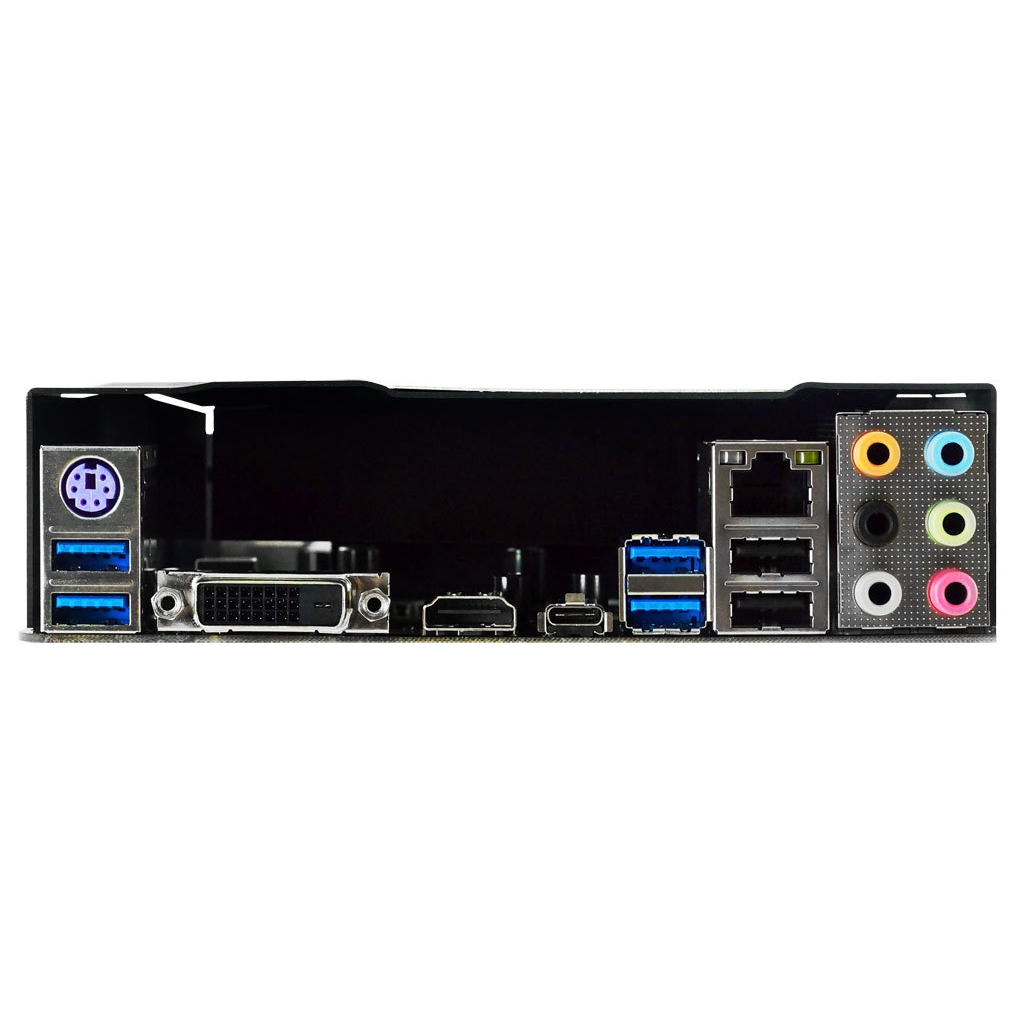

REAR I/O1 x PS/2 Keyboard/Mouse
2 x USB 3.1 Gen2 Port
1 x USB 3.1 Gen1 Type-C Port
2 x USB 3.1 Gen1 Port
2 x USB 2.0 Port
1 x HDMI Connector, resolution up to 4096 x 2160 @30Hz, compliant with HDMI 1.4
1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
1 x RJ-45 Port
6 x Audio Connector
INTERNAL I/O2 x USB 3.1 Gen1 Header
2 x USB 2.0 Header
6 x SATA3 6Gb/s Connector(when using SATA SSD on M.2_1, SATA3_1 will be disable)
1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s & PCI-E Storage(Intel Optane Technology ready)
1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280/ 22110 PCI-E Storage(Intel Optane Technology ready)
1 x Front Audio Header
1 x Front Panel Header
1 x S/PDIF-Out Header
2 x CPU Fan Header
3 x System Fan Header
1 x LN2 Switch
2 x 5050 LED Header
H/W MONITORINGCPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU / System Fan Control
System Voltage Monitoring
OVERVOLTAGECPU Vcore/ VSA/ VCC_IO/ VGT/ VCC_PLL_OC/ DDR/ DDR VPP/ PCH 1.0V
マザーボードサイズATX Form Factor Dimension: 30.5cm x 24.4cm ( W x L )
対応OSSupport Windows 10(x64)
BUNDLE SOFTWARERacing GT Utility
BullGuard
Intel Rapid Storage Technology
付属品4 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x User Manual
FEATURESVIVID LED DJ
5050 LED FUN ZONE
M.2 Cooling Protection
Supports Double Hi-Fi
GT TOUCH
Supports 100% Solid capacitor
Supports Rapid Debug3
Supports Charger Booster
Supports BIOS Online Update
Supports A.I FAN

型番：BIO-Z370GT6

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
