第7世代 Intel Coreプロセッサー 対応
Intel B250シングルチップアーキテクチャ
2-DIMM DDR4-2400/ 2133/ 1866 メモリ対応 最大容量 32GB
BIOSTAR Hi-Fiテクノロジー搭載
DVI-D対応
USB 3.0対応
M.2 32Gb/s対応
品名 | B250ET2 |
チップセット | Intel B250 |
CPU | Intel® Core™ i7 LGA 1151 Processor Intel® Core™ i5 LGA 1151 Processor Intel® Core™ i3 LGA 1151 Processor Intel® Pentium® LGA 1151 Processor Intel® Celeron® LGA 1151 Processor Maximum CPU TDP (Thermal Design Power) : 95Watt |
メモリ | Support Dual Channel DDR4 2400/ 2133/ 1866 MHz 2 x DDR4 DIMM Memory Slot Max. Supports up to 32GB Memory * DDR4 2400 for 7th Generation Intel® Core™ Processor Family |
拡張スロット | 1 x PCI-E x16 3.0 Slot 2 x PCI-E x1 3.0 Slot |
ストレージ | 4 x SATA3 Connector 1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s & PCIe Storage |
USB | 4 x USB 3.0 Port 1 x USB 3.0 Header 2 x USB 2.0 Port 2 x USB 2.0 Port(only 5V power, up to 1.5A) 2 x USB 2.0 Header |
LAN | Realtek RTL8111H - 10/100/1000 Controller Support Super LAN Surge Protection |
内蔵グラフィック | By CPU model Supports DX12 Supports HDCP |
CODEC | Realtek ALC887 8-Channel HD Audio Support HD Audio Support Biostar Hi-Fi |

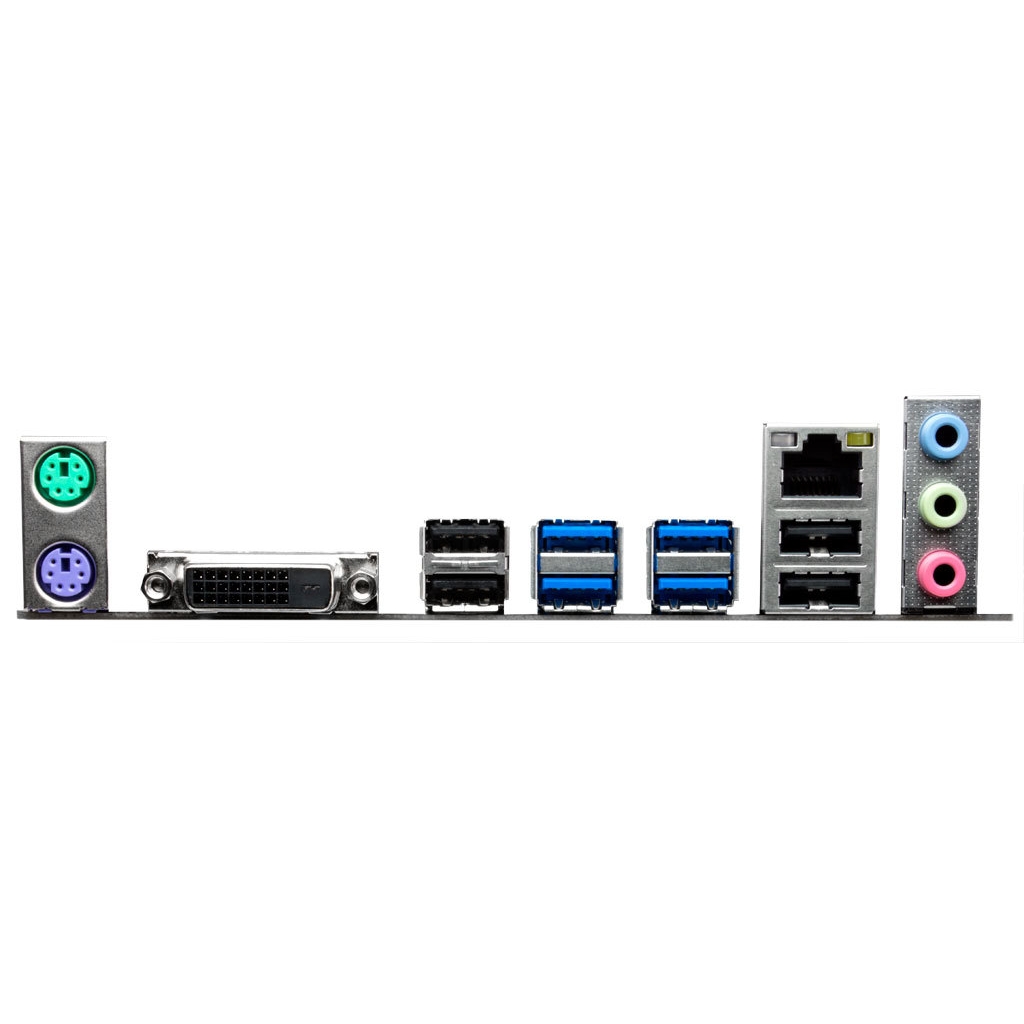

リア I/O | 1 x PS/2 Mouse 1 x PS/2 Keyboard 4 x USB 3.0 Port 2 x USB 2.0 Port 2 x USB 2.0 Port(only 5V power, up to 1.5A) 1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz 1 x RJ-45 Port 3 x Audio Connector |
内部 I/O | 1 x USB 3.0 Header 2 x USB 2.0 Header 4 x SATA3 6Gb/s Connector 1 x SATA Power Connector(for rear USB power enhancement) 1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s & PCIe Storage 1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Header 1 x System Fan Header 1 x Serial Header 2 x 5050 LED Header |
H/W MONITORING | CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring |
サイズ | Micro ATX Form Factor Dimension: 22.6cm x 18.7cm ( W x L ) |
OS サポート | Support Windows 10(x64) for Intel 7th Generation Processor ※Support Windows 7 / 8.1(x64) / 10(x64) for Intel 6th Generation Processor |
付属ソフトウエア | Racing GT Utility BullGuard Smart Speed LAN(Windows 7/ 8.1 only) Intel Rapid Storage Technology |
アクセサリー | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide |
FEATURES | 5050 LED FUN ZONE Supports PURO Hi-Fi Supports 100% Solid capacitor Supports Charger Booster Supports BIOS Online Update |
※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
