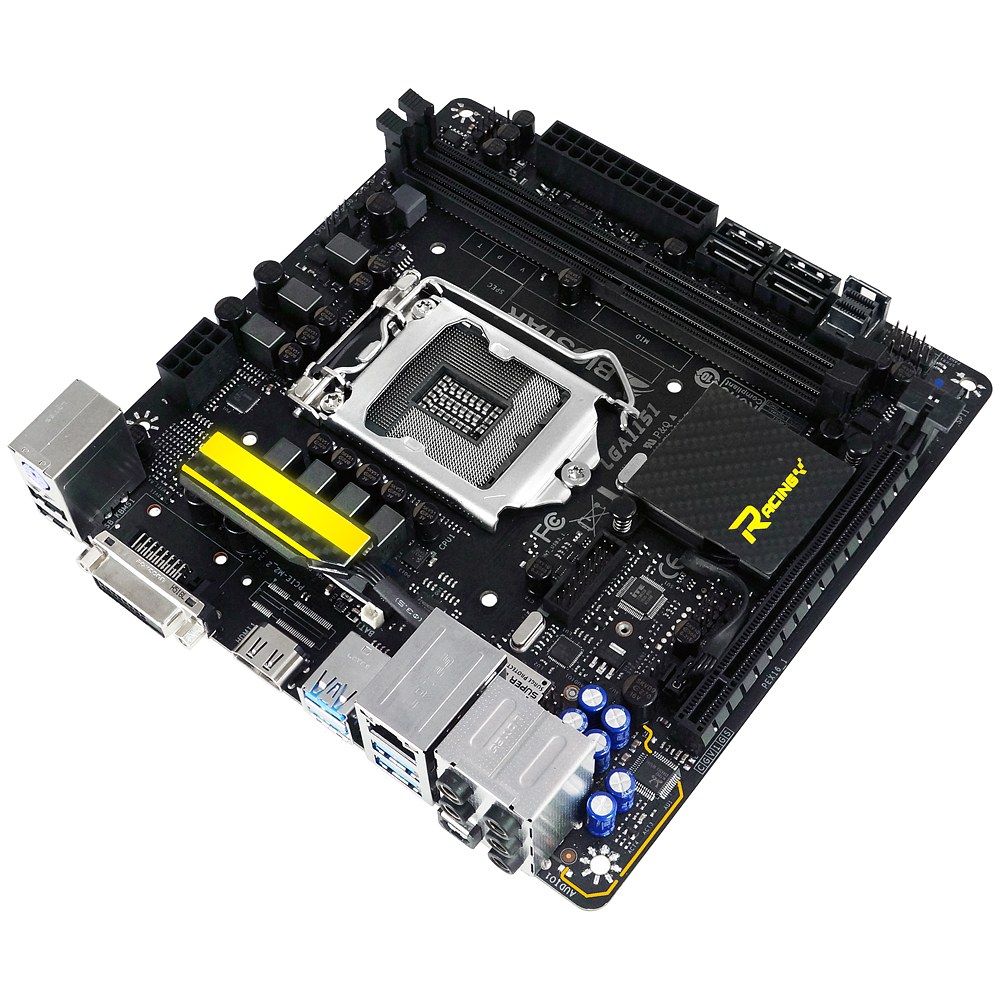

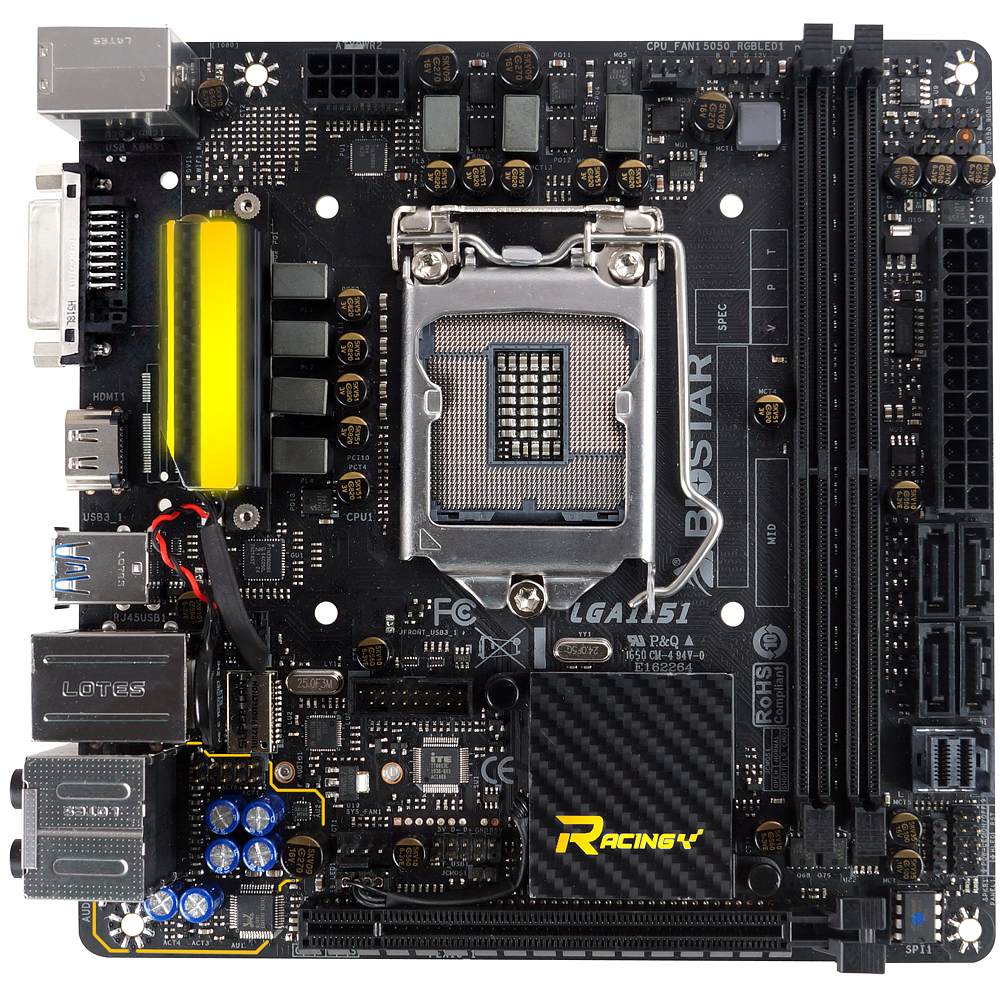

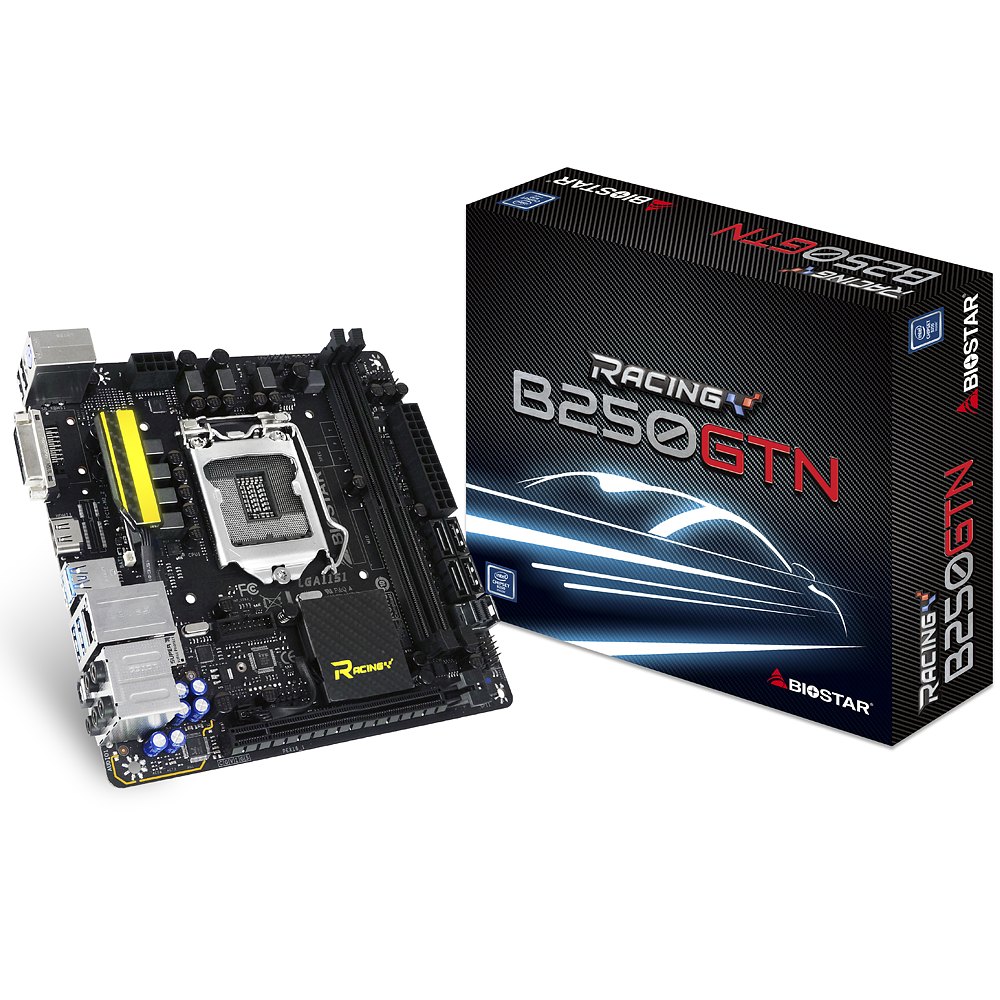

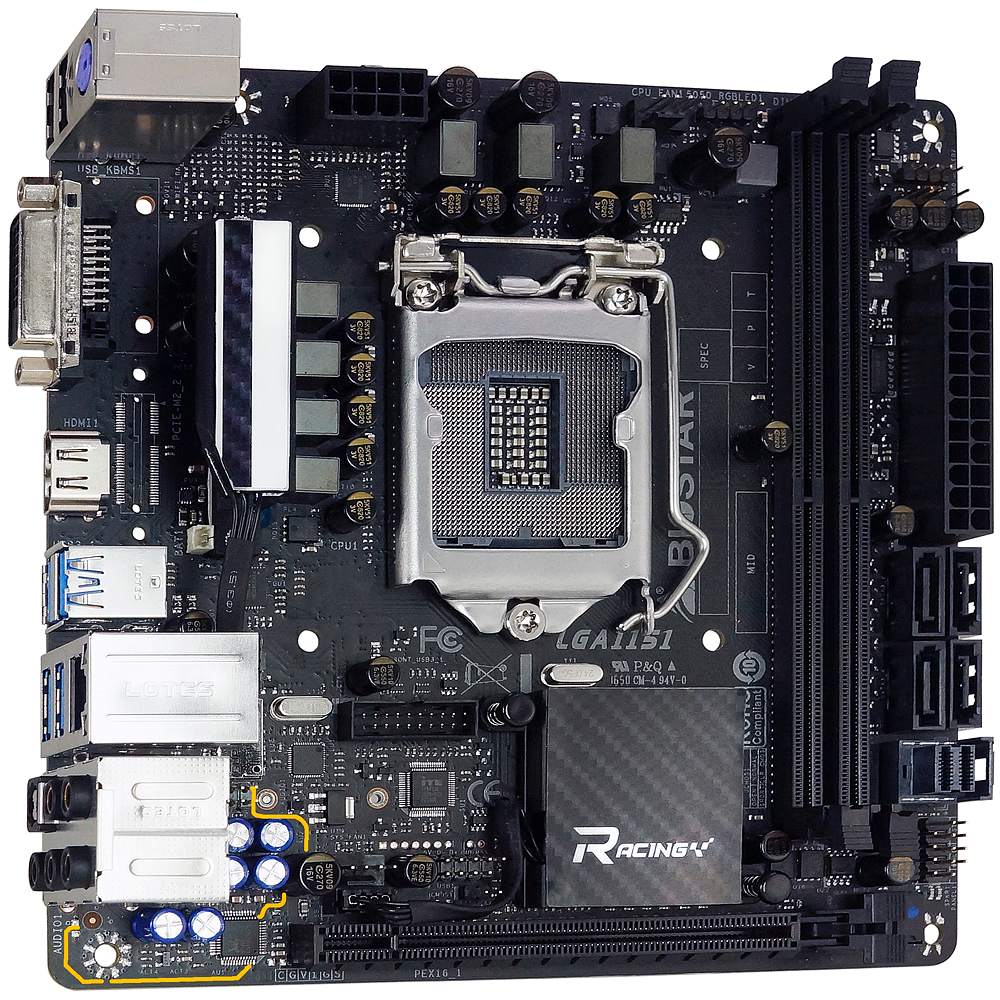

RACING B250GTN

RACING B250GTN

特徴

第7世代 Intel Core プロセッサー 対応
Intel B250 シングルチップ アーキテクチャ
2-DIMM DDR4-2400/ 2133/ 1866 対応 最大容量32GB
BIOSTAR Hi-Fi テクノロジー 搭載
HDMI対応
U.2 32Gb/s
M.2 32Gb/s










製品仕様

チップセット Intel B250
CPU SUPPORT Intel(R) Core(TM) i7 LGA 1151 Processor
Intel(R) Core(TM) i5 LGA 1151 Processor
Intel(R) Core(TM) i3 LGA 1151 Processor
Intel(R) Pentium(R) LGA 1151 Processor
Intel(R) Celeron(R) LGA 1151 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt
メモリ Support Dual Channel DDR4 2400/ 2133/ 1866 MHz
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory
* DDR4 2400 for 7th Generation Intel(R) Core(TM) Processor Family
拡張スロット 1 x PCI-E x16 3.0 Slot
ストレージ 4 x SATA3 Connector
1 x U.2 32Gb/s Connector, support PCI-E Storage(Intel(R) Optane Technology ready)
1 x M.2 Key M 32Gb/s Connector, support M.2 type 2260/ 2280 SATA 6Gb/s & PCI-E Storage(on the back of the motherboard)
USB 4 x USB 3.0 Port
1 x USB 3.0 Header
2 x USB 2.0 Port
1 x USB 2.0 Header
LAN Intel I219V - Gigabit Ethernet PHY
Support Super LAN Surge Protection
INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
サウンド Realtek ALC892 8-Channel Blu-ray Audio
Support HD Audio
Support Biostar Hi-Fi
REAR I/O 1 x PS/2 Keyboard/Mouse
4 x USB 3.0 Port
2 x USB 2.0 Port
1 x HDMI Connector, resolution up to 4096 x 2160 @30Hz, compliant with HDMI 1.4b
1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
1 x RJ-45 Port
5 x Audio Connector
1 x S/PDIF Out Port
INTERNAL I/O 1 x USB 3.0 Header
1 x USB 2.0 Header
4 x SATA3 6Gb/s Connector
1 x U.2 32Gb/s Connector, support PCI-E Storage(Intel(R) Optane Technology ready)
1 x M.2 Key M 32Gb/s Connector, support M.2 type 2260/ 2280 SATA 6Gb/s & PCI-E Storage(Intel(R) Optane Technology ready)(on the back of the motherboard)
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Header
1 x System Fan Header
2 x 5050 LED Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU / System Fan Control
System Voltage Monitoring
マザーボードサイズ Mini ITX Form Factor Dimension: 17cm x 17cm ( W x L )
対応OS Support Windows 10(x64) for Intel 7th Generation Processor
※Support Windows 7 / 8.1(x64) / 10(x64) for Intel 6th Generation Processor
BUNDLE SOFTWARE Racing GT Utility
BullGuard
Intel Rapid Storage Technology
付属品 4 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
FEATURES VIVID LED DJ
5050 LED FUN ZONE
Supports PURO Hi-Fi
Supports 100% Solid capacitor
Supports Charger Booster
Supports BIOS Online Update

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
