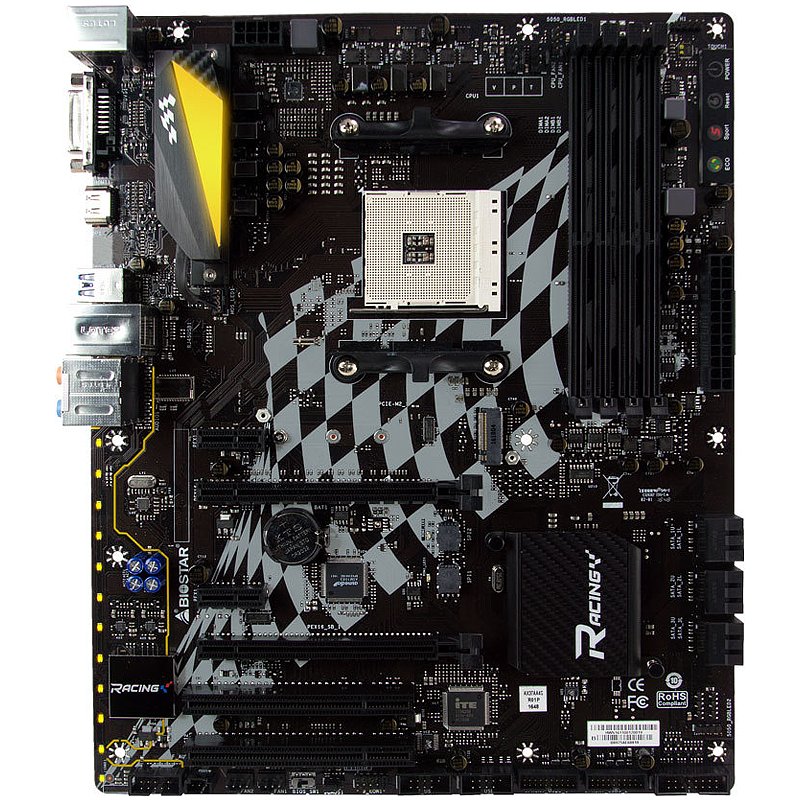

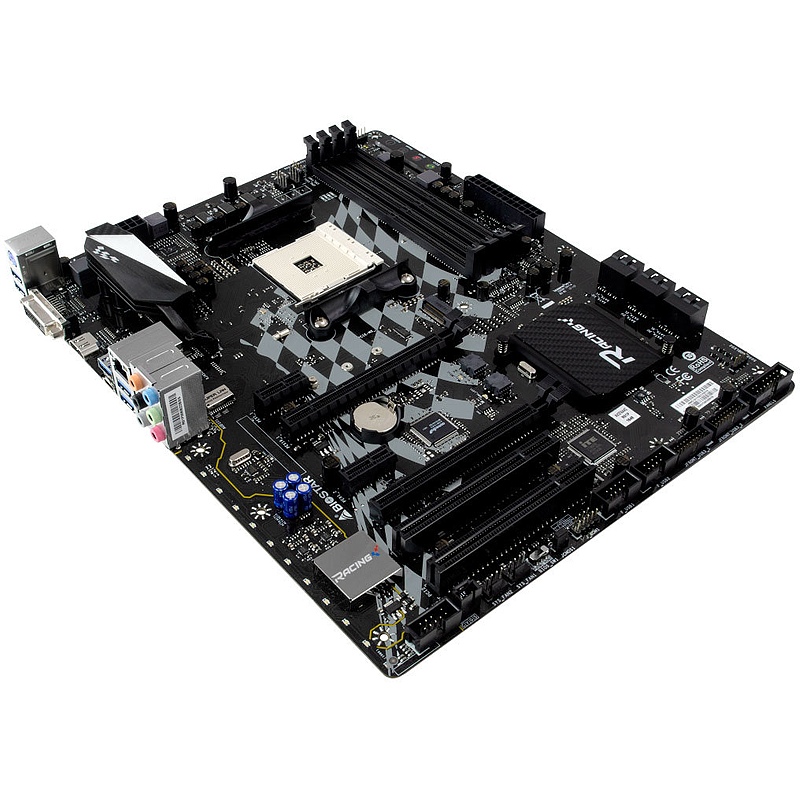

X370GT5/LED FAN

X370GT5/LED FAN

型番：BIO-X370GT5/LED/FAN

特徴

Support AMD Ryzen CPU / APU
AMD X370 single chip architecture
Support 4-DIMM DDR4-2667/ 2400 up to 64G maximum capacity
BIOSTAR Double Hi-Fi Technology inside
Realtek Dragon LAN
Support USB 3.1 Gen2 Type C
Support M.2(32Gb/s)
Support HDMI 4K resolution



製品仕様

Chipset AMD X370
CPU SUPPORT AMD A-series APU / Ryzen CPU / NPU for Socket AM4
Maximum CPU TDP (Thermal Design Power) : 95Watt
MEMORY Support Dual Channel DDR4 2667/ 2400/ 2133/ 1866 MHz
4 x DDR4 DIMM Memory Slot
Max. Supports up to 64GB Memory
* DDR4 2667 for AMD Ryzen CPU
EXPANSION SLOT 1 x PCI-E x16 3.0 Slot(x16 for Ryzen CPU only, NPU/APU run at x8 speed)
1 x PCI-E x16 2.0 Slot(x4)(share bandwidth w/ PCI-E x1 slot, when PCI-E x1 is occupied, PCI-E x16(x4) will run at x1 speed)
2 x PCI-E x1 2.0 Slot
2 x PCI Slot
STORAGE 6 x SATA3 Connector
Support SATA RAID: 0,1,10
1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s & PCI-E Storage
* M.2 (32Gb/s) : The bandwidth is depended on CPU, Ryzen is 32Gb/s ; APU & NPU is 16Gb/s.
USB 1 x USB 3.1 Gen2 Type-C Port
1 x USB 3.1 Gen2 Port
4 x USB 3.1 Gen1 Port
2 x USB 3.1 Gen1 Header
2 x USB 2.0 Header
LAN Realtek RTL8118AS - 10/100/1000 Controller
Support Super LAN Surge Protection
INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
CODEC Realtek ALC892 8-Channel Blu-ray Audio
Support Biostar Hi-Fi

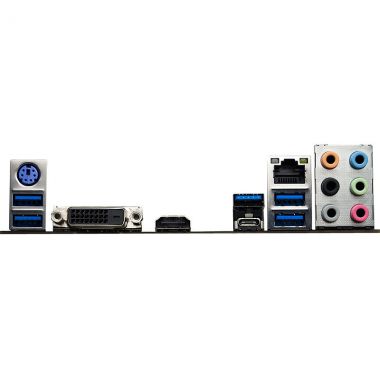

REAR I/O 1 x PS/2
1 x USB 3.1 Gen2 Type-C Port
1 x USB 3.1 Gen2 Port
4 x USB 3.1 Gen1 Port
1 x HDMI Connector, resolution up to 4096 x 2160 @30Hz
1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
1 x RJ-45 Port
6 x Audio Connector
INTERNAL I/O 2 x USB 3.1 Gen1 Header
2 x USB 2.0 Header
6 x SATA3 6Gb/s Connector
1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s & PCI-E Storage
1 x Front Audio Header
1 x Front Panel Header
1 x S/PDIF-Out Header
2 x CPU Fan Header
2 x System Fan Header
1 x Serial Header
2 x 5050 LED Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU / System Fan Control
System Voltage Monitoring
DIMENSION ATX Form Factor Dimension: 30.5cm x 24.4cm ( W x L )
OS SUPPORT Support Windows 7(x64) / 10(x64)
BUNDLE SOFTWARE Racing GT Utility
FLY.NET
BullGuard
ACCESSORIES 4 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x User Manual
FEATURES VIVID LED DJ
5050 LED FUN ZONE
Supports Double Hi-Fi
GT TOUCH
Dual BIOS
Supports 100% Solid capacitor
Supports BIOS-Flasher
Supports BIOS Online Update

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
