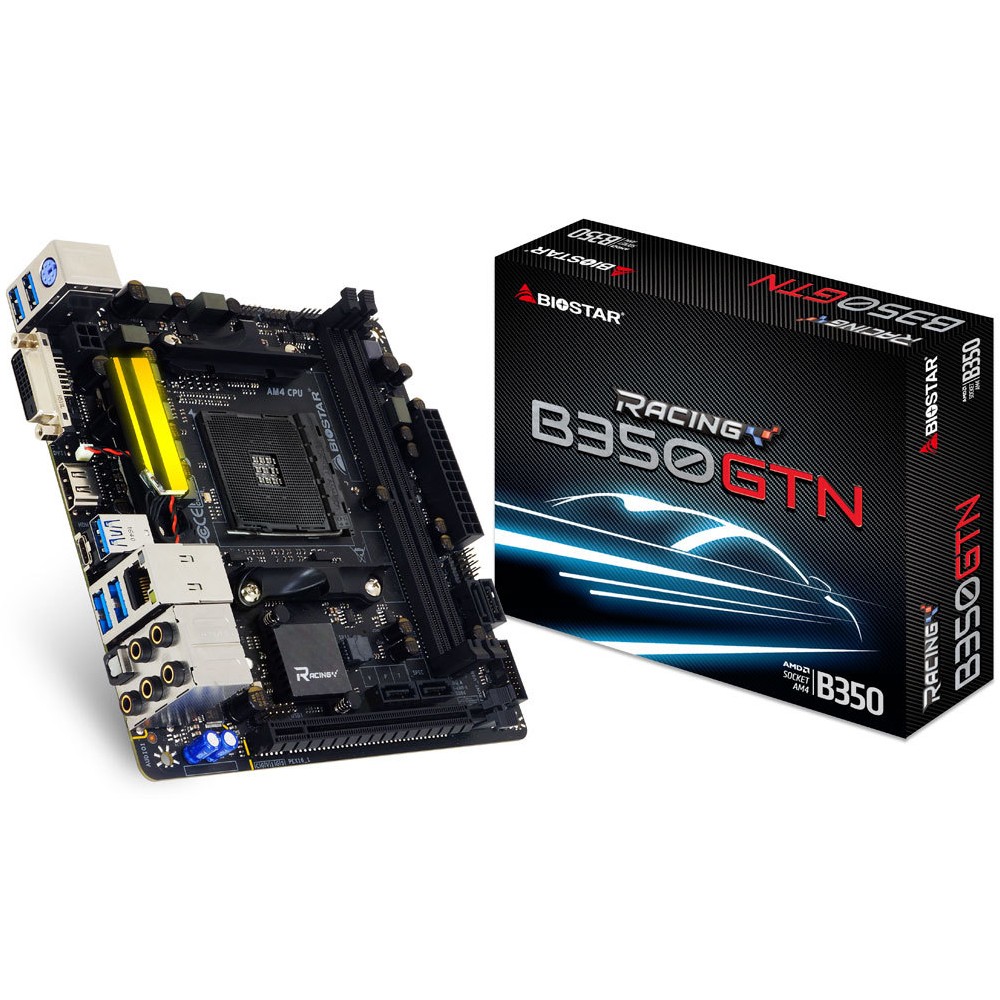

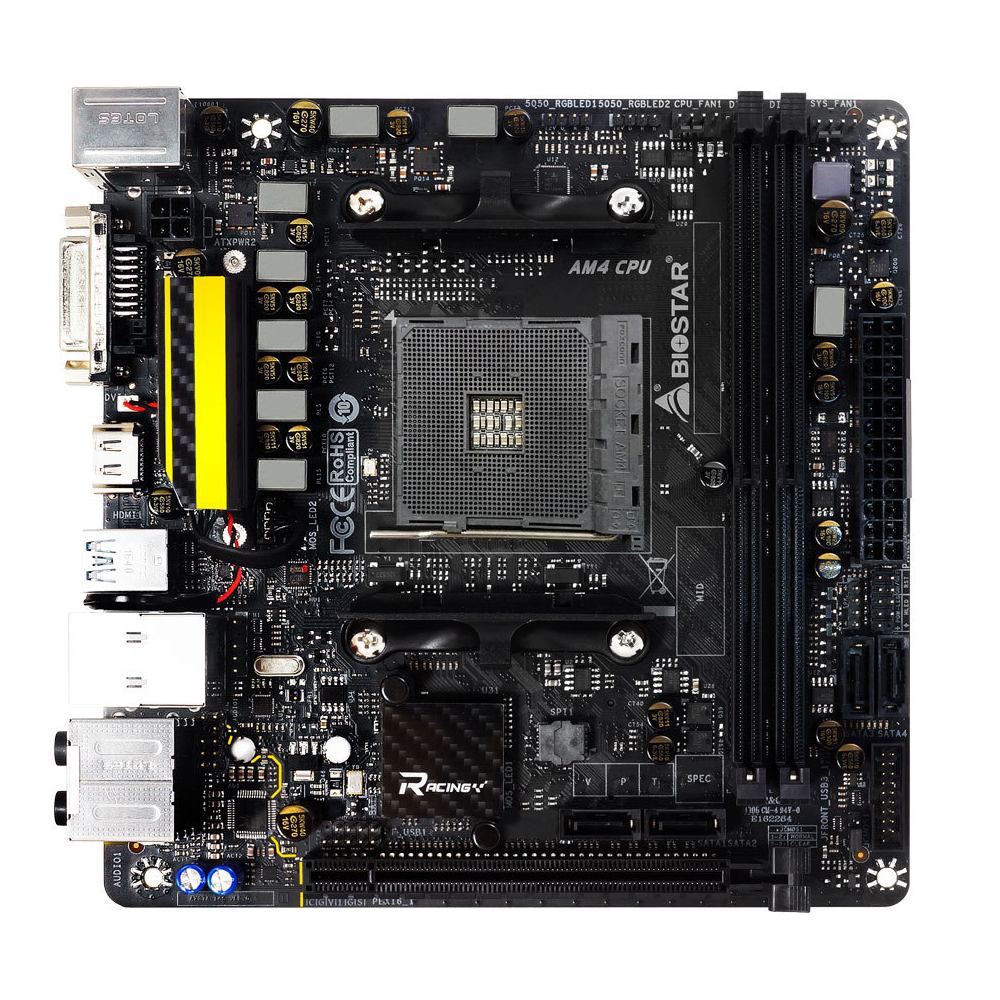

RACING B350GTN

RACING B350GTN

特徴

AMD Ryzen CPU / APU 対応
AMD B350 シングルチップ アーキテクチャ
2-DIMM DDR4-3200(OC)/ 2933(OC)/ 2667/ 2400 対応 最大容量32GB
BIOSTAR Hi-FIテクノロジー 搭載
Realtek Dragon LAN
USB3.1 Gen2 Type-C 対応
M.2 32Gb/s 対応
HDMI 4K 対応










製品仕様

チップセット AMD B350
CPU SUPPORT AMD A-series APU / Ryzen CPU / NPU for Socket AM4
Maximum CPU TDP (Thermal Design Power) : 95Watt
メモリ Support Dual Channel DDR4 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133/ 1866 MHz
Support Non-ECC & ECC Un-buffered DIMM Memory modules
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory
* DDR4 2667 for AMD Ryzen CPU
拡張スロット 1 x PCI-E x16 3.0 Slot(x16 for Ryzen CPU only, NPU/APU run at x8 speed)
ストレージ 4 x SATA3 Connector
Support SATA RAID: 0,1,10

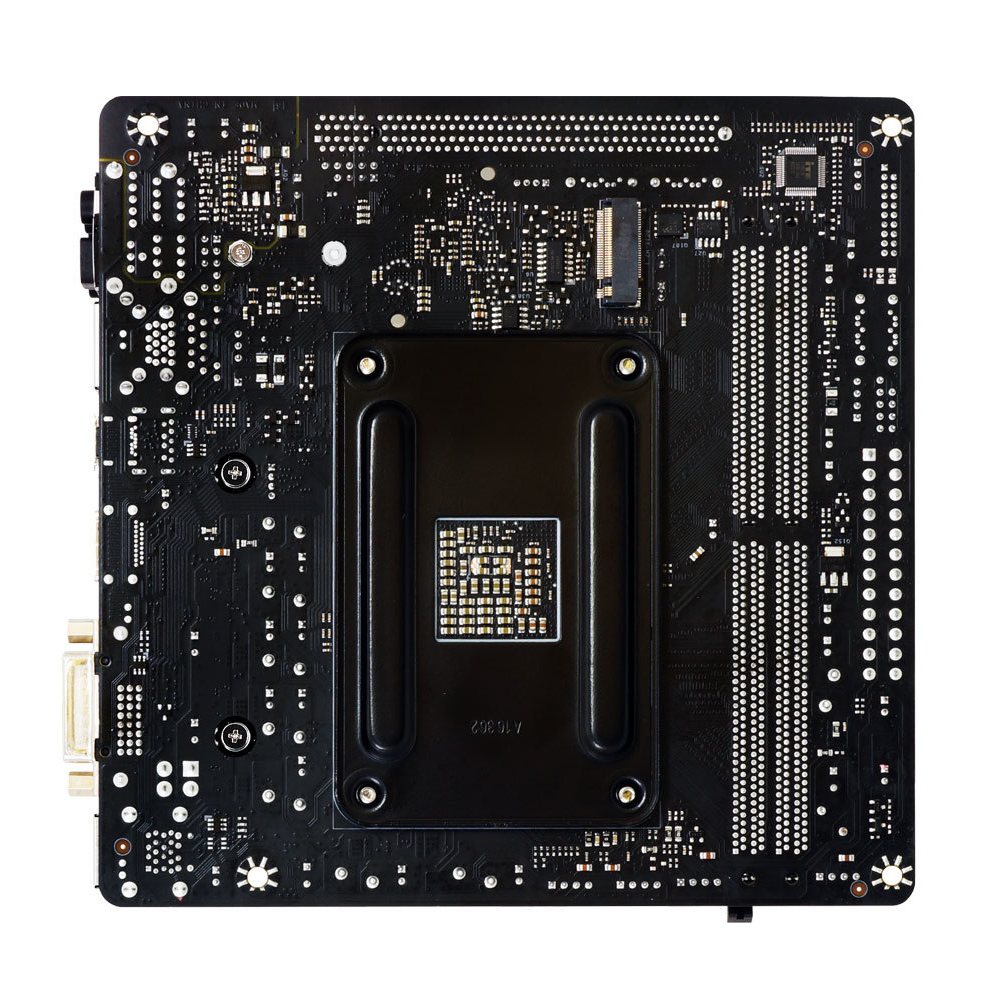

1 x M.2 Key M 32Gb/s Connector, support M.2 type 2260/ 2280 SATA 6Gb/s & PCI-E Storage(on the back of the motherboard)
* M.2 (32Gb/s) : The bandwidth is depended on CPU, Ryzen is 32Gb/s ; APU & NPU is 16Gb/s.
USB 1 x USB 3.1 Gen2 Type-C Port
1 x USB 3.1 Gen2 Port
4 x USB 3.1 Gen1 Port
1 x USB 3.1 Gen1 Header
1 x USB 2.0 Header
LAN Realtek RTL8118AS - 10/100/1000 Controller
Support Super LAN Surge Protection
INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
サウンド Realtek ALC892 8-Channel Blu-ray Audio
Support Biostar Hi-Fi

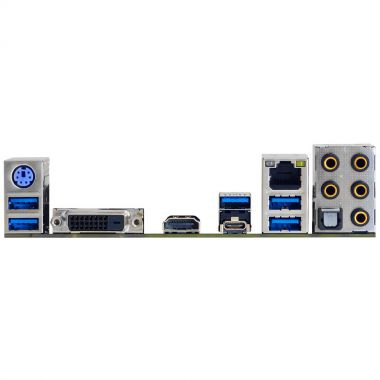

REAR I/O 1 x PS/2
1 x USB 3.1 Gen2 Type-C Port
1 x USB 3.1 Gen2 Port
4 x USB 3.1 Gen1 Port
1 x HDMI Connector, resolution up to 4096 x 2160 @24Hz or 3840 x 2160 @30Hz
1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
1 x RJ-45 Port
5 x Audio Connector
1 x S/PDIF Out Port
INTERNAL I/O 1 x USB 3.1 Gen1 Header
1 x USB 2.0 Header
4 x SATA3 6Gb/s Connector
1 x M.2 Key M 32Gb/s Connector, support M.2 type 2260/ 2280 SATA 6Gb/s & PCI-E Storage(on the back of the motherboard)
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Header
1 x System Fan Header
2 x 5050 LED Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU / System Fan Control
System Voltage Monitoring
マザーボードサイズ Mini ITX Form Factor Dimension: 17cm x 17cm ( W x L )
対応OS Support Windows 7(x64) / 10(x64)

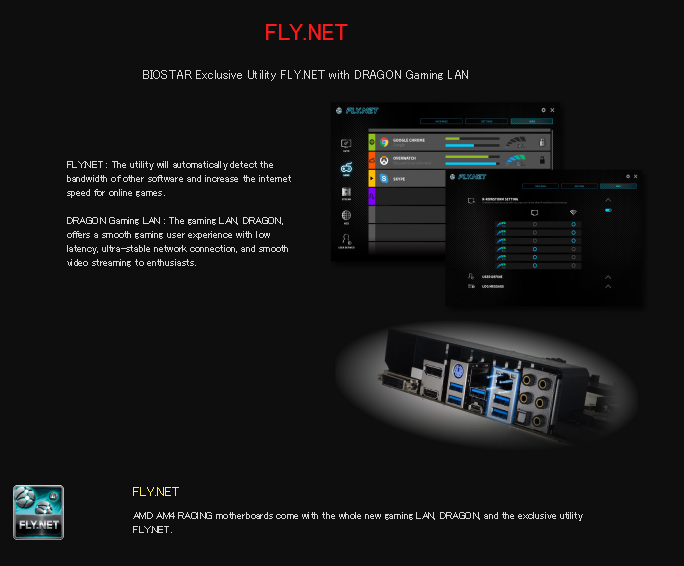

BUNDLE SOFTWARE Racing GT Utility
FLY.NET
BullGuard
付属品 4 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
FEATURES VIVID LED DJ

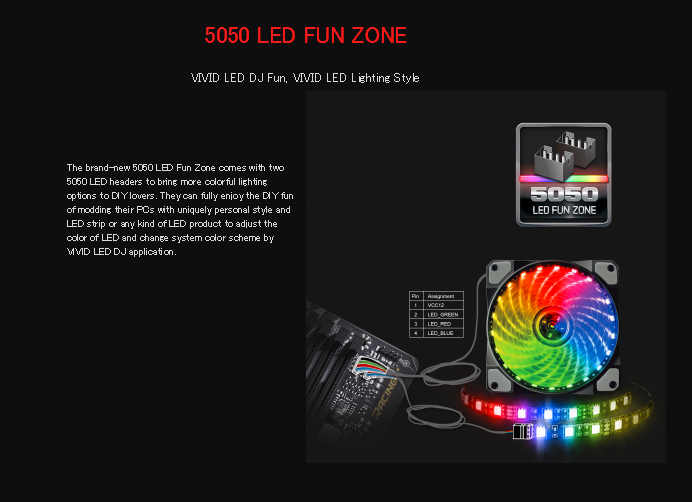

5050 LED FUN ZONE
Supports PURO Hi-Fi
Supports 100% Solid capacitor
Supports BIOS-Flasher
Supports BIOS Online Update

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
