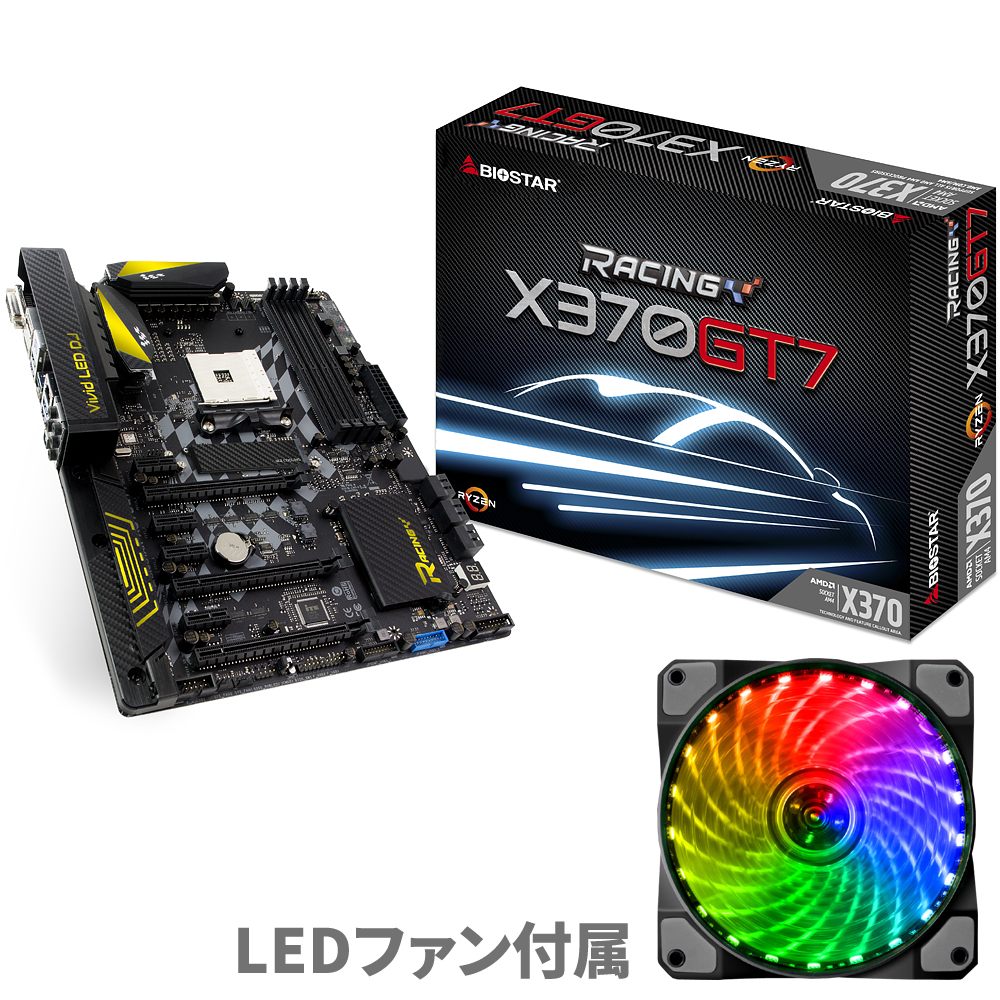

RACING X370GT7/LED FAN [12cm LEDファン付属]

RACING X370GT7/LED FAN [12cm LEDファン付属]

特徴

AMD Ryzen CPU / APU 対応

AMD X370 シングルチップ アーキテクチャ

4-DIMM DDR4-3200(OC)/ 2933(OC)/ 2667/ 2400 対応 最大容量64GB

BIOSTAR ダブル Hi-Fi テクノロジー 搭載

Lightning Charger テクノロジー

Digital Power+ テクノロジー

Realtek Dragon LAN

USB 3.1 Gen2 Type-C 対応

M.2 (32Gb/s) 対応

HDMI 4K 60Hz (HDMI 2.0)対応

5050LED ピンヘッダ接続可能
12cm FAN付属



RACING to Light up Your Style for AMD RYZEN Motherboard Lineup BIOSTAR is thrilled to welcome its latest entry in the 2nd-generation RACING series motherboard family, supporting the latest AMD RYZEN processors featuring AMD X370 and B350 chipsets. The users can enjoy the best of the new AMD platform together with the best of the BIOSTAR RACING series. The RACING series of AMD RYZEN features the superior gaming network optimization with BIOSTAR exclusive utility FLY.NET, which automatically detects the bandwidth of software and DRAGON LAN for an optimal online gaming experience. The other whole new feature enhances the degree of overclocking performance with Digital Power+ for further performance enhancements on unlocked AMD RYZEN CPUs for the extra performance boost, so you can get more out of your system, perfect for overclockers!
Digital Power+ Digital Power+ uses IR’s digital PWM controller and PowIRstage™ IC, offering the excellent precision in delivering stable power and 100% fixed voltage to critical components of the motherboard with the maximum performance and reliability. The PWM controller allows the CPU VRM to adjust power delivery speed much more quickly and the PWM spectrum supports power delivery rated up to 60A for each phase, providing enthusiasts with exceptional control over the maximum overclocking potential of the CPU.
FLY.NET BIOSTAR Exclusive Utility FLY.NET with DRAGON Gaming LAN FLY.NET : The utility will automatically detect the bandwidth of other software and increase the internet speed for online games. DRAGON Gaming LAN : The gaming LAN, DRAGON, offers a smooth gaming user experience with low latency, ultra-stable network connection, and smooth video streaming to enthusiasts.
M.2 Cooling Protection M.2 heatsink features ultra-high cooling efficiency to protect the M.2 connector area and the chipset area from thermal problems and extend the M.2 lifespan for long-term and stable operating.
Lightning Charger BIOSTAR new H/W design Lightning Charger supports the functions of USB port and quick charge with the amazingly fast charging time to help your mobile devices achieve up to a 75% charge in just 30 minutes; meanwhile, it supports QC2.0 (up to 12V/1.5A output), APPLE mode (5V/2.4A), and BC1.2.
VIVID LED Armor Onboard LED Lighting Protection The new VIVID LED Armor comes with I/O Armor and Audio Armor to protect the I/O interfaces and audio electronic components from static electricity. What’s better, it exclusively features the onboard RGB full-color LED lightings with BIOSTAR VIVID LED DJ application for DIY lovers to create their unique personal styles by changing PC color schemes.
5050 LED FUN ZONE VIVID LED DJ Fun, VIVID LED Lighting Style The brand-new 5050 LED Fun Zone comes with two 5050 LED headers to bring more colorful lighting options to DIY lovers. They can fully enjoy the DIY fun of modding their PCs with uniquely personal style and LED strip or any kind of LED product to adjust the color of LED and change system color scheme by VIVID LED DJ application.
Lighting Control Let's party with BIOSTAR VIVID LED DJ!

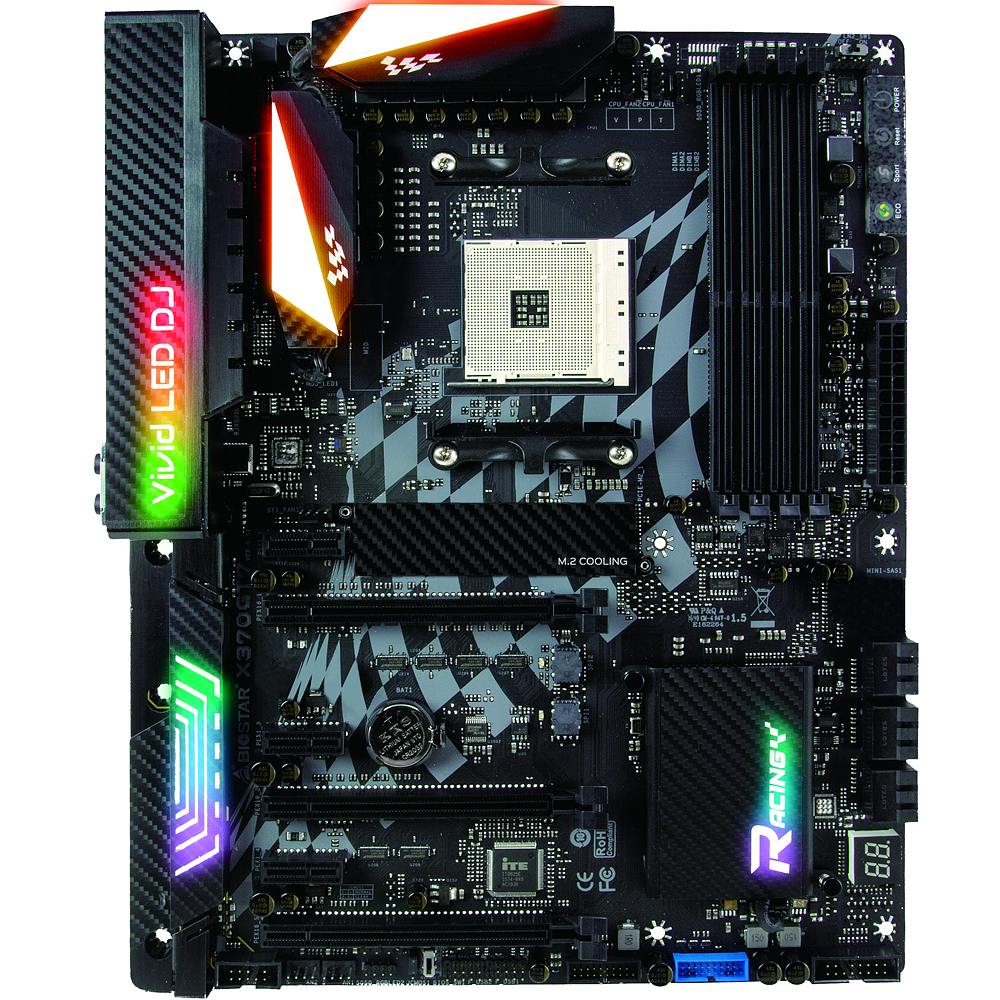

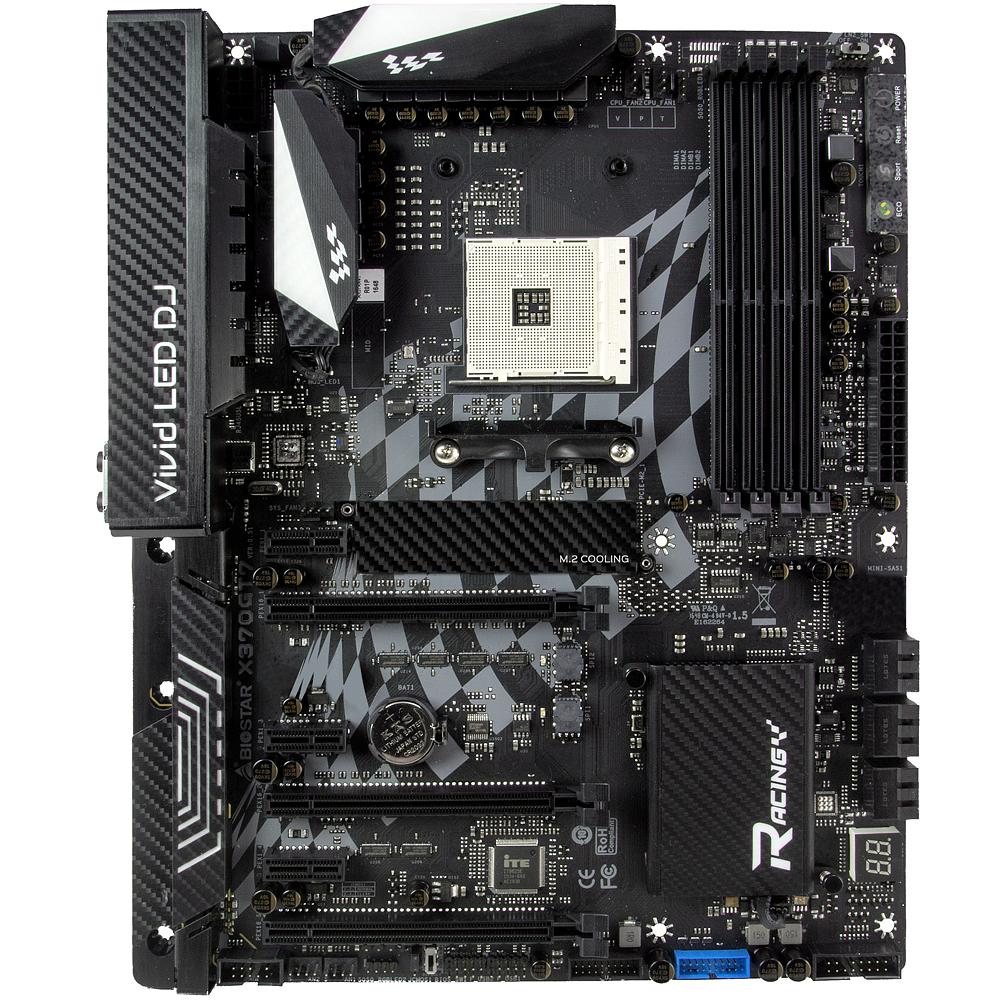

製品概要 1 AMD Socket AM4 CPU 2 5050 LED Headers 3 GT TOUCH 4 Rapid Debug3 5 USB3.1 Gen1 Header with Lightning Charger 6 Dual BIOS 7 M.2 32Gb/s with M.2 Cooling Protetion 8 USB3.1 Gen2 10Gb/s 9 VIVID LED ARMOR





製品仕様

チップセット AMD X370
CPU SUPPORT AMD A-series APU / Ryzen CPU / NPU for Socket AM4
Maximum CPU TDP (Thermal Design Power) : 95Watt
メモリ Support Dual Channel DDR4 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133/ 1866 MHz
Support Non-ECC & ECC Un-buffered DIMM Memory modules
4 x DDR4 DIMM Memory Slot
Max. Supports up to 64GB Memory
* DDR4 2667 for AMD Ryzen CPU
拡張スロット 2 x PCI-E x16 3.0 Slot(x16 + NA or x8 + x8 for Ryzen CPU, x8 + NA for APU / NPU)
1 x PCI-E x16 2.0 Slot(x4)
3 x PCI-E x1 2.0 Slot
ストレージ 6 x SATA3 Connector
Support SATA RAID: 0,1,10
1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s & PCI-E Storage
* M.2 (32Gb/s) : The bandwidth is depended on CPU, Ryzen is 32Gb/s ; APU & NPU is 16Gb/s.
USB 1 x USB 3.1 Gen2 Type-C Port
1 x USB 3.1 Gen2 Port
4 x USB 3.1 Gen1 Port
2 x USB 3.1 Gen1 Header
2 x USB 2.0 Header
LAN Realtek RTL8118AS - 10/100/1000 Controller
Support Super LAN Surge Protection
MULTI GRAPHICS 2-way AMD Crossfire Technology
INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
サウンド Realtek ALC1220 8-Channel Blu-ray Audio
Support Biostar Hi-Fi

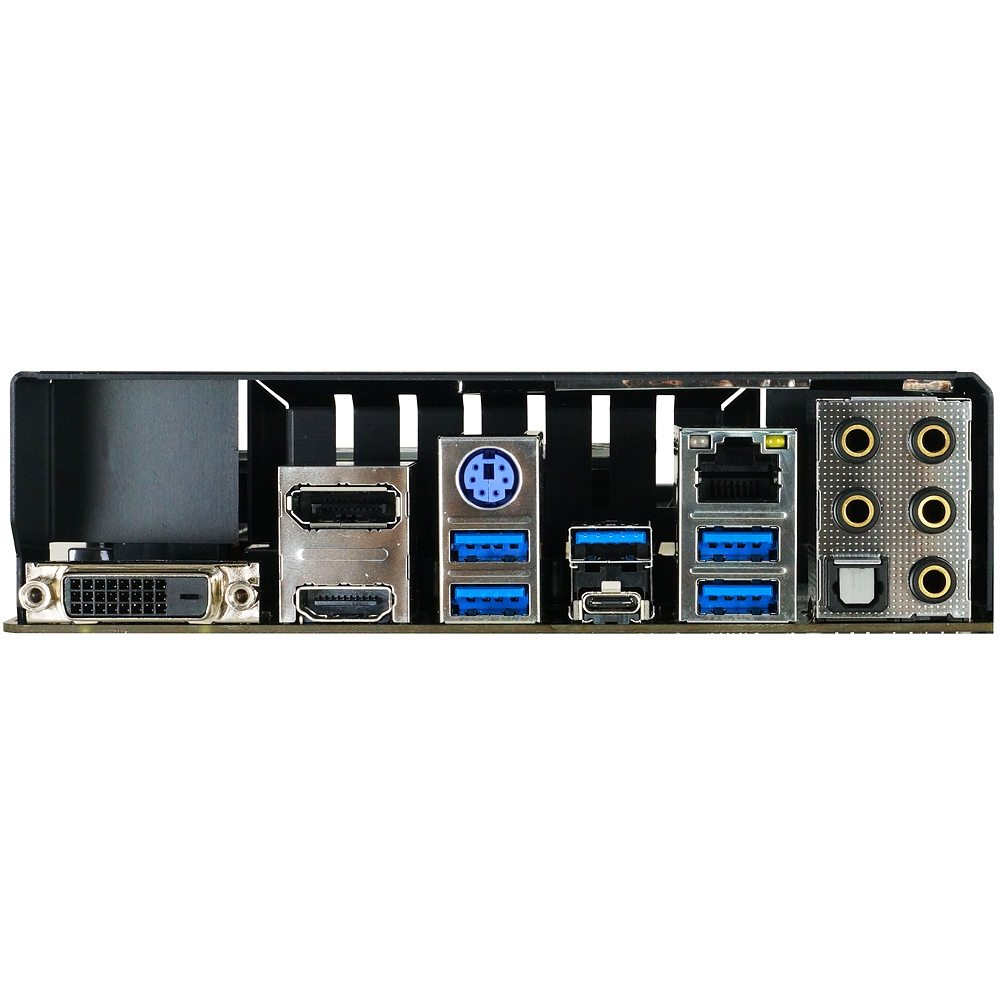

REAR I/O 1 x PS/2
1 x USB 3.1 Gen2 Type-C Port
1 x USB 3.1 Gen2 Port
4 x USB 3.1 Gen1 Port
1 x DisplayPort Connector, resolution up to 4096 x 2160 @60Hz
1 x HDMI Connector, resolution up to 4096 x 2160 @60Hz
1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
1 x RJ-45 Port
5 x Audio Connector
1 x S/PDIF Out Port
INTERNAL I/O 2 x USB 3.1 Gen1 Header
2 x USB 2.0 Header
6 x SATA3 6Gb/s Connector
1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s & PCI-E Storage
1 x Front Audio Header
1 x Front Panel Header
2 x CPU Fan Header
3 x System Fan Header
1 x LN2 Switch
2 x 5050 LED Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU / System Fan Control
System Voltage Monitoring
マザーボードサイズ ATX Form Factor Dimension: 30.5cm x 24.4cm ( W x L )
対応OS Support Windows 7(x64) / 10(x64)
BUNDLE SOFTWARE Racing GT Utility
FLY.NET
BullGuard
付属品 4 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x User Manual
FEATURES VIVID LED DJ
VIVID LED ARMOR
5050 LED FUN ZONE
Digital Power+
Lightning Charger
M.2 Cooling Protection
Supports Double Hi-Fi
GT TOUCH
Dual BIOS
Supports 100% Solid capacitor
Supports Rapid Debug3
Supports BIOS-Flasher
Supports BIOS Online Update

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
