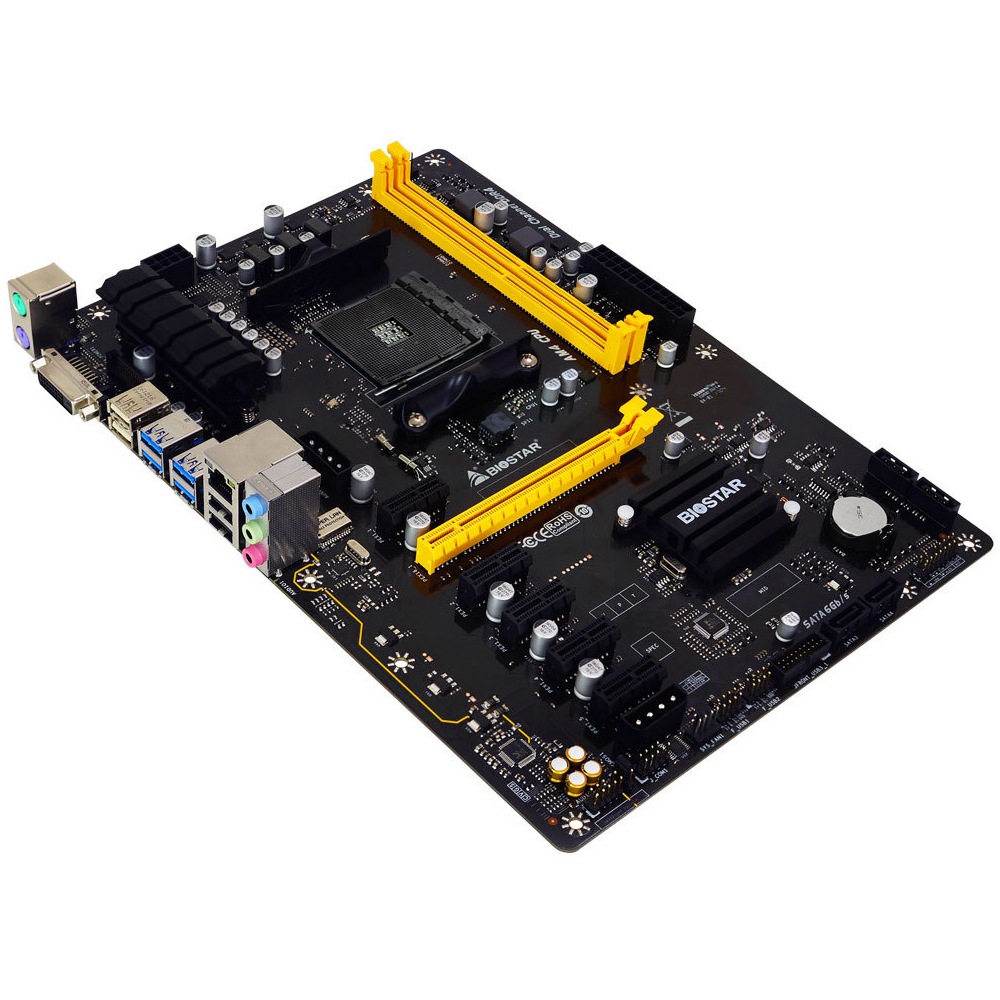

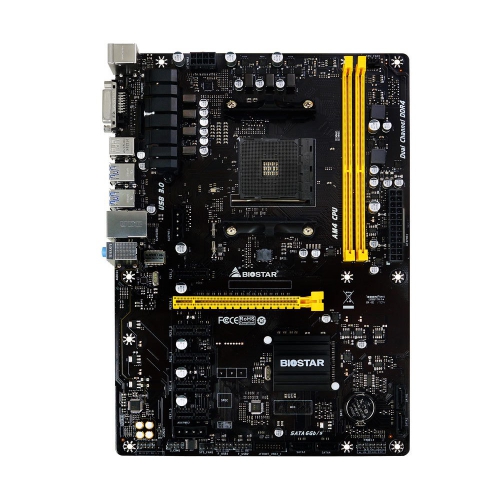

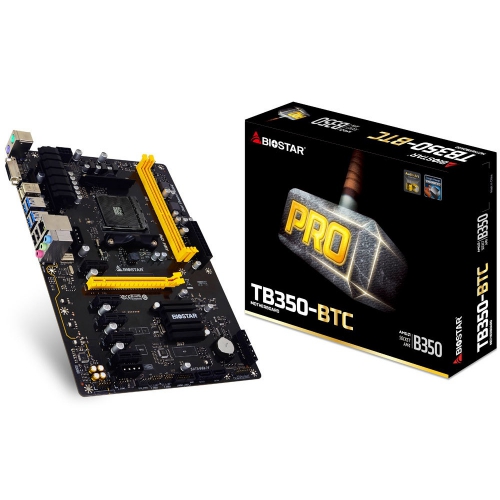

TB350-BTC

TB350-BTC

型番：BIO-TB350-BTC

特徴

Support AMD Ryzen CPU / APU
AMD B350 single chip architecture
Support 2-DIMM DDR4-3200(OC)/ 2933(OC)/ 2667/ 2400 up to 32G maximum capacity
Support DVI-D
Support USB 3.1 Gen1



製品仕様

チップセット AMD B350
CPU SUPPORT AMD A-series APU / Ryzen CPU / NPU for Socket AM4
Maximum CPU TDP (Thermal Design Power) : 95Watt
メモリ Support Dual Channel DDR4 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133/ 1866 MHz
Support Non-ECC & ECC Un-buffered DIMM Memory modules
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory
拡張スロット 1 x PCI-E x16 3.0 Slot(x16 for Ryzen CPU only, NPU/APU run at x8 speed)
2 x PCI-E x1 3.0 Slot
3 x PCI-E x1 2.0 Slot
ストレージ 4 x SATA3 Connector
Support SATA RAID: 0,1,10
USB 4 x USB 3.1 Gen1 Port
1 x USB 3.1 Gen1 Header
2 x USB 2.0 Port
2 x USB 2.0 Port(only 5V power, up to 1.5A)
2 x USB 2.0 Header
LAN Realtek RTL8111H - 10/100/1000 Controller
Support Super LAN Surge Protection
INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
サウンド Realtek ALC887 8-Channel HD Audio

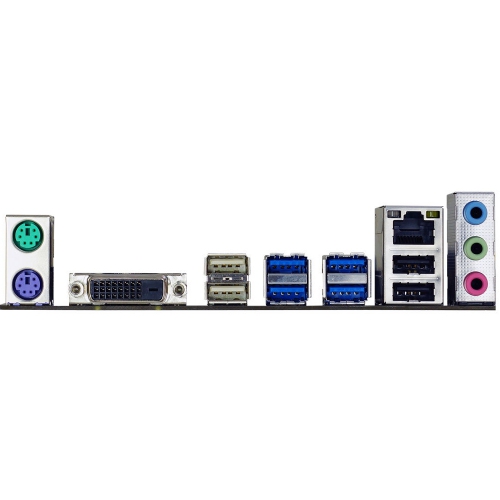

REAR I/O 1 x PS/2 Mouse
1 x PS/2 Keyboard
4 x USB 3.1 Gen1 Port
2 x USB 2.0 Port
2 x USB 2.0 Port(only 5V power, up to 1.5A)
1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
1 x RJ-45 Port
3 x Audio Connector
INTERNAL I/O 1 x USB 3.1 Gen1 Header
2 x USB 2.0 Header
4 x SATA3 6Gb/s Connector
1 x SATA Power Connector(for rear USB power enhancement)
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Header
1 x System Fan Header
1 x Serial Header
2 x PCI-E 12V 4Pin Connector(Must be installed when using for bitcoin mining.)
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU / System Fan Control
System Voltage Monitoring
マザーボードサイズ ATX Form Factor Dimension: 29.5cm x 21cm ( W x L )
対応OS Support Windows 7(x64) / 10(x64)
BUNDLE SOFTWARE BullGuard
Smart Speed LAN(Windows 7 only)
付属品 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x User Manual
FEATURES Supports 100% Solid capacitor
Supports BIOS-Flasher
Supports BIOS Online Update

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
