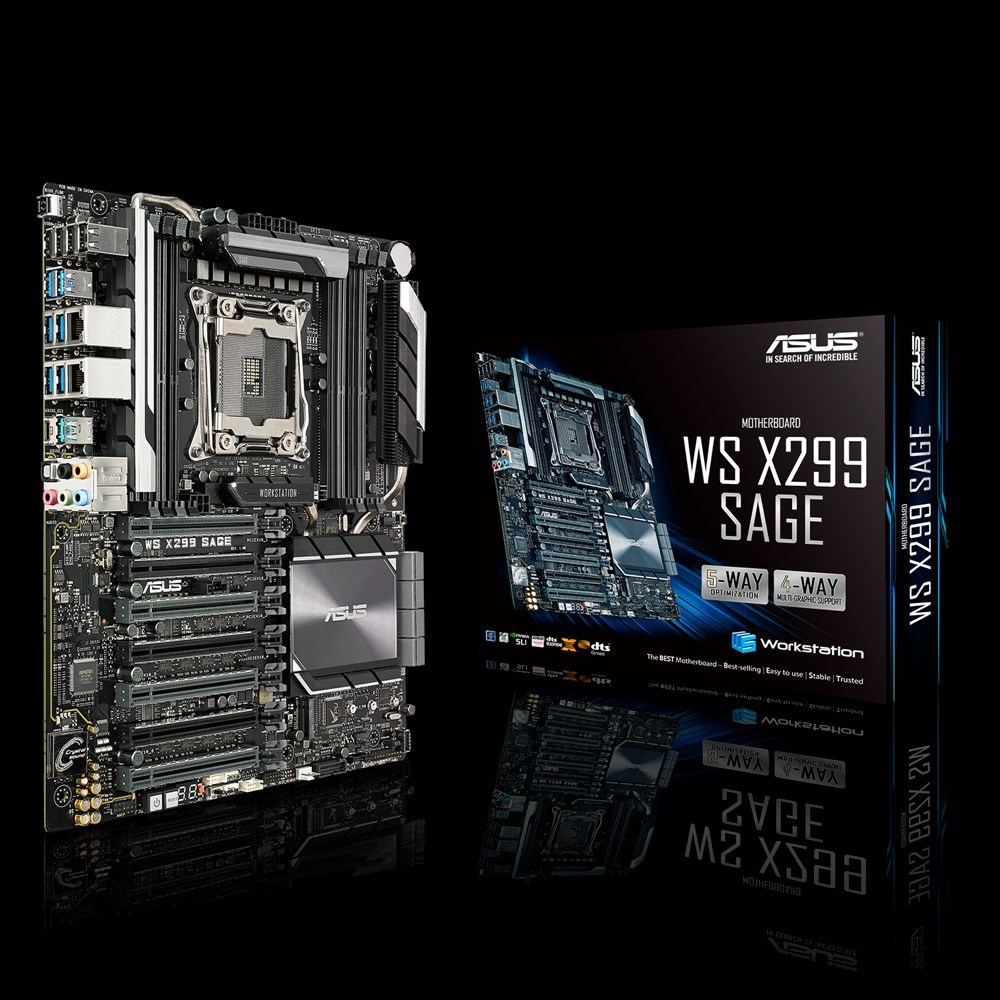

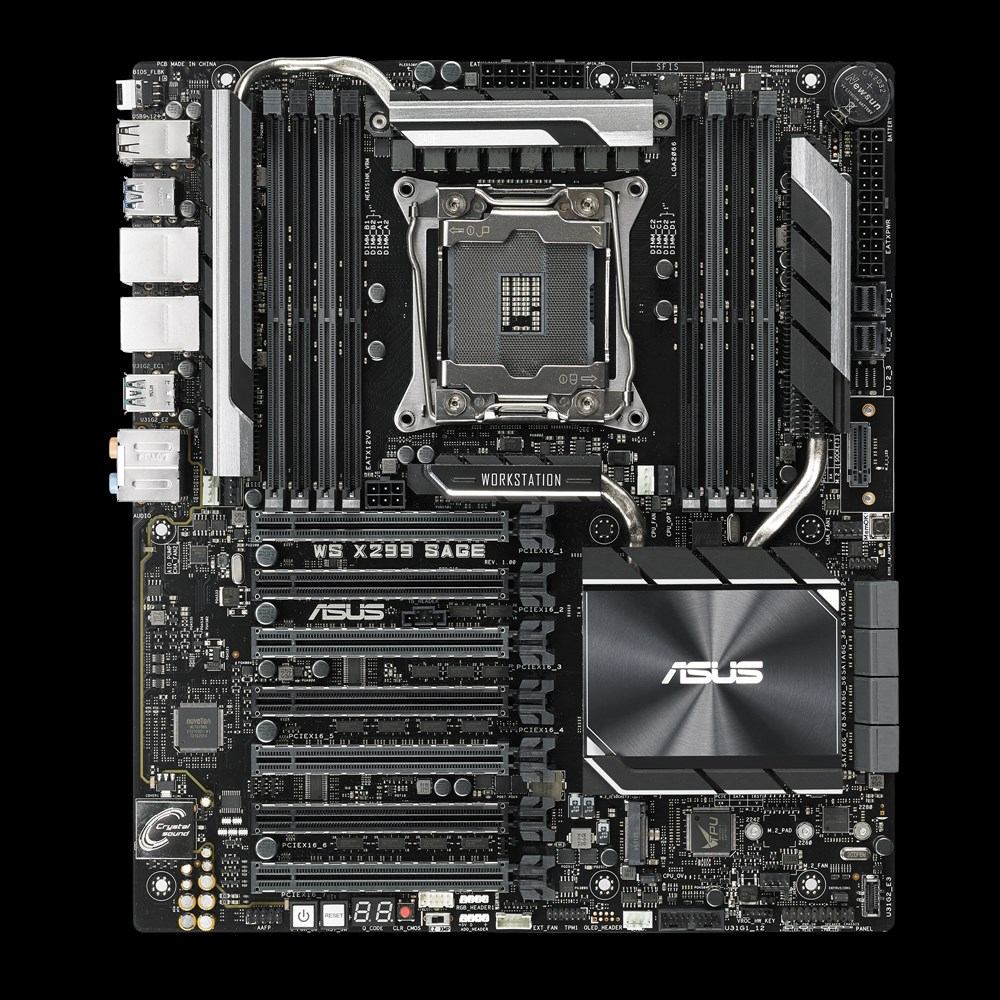

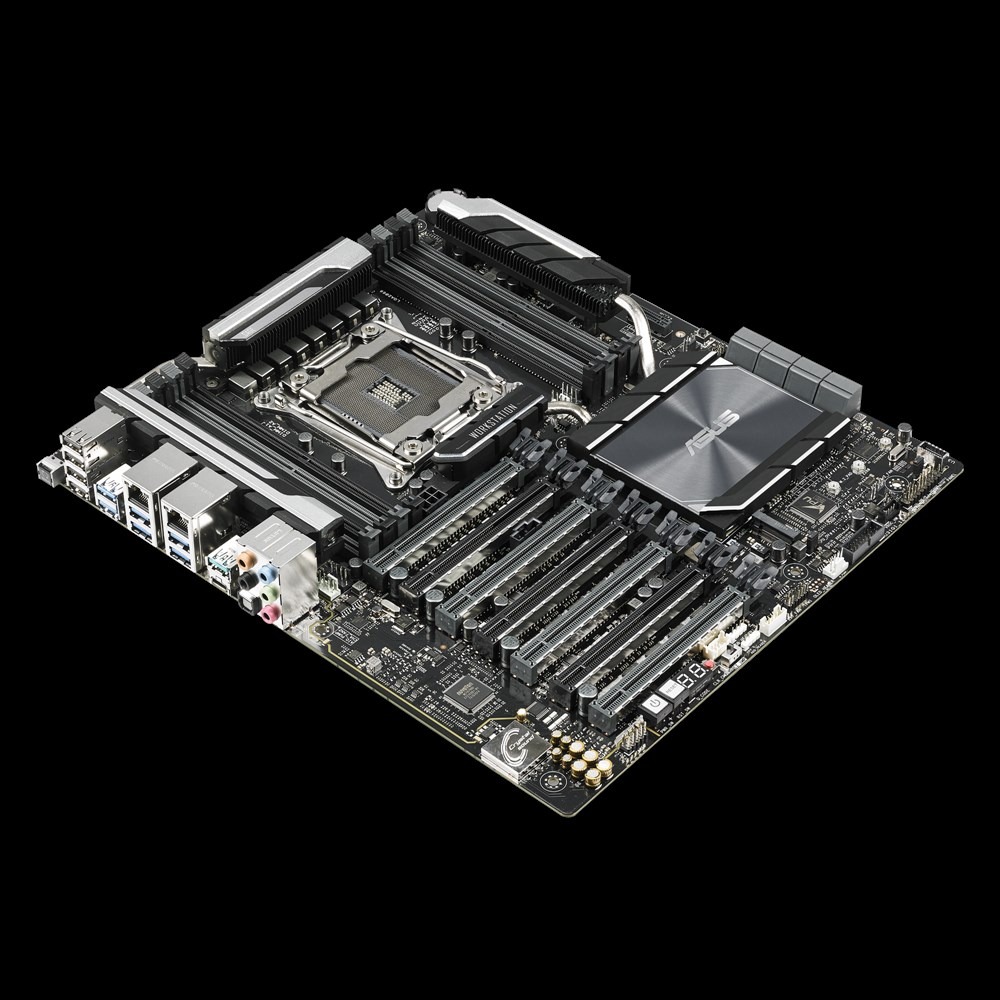

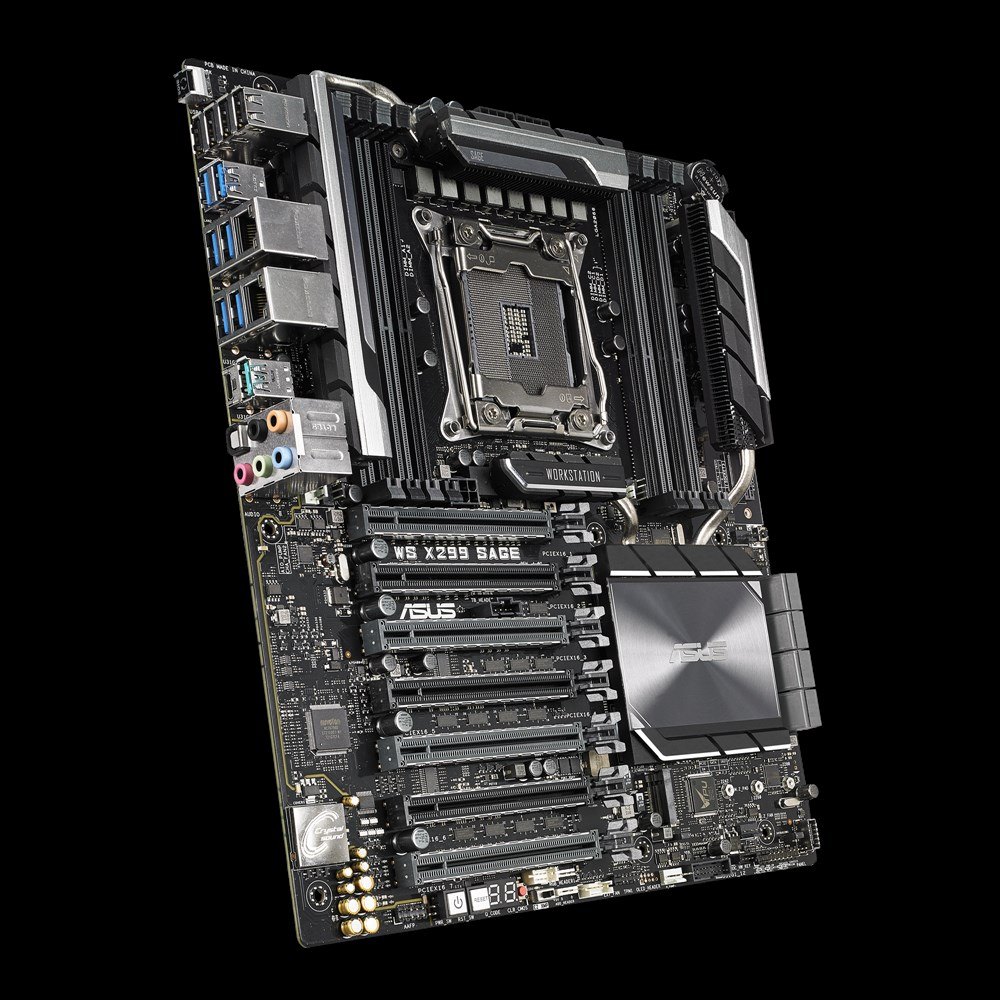

WS X299 SAGE

WS X299 SAGE

クアッドGPU、DDR4 4200MHz、デュアルM.2とU.2、USB 3.1 Gen 2コネクタ、ASUS Control Centerを搭載したIntel LGA 2066 CEBマザーボード

  • クアッドGPUのグラフィックス性能：最大4枚のデュアルスロットグラフィックスカードを搭載でき、NVIDIA® SLI™またはAMD CrossFireX™の4-Way構成に対応
  • 5-Way Optimization：ワンクリックでシステム全体のチューニングを施し、幅広い負荷に最適化されたオーバークロックとインテリジェントな冷却を実現。
  • 業界をリードする冷却機能：Fan Xpert 4、または、ASUSのUEFIで水冷やファンを総合的に管理
  • 超高効率のVRMヒートシンク：金属フィンアレイ設計で放熱のための表面積を最大化し、スロットリングなしで性能を実現
  • ASUS Control Center：中小企業向けの使いやすく安全で低コストなITの一元管理ソフトウェアユーティリティ
  • 超高速ストレージ：最大32GbpsのデュアルM.2とU.2、最大10GbpsのオンボードUSB 3.1 Gen 2 Type-A/Type-Cポート、フロントパネルコネクタ

型番：ASU-WS/X299/SAGE

JAN：889349853672

メーカー製品ページ

対応CPU Intel(R) Socket 2066 Core X-Series Processors
Supports Intel(R) Virtual RAID on CPU (VROC)
* The Intel(R) Turbo Boost Max Technology 3.0 support depends on the CPU types
搭載チップセット Intel(R) X299
メインメモリ Intel(R) Core X-series Processors (6-core above)
8 x DIMM, Max.128GB, DDR4- 4200(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
Intel(R) Core X-series Processors (4-core)
4 x DIMM, Max. 64GB, DDR4-4200(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
Supports Intel(R) Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
マルチGPU対応 Supports NVIDIA(R) 4-Way SLI Technology
Supports AMD 4-Way CrossFireX Technology
拡張スロット 7 x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8)
ストレージ 機能Intel(R) X299 Chipset :
1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280 storage devices support (PCIE 3.0 x 4 mode)
8 x SATA 6Gb/s port(s)
2 x U.2 connector*1
Support Raid 0, 1, 5, 10
Support Intel(R) Rapid Storage Technology enterprise 5.1 for X-Series(6-core and above) CPU RAID
Supports Intel(R) Smart Response Technology
Intel(R) Rapid Storage Technology 15 support
Intel(R) Optane Memory Ready
Intel(R) Virtual RAID (VROC) support for CPU RAID
LAN機能 Intel(R)I210-AT, 1000BASE-T/ 100BASE-TX/ 10BASE-T×1
Intel(R) I219-LM,1000BASE-T/ 100BASE-TX/ 10BASE-T×1
オーディオ機能 Realtek(R) ALC S1220A 7.1-Channel High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output (Line-out at rear) and 113 dB (Line-in)
Audio Feature :
- DTS Connect
- DTS Headphone:X
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
Separate layer for left and right track, ensuring both sound deliver equal quality
USB機能 Intel(R) X299 Chipset :
8 x USB 3.1 Gen 1 port(s) (6 at back panel, , 2 at mid-board)
Intel(R) X299 Chipset :
4 x USB 2.0 port(s) (4 at back panel, )
ASMedia(R) USB 3.1 Gen 2 controller :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM)
ASMedia(R) USB 3.1 Gen 2 controller :
1 x USB 3.1 Gen 2 port(s) (1 at mid-board)
独自機能 OC Design - ASUS PRO Clock II Technology
5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
TPU

Fan Xpert4
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
ASUS EPU :
- EPU
ASUS Digital Power Design :
- Industry leading Digital 8 Phase CPU Power Design
- Industry leading Digital 2 Phase DRAM Power Design
AURA :
- Aura RGB Strip Headers
- Aura Addressable Strip Header(s)
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger+
- Crystal Sound 3
ASUS EZ DIY :
- ASUS CrashFree BIOS
- ASUS EZ Flash
- ASUS USB BIOS Flashback
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/ s Data-transfer Speeds for M.2 and U.2)
Asus Control Center (ACC) IT management software supported
動作対応OS Windows(R) 10 64-bit
背面インターフェース 2 x LAN (RJ45) port(s)
1 x USB 3.1 Gen 2 (teal blue)Type-A,
1 x USB 3.1 Gen 2 (black)USB Type-CTM
6 x USB 3.1 Gen 1 (blue) ,
4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
1 x Optical S/PDIF out
1 x USB BIOS Flashback Button(s)
1 x 8-channel Audio I/O
基板上インターフェース 1 x Aura Addressable Strip Header(s)
2 x U.2 port
1 x AAFP connector
1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x M.2 Socket 3 with M key, type 2242/ 2260/ 2280 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/ 2260/ 2280/ 22110 storage devices support (PCIE 3.0 x 4 mode)
1 x TPM header
1 x COM port(s) connector(s)
8 x SATA 6Gb/s connector(s)
1 x VROC_HW_Key
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 6-pin ATX Power connector
2 x 8-pin ATX 12V Power connector(s)
1 x EZ XMP switch
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS button(s)
1 x Water Pump header (4-pin)
1 x System panel connector
1 x Thermal sensor connector
1 x USB 3.1 Gen 2 front panel connector
1 x CPU_OV jumper
1 x MemOK! Button
1 x M.2 Fan Header
主な付属品 User's manual
ASUS Q-Shield
1 x Vertical M.2 bracket set
1 x COM port cable(s)
8 x SATA 6Gb/s cable(s)
1 x M.2 screws
1 x Supporting DVD
1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan)
1 x 3-Way SLI bridge(s)
1 x 4-Way SLI bridge(s)
1 x SLI HB BRIDGE(2-WAY-M)
1 x Q-Connector
フォームファクター（サイズW×D） CEB Form Factor
12 inch x 10.5 inch ( 30.5 cm x 26.7 cm )
質量 Color Box(3-in-1)
Net Weight: 5.55kg
Gross Weight: 8.06kg

Bulk Pack(5-in-1)
Net Weight: 6.99kg
Gross Weight: 9.37kg
動作環境 Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
その他 *Intel(R) VROC is supported via RSTe, and Intel(R) VROC_HW_key. VROC_HW_Key is purchased separately. NVMe RAID type and function will depend on the Intel(R) VROC_HW_key installed. PCIEX16_1 to PCIEx16_3 & PCIEX16_4 to PCIEx16_7 support Intel(R) VROC separately.

*1. The U.2 connectors are only supported on 44-Lane CPUs.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
