ROG STRIX Z890-F GAMING WIFI

ROG STRIX Z890-F GAMING WIFI

Intel Z890チップセット搭載
「ROG STRIX」ゲーミングマザーボード

・Intel Z890チップセット搭載
・「ROG STRIX」ゲーミングマザーボード
・ATXフォームファクター
・Intel Socket LGA1851
・Intel Core Ultra プロセッサー(series 2)対応
・16(110A)+2(90A)+1(90A)+2(80A) パワーステージ
・合金チョークと高耐久性コンデンサー、 デュアルProCool II 電源コネクター
・拡大されたVRM ヒートシンクアレイ、M.2ヒートシンク＆バックプレートなどがシステムを強力に冷却
・PCIe 5.0 スロット、PCIe 5.0 M.2スロット装備
・リアThunderbolt 4 (40Gbps)×2基、フロントUSB 20Gbps (Type-C)コネクタ装備
・Wi-Fi 7 + Intel 2.5Gb LAN
・PCIe Slot Q-Release Slim
・Q-Antenna、M.2 Q-Latch、M.2 Q-Release、M.2 Q-Slide
・ASUS AI ADVISOR、AI NETWORKING II、AI OVERCLOCKING、AI COOLING II

型番：ROG STRIX Z890-F GAMING WIFI

JAN：0197105755932

発売日：2024年10月25日

メーカー製品ページ

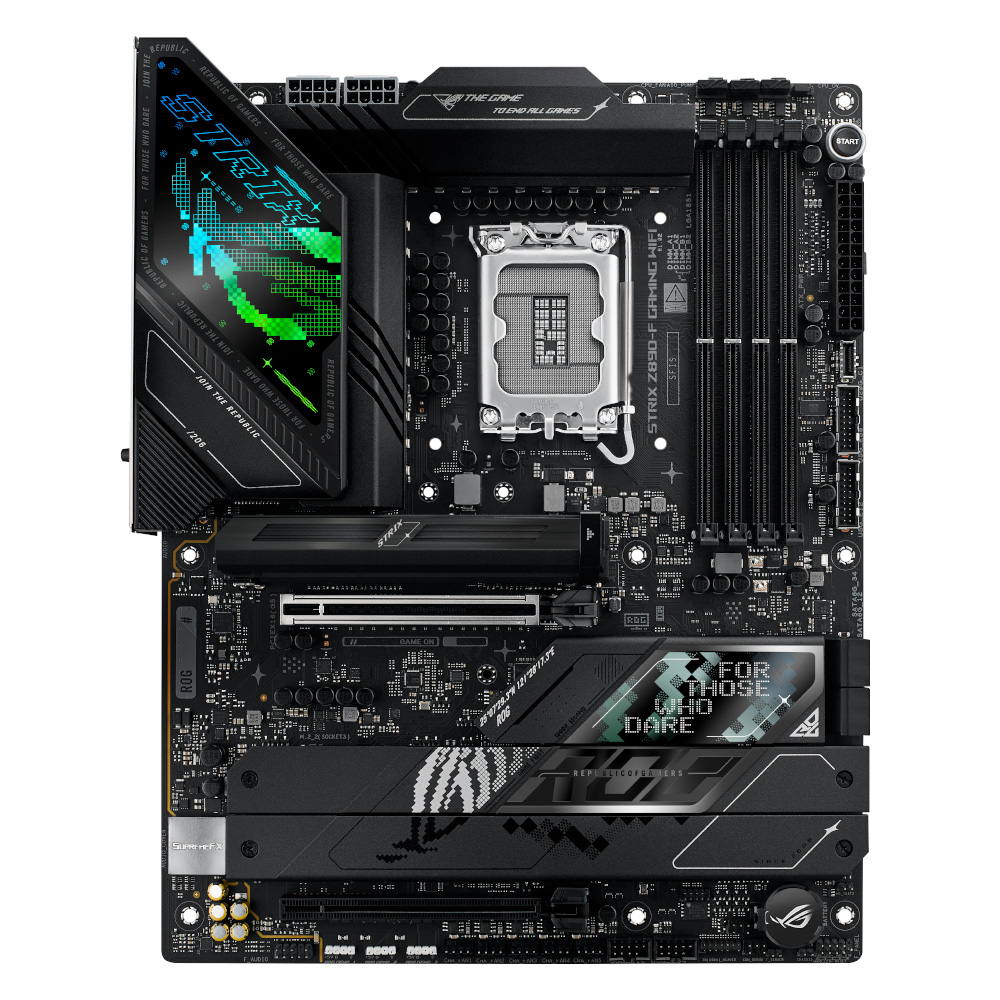

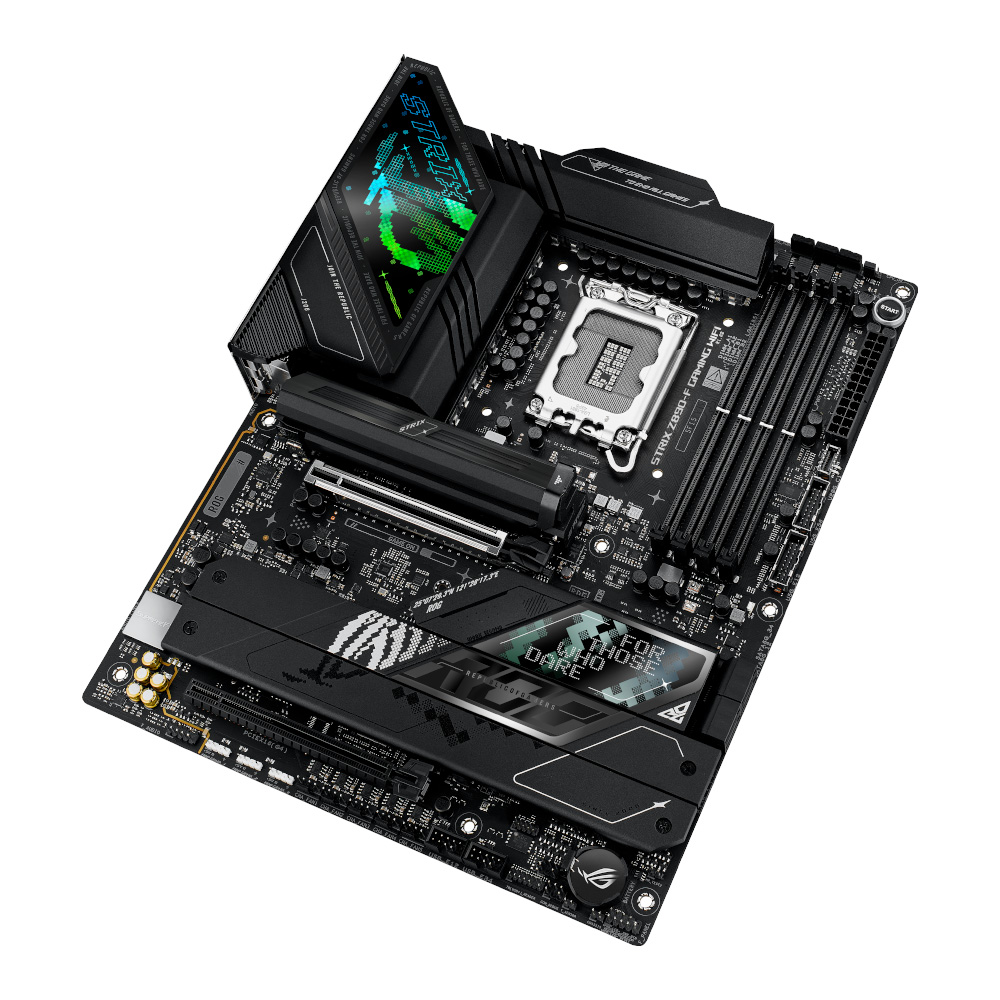

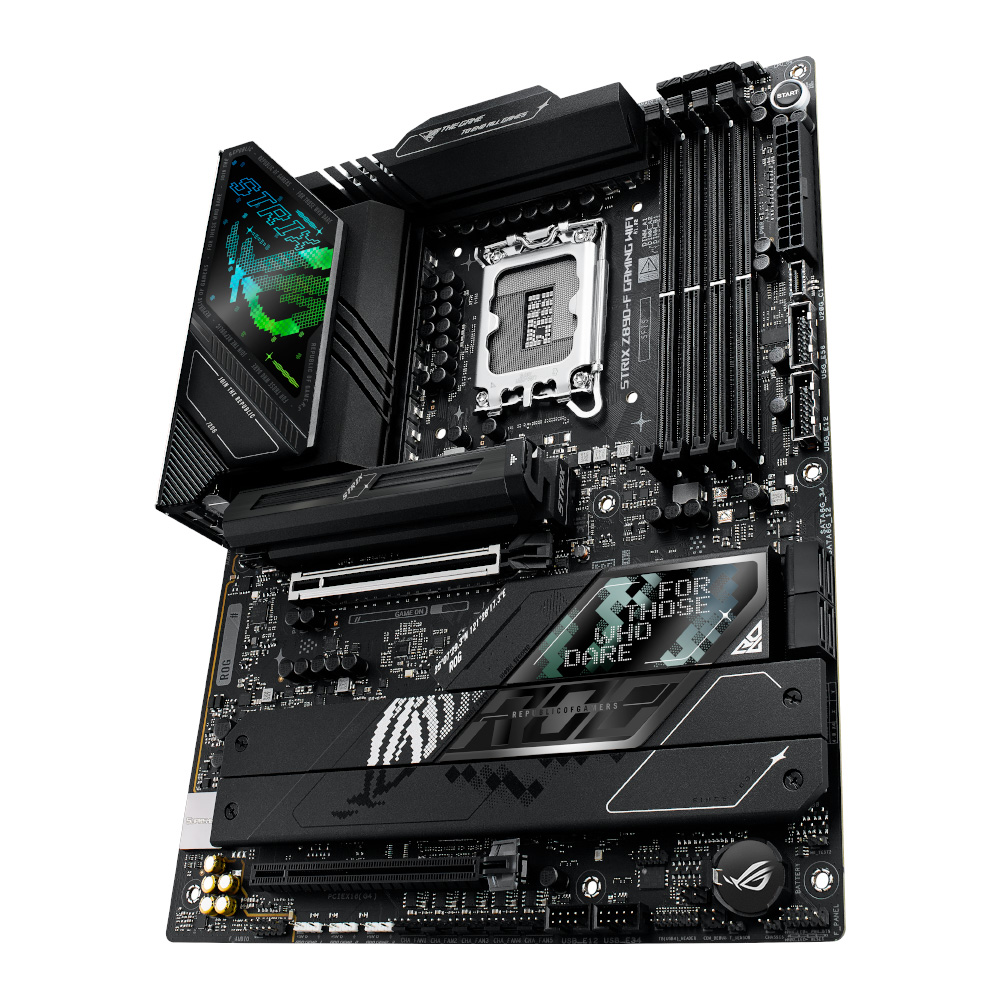

「ROG STRIX Z890-F GAMING WIFI」は、Intel Z890チップセットを搭載したゲーミングマザーボードです。
16(110A)+2(90A)+1(90A)+2(80A) パワーステージの強力な電源回路を備え、最新のIntel Core Ultra プロセッサーの性能を引き出します。拡大されたVRM ヒートシンクアレイ、M.2ヒートシンク＆バックプレートなどがシステムを強力に冷却します。
Thunderbolt 4 (40Gbps)ポート、フロントUSB 20Gbps (Type-C)などの高速規格を搭載しています。
Intel 2.5G LAN + Wi-Fi 7をサポートし、高速なネットワーク環境を構築することができます。
グラフィックカードの取り外しが簡単なPCIe Slot Q-Release Slimなど、PCの組み立てを容易にする機能「Q-Design」を備えています。




型番 ROG STRIX Z890-F GAMING WIFI
フォームファクター ATX Form Factor
305×244mm
チップセット Intel Z890 Chipset
対応CPUソケット Intel Socket LGA1851
対応CPU Intel Core Ultra Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
対応メモリー 4 x DIMM slots, max. 192GB, DDR5
 Support up to 8600+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
DIMM Fit
ASUS Enhanced Memory Profile III (AEMP III)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
拡張スロット Intel Core Ultra Processors
1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
Intel Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
ストレージ Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel Core Ultra Processors *
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

Intel Z890 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.

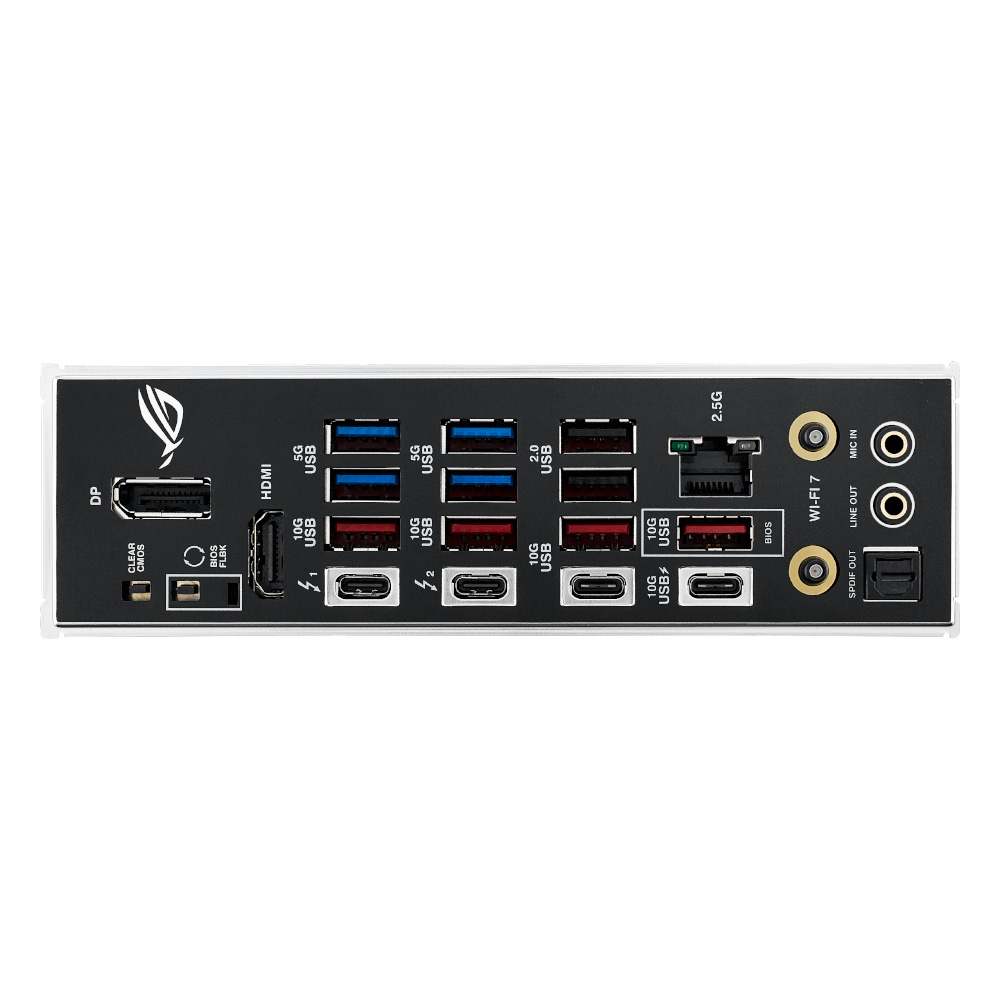

USB Rear USB (Total 14 ports)
2 x Thunderbolt 4 ports (2 x USB Type-C)
6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C + 1 x USB Type-C with up to 30W PD Fast-charge)**
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)

Front USB (Total 9 ports)
1 x USB 20Gbps (1 x USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

* USB Type-C power delivery output: max. 5V/3A
** USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
LAN 1 x Intel 2.5Gb Ethernet
ASUS LANGuard
無線機能 Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth v5.4***

*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
映像出力 1 x DisplayPort**
1 x HDMI port***
2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs****

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 8K@60Hz with DSC as specified in DisplayPort 1.4a.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** Supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
***** VGA resolution support depends on processors' or graphic cards' resolution.
オーディオ ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
LED 3 x Addressable Gen 2 headers
OS Windows 11

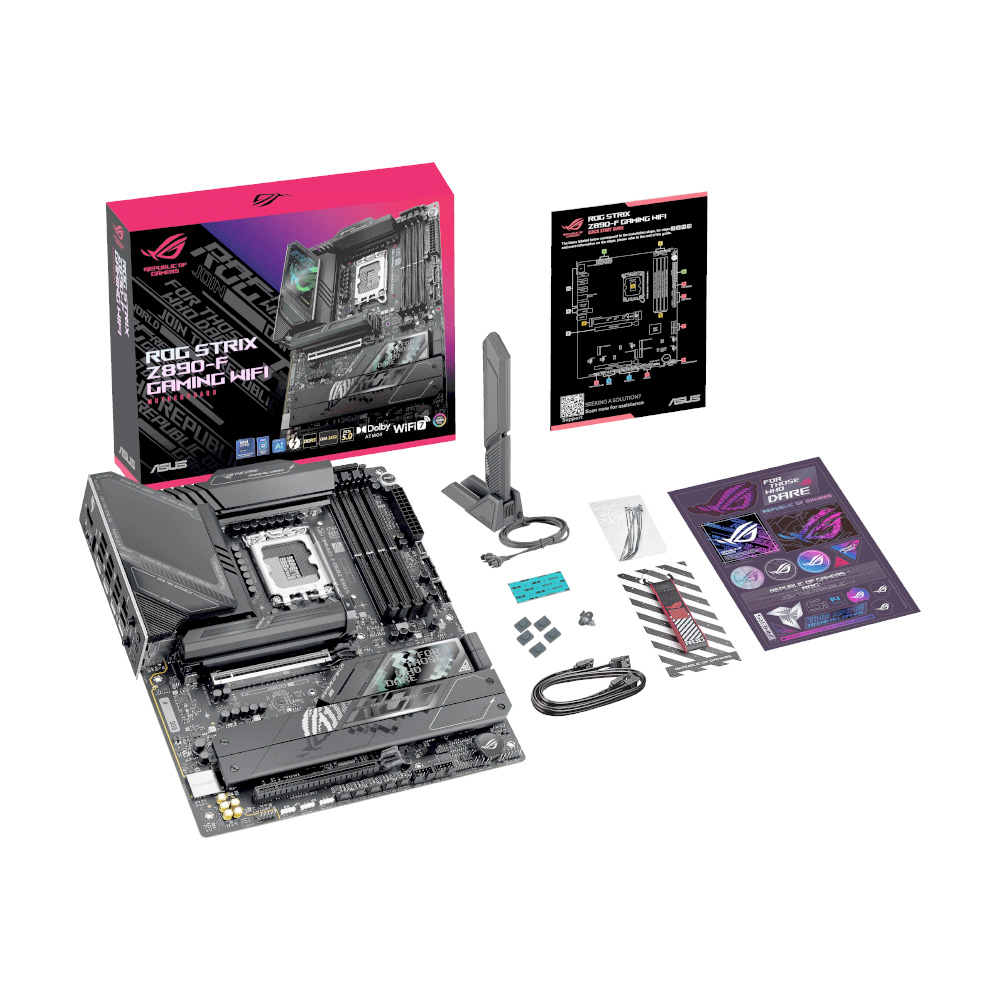

付属品 Cables
2 x SATA 6Gb/s cables

Additional Cooling Kit
1 x Thermal pad for M.2 22110

Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x M.2 Q-Slide package
1 x ROG key chain
1 x ROG Strix stickers
3 x M.2 rubber packages

Documentation
1 x Quick start guide

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
