Z890 MAX GAMING WIFI7

Z890 MAX GAMING WIFI7

Intel Z890チップセット搭載
Wi-Fi 7対応ゲーミングマザーボード

・Intel Z890チップセット搭載
・ATXフォームファクター
・Intel Socket LGA1851
・Intel Core Ultra プロセッサー(series 2)対応
・12(80A) + 1(80A) + 2(80A) + 1(80A) Dr.MOSパワーステージ
・8+8 pin ProCool電源コネクター、6層PCB
・大型VRMヒートシンク、PCHヒートシンク、Stack Cool 3+などがシステムを強力に冷却
・PCIe 5.0 スロット、PCIe 5.0 M.2スロット装備
・リアUSB 20Gbps Type-Cポート(DP Altモード対応)搭載
・Thunderbolt (USB4)ヘッダー装備
・Wi-Fi 7 + Realtek 2.5Gb LAN
・BIOS FlashBack、プリマウントI/Oシールド、Q-LED Core
・ASUS AI ADVISOR、AI COOLING II

型番：Z890 MAX GAMING WIFI7

JAN：0197105757523

発売日：2024年10月25日

メーカー製品ページ

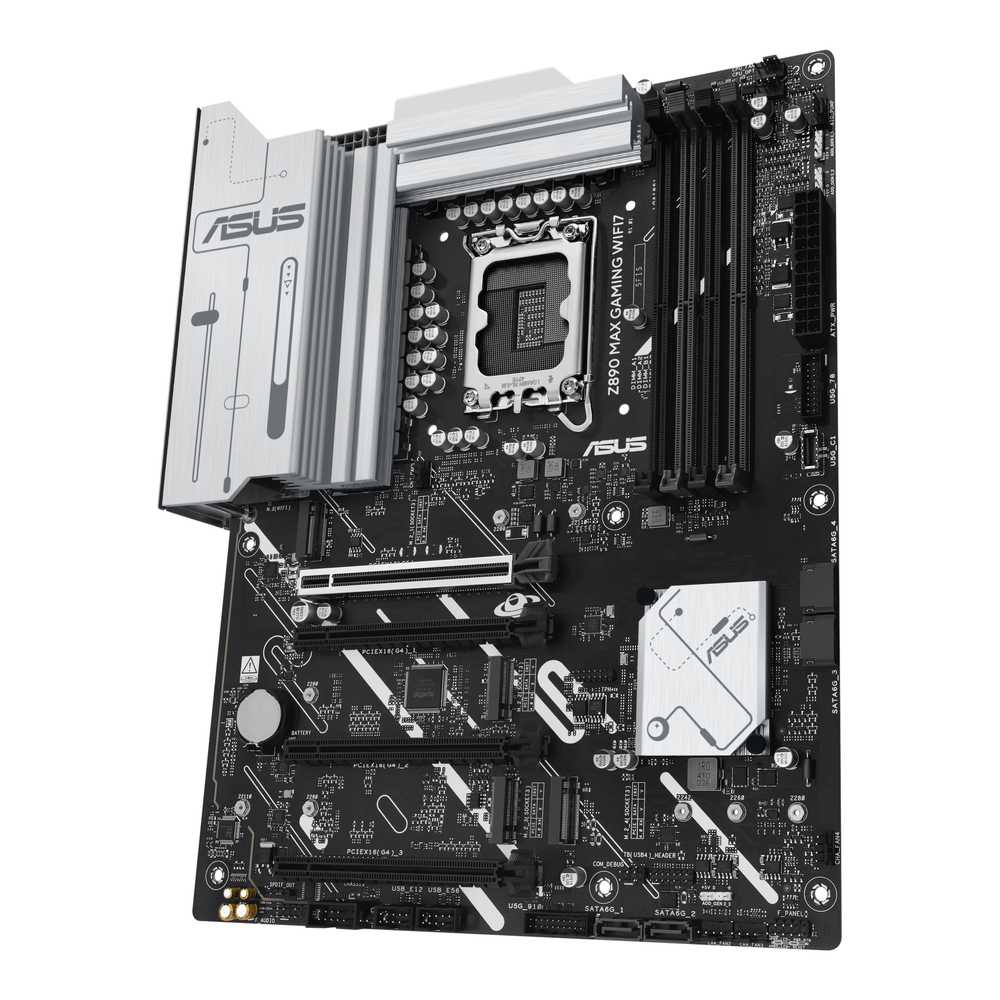

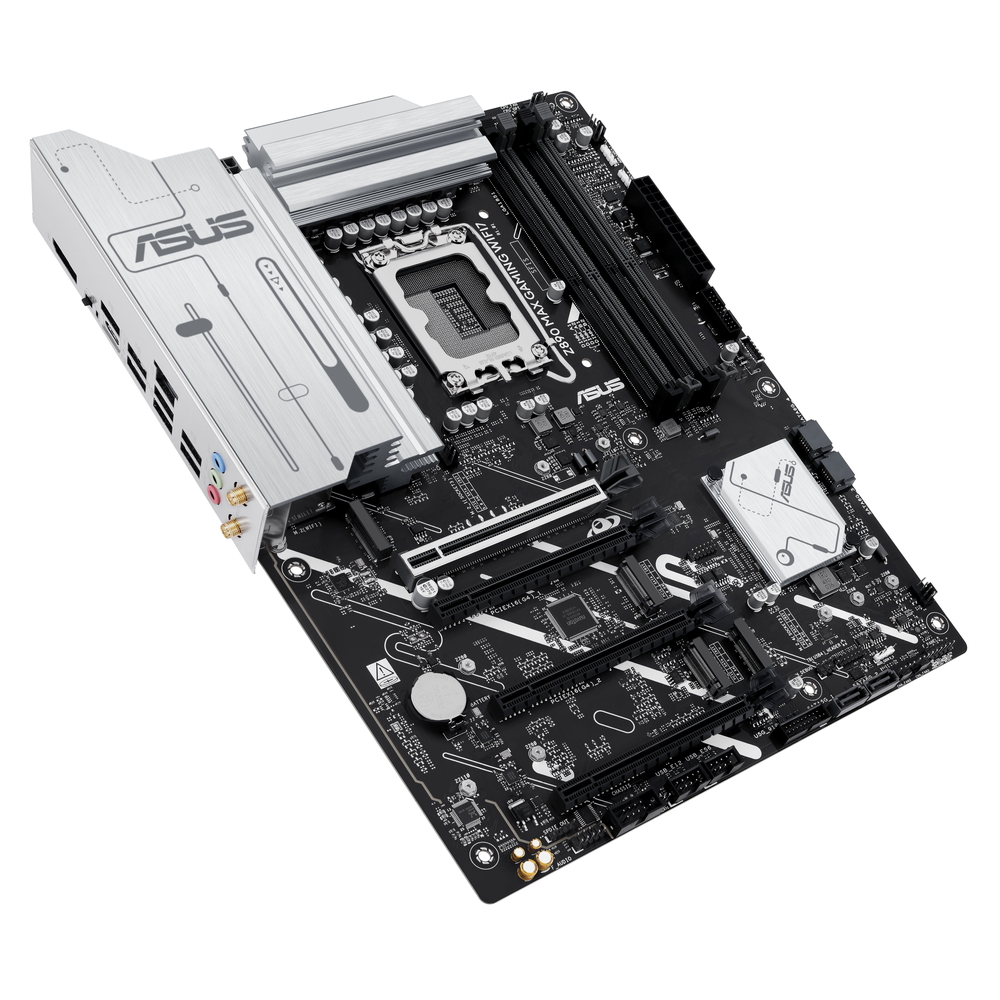

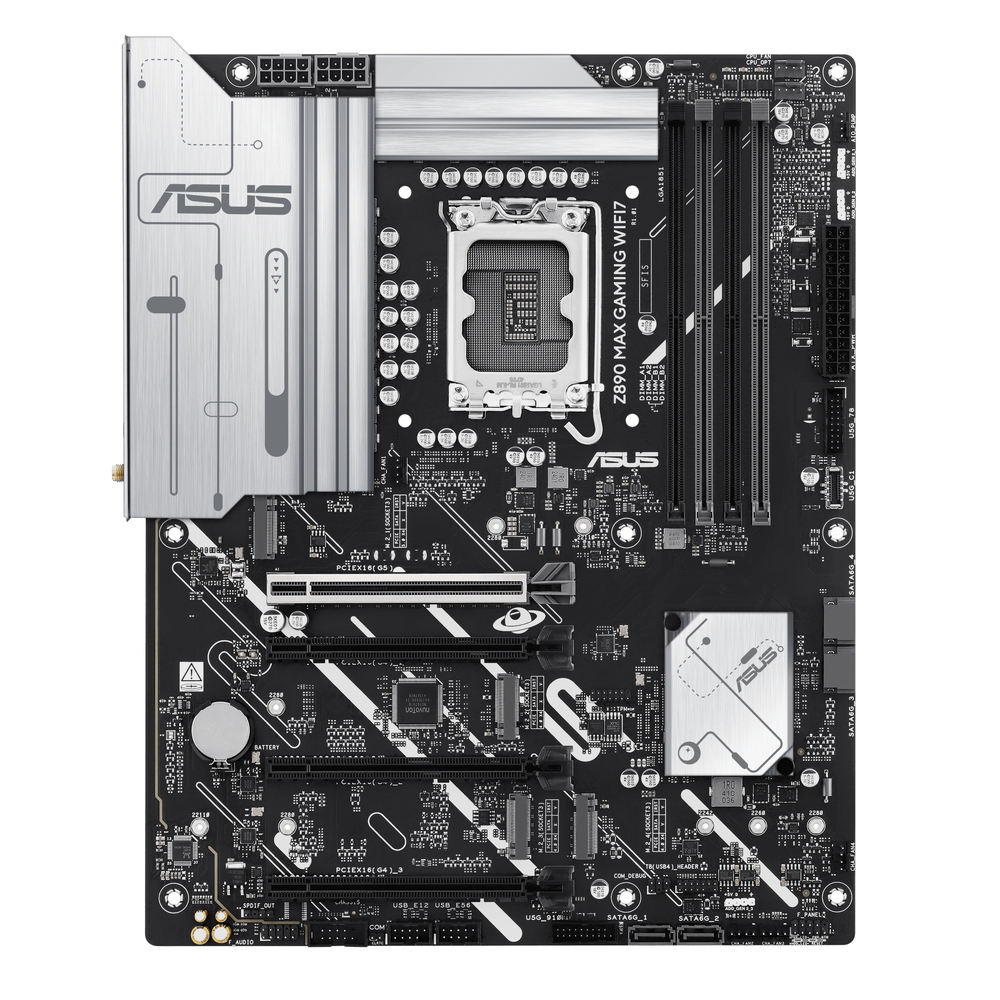

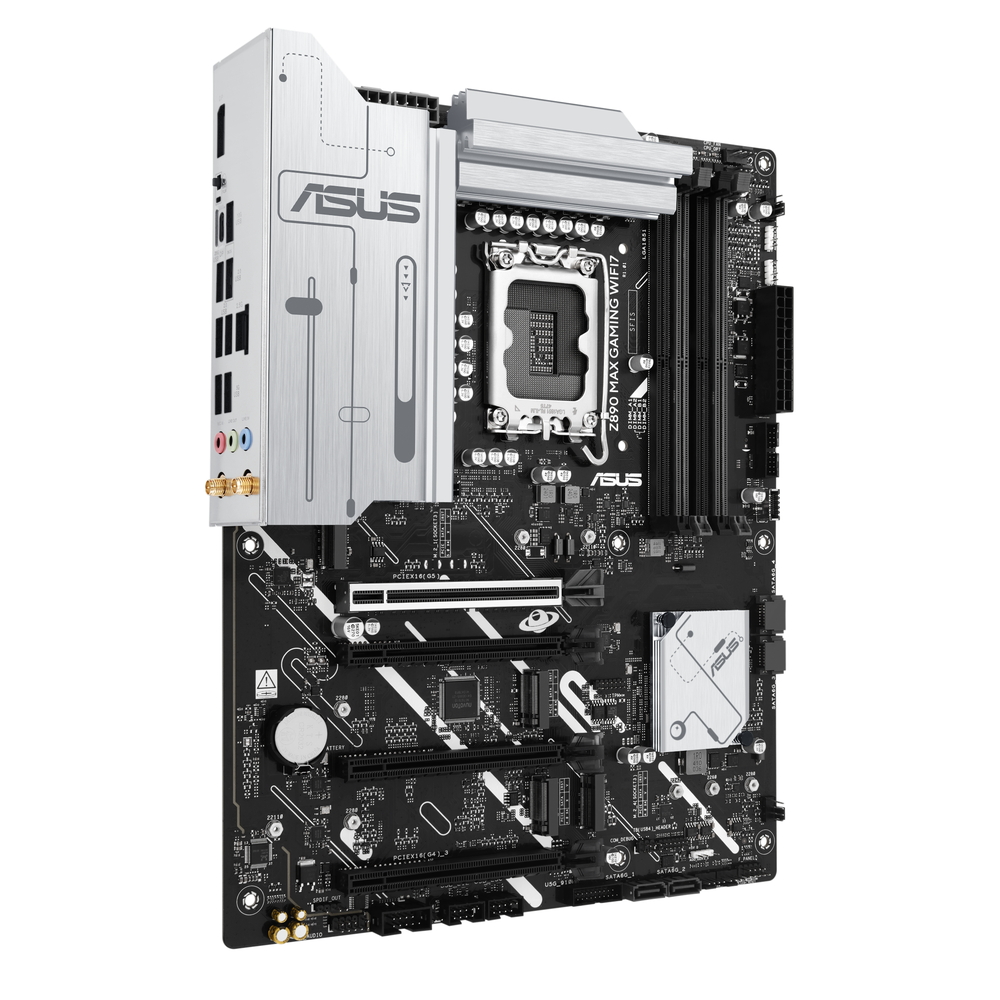

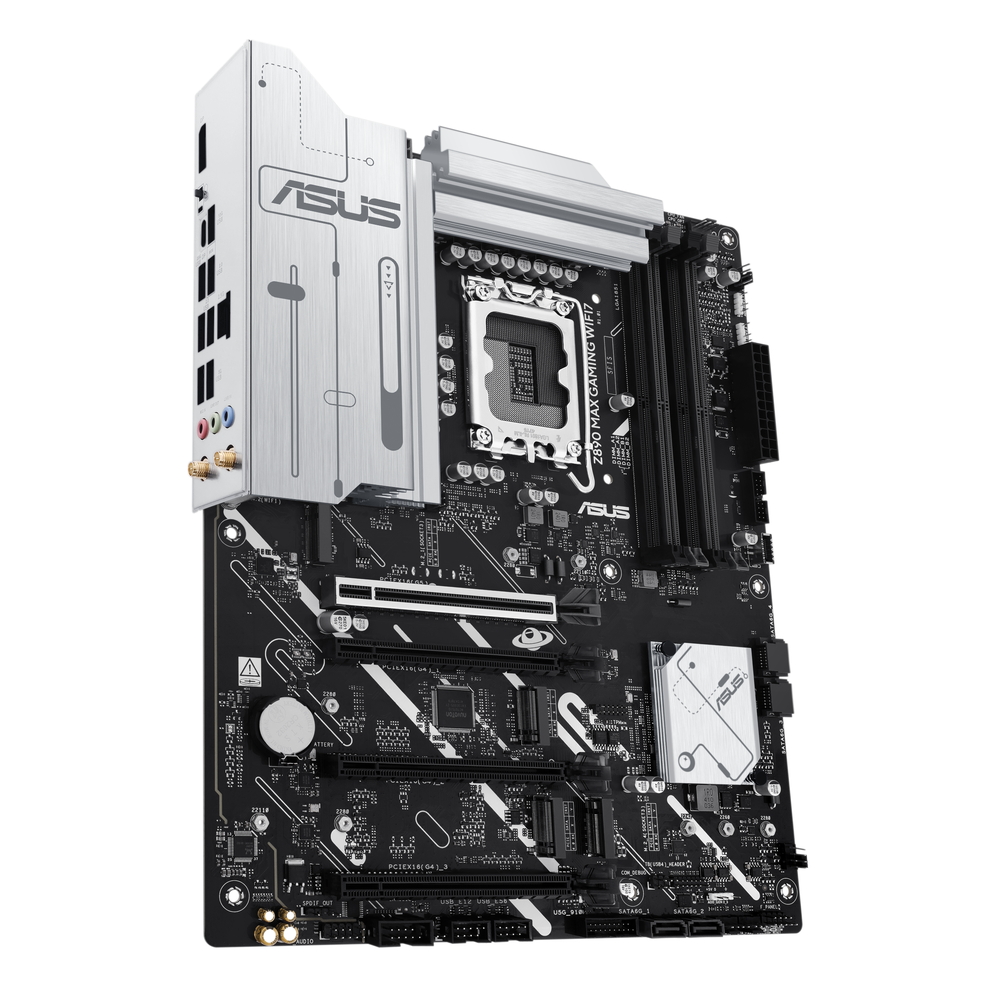

「Z890 MAX GAMING WIFI7」は、Intel Z890チップセットを搭載したゲーミングマザーボードです。
12(80A) + 1(80A) + 2(80A) + 1(80A) Dr.MOSパワーステージの強力な電源回路が、Intel Core Ultra プロセッサーの性能を引き出します。
大型VRMヒートシンク、PCHヒートシンク、Stack Cool 3+などがシステムを強力に冷却します。
USB 20Gbps Type-Cポート(DP Altモード対応)、Thunderbolt 4 (USB4)ヘッダーを備え、高速データ転送に対応。ネットワークはWi-Fi 7+Realtek 2.5Gb LANをサポートし、高速なネットワーク環境を構築することができます。






型番 Z890 MAX GAMING WIFI7
フォームファクター ATX Form Factor
305×244mm
チップセット Intel Z890 Chipset
対応CPUソケット Intel Socket LGA1851
対応CPU Support Intel Core Ultra Processors(Series 2), LGA1851*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
対応メモリー 4 x DIMM slots, max. 192GB, DDR5
Supports up to 8666+MT/s (OC),  Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
拡張スロット Intel Core Ultra Processors(Series 2)*
1 x PCIe 5.0 x16 slot

Intel Z890 Chipset
2 x PCIe 4.0 x16 slots (supports x4 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
ストレージ Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel Core Ultra Processors(Series 2) *
M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

Intel Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

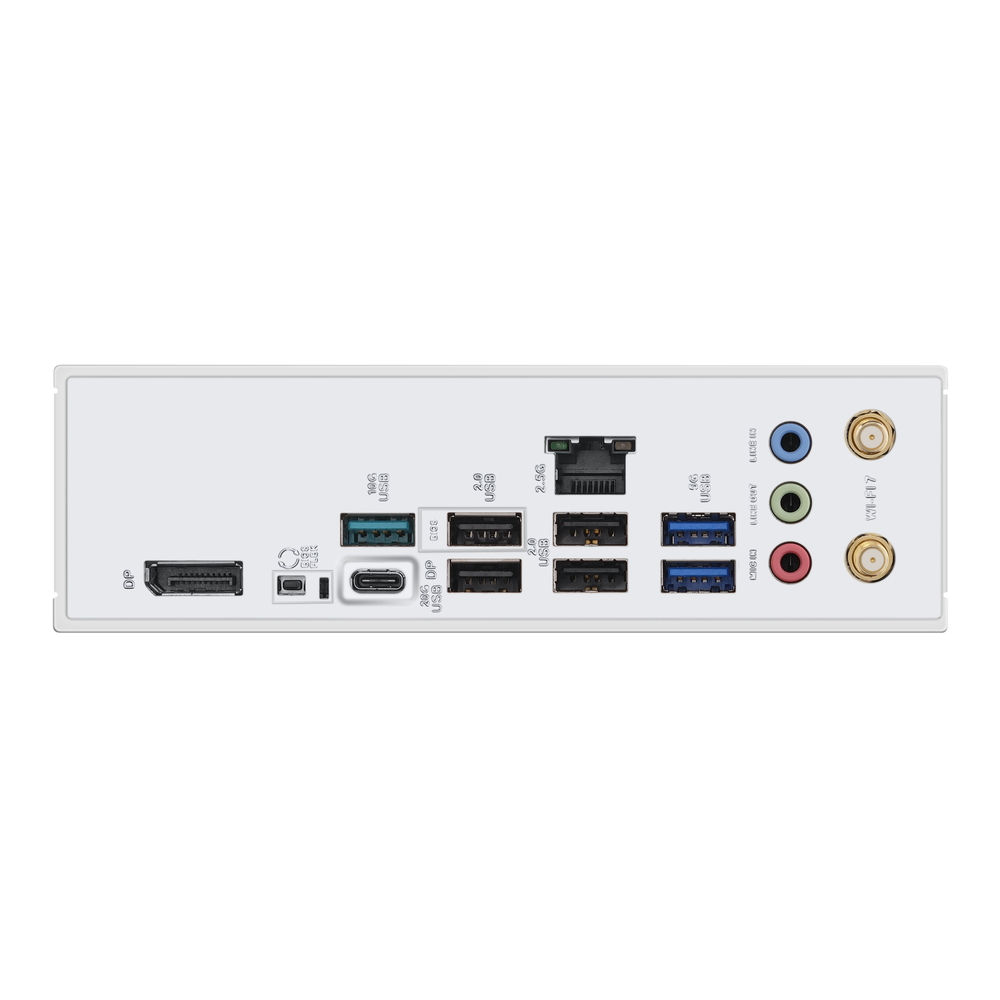

USB Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)**

Front USB (Total 9 ports)
1 x USB 5Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports**

* USB Type-C power delivery output: max. 5V/3A
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth.
Thunderbolt 1 x Thunderbolt (USB4) Header
LAN 1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
無線機能 "Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
映像出力 1 x DisplayPort**
1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output***

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports max. 4K@120Hz as specified in DisplayPort 1.4.
オーディオ Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
LED 3 x Addressable Gen 2 headers
OS Windows 11 (22H2 & later)
付属品 Cables
2 x SATA 6Gb/s cables

Miscellaneous
1 x ASUS Wi-Fi moving antenna
2 x Screw packages for M.2 SSD

Documentation
1 x Quick start guide

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
