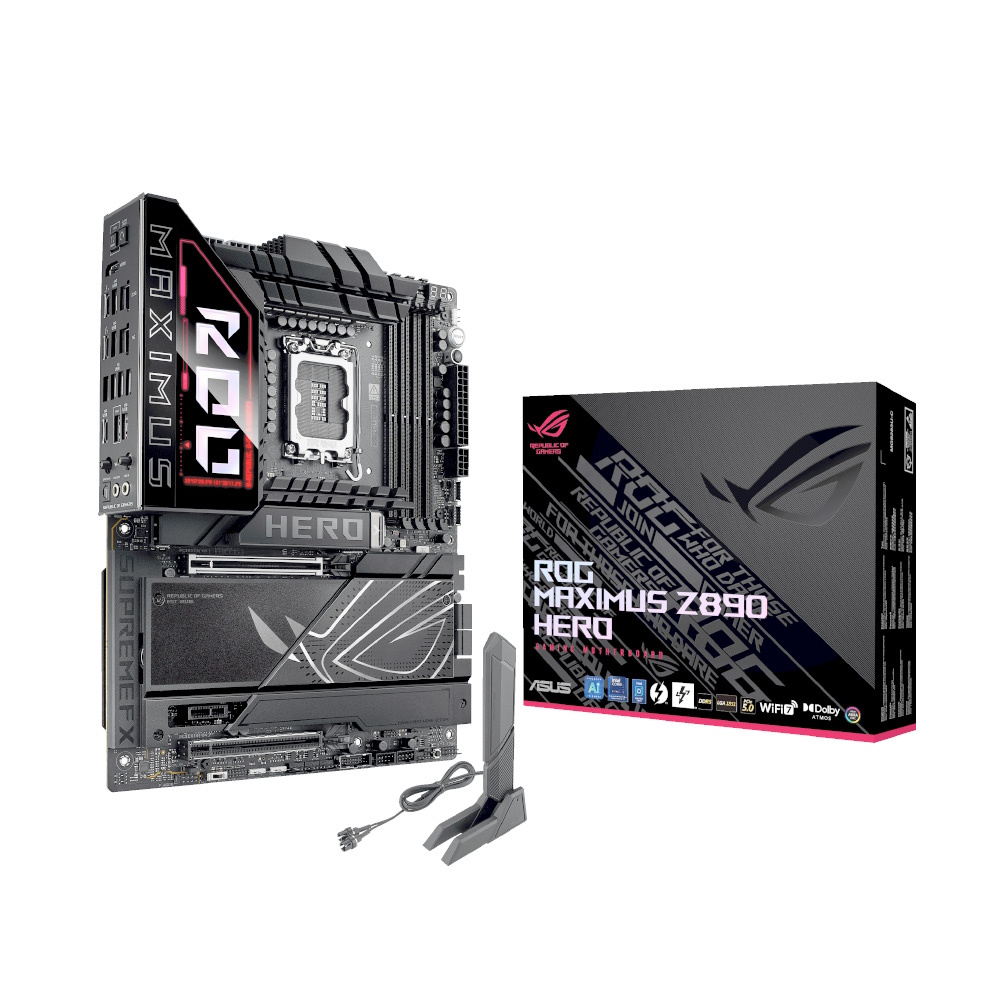

ROG MAXIMUS Z890 HERO

ROG MAXIMUS Z890 HERO

Intel Z890チップセット搭載
「ROG MAXIMUS HERO」マザーボード

・Intel Z890チップセット搭載
・「ROG MAXIMUS HERO」マザーボード
・ATXフォームファクター
・Intel Socket LGA1851
・Intel Core Ultra プロセッサー(series 2)対応
・22(110A)+2(90A)+1(90A)+2(80A) パワーステージ
・マイクロファイン合金チョーク、10K ブラックメタリックコンデンサー、および8+8 PIN ProCool II電源コネクター
・NITROPATH DRAM TECHNOLOGY
・PCIe 5.0 スロット、PCIe 5.0 M.2スロット装備
・リアThunderbolt 4 (40Gbps)×2基、フロントUSB 20Gbps (Type-C)コネクタ (60W PD/QC4+対応)装備
・Wi-Fi 7 + Realtek 5Gb LAN + Intel 2.5Gb LAN
・PCIe Slot Q-Release Slim
・Q-Antenna、M.2 Q-Latch、M.2 Q-Release、M.2 Q-Slide
・ASUS AI ADVISOR、AI NETWORKING II、AI OVERCLOCKING、AI COOLING II

型番：ROG MAXIMUS Z890 HERO

JAN：0197105747234

発売日：2024年10月25日

メーカー製品ページ

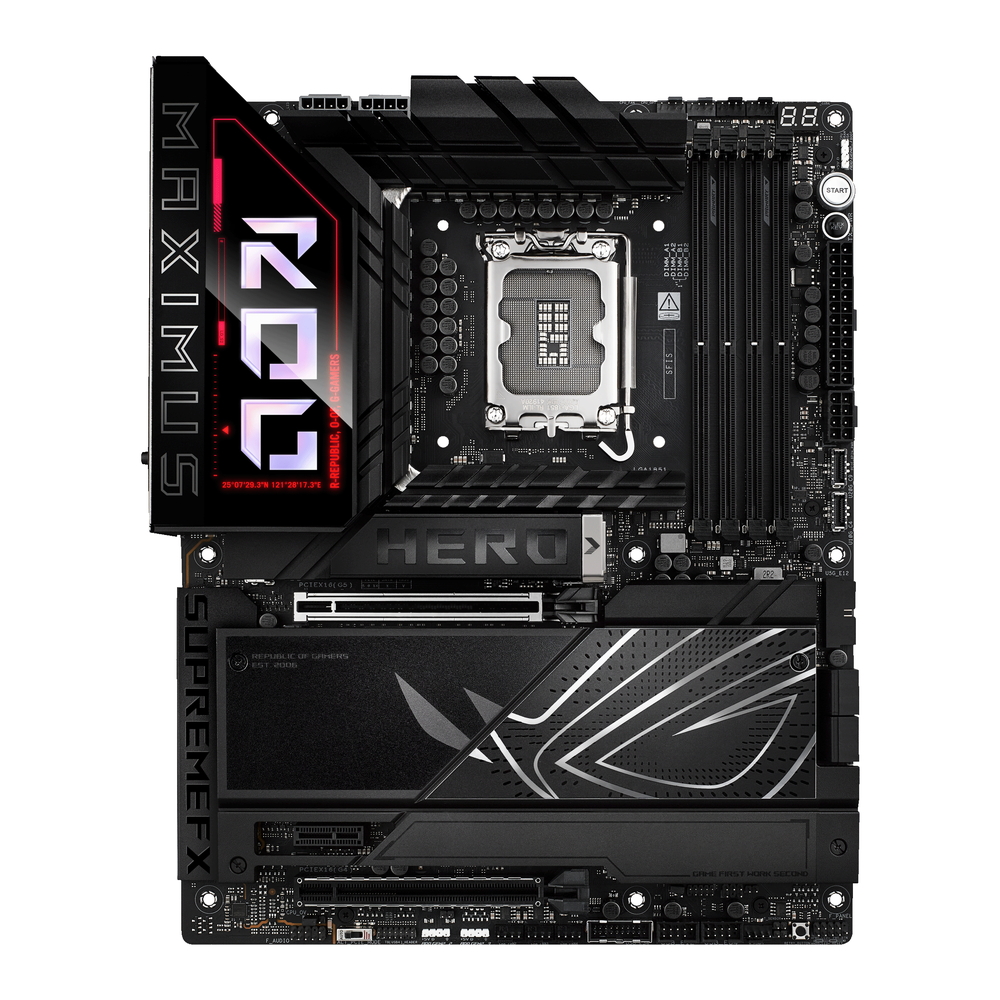

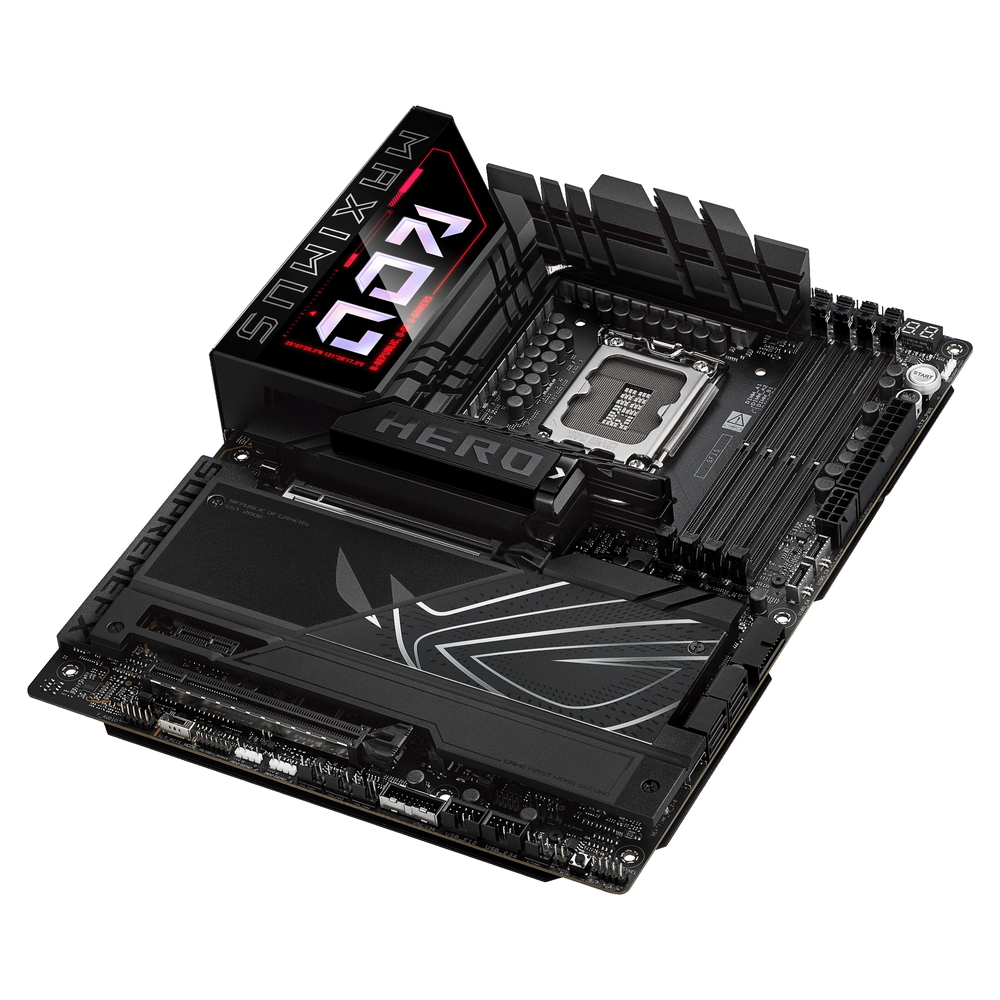

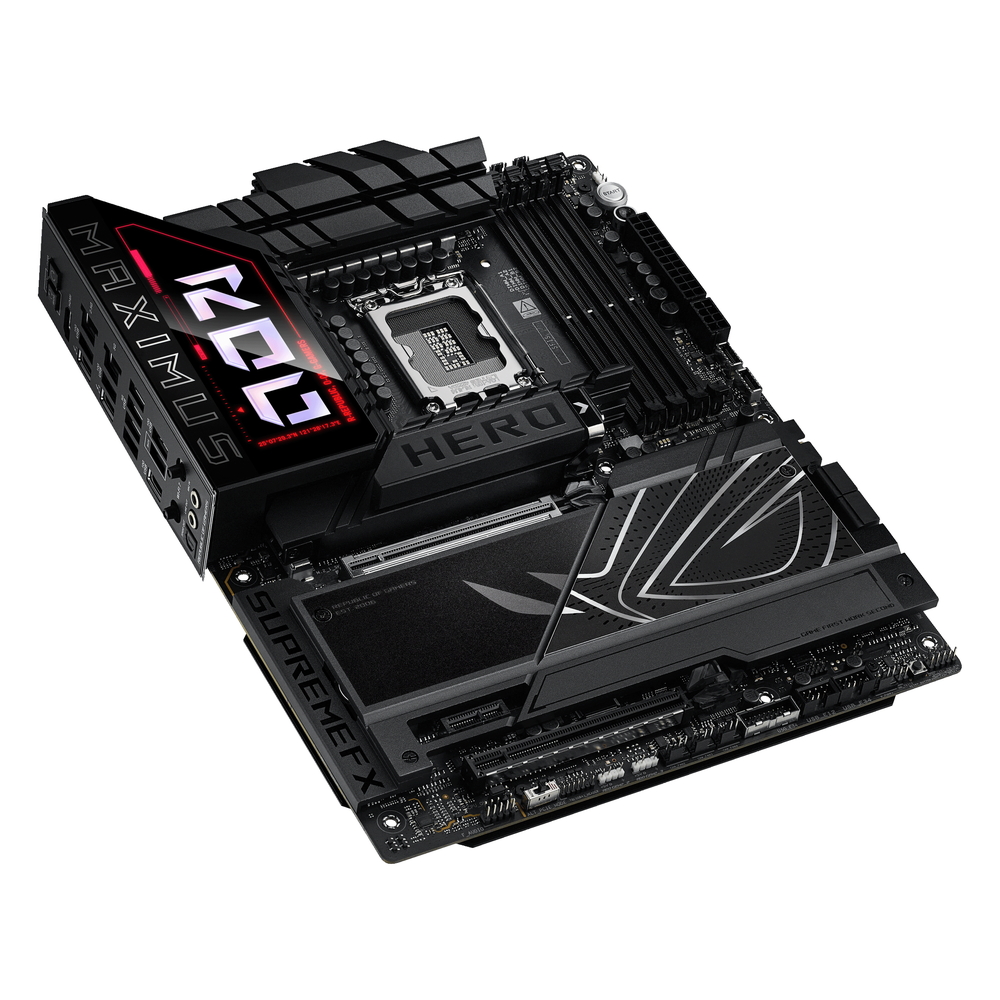

「ROG MAXIMUS Z890 HERO」は、Intel Z890チップセットを搭載した、「ROG MAXIMUS」シリーズマザーボードです。
22(110A)+2(90A)+1(90A)+2(80A) パワーステージの強力な電源回路が、最新のIntel Core Ultra プロセッサーの性能を引き出します。
Thunderbolt 4ポートや、60W PD/QC4+に対応するUSB 20Gbps (Type-C)コネクタ など、最新の高速規格を備えています。
グラフィックカードの取り外しが簡単なPCIe Slot Q-Release Slimなど、PCの組み立てを容易にする機能「Q-Design」を備えています。
ネットワークは、Wi-Fi 7 + Realtek 5Gb LAN + Intel 2.5Gb LANをサポートし、高速な通信環境を構築することができます。






型番 ROG MAXIMUS Z890 HERO
フォームファクター ATX Form Factor
305×244mm
チップセット Intel Z890 Chipset
対応CPUソケット Intel LGA 1851
対応CPU Support Intel Core Ultra Processors(series 2) , LGA1851*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
対応メモリー 4 x DIMM slots, max. 192GB, DDR5
Support up to 8600+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*"
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
NitroPath DRAM Technology
DIMM FIT
ASUS Enhanced Memory Profile III (AEMP III)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
拡張スロット Intel Core Ultra Processors(series 2)*
1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)**
Intel Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
ストレージ Supports 6 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel Core Ultra Processors(series 2) *
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

Intel Z890 Chipset
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_6 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports
SlimSAS slot supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable. The cable is purchased separately.

* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5
** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.

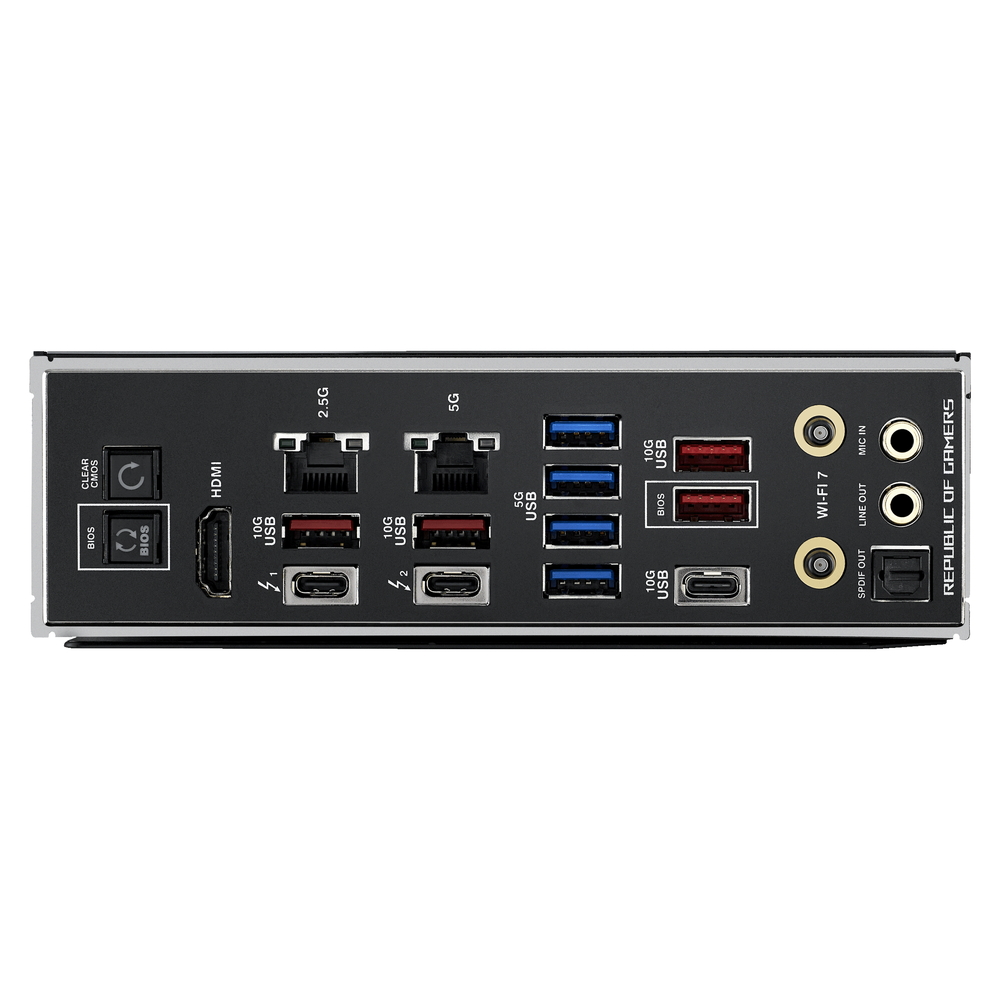

USB Rear USB (Total 11 ports)
2 x Thunderbolt 4 ports (2 x USB Type-C)
5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C)
4 x USB 5Gbps ports (4 x Type-A)

Front USB (Total 10 ports)
1 x USB 20Gbps connector (supports USB Type-C with up to 60W PD/QC4+)*
1 x USB 10Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

USB Type-C power delivery output: max. 5V/3A
* USB Type-C power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
無線機能 1 x Intel 2.5Gb Ethernet
1 x Realtek 5Gb Ethernet
ASUS LANGuard
映像出力 Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth v5.4***

*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."
オーディオ ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
LED 3 x Addressable Gen 2 headers
OS Windows 11 (22H2 & later)

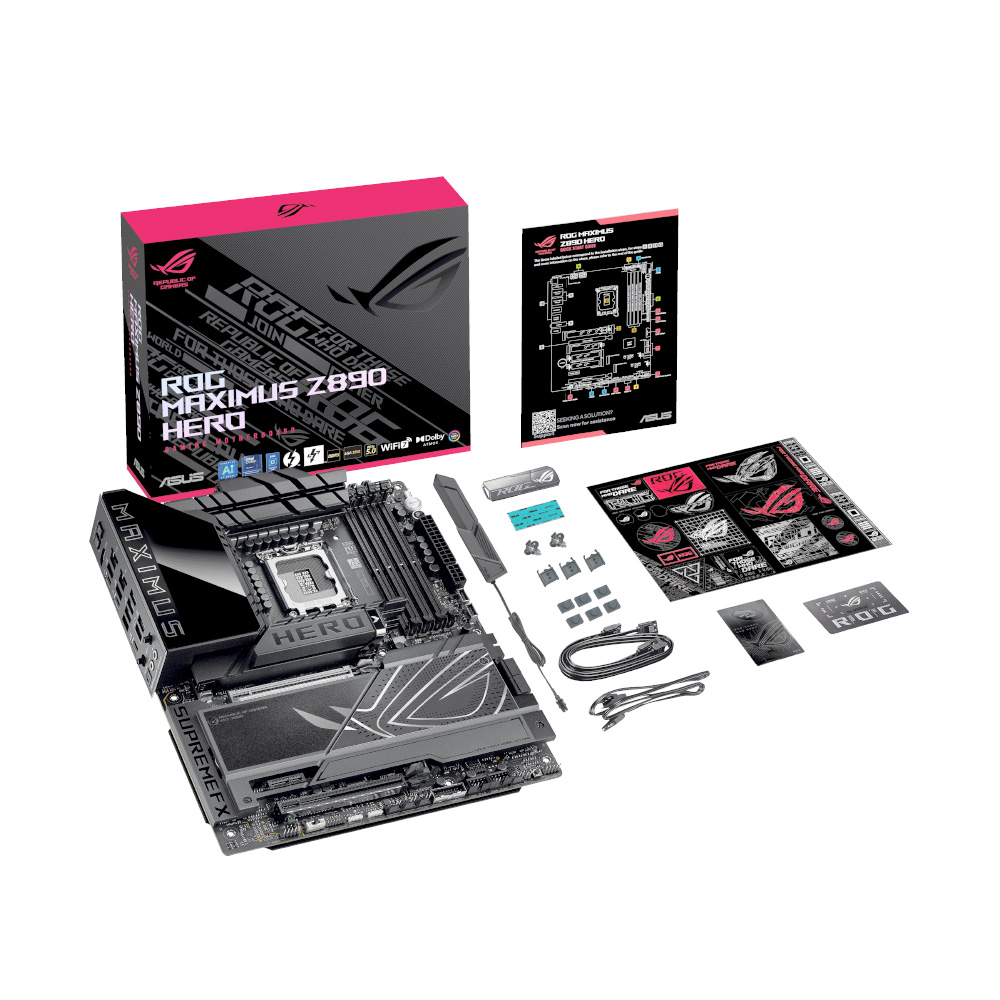

付属品 Cables
1 x ARGB RGB extension cable
4 x SATA 6Gb/s cables

Additional Cooling Kit
1 x DDR5 fan holder
1 x Thermal pad for M.2 22110

Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
1 x M.2 Q-Latch package
3 x M.2 Q-Slide packages
1 x ROG stickers
6 x M.2 rubber packages
1 x ROG thank you card
1 x ROG Bottle Opener

Installation Media
1 x USB drive with utilities and drivers

Documentation
1 x Quick start guide

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
