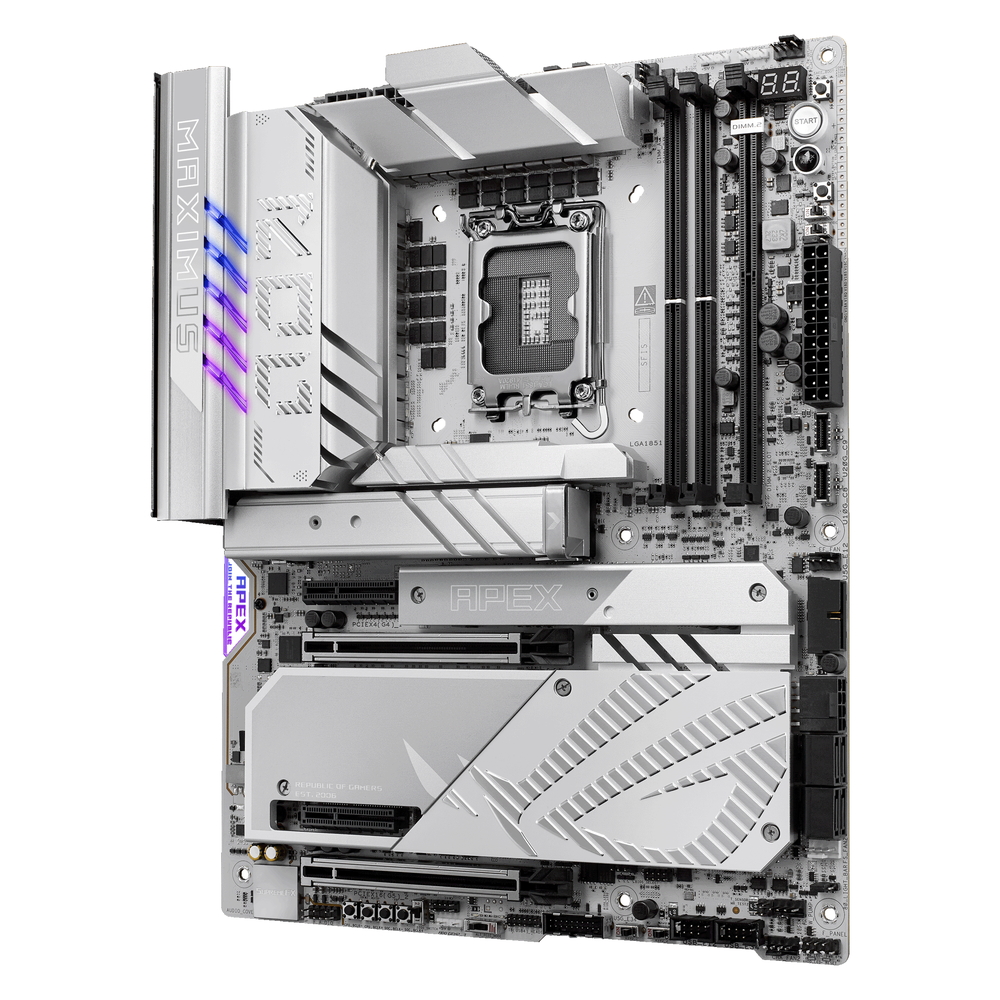

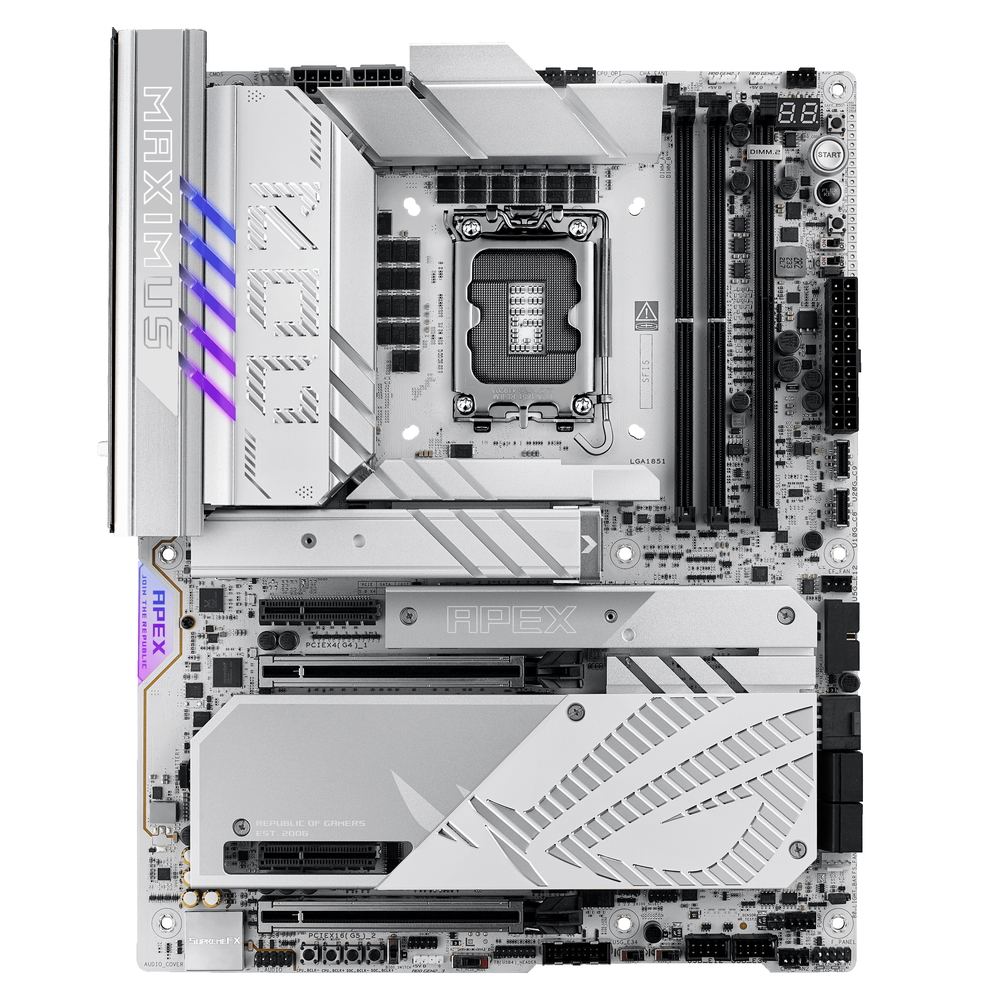

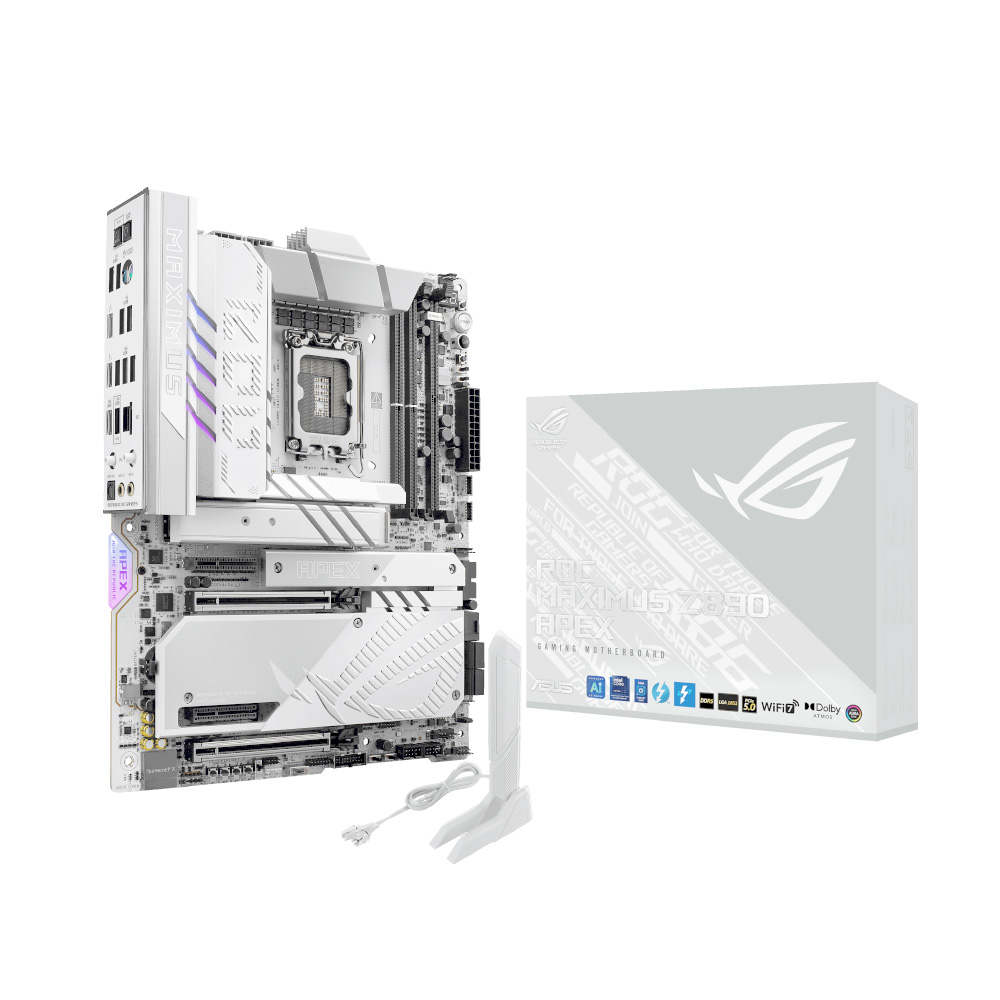

ROG MAXIMUS Z890 APEX

ROG MAXIMUS Z890 APEX

Intel Z890チップセット搭載「ROG MAXIMUS」マザーボード
オーバークロックを支援する機能を多数搭載「APEX」モデル

・Intel Z890チップセット搭載
・オーバークロック特化したAPEXモデル
・ATXフォームファクター
・Intel Socket LGA1851
・Intel Core Ultra プロセッサー(series 2)対応
・22(110A)+1(90A)+2(90A)+2(80A) パワーステージ
・マイクロファイン合金チョーク、SMDコンデンサー、および8+8 PIN ProCool II電源コネクター
・NPU BOOST、オーバークロッカーのツールキット、AI OVERCLOCKING
・VRMヒートシンク、高伝導性サーマルパッド、PCHヒートシンク、M.2ヒートシンク＆バックプレート

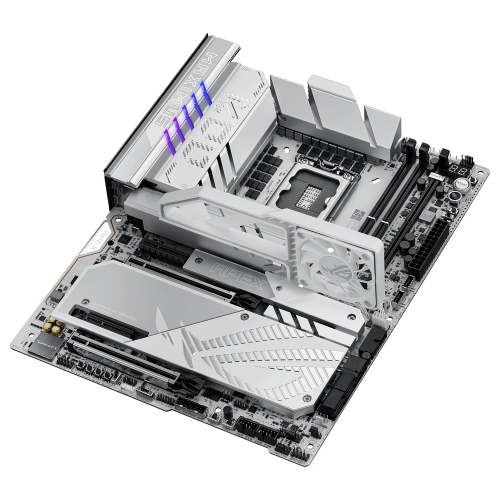

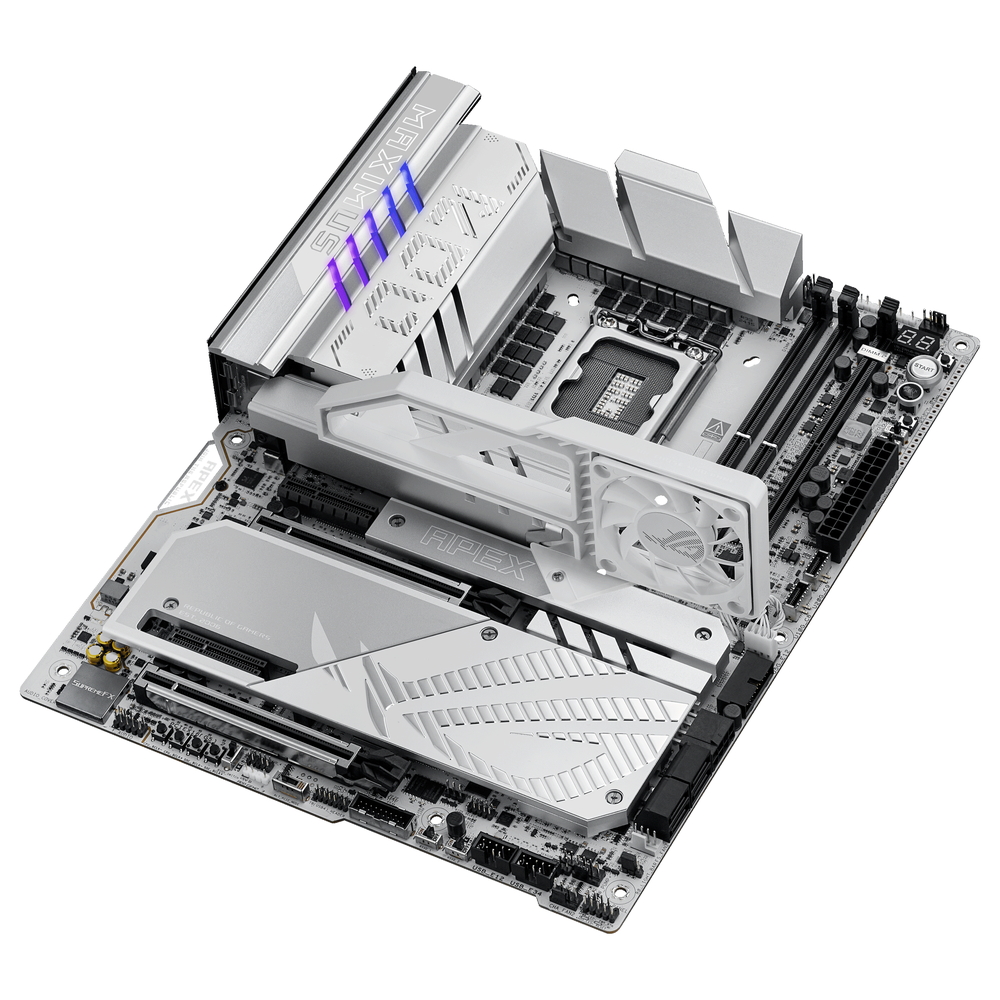

・メモリ冷却用「ROG Memory Fan Kit」付属
・PCIe 5.0 スロット、PCIe 5.0 M.2スロット装備
・M.2 SLOTS WITH ROG M.2 POWERBOOST
・ROG DIMM.2 with heatsink付属
・リアThunderbolt 4 (40Gbps)×2基、フロントUSB 20Gbps (Type-C)コネクタ (60W PD/QC4+対応)装備
・Wi-Fi 7 + Realtek 5Gb LAN
・PCIe Slot Q-Release Slim (with PCIe SafeSlot)
・Q-Antenna、M.2 Q-Latch、M.2 Q-Release、M.2 Q-Slide
・ASUS AI ADVISOR、AI NETWORKING II、AI COOLING II

型番：ROG MAXIMUS Z890 APEX

JAN：0197105754300

発売日：2024年11月1日

メーカー製品ページ



「ROG MAXIMUS Z890 APEX」は、Intel Z890チップセットを搭載した、「ROG MAXIMUS」シリーズマザーボードです。NPU BOOST、オーバークロッカーのツールキット、AI OVERCLOCKINGなど、オーバークロックを支援する機能を多数備えています。
22(110A)+1(90A)+2(90A)+2(80A) パワーステージの強力な電源回路が、最新のIntel Core Ultra プロセッサーの性能を引き出します。VRMヒートシンク、高伝導性サーマルパッド、PCHヒートシンク、M.2ヒートシンク＆バックプレートなどがシステムを強力に冷却し、さらにメモリ冷却用「ROG Memory Fan Kit」が付属しています。
Thunderbolt 4ポートや、60W PD/QC4+に対応するUSB 20Gbps (Type-C)コネクタ など、最新の高速規格を備えています。M.2増設用カード「ROG DIMM.2 with heatsink」が付属し、ストレージの増設にも対応します。
グラフィックカードの取り外しが簡単なPCIe Slot Q-Release Slimなど、PCの組み立てを容易にする機能「Q-Design」を備えています。
ネットワークは、Wi-Fi 7 + Realtek 5Gb LANをサポートし、高速な通信環境を構築することができます。






















型番 ROG MAXIMUS Z890 APEX
フォームファクター ATX Form Factor
305×244mm
チップセット Intel Z890 Chipset
対応CPUソケット Intel LGA 1851
対応CPU Support Intel Core Ultra Processors(series 2) , LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
対応メモリー 2 x DIMM slots, max. 96GB, DDR5
Supports up to 8800+ MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
ASUS Enhanced Memory Profile III (AEMP III)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs**
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
**Supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
*** VGA resolution support depends on processors' or graphic cards' resolution.
拡張スロット Support Intel Core Ultra Processors(series 2) *
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)**
Intel Z890 Chipset
2 x PCIe 4.0 x4 slots
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
ストレージ Total supports 6 x M.2 slots and 4 x SATA 6Gb/s ports*

Support Intel Core Ultra Processors(series 2) *
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)**
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)**

Intel Z890 Chipset
DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
**M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.

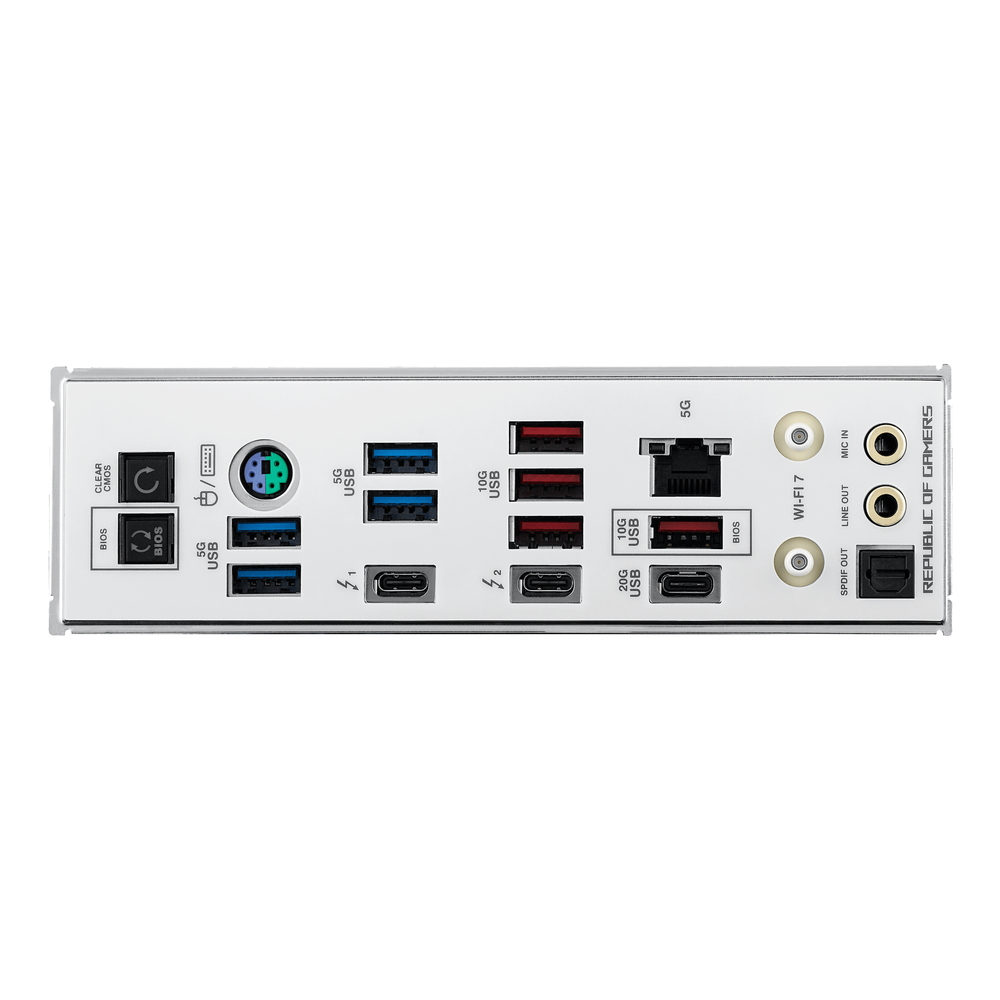

USB Rear USB (Total 11 ports)
2 x Thunderbolt 4 ports (2 x USB Type-C)
1 x USB 20Gbps port (1 x USB Type-C)
4 x USB 10Gbps ports (4 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)

Front USB (Total 10 ports)
1 x USB 20Gbps connector (supports USB Type-C with up to 60W PD/QC4+)*
1 x USB 10Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

USB Type-C power delivery output: max. 5V/3A
*USB Type-C power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
LAN 1 x Realtek 5Gb Ethernet
ASUS LANGuard
無線機能 Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth v5.4***

*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
映像出力 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs**
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
**Supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
*** VGA resolution support depends on processors' or graphic cards' resolution.
オーディオ ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
LED 3 x Addressable Gen 2 headers
OS Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)

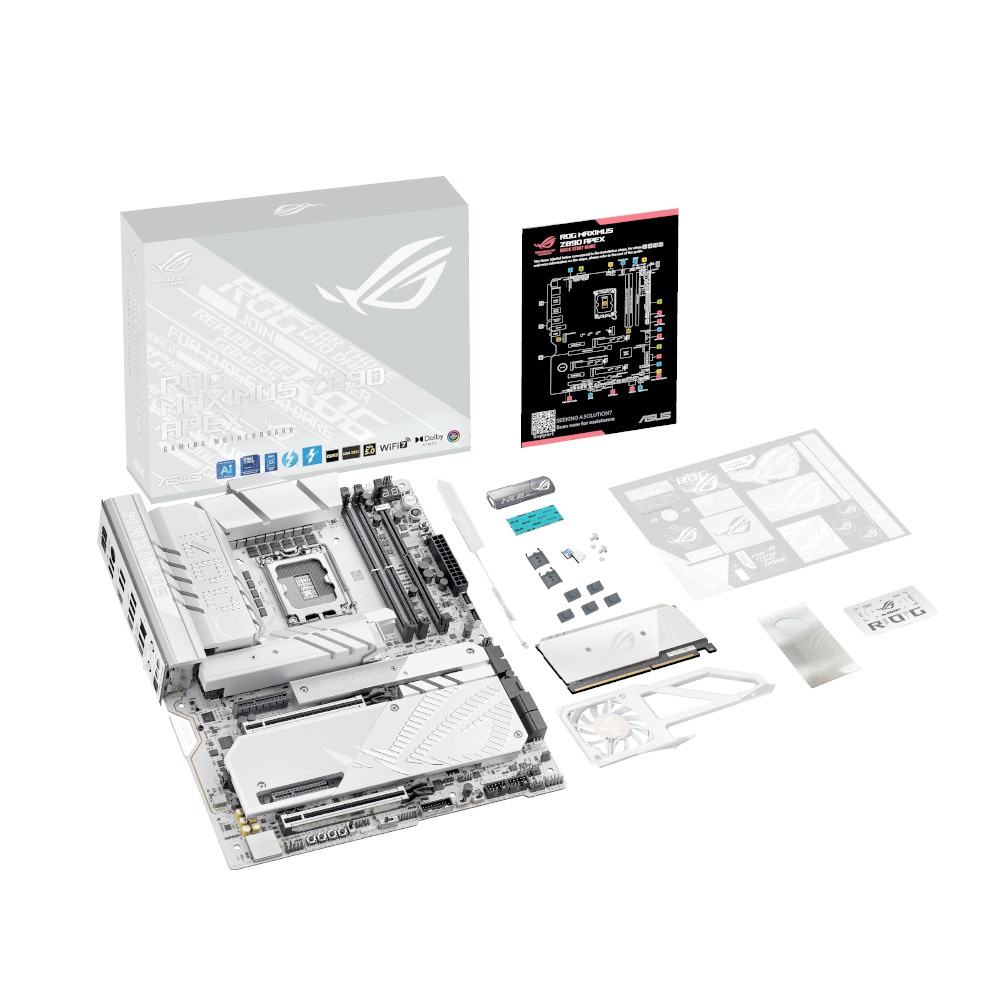

付属品 ROG DIMM.2 with Heatsink
1 x ROG DIMM.2 with heatsink
1 x M.2 pad for ROG DIMM.2
2 x M.2 screw package for ROG DIMM.2

Additional Cooling Kit
1 x Thermal pad for M.2 22110
1 x ROG Memory Fan Kit

Miscellaneous

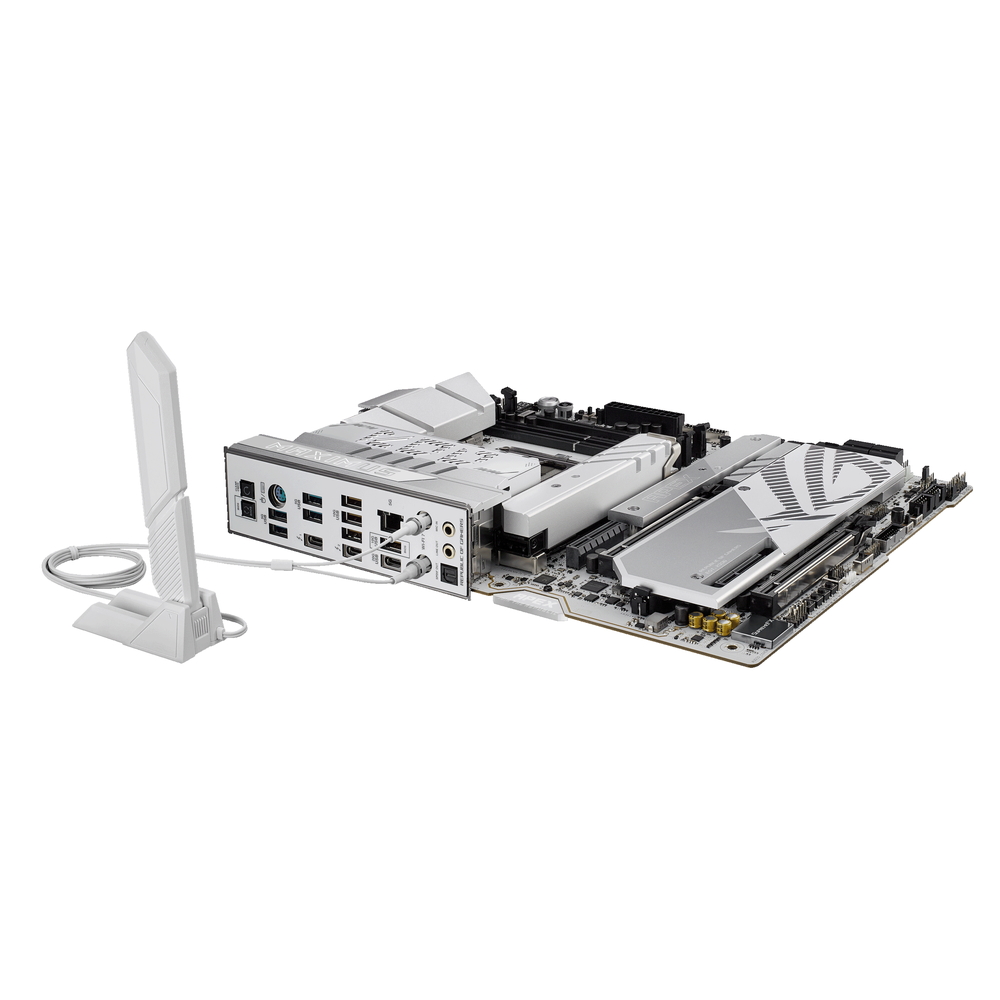

1 x ASUS WiFi Q-Antenna
1 x Q-connector
1 x ROG VIP card
3 x M.2 Q-Slide package
5 x M.2 backplate rubber packages
1 x ROG Bottle Opener

Installation Media
1 x USB drive with utilities and drivers

Documentation
1 x Quick start guide

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
