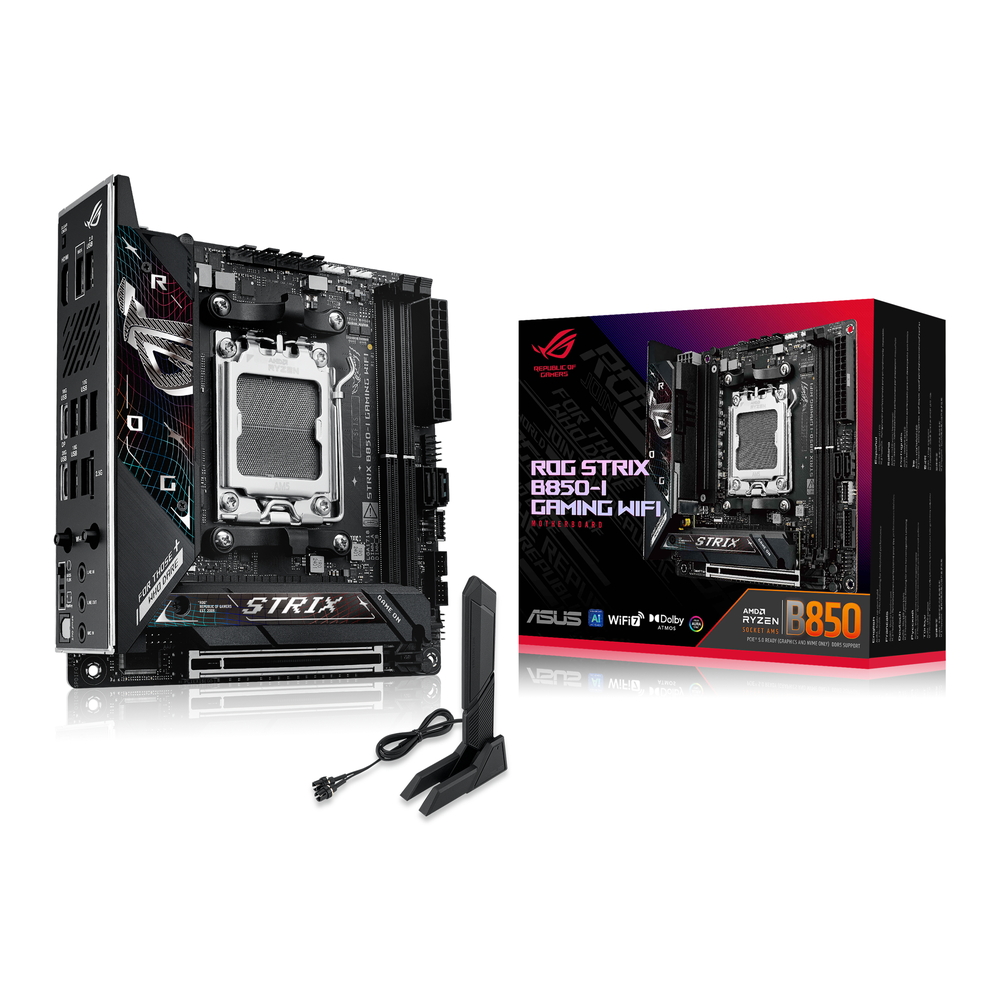

ROG STRIX B850-I GAMING WIFI

ROG STRIX B850-I GAMING WIFI

AMD B850チップセット搭載
「ROG STRIX」Mini-ITXゲーミングマザーボード

・AMD B850チップセット搭載
・「ROG STRIX」マザーボード
・Mini-ITXフォームファクター
・AMD Socket AM5
・AMD Ryzen 9000/8000/7000シリーズプロセッサー対応
・10(70A)+2(70A)+1(80A) Dr.Mos 電源ソリューション
・ProCool II電源コネクター、5K 金属コンデンサ、Digi+ VRM Control
・PCIe 5.0 スロット、PCIe 5.0 M.2スロット装備
・USB 20Gbps (Type-C)
・Wi-Fi 7 + Intel 2.5Gb LAN
・PCIe Slot Q-Release Slim (with PCIe SafeSlot)
・Q-Antenna、M.2 Q-Latch、Q-Dashboard、Q-LED
・AI Overclocking、AI Cooling II、AI Networking II、AI Advisor、AEMP III
・Dolby Atmos

型番：ROG STRIX B850-I GAMING WIFI

JAN：0197105823631

発売日：2025年1月7日

メーカー製品ページ

「ROG STRIX B850-I GAMING WIFI」は、AMD B850チップセットを搭載したMini-ITXマザーボードです。
10(70A)+2(70A)+1(80A) Dr.Mos 電源ソリューションを備え、最新のAMD Ryzen 9000シリーズプロセッサーの性能を引き出します。
USB 20Gbps (Type-C)、PCIe 5.0スロット、M.2 PCIe 5.0スロットなどを備え、高い拡張性を実現しています・
Intel 2.5G LAN + Wi-Fi 7をサポートし、高速なネットワーク環境を構築することができます。
PCIe Slot Q-Release Slim (with PCIe SafeSlot)、M.2 Q-Latchなど、PCの組み立てやメンテナンスを容易に行える機能を多数備えています。






型番 ROG STRIX B850-I GAMING WIFI
フォームファクター Mini-ITX Form Factor
6.7 inch x 6.7 inch (17 cm x 17 cm)
チップセット AMD B850
対応CPUソケット AMD Socket AM5
対応CPU AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
対応メモリー 2 x DIMM slots, max. 96GB, DDR5
Supports up to
8200+MT/s(OC) with Ryzen 9000 Series Processors,
8400+MT/s(OC) with Ryzen 8000 Series Processors,
8000+MT/s(OC) with Ryzen 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
拡張スロット AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot(s)
AMD Ryzen 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot(s)
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
ストレージ Total Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*
Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*
AMD Ryzen 9000 & 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1

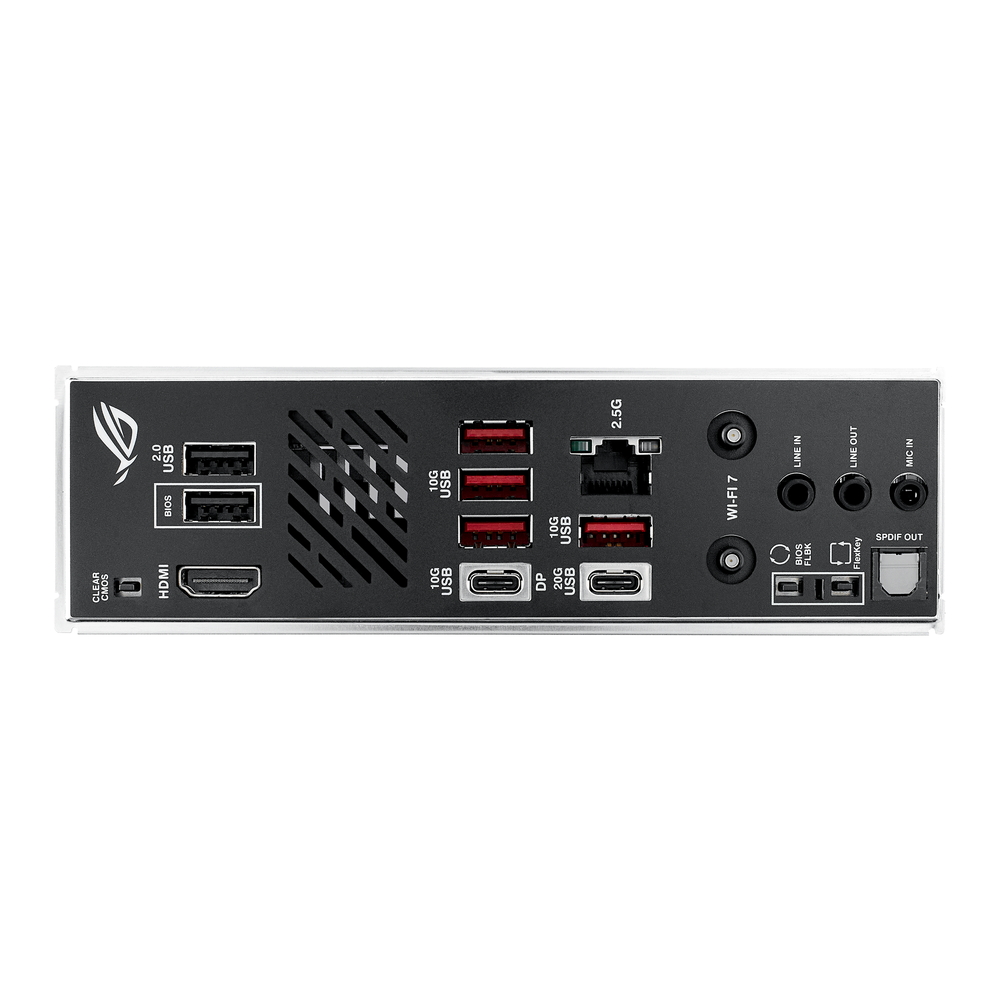

USB Rear USB (Total 8 ports)
1 x USB 20Gbps port(s) (1 x USB Type-C)
5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C)
2 x USB 2.0 port(s) (2 x Type-A)

Front USB (Total 5 ports)
1 x USB 10Gbps
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
1 x USB 2.0 header(s) support(s) 2 additional USB 2.0 ports
USB Type-C power delivery output: max. 5V/3A
LAN 1 x Intel 2.5Gb Ethernet
ASUS LANGuard
無線機能 Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth v5.4***

*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
映像出力 1 x HDMI port***
1 x USB 10Gbps ports support USB Type-C display outputs****
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
****Supports max. 4K@60Hz as specified in DisplayPort 1.4a
***** VGA resolution support depends on processors' or graphic cards' resolution.
オーディオ ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
LED 2 x Addressable Gen 2 header(s)
OS Windows 11, Windows 10 64-bit
Windows 11 (22H2 later)
付属品 Cables
1 x Panel cable
1 x ROG USB2.0 splitter cable
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 backplate Q-Latch package(s)
1 x M.2 Q-Slide package
1 x ROG key chain
1 x M.2 backplate rubber package(s)
1 x Screw package(s) for M.2 SSD
Documentation
1 x Quick start guide

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
