TUF GAMING Z890-PLUS WIFI

TUF GAMING Z890-PLUS WIFI

Intel Z890チップセット搭載
「Tuf Gaming」マザーボード

・Intel Z890チップセット搭載
・「TUF Gaming」マザーボード
・ATXフォームファクター
・Intel Socket LGA1851
・Intel Core Ultra プロセッサー(series 2)対応
・16(80A) +1(80A) +2(80A) +1(80A) パワーステージ
・8+8 pin ProCool電源コネクター、8層PCB、堅牢な耐久性と安定性のTUFコンポーネント
・拡大されたVRM ヒートシンク、M.2ヒートシンク、PCHヒートシンクなどがシステムを強力に冷却
・PCIe 5.0 スロット、PCIe 5.0 M.2スロット装備
・リアThunderbolt 4 (40Gbps)×1基、リアUSB 20Gbps Type-C×1基、フロントUSB 20Gbps Type-Cコネクタ装備
・Wi-Fi 7 + Intel 2.5Gb LAN
・PCIe Slot Q-Release、M.2 Q-Release & M.2 Q-Slide、Q-Antenna、M.2 Q-Latch
・プリマウントされた I/O シールド、Q-LED、BIOS FlashBack
・ASUS AI ADVISOR、AI NETWORKING II、AI COOLING II

型番：TUF GAMING Z890-PLUS WIFI

JAN：0197105763937

発売日：2024年10月25日

メーカー製品ページ

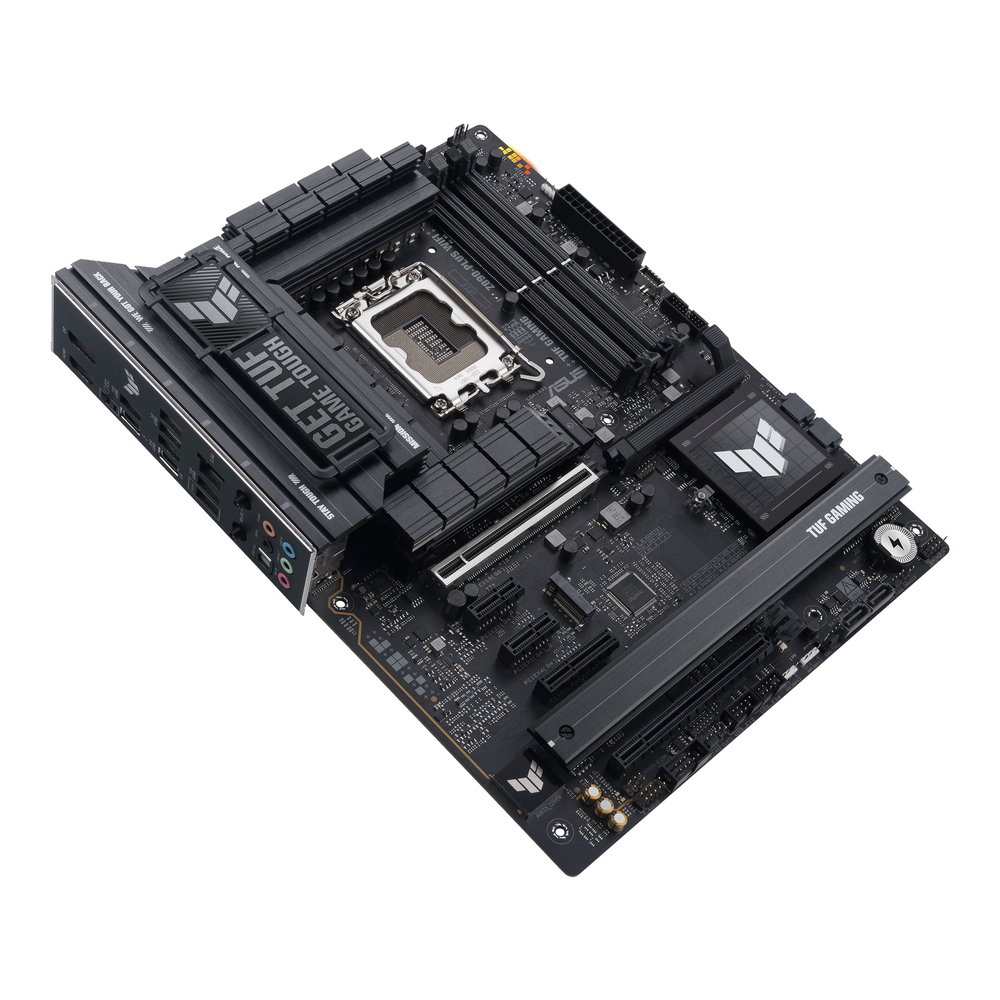

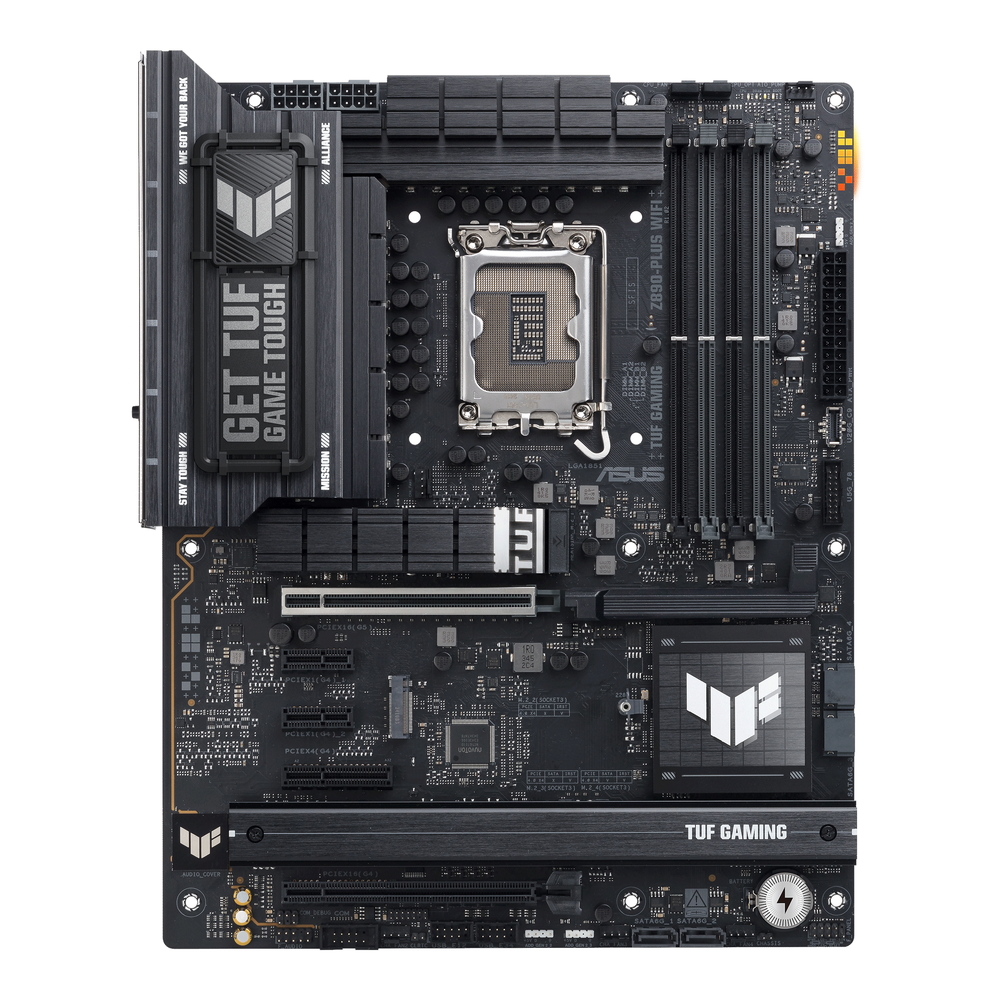

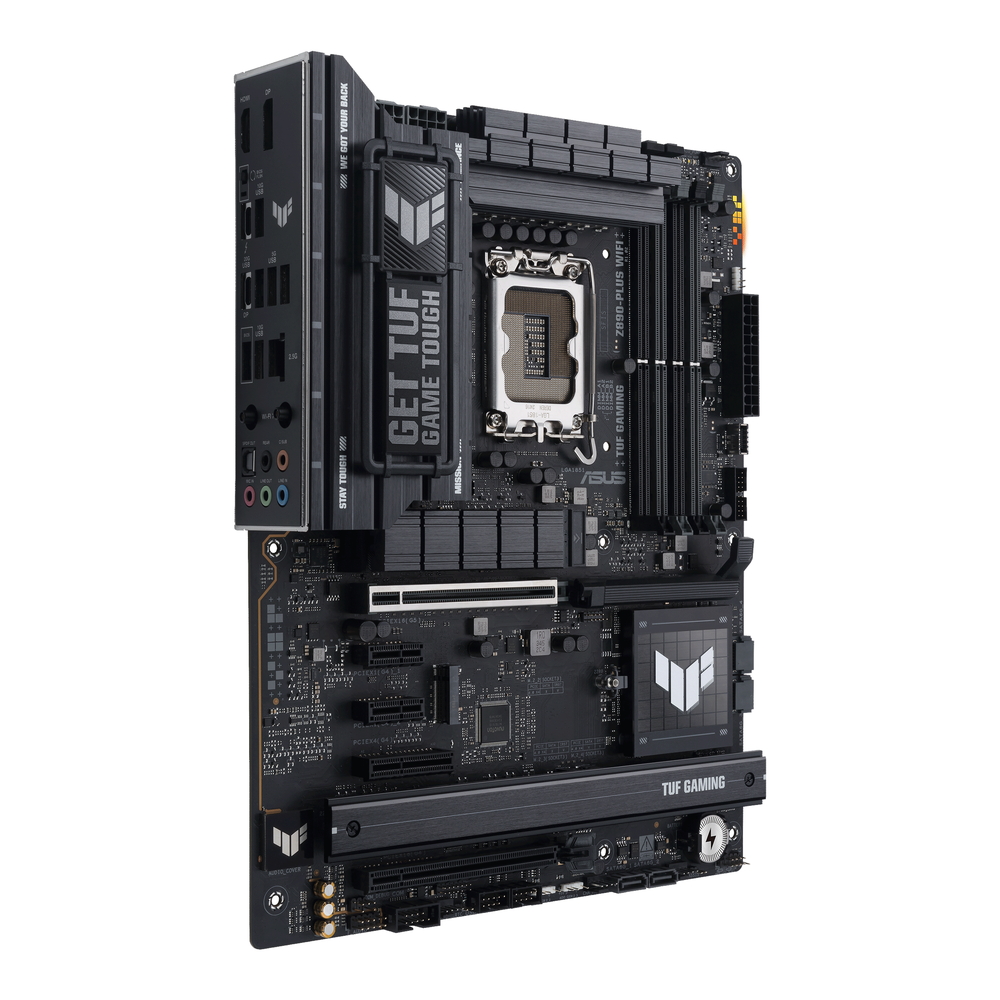

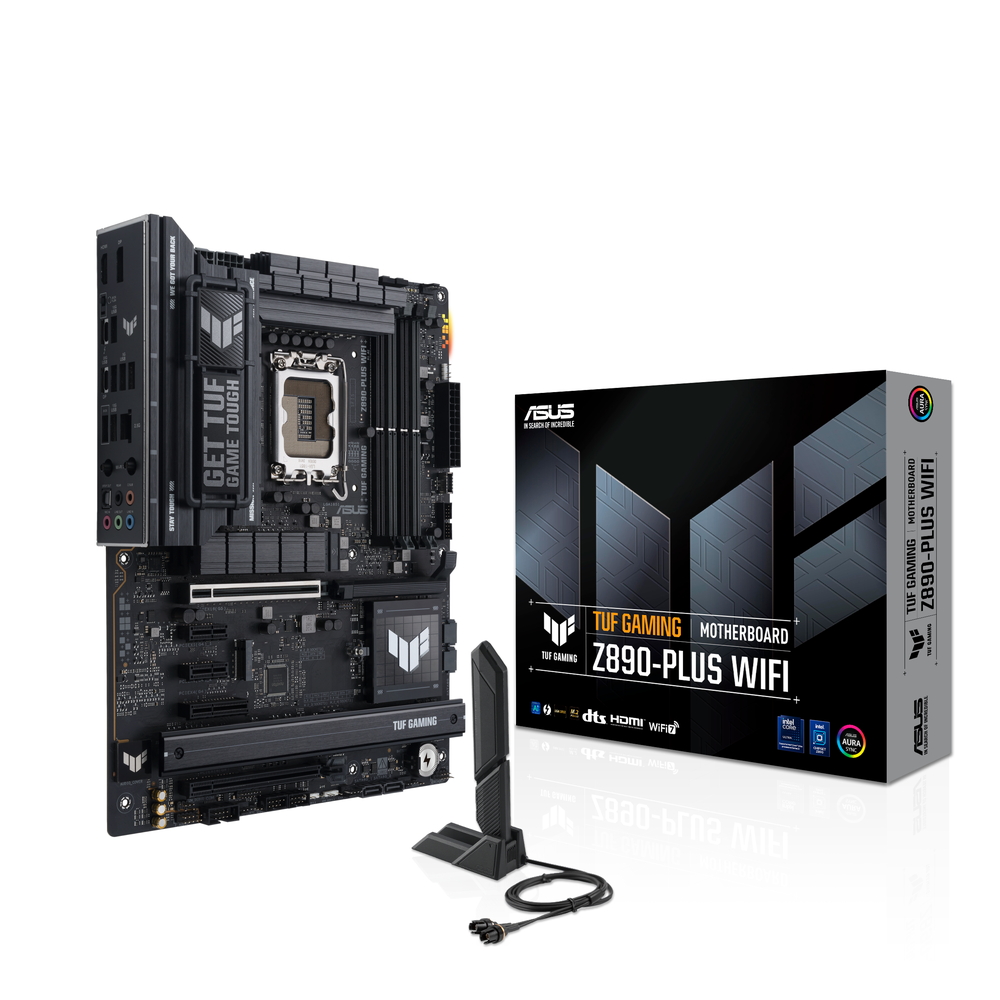

「TUF GAMING Z890-PLUS WIFI」は、Intel Z890チップセットを搭載した、高い耐久性が特徴の「TUF GAMING」マザーボードです。
16(80A) +1(80A) +2(80A) +1(80A) パワーステージの強力な電源回路が、Intel Core Ultra プロセッサーの性能を引き出します。拡大されたVRMやPCHの大型ヒートシンク、M.2ヒートシンクなどを備え、冷却性能も高められています。
また、Thunderbolt 4ポートやフロントUSB 20Gbps Type-Cコネクターなどの高速規格を搭載。さらにIntel 2.5G LAN + Wi-Fi 7をサポートし、高速なネットワーク環境を構築することができます。
耐久性の高い部品や、さまざまな保護機能によって、過酷な使用環境にも耐えられるように設計されています。




型番 TUF GAMING Z890-PLUS WIFI
フォームファクター ATX Form Factor
305×244mm
チップセット Intel Z890 Chipset
対応CPUソケット Intel Socket LGA1851
対応CPU Support Intel Core Ultra Processors(series 2), LGA1851*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
対応メモリー 4 x DIMM slots, max. 192GB, DDR5
Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
拡張スロット Intel Core Ultra Processors(series 2)*
1 x PCIe 5.0 x16 slot

Intel Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x4 slot
2 x PCIe 4.0 x1 slots

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
ストレージ Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel Core Ultra Processors(series 2) *
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

Intel Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.

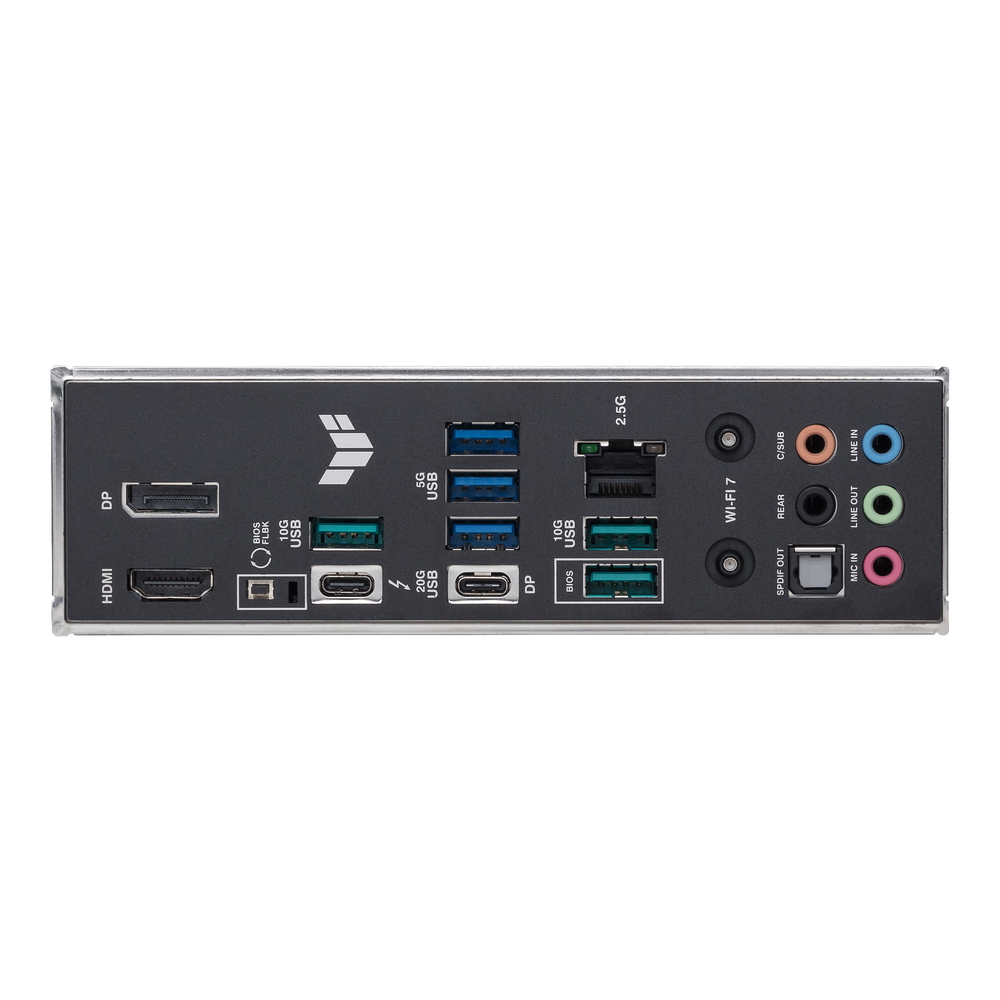

USB Rear USB (Total 8 ports)
1 x Thunderbolt 4 port (1 x USB Type-C)
1 x USB 20Gbps port (1 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)

Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN 1 x Intel 2.5Gb Ethernet
TUF LANGuard
無線機能 Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth v5.4***

*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."
映像出力 1 x DisplayPort**
1 x HDMI port***
1 x Intel Thunderbolt 4 port (USB Type-C) supports DisplayPort and Thunderbolt video outputs****
1 x USB 20Gbps port supports USB Type-C display output*****

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
****Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs.
***** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
****** VGA resolution support depends on processors' or graphic cards' resolution.
オーディオ Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
LED 3 x Addressable Gen 2 headers
OS Windows 11 (22H2 & later)

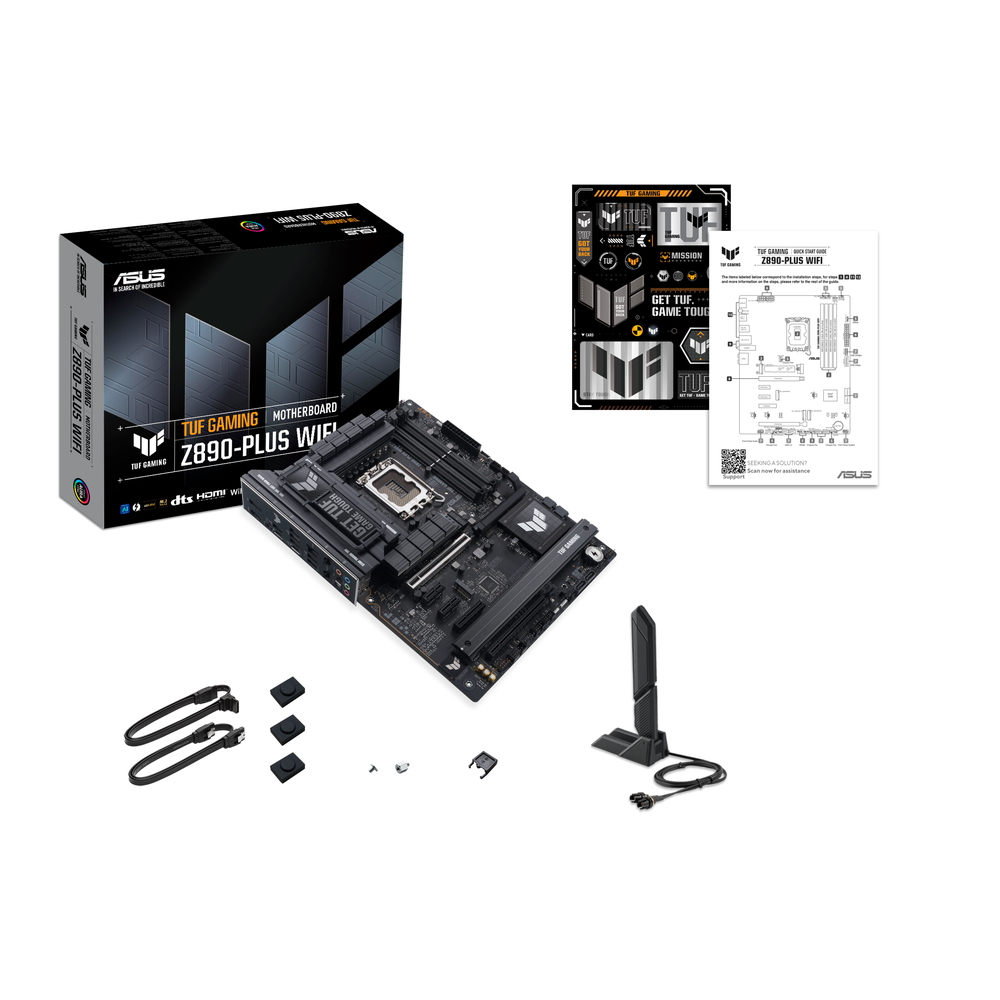

付属品 Cables
2 x SATA 6Gb/s cables

Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x M.2 Q-Slide package
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker

Documentation
1 x Quick start guide

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
