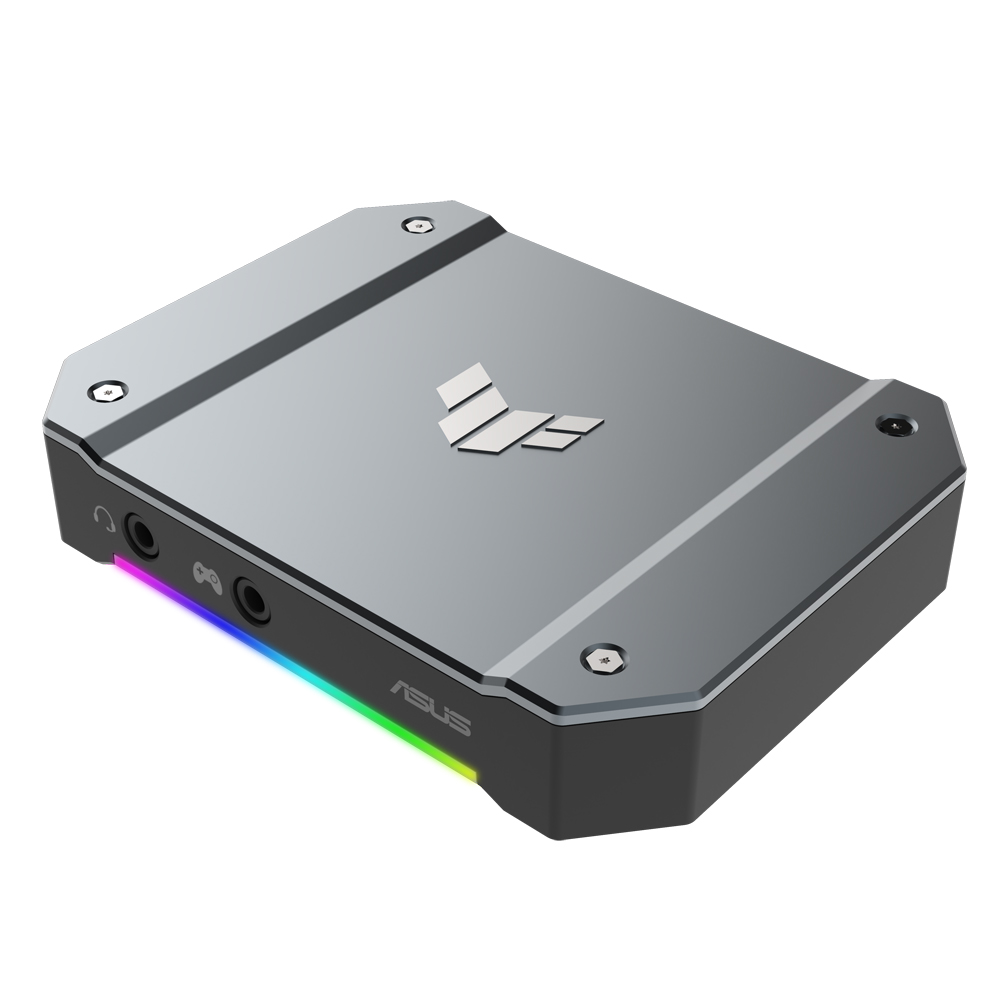

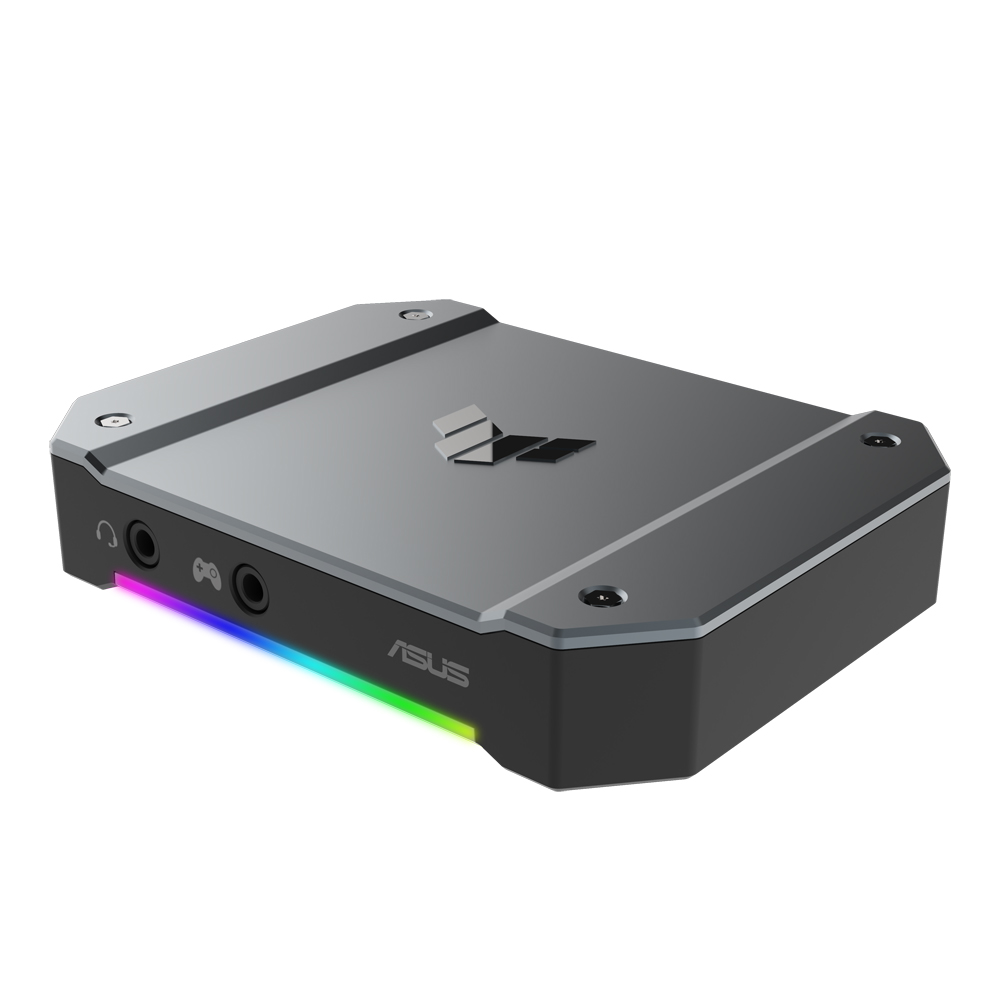

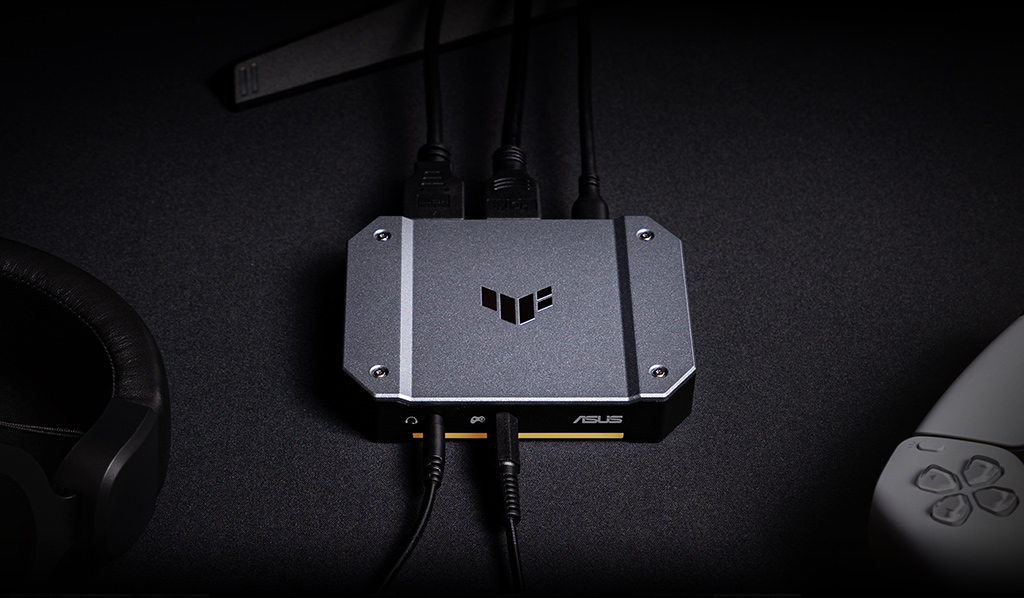

4K/30fpsのビデオストリーミングに対応、コンパクトで排熱性にも優れたアルミ製ケースを採用したビデオキャプチャーボックス「TUF GAMING CAPTURE BOX-CU4K30」。ゲーム機やPCでプレイしながらフォロワーに向けて放映し、観客を熱狂させる最高のゲームストリームを配信できます。
ROG MAXIMUS Z890 EXTREME
ROG MAXIMUS Z890 HERO
ROG MAXIMUS Z890 APEX
ROG STRIX Z890-F GAMING WIFI
ROG STRIX Z890-A GAMING WIFI
TUF GAMING Z890-PRO WIFI
TUF GAMING Z890-PLUS WIFI
Z890 AYW GAMING WIFI W
PRIME Z890-P WIFI-CSM
PRIME Z890M-PLUS WIFI-CSM
Z890 MAX GAMING WIFI7
ROG MAXIMUS Z790 FORMULA
ROG MAXIMUS Z790 HERO BTF
ROG MAXIMUS Z790 DARK HERO
ROG MAXIMUS Z790 HERO
ROG MAXIMUS Z790 APEX ENCORE
ROG STRIX Z790-E GAMING WIFI II
ROG STRIX Z790-F GAMING WIFI II
ROG STRIX Z790-A GAMING WIFI II
ROG STRIX Z790-I GAMING WIFI
TUF GAMING Z790-BTF WIFI
TUF GAMING Z790-PRO WIFI
TUF GAMING Z790-PLUS WIFI
TUF GAMING Z790-PLUS WIFI D4
TUF GAMING Z790-PLUS D4
PRIME Z790-A WIFI-CSM
PRIME Z790-P-CSM
PRIME Z790-P D4-CSM
ProArt Z790-CREATOR WIFI
Z790 GAMING WIFI7
Z790-AYW OC WIFI
Z790-AYW WIFI W
ROG STRIX B760-F GAMING WIFI
ROG STRIX B760-G GAMING WIFI
ROG STRIX B760-I GAMING WIFI
TUF GAMING B760M-BTF WIFI
TUF GAMING B760M-BTF WIFI D4
TUF GAMING B760-PLUS WIFI
TUF GAMING B760M-PLUS II
TUF GAMING B760-PLUS WIFI D4
TUF GAMING B760M-PLUS D4
PRIME B760-PLUS
PRIME B760-PLUS D4
PRIME B760M-A WIFI
PRIME B760M-A
PRIME B760M-A D4
PRIME B760M-K-CSM
PRIME B760M-K D4-CSM
PRO-B760M-C-CSM
ProArt B760-CREATOR
B760M-AYW WIFI
B760M-AYW WIFI D4
ROG Strix Z270I Gaming
MAXIMUS IX APEX
MAXIMUS IX HERO
MAXIMUS IX CODE
MAXIMUS IX FORMULA
TUF Z270 MARK 1
STRIX Z270G GAMING
STRIX Z270F GAMING
PRIME Z270M-PLUS
PRIME Z270-K
PRIME Z270-A
PRO WS W790E-SAGE SE
Pro WS W790-ACE
Pro WS C246-ACE
SABERTOOTH 990FX R3.0
J3455M-E
P10S-M/WS
P10S WS
Z10PE-D8 WS
PRIME N100I-D D4-CSM
PRO WS W680-ACE IPMI
P9D WS
ROG CROSSHAIR X670E HERO
ROG STRIX X670E-F GAMING WIFI
ROG STRIX X670E-A GAMING WIFI
ROG STRIX X670E-I GAMING WIFI
TUF GAMING X670E-PLUS WIFI
TUF GAMING X670E-PLUS
ProArt X670E-CREATOR WIFI
TUF GAMING B650-E WIFI
TUF GAMING B650M-E WIFI
TUF GAMING B650-PLUS WIFI
TUF GAMING B650M-PLUS
PRIME B650-PLUS-CSM
PRIME B650M-A II-CSM
ProArt B650-CREATOR
ROG-MATRIX-RTX4090-P24G-GAMING
ROG-STRIX-RTX4090-O24G-BTF-GAMING
ROG-STRIX-RTX4090-O24G-GAMING
ROG-STRIX-RTX4090-O24G-WHITE
TUF-RTX4090-O24G-OG-GAMING
TUF-RTX4090-24G-OG-GAMING
TUF-RTX4090-O24G-GAMING
ROG-STRIX-RTX4080S-O16G-GAMING
ROG-STRIX-RTX4080S-O16G-WHITE
TUF-RTX4080S-O16G-GAMING
TUF-RTX4080S-16G-GAMING
PROART-RTX4080S-O16G
RTX4080S-O16G-NOCTUA
ROG-STRIX-RTX4070TIS-O16G-GAMING
TUF-RTX4070TIS-O16G-BTF-WHITE
TUF-RTX4070TIS-O16G-WHITE-GAMING
TUF-RTX4070TIS-O16G-GAMING
TUF-RTX4070TIS-16G-GAMING
DUAL-RTX4070TIS-O16G
PROART-RTX4070TIS-O16G
ROG STRIX HELIOS WHITE EDITION
TUF GAMING GT501 WHITE EDITION
TUF Gaming GT301 Case
ROG Strix Helios
TUF GAMING GT302 ARGB
TUF Gaming GT502
TUF Gaming GT502 WHT
PA602 ProArt Case
TUF GAMING TR120 FAN ARGB
TUF GAMING TR120 FAN ARGB 3IN1
TUF GAMING TR120 FAN ARGB REVERSE
TUF GAMING TR120 FAN ARGB REVERSE 3IN1
TUF GAMING TF120 ARGB
TUF GAMING TF120 WHITE ARGB
TUF GAMING TF120 ARGB 3IN1
TUF GAMING TF120 WHITE ARGB 3IN1

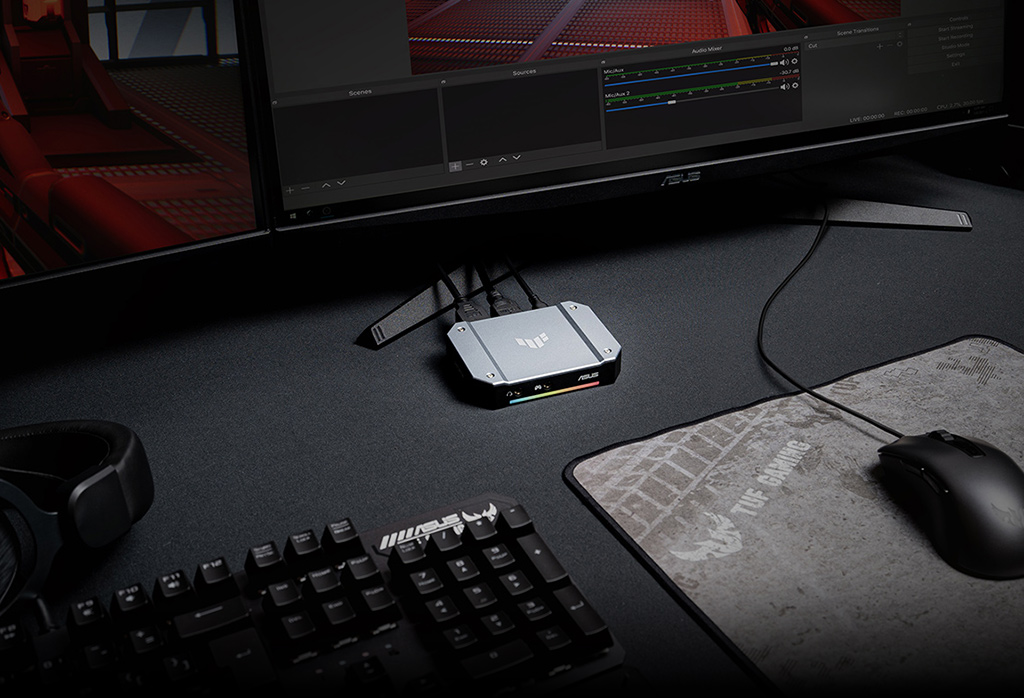

OBS Studio™公式承認モデル・さまざまなストリーミングプラットフォームに対応

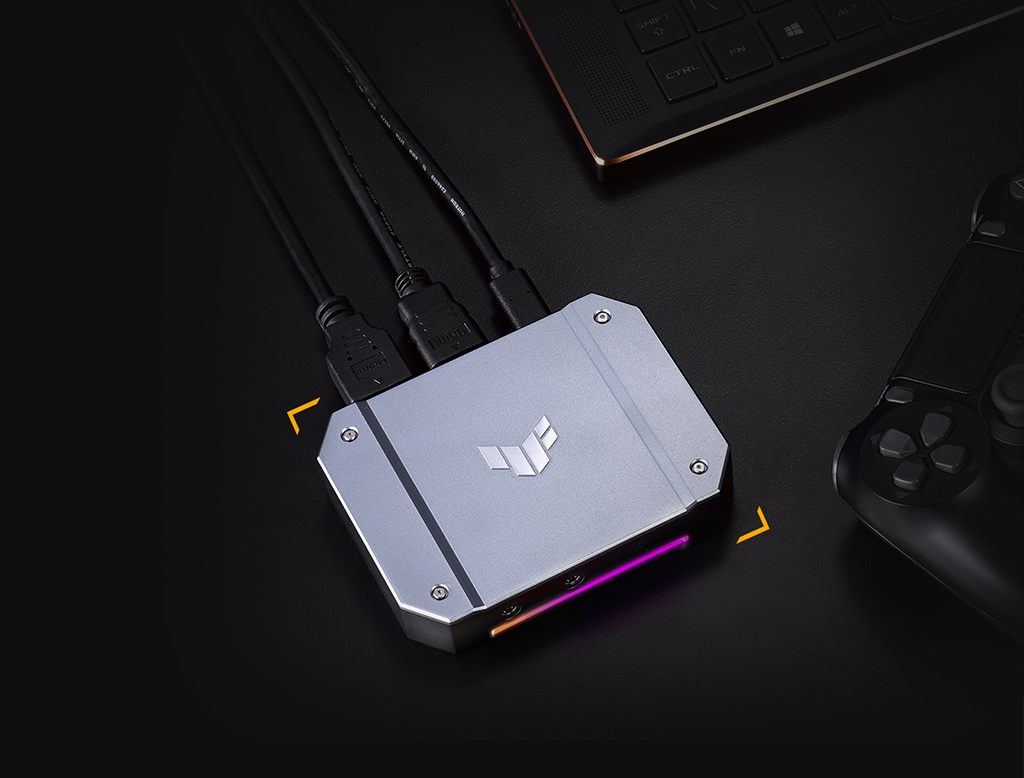

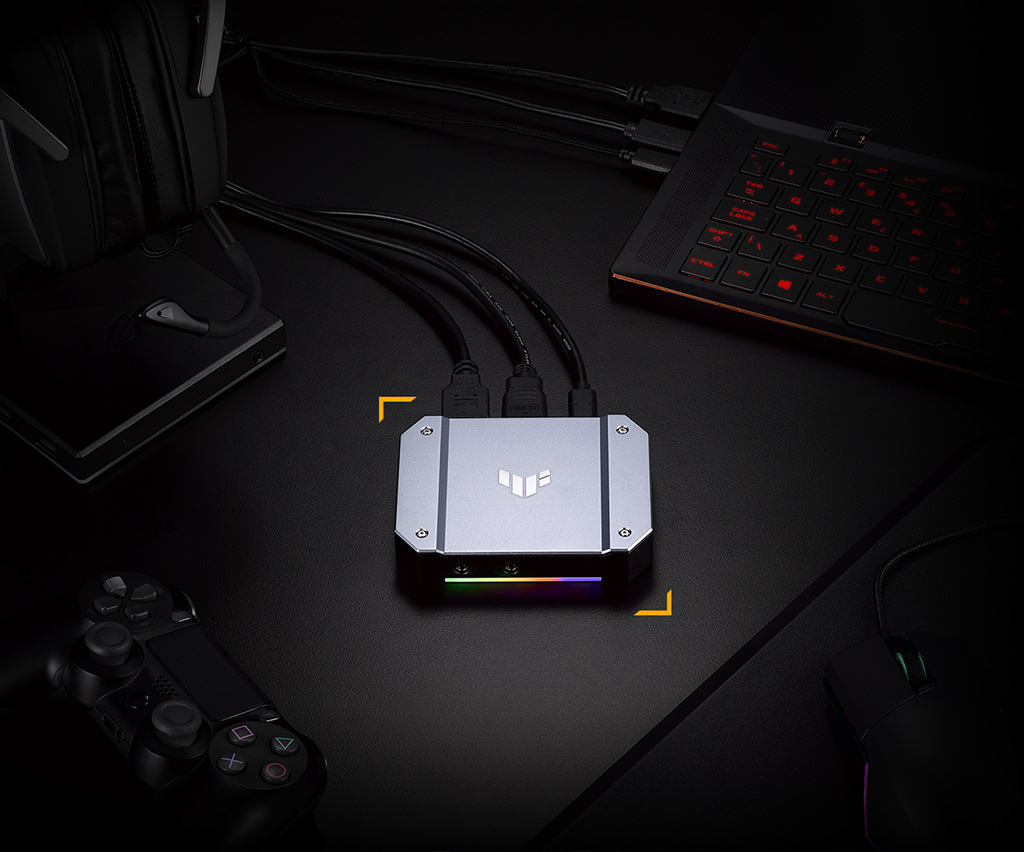

コンパクトで使いやすいビデオキャプチャーボックス
Product Name | TUF GAMING CAPTURE BOX-CU4K30 |

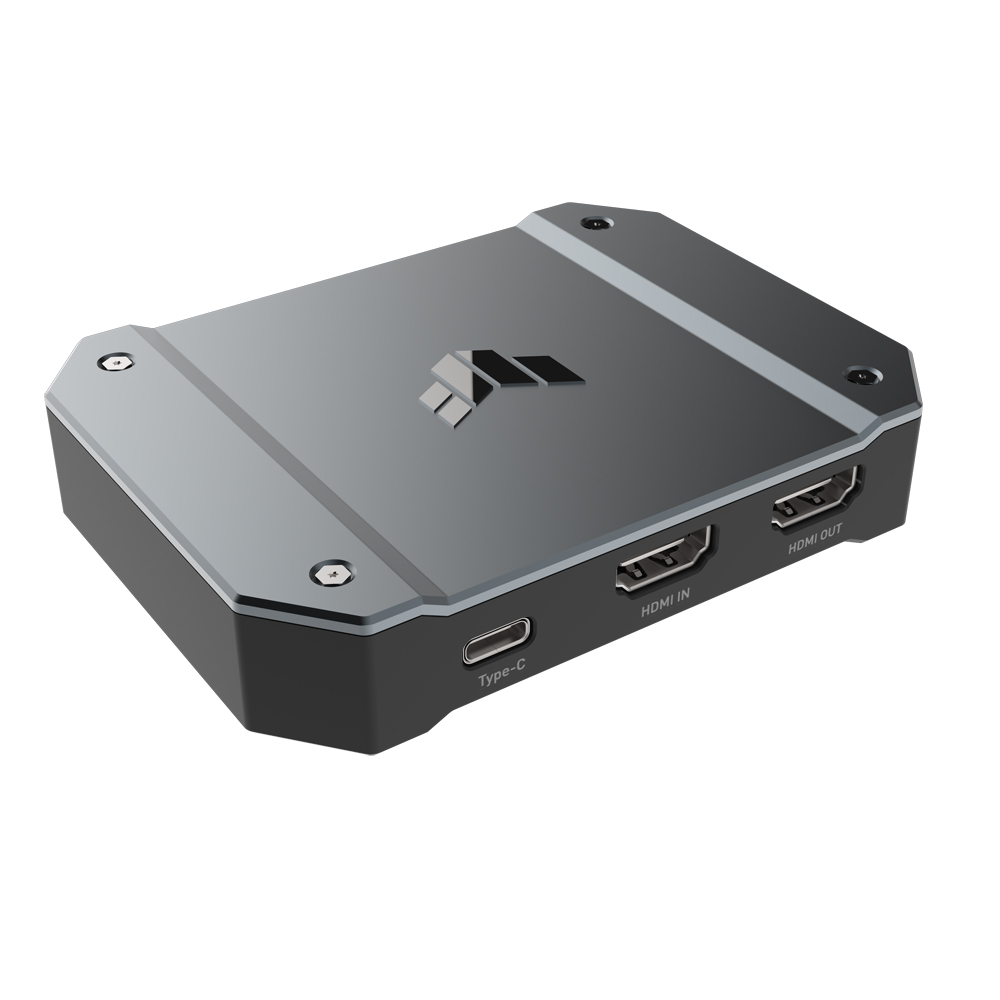

Interface | USB 3.2 Gen1x1 Type-C® |
Video Input | HDMI 2.0 |
Video Output(Passthrough) | HDMI 2.0 |
Audio Input | HDMI 2.0 |
Audio Output(Passthrough) | HDMI 2.0 |
Video Resolution(Input) | 4K60Hz HDR、1440p144Hz HDR、1080p240Hz HDR |
Max Video Resolution(Passthrough) | 4K60Hz HDR、1440p144Hz HDR、1080p240Hz HDR |
Max Video Resolution (Recording) | USB 3.2 Gen 1x1 Type-C® : Uncompressed 2160p30/1440p60/1080p120/1080p60/1080p30/720p60/720p30/576p/480p USB 2.0: Uncompressed 720p30 |

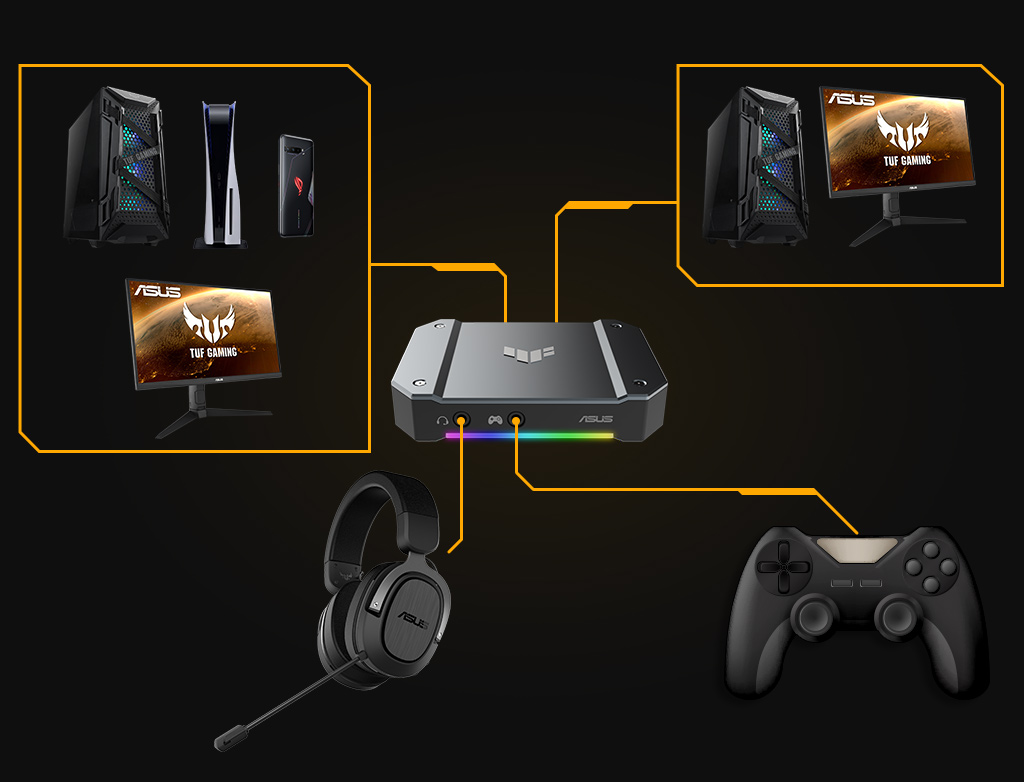

Audio Mix Input | 3.5mm headset、3.5mm Gamepad |
Game Console Compatibility | PlayStation 、Xbox 、 Switch |
Indicator | LED RGB full color lighting effect |
Dimension(W x D x H) | 10.5 x 8 x 2.1(cm) |
Weight | 173g |

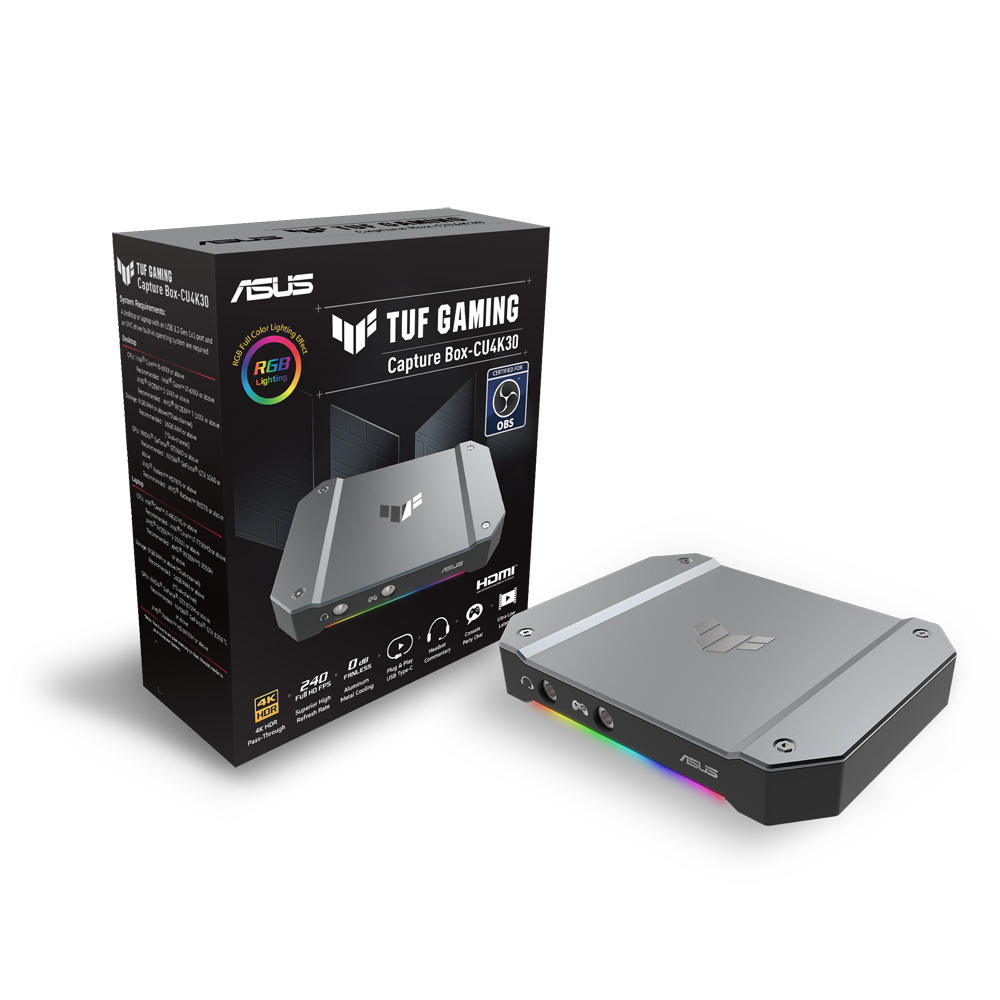

Accessory | Quick Start Guide*1 HDMI 2.0 cable*1 USB 3.2 Gen1x1 Type-C® to Type A cable*1 USB Type-A to Type-C® adapter*1 3.5 mm to 3.5mm audio cable*1 |
Notes | *This product does not support viewing/recording/streaming of HDCP protected signals |
System Requirements (Desktop) | Intel® Core™ i5-6XXX or above AMD® Ryzen™ 5 1XXX or above Recommended:Intel® Core™ i7-6XXX or above Recommended:AMD® RYZEN™ 7 1XXX or above 8GB or above (Dual-channel) Recommended:16GB or above (Dual-channel) *You have to set your memory on dual channel mode in your computer system. NVIDIA® GeForce® GTX660 or above AMD® Radeon™ HD7870 or above Recommended:NVIDIA® GeForce® GTX 1060 or above Recommended:AMD® Radeon™ RX570 or above Requires an USB 3.2 Gen1x1 |
System Requirements (Laptop) | Intel® Core™ i7-4810MQ or above AMD® Ryzen™ 5 3500U or above Recommended:Intel® Core™ i7-7700HQ or above Recommended:AMD® RYZEN™ 5 3550H or above 8GB or above (Dual-channel) Recommended:16GB or above (Dual-channel) *You have to set your memory on dual channel mode in your computer system. NVIDIA® GeForce® GTX 870M or above AMD® Radeon™ HD8970M or above Recommended:NVIDIA® GeForce® GTX 1050 Ti or above Recommended:AMD® Radeon™ RX570 or above Requires an USB 3.2 Gen1x1 |
※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
