ROG STRIX B860-I GAMING WIFI

ROG STRIX B860-I GAMING WIFI

Intel B860チップセット搭載
「ROG STRIX」Mini-ITXゲーミングマザーボード

・Intel B860チップセット搭載
・「ROG STRIX」ゲーミングマザーボード
・Mini-ITXフォームファクター
・Intel Socket LGA1851
・Intel Core Ultra プロセッサー(series 2)対応
・10(80A)+1(80A)+2(80A)+1(80A) パワーステージ

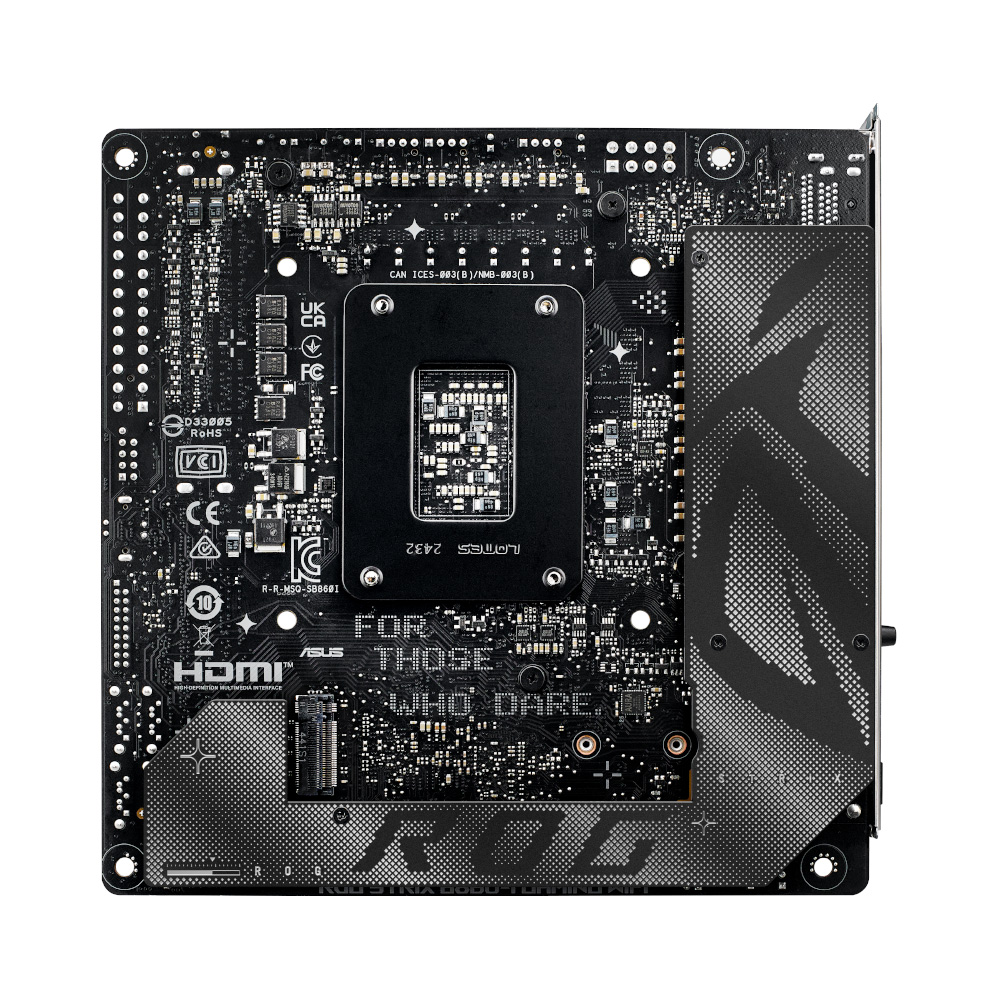

・VRMヒートシンクアレイ、M.2ヒートシンク＆バックプレートなどがシステムを強力に冷却
・PCIe 5.0 スロット、PCIe 5.0 M.2スロット装備
・リアThunderbolt 4×1基、USB 20Gbps Type-C装備
・Wi-Fi 7 + Intel 2.5Gb LAN
・PCIe Slot Q-Release Slim (with PCIe SafeSlot)、Q-Antenna
・AI Cooling II、AI Networking II、AI Advisor、AEMP III
・Dolby Atmos

型番：ROG STRIX B860-I GAMING WIFI

JAN：0197105816008

発売日：2025年1月14日

メーカー製品ページ

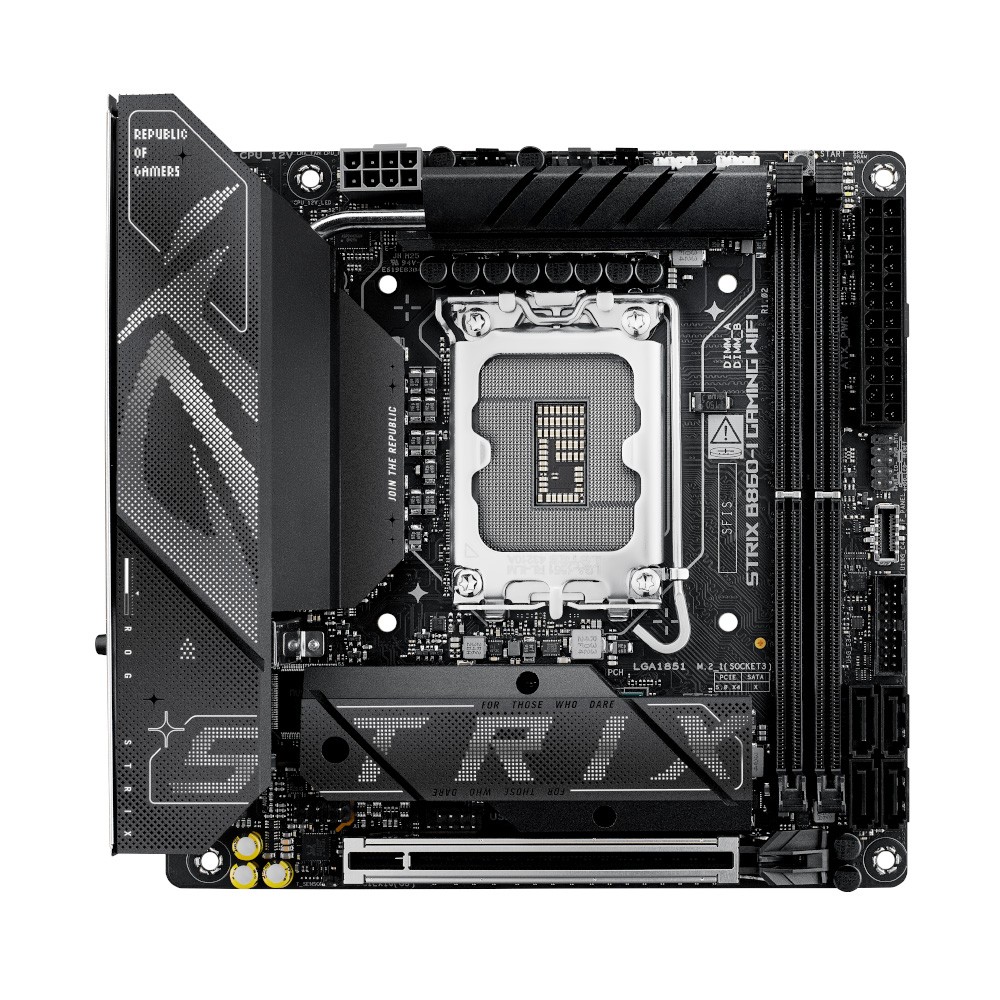

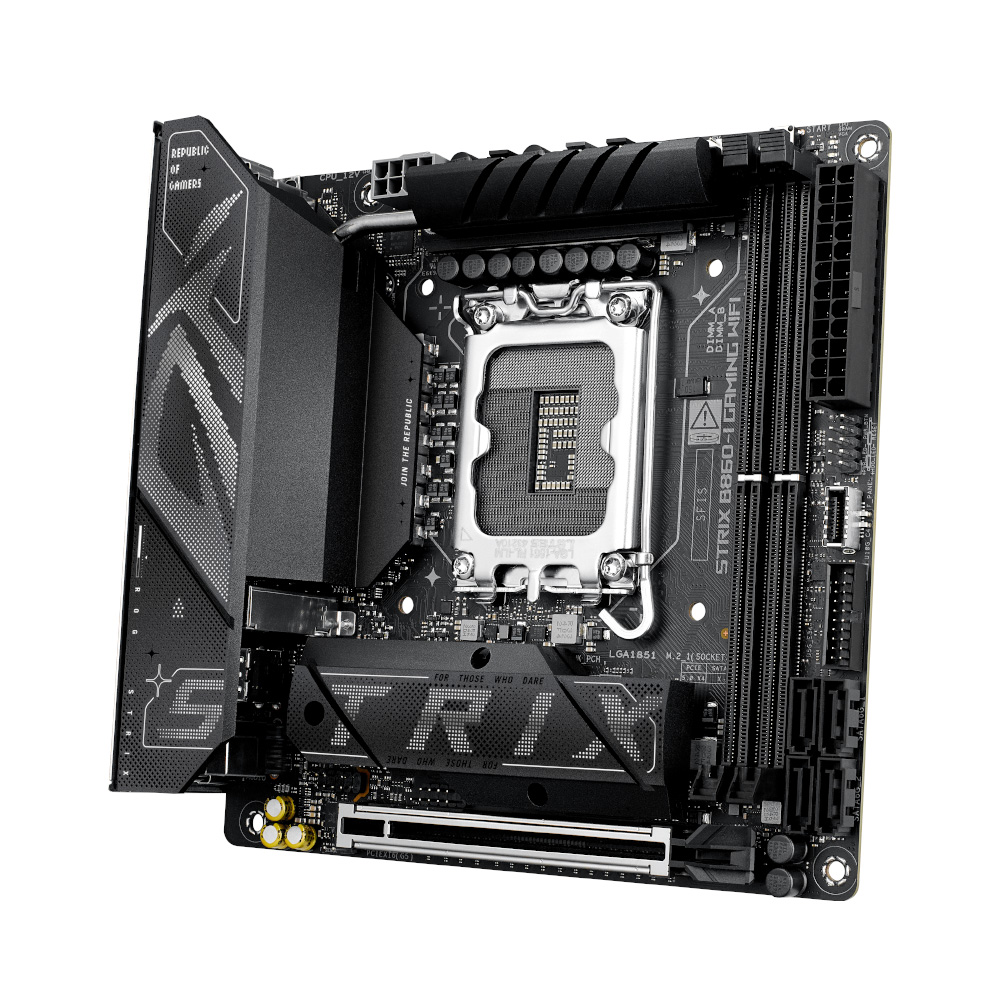

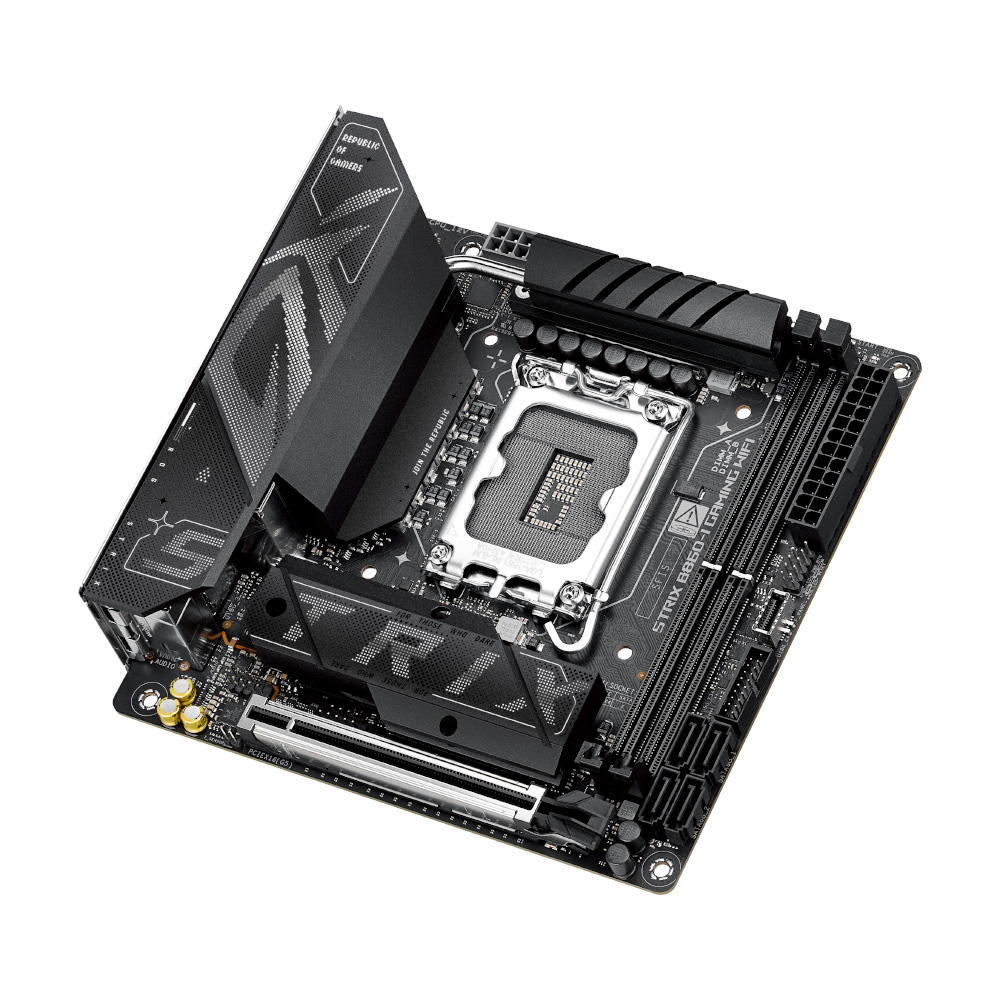

「ROG STRIX B860-I GAMING WIFI」は、Intel B860チップセットを搭載したMini-ITXゲーミングマザーボードです。
10(80A)+1(80A)+2(80A)+1(80A) パワーステージの強力な電源回路を備え、最新のIntel Core Ultra プロセッサーの性能を引き出します。
VRM ヒートシンクアレイ、M.2ヒートシンク＆バックプレートなどがシステムを強力に冷却します。
Thunderbolt 4 (40Gbps)ポート、USB 20Gbps Type-Cなどの高速規格を搭載しています。
Intel 2.5G LAN + Wi-Fi 7をサポートし、高速なネットワーク環境を構築することができます。
グラフィックカードの取り外しが簡単なPCIe Slot Q-Release Slimなど、PCの組み立てを容易にする機能「Q-Design」を備えています。




型番 ROG STRIX B860-I GAMING WIFI
フォームファクター Mini-ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
チップセット Intel B860 Chipset
対応CPUソケット Intel Socket LGA1851
対応CPU Support Intel Core Ultra Processors (Series 2)*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
対応メモリー 2 x DIMM slots, max. 96GB, DDR5
Supports up to 9066+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
拡張スロット 1 x DisplayPort**
1 x HDMI port***
1 x Intel Thunderbolt 4 supports DisplayPort and Thunderbolt video outputs****
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
****Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs.
***** VGA resolution support depends on processors' or graphic cards' resolution.
ストレージ Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel Core™ Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode)
Intel B860 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

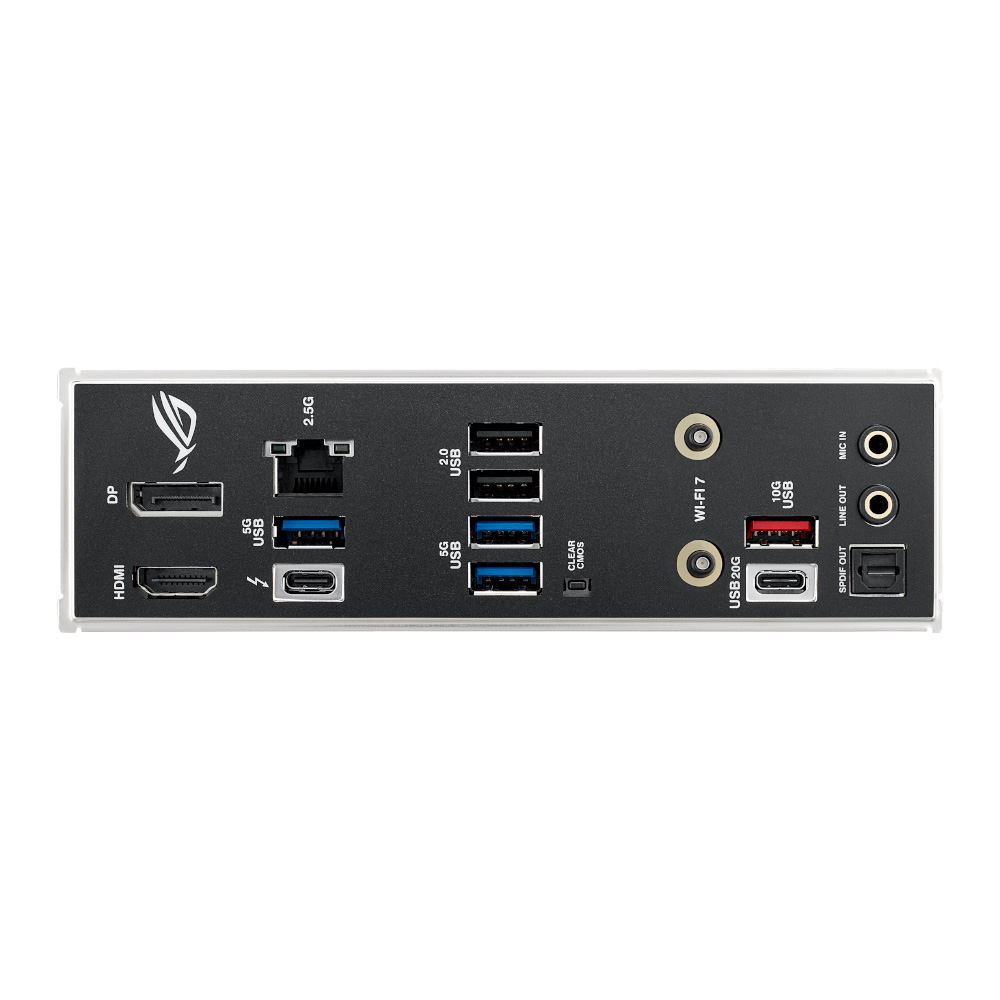

USB Rear USB (Total 8 ports)
1 x Thunderbolt 4 port (1 x USB Type-C)
1 x USB 20Gbps port (1 x USB Type-C)
1 x USB 10Gbps ports (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 5 ports)
1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
* USB Type-C power delivery output: max. 5V/3A
LAN 1 x Intel 2.5Gb Ethernet
ASUS LANGuard
無線機能 Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth v5.4***

*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
映像出力 1 x DisplayPort**
1 x HDMI port***
1 x Intel Thunderbolt 4 supports DisplayPort and Thunderbolt video outputs****
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
****Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs.
***** VGA resolution support depends on processors' or graphic cards' resolution.
オーディオ Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
LED 2 x Addressable Gen2 headers
OS Windows 11 (22H2 & later)

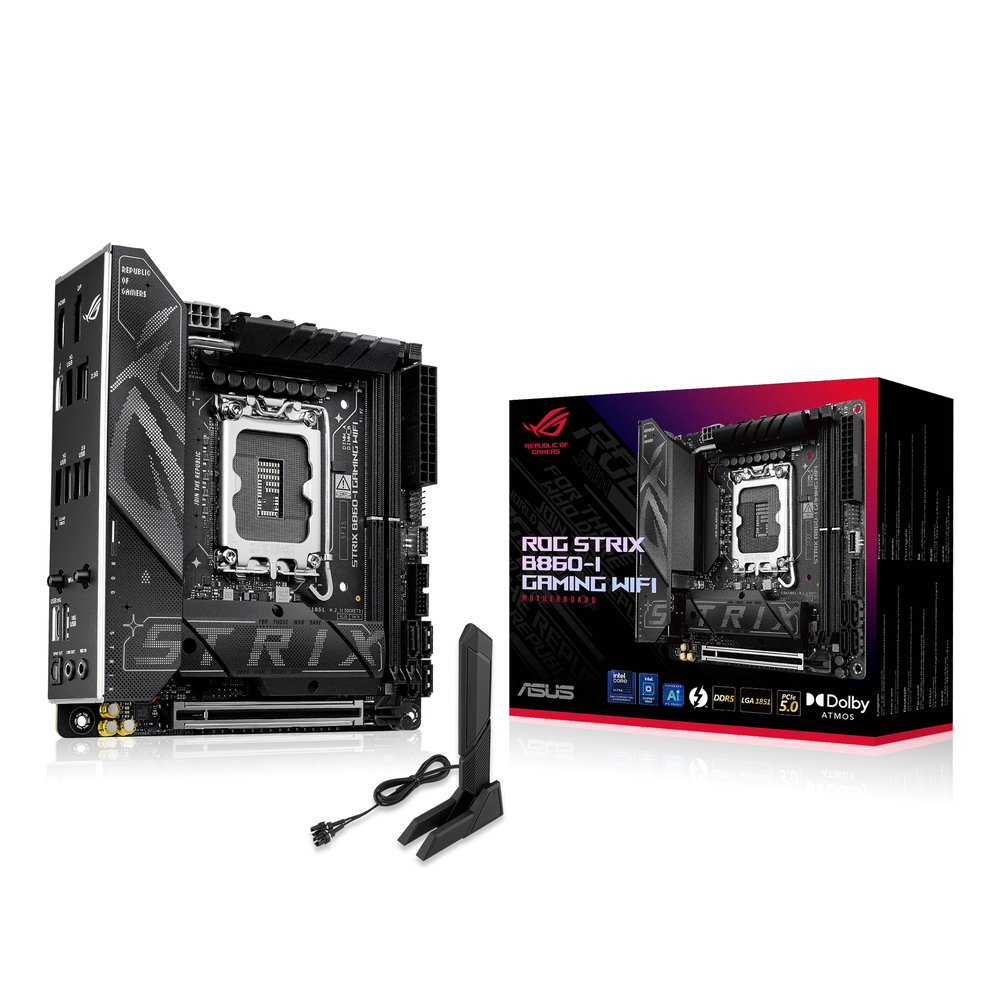

付属品 Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
2 x Screw packages for M.2 SSD
1 x Fan Bracket
1 x ROG key chain
1 x ROG Strix stickers
Documentation
1 x Quick start guide

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
