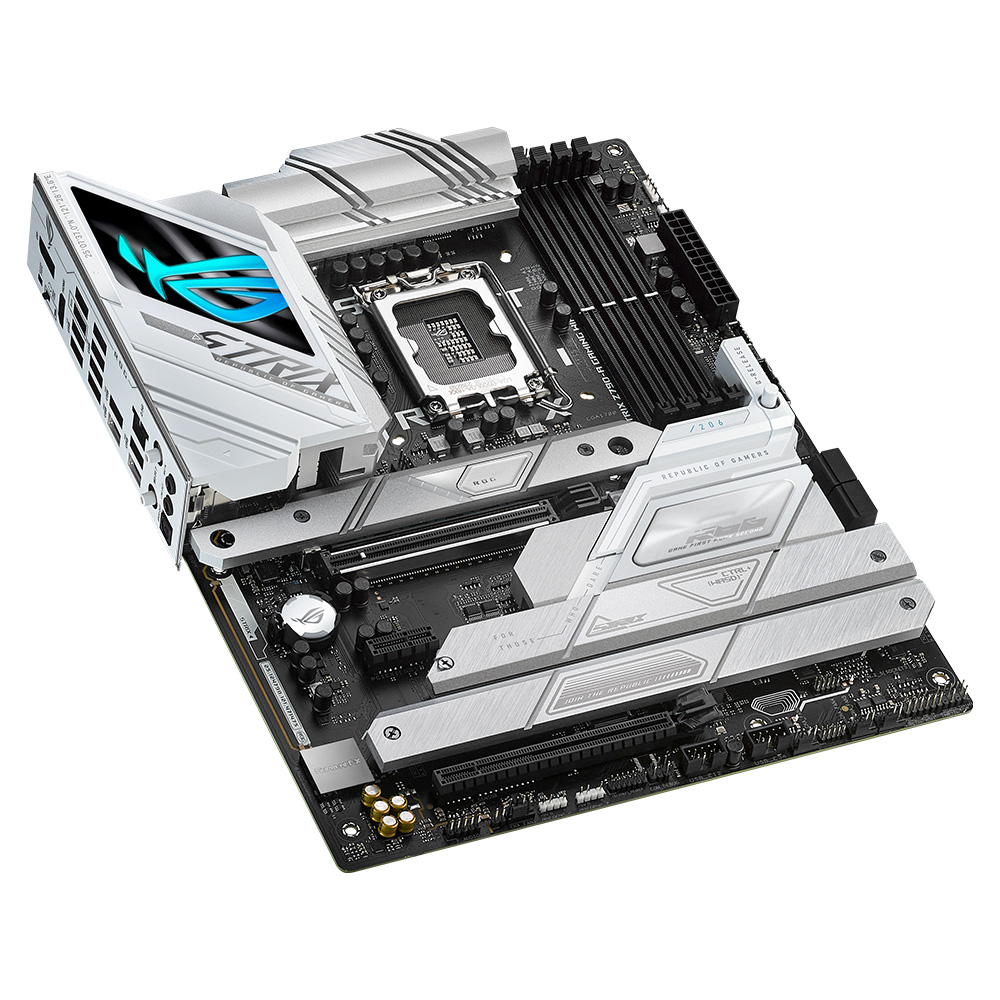

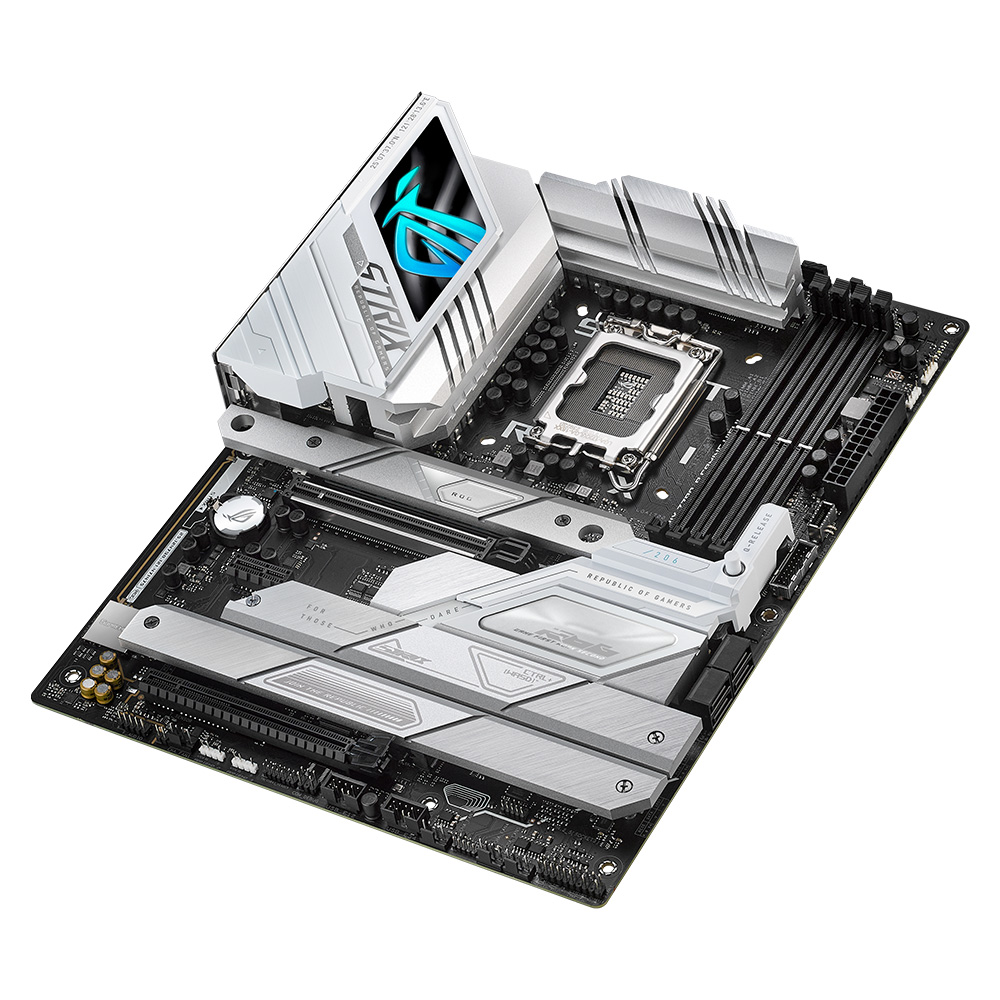

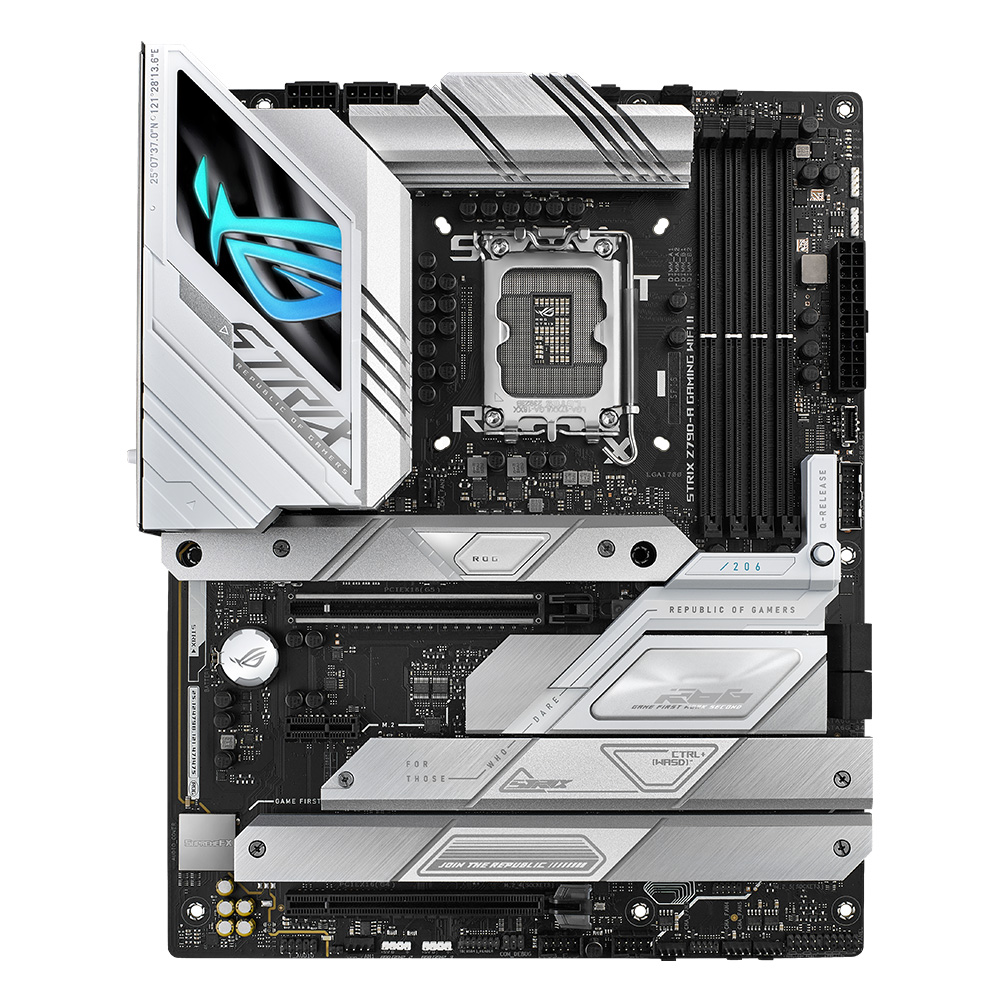

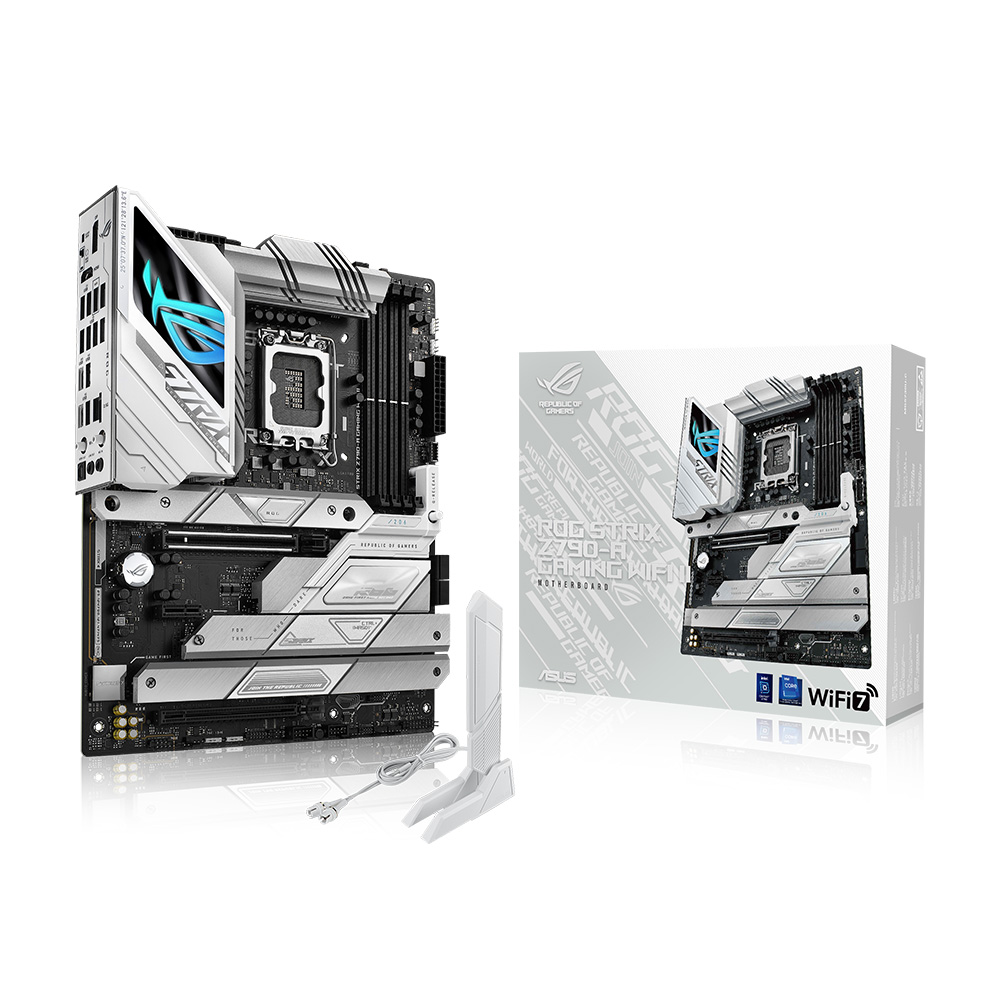

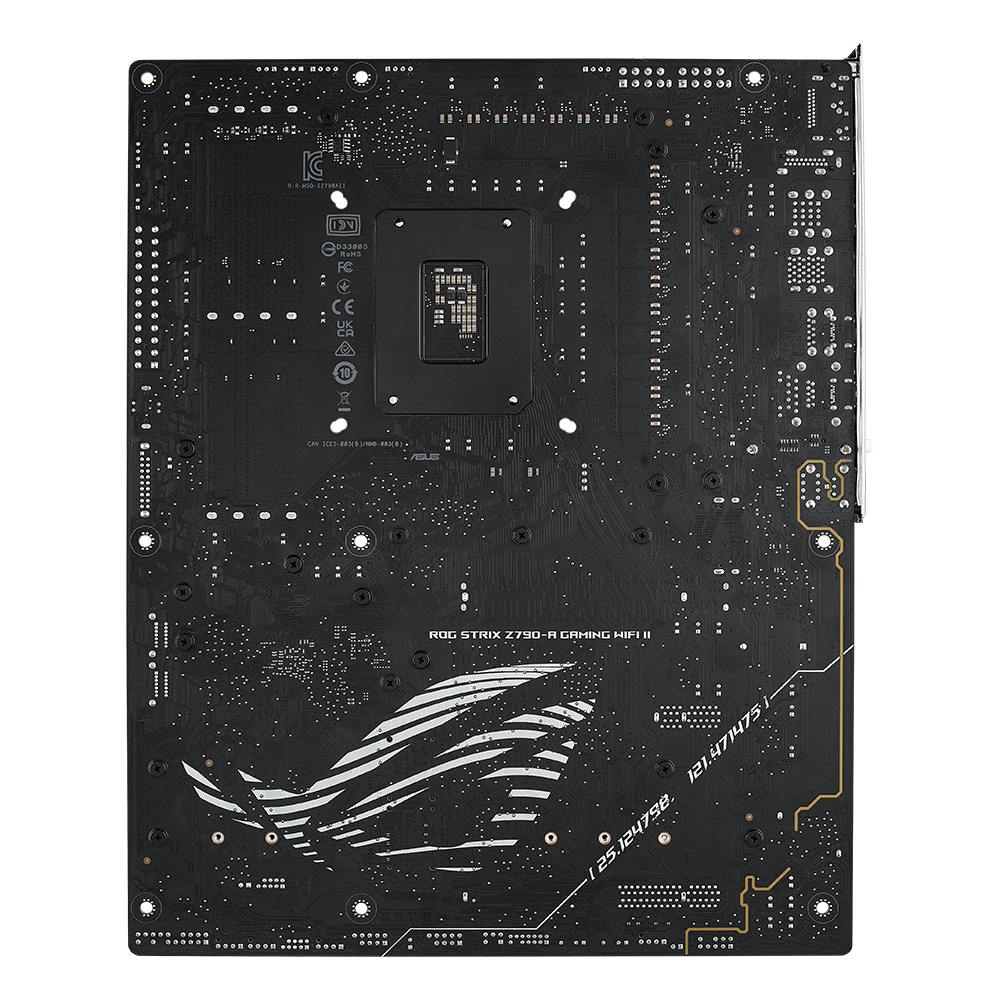

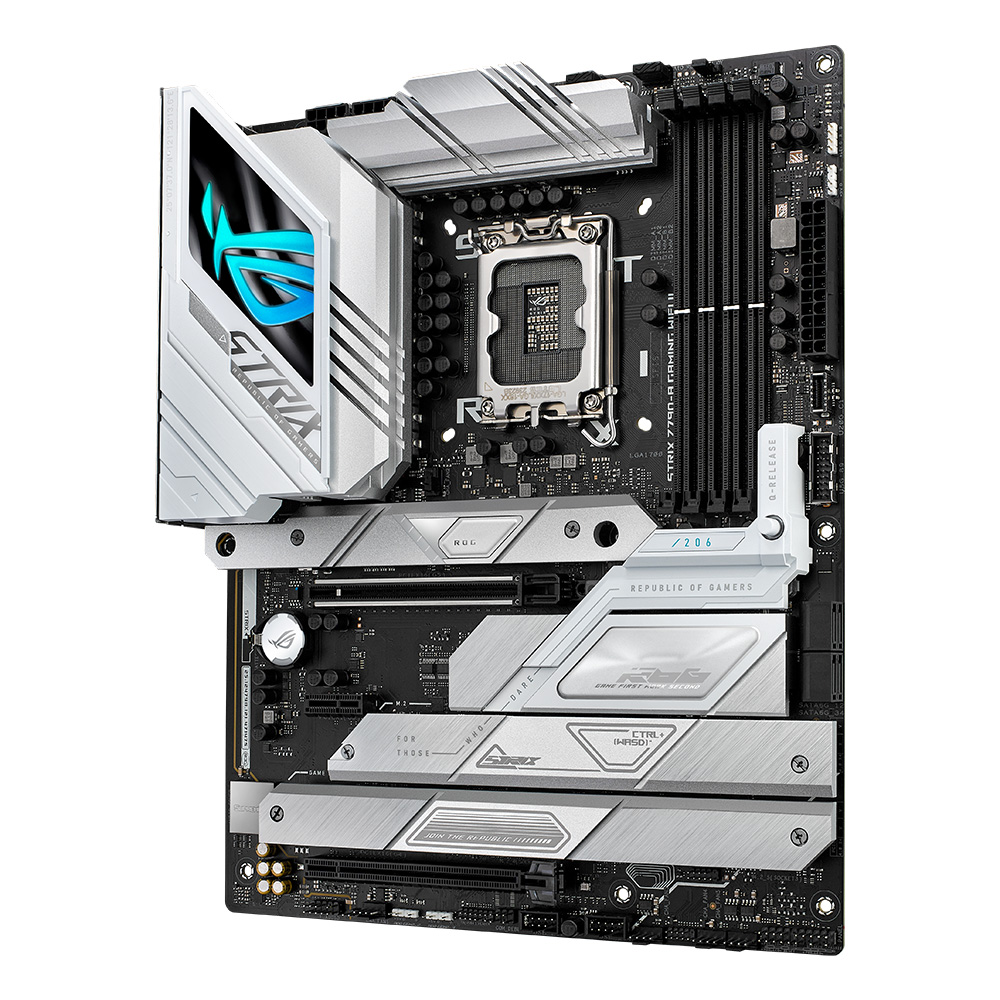

Z790チップセット搭載・16+1+2パワーステージ
第14世代Intel Coreプロセッサー対応「ROG STRIX」ゲーミングマザーボード
型番:ROG STRIX Z790-A GAMING WIFI II
JAN:0197105356948
型番 | ROG STRIX Z790-A GAMING WIFI II |
---|---|
フォームファクター | ATX(305×244mm) |
チップセット | Intel® Z790 Chipset |
対応CPUソケット | LGA1700 |
対応CPU | Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
対応メモリー | 4 DIMM slots, max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/ 6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module Supports DIMM Flex OptiMem II ASUS Enhanced Memory Profile II (AEMP II) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
拡張スロット | Intel® Core™ Processors (14th & 13th & 12th Gen)* PCIe 5.0 x16 slot × 1 Intel® Z790 Chipset PCIe 4.0 x16 slot (supports x4 mode) × 1 PCIe 3.0 x1 slot × 1 * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
ストレージ | M.2 slot × 5 Intel® Core™ Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel® Z790 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) SATA 6Gb/s port × 4 * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |

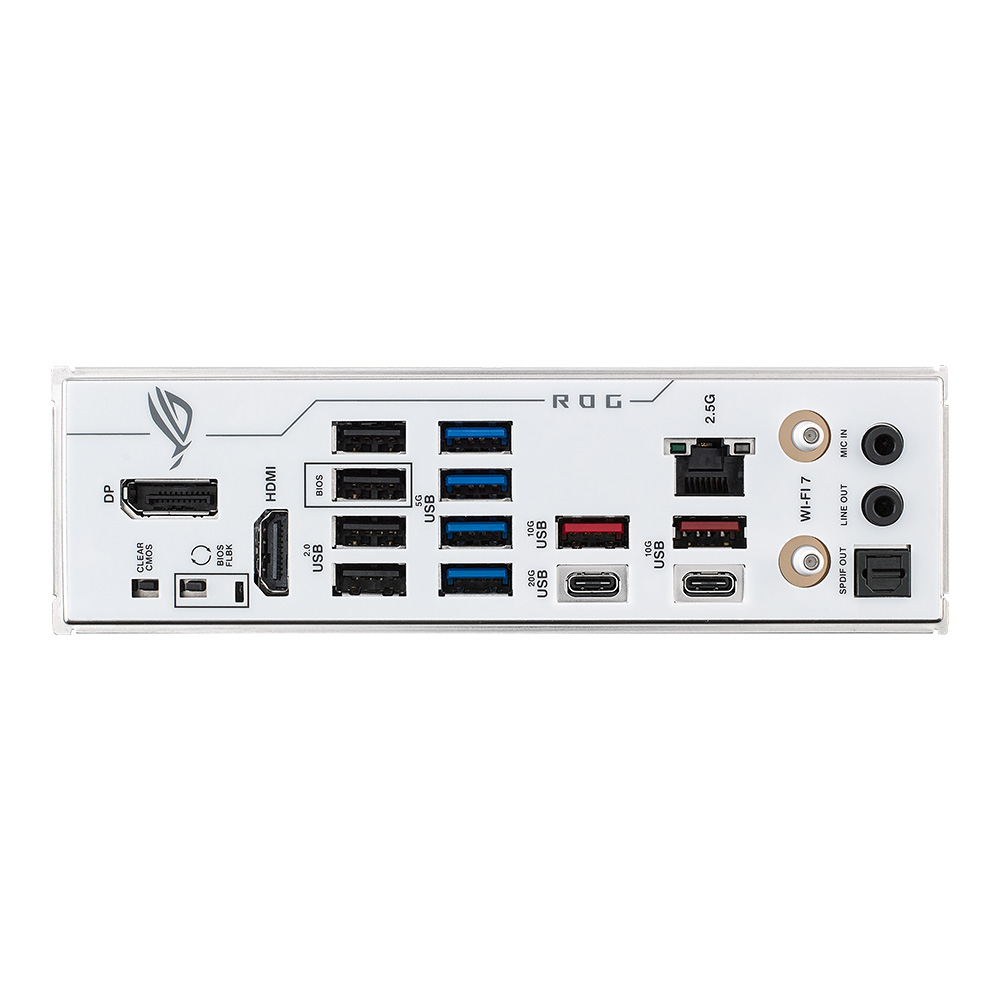

USB | Rear USB (Total 12 ports) USB 20Gbps port × 1 (1 USB Type-C®) USB 10Gbps port × 3 (2 Type-A + 1 USB Type-C®) USB 5Gbps port × 4 (4 Type-A) USB 2.0 port × 4 (4 Type-A) Front USB (Total 7 ports) USB 20Gbps × 1 (supports USB Type-C® with up to with up to 30W PD Fast-charge )** USB 5Gbps header × 1 (supports 2 additional USB 5Gbps ports) USB 2.0 header × 2 (support 4 additional USB 2.0 ports) * USB Type-C® power delivery output: max. 5V/3A ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A |
Thunderbolt | Thunderbolt™ (USB4®) header × 1 |
LAN | Intel® 2.5Gb Ethernet × 1 ASUS LANGuard |
無線機能 | Intel® Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be)** Supports 2.4/5/6GHz frequency band*** Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate. Bluetooth® v5.4**** * Compatible with Windows 11 or later. ** Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later. *** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. **** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. *2023年10月時点で日本国内では160MHzを超える帯域幅の利用が許可されておりません。 |
映像出力 | DisplayPort × 1 Supports max. 8K@60Hz as specified in DisplayPort 1.4. HDMI™ port × 1 Supports 4K@60Hz as specified in HDMI 2.1. * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** VGA resolution support depends on processors' or graphic cards' resolution. |
オーディオ | ROG SupremeFX 5.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel |
LED | Addressable Gen 2 header × 3 Aura RGB header × 1 |
OS | Windows® 11, Windows® 10 64-bit |

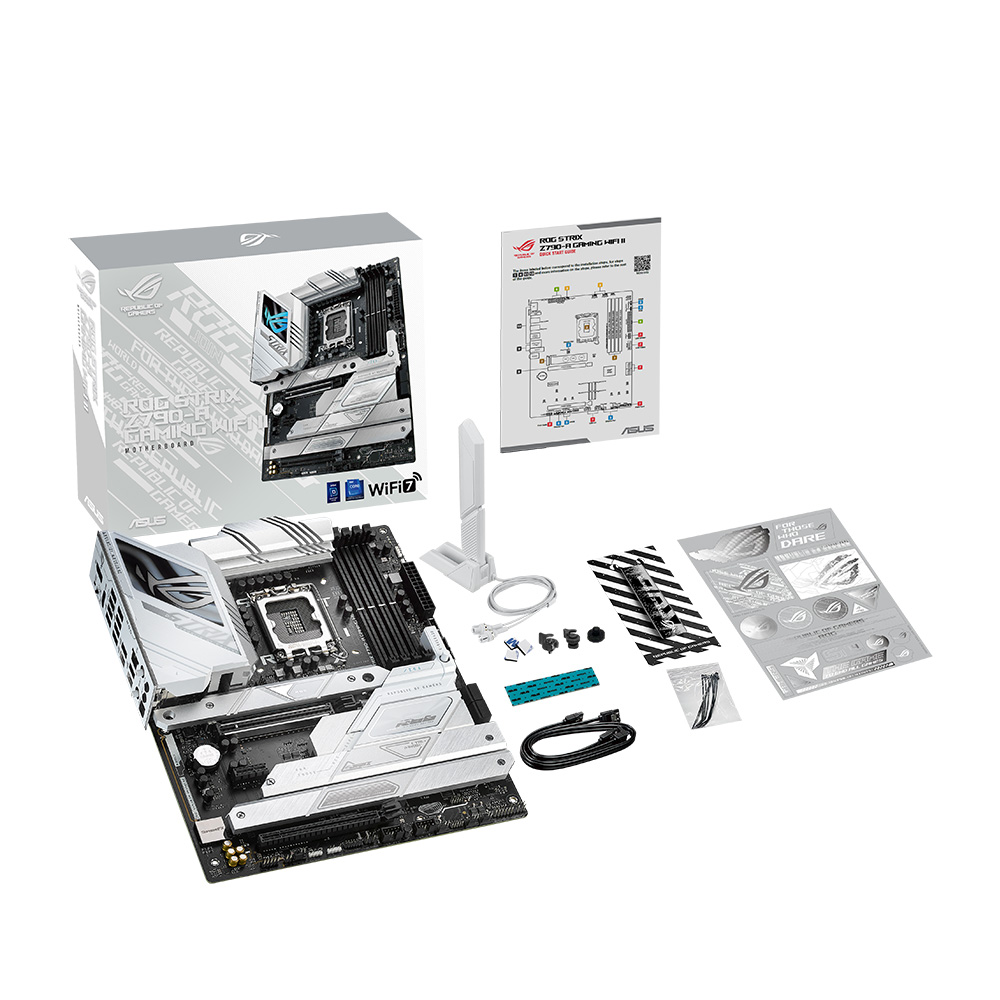

付属品 | SATA 6Gb/s cable × 2 Thermal pad for M.2 × 1 ASUS WiFi Q-Antenna × 1 Cable ties package × 1 M.2 backplate Q-Latch package × 1 M.2 Q-Latch package × 1 ROG key chain × 1 ROG Strix stickers × 1 M.2 rubber package × 2 M.2 backplate rubber package × 1 Quick start guide × 1 |
※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
