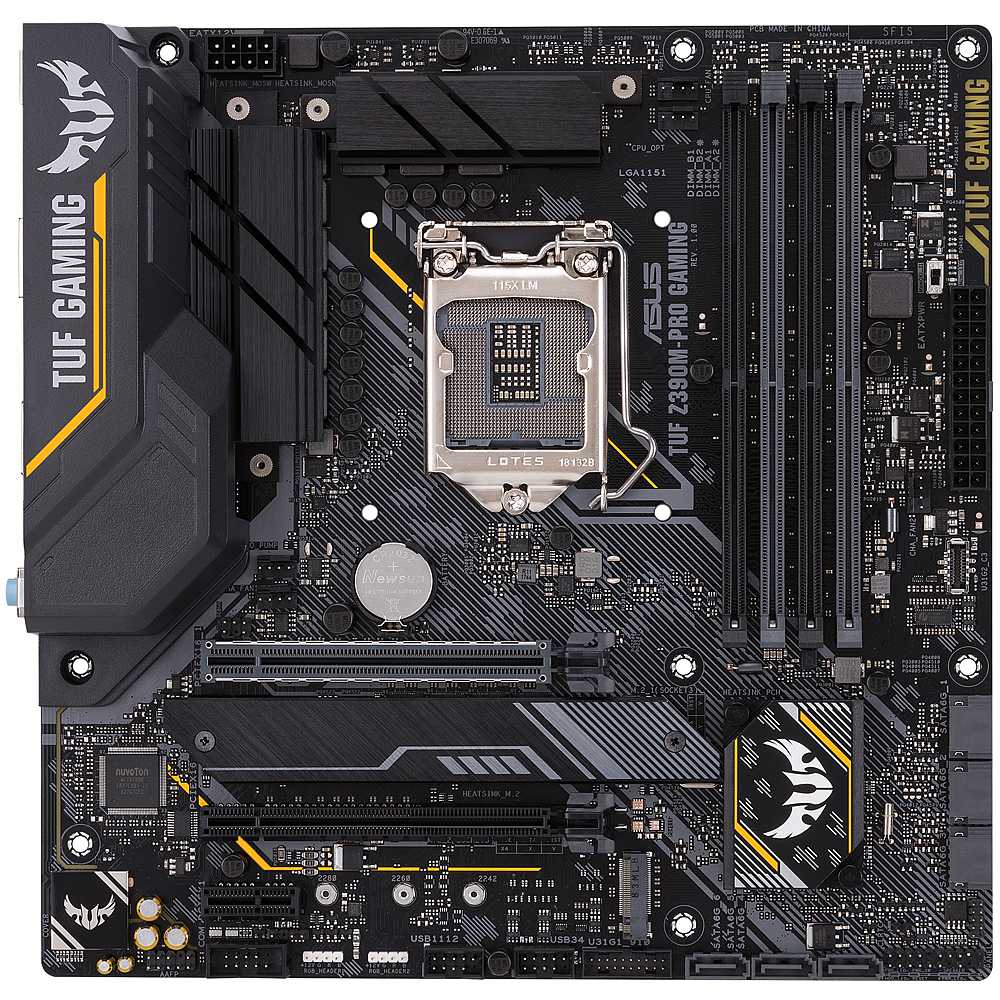

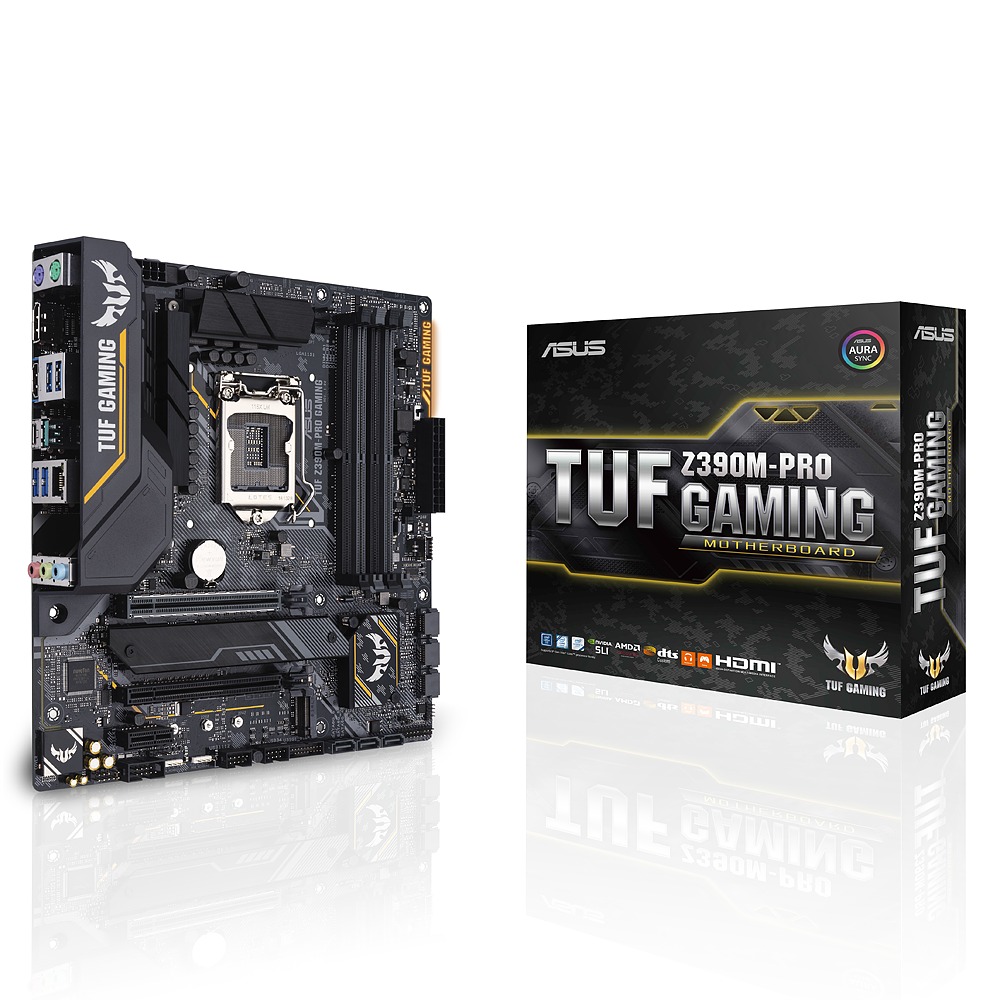

TUFコンポーネントと安定した放熱性能で長期的な信頼性をもたらすZ390搭載mATXマザーボード
対応CPU | Intel Socket 1151 9th / 8th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 3.0 |
搭載チップセット | Intel Z390 |
メインメモリ | 4 x DIMM, Max. 64GB, DDR4- 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory *1 デュアルチャンネル Memory Architecture Supports Intel Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. |
グラフィックス機能 | Integrated Graphics Processor- Intel UHD Graphics support Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays |
マルチGPU対応 | Supports NVIDIA SLI Technology Supports AMD CrossFireX Technology |
拡張スロット | 2 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x4+x4*, x8+x4+x4/x0**) *2 1 x PCIe 3.0 x1 * For 2 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_2 slot, enable this card under BIOS settings. *For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings. |
ストレージ機能 | Intel Z390 Chipset : 1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3 1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s), gray, *3 Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready Intel CPU with Intel Rapid Storage Technology support (RAID 0 & RAID 1) |
LAN機能 | Intel I219V, featuring Turbo LAN TUF LANGuard Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY) |
オーディオ機能 | Realtek ALC S1200A 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
USB機能 | Intel Z390 Chipset : 2 x USB 3.1 Gen 2 port(s) (1 at back panel, teal blue, Type-A, 1 at mid-board) Intel Z390 Chipset : 7 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, Type-A, 1 x Type-C, 2 at mid-board) Intel Z390 Chipset : 4 x USB 2.0/1.1 port(s) (4 at mid-board) |
独自機能 | ASUS TUF PROTECTION - ASUS SafeSlot: Protect your graphics card Investment - ASUS ESD Guard: Enhanced ESD protection - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! ASUS Optimem II: - Optimem (Improved DDR4 stability) ASUS EPU : - EPU AURA : - Aura Lighting Control - Aura RGB Strip Headers ASUS Exclusive Features : - AI Suite 3 - Ai Charger - PC Cleaner - ASUS C.P.R.(CPU Parameter Recall) ASUS Quiet Thermal Solution : - Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink & M.2 Heat-sink solution - ASUS Fan Xpert 4 ASUS EZ DIY : - ASUS O.C. Tuner - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) MemOK! II |

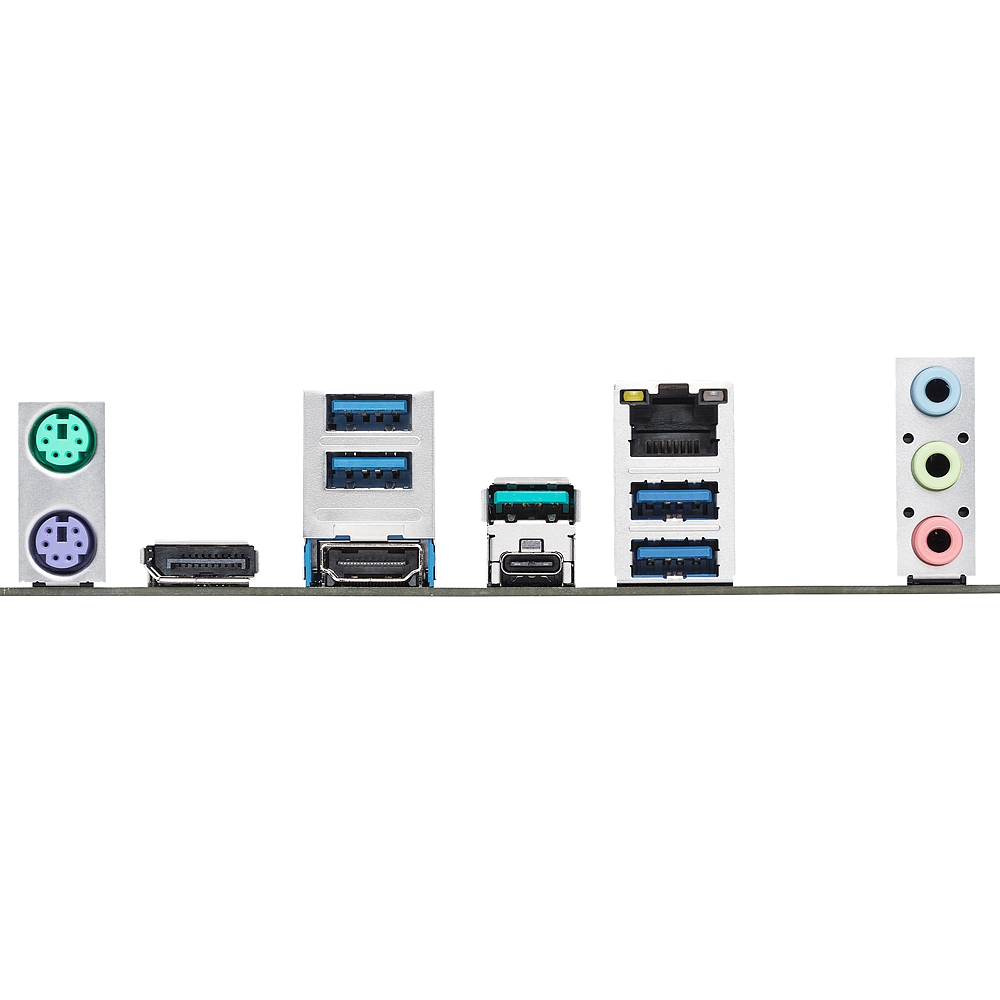

背面インターフェース | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 1 x USB 3.1 Gen 2 Type-A, 4 x USB 3.1 Gen 1 (blue) Type-A, 1 x USB 3.1 Gen 1 (black) Type-C, 3 x 8-channel Audio I/O |
基板上インターフェース | 2 x Lighting Control RGB Strip Header(s) 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/ 2260/ 2280/ 22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/ 2260/ 2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (4 -pin) 1 x CPU OPT Fan connector(s) (4 -pin) 2 x Chassis Fan connector(s) (4 -pin) 1 x AIO_PUMP connector (4 -pin) 1 x S/PDIF out header(s) 1 x 8-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! II switch(es) 1 x Clear CMOS jumper(s) 1 x Serial Port header 1 x System panel connector 1 x USB 3.1 Gen 2 front panel connector |
主な付属品 | User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x TUF Gaming Sticker 1 x SLI HB BRIDGE(2-WAY-S) 1 x Q-Connector 1 x TUF Certification card(s) 1 x SCD (by region) |
BIOS機能 | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
サポートDVDの内容 | Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version) |
OS | Windows 10 64-bit |
フォームファクター(サイズW×D) | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
Management Solution | WOL by PME, PXE |
その他 | *1 For DRAM compatibility and performance, please use A2 slot for priority 1. *2 Hyper M.2 X16 series card is sold separately. Install a Hyper M.2 X16 series card and enable this card under BIOS settings. *3 The M.2_1 socket shares SATA_2 port when using M.2 SATA mode device. Adjust BIOS settings to use a SATA device. |
※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
