ROG STRIX B860-F GAMING WIFI

ROG STRIX B860-F GAMING WIFI

Intel B860チップセット搭載
「ROG STRIX」ゲーミングマザーボード

・Intel B860チップセット搭載
・「ROG STRIX」ゲーミングマザーボード
・ATXフォームファクター
・Intel Socket LGA1851
・Intel Core Ultra プロセッサー(series 2)対応
・16(80A)+1(80A)+2(80A)+1(80A) パワーステージ
・VRM ヒートシンクアレイ、M.2ヒートシンク＆バックプレートなどがシステムを強力に冷却
・PCIe 5.0 スロット、PCIe 5.0 M.2スロット装備
・リアThunderbolt 4×1基、USB 20Gbps Type-C装備
・Wi-Fi 7 + Intel 2.5Gb LAN
・PCIe Slot Q-Release Slim (with PCIe SafeSlot)
・Q-Antenna、New M.2 Q-Latch、M.2 Q-Release、M.2 Q-Slide
・AI Cooling II、AI Networking II、AI Advisor、AEMP III

型番：ROG STRIX B860-F GAMING WIFI

JAN：0197105806962

発売日：2025年1月14日

メーカー製品ページ

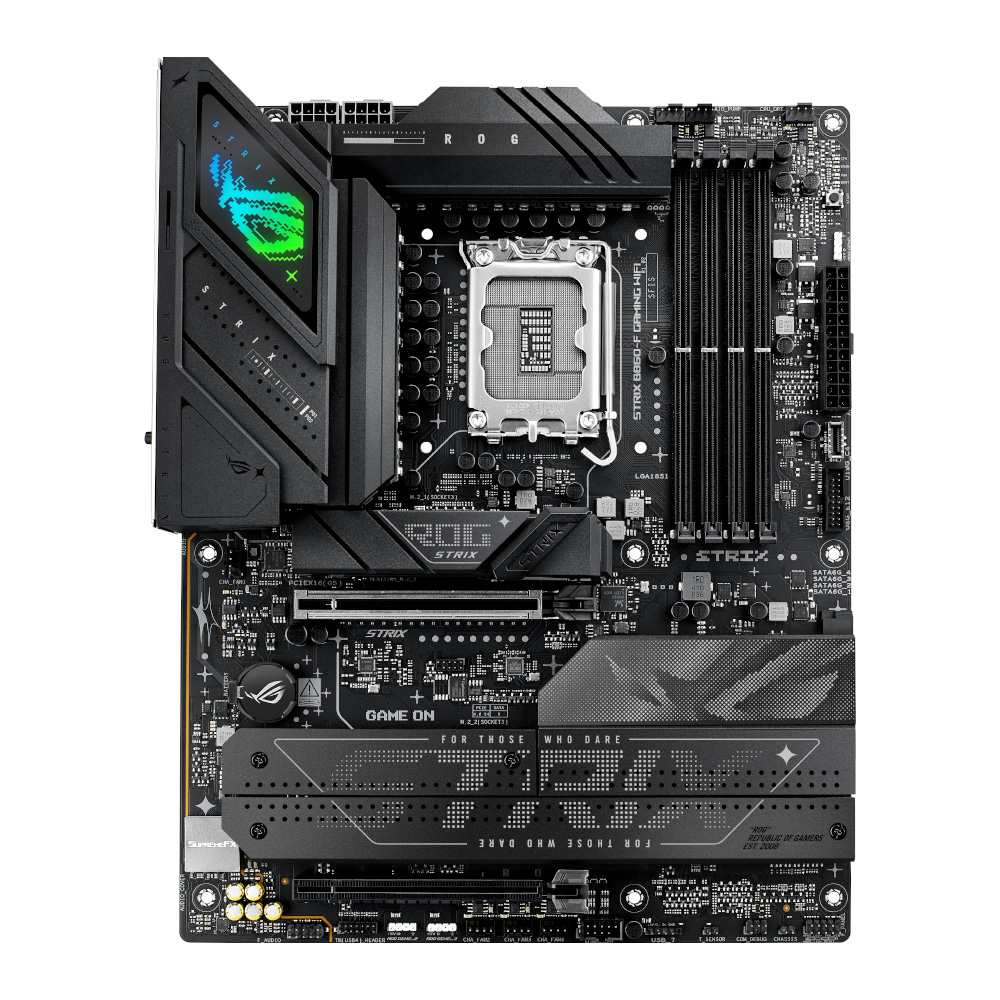

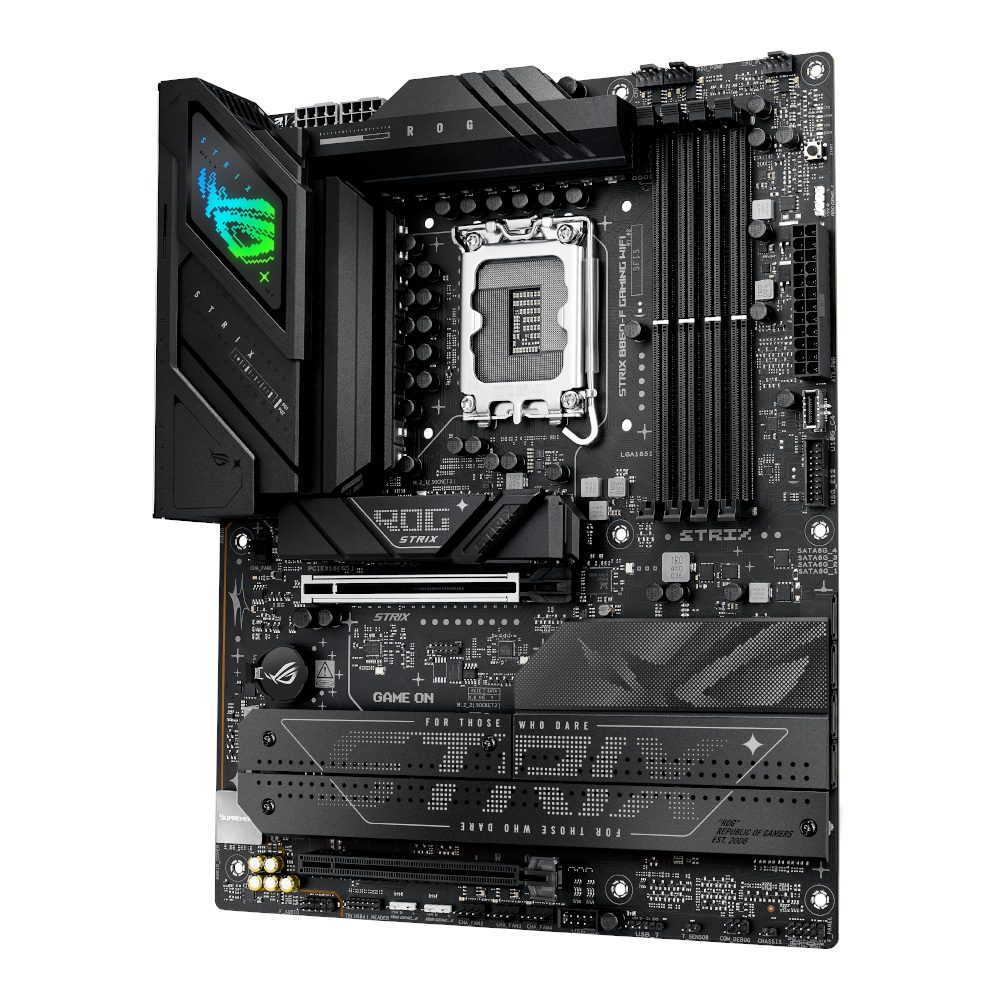

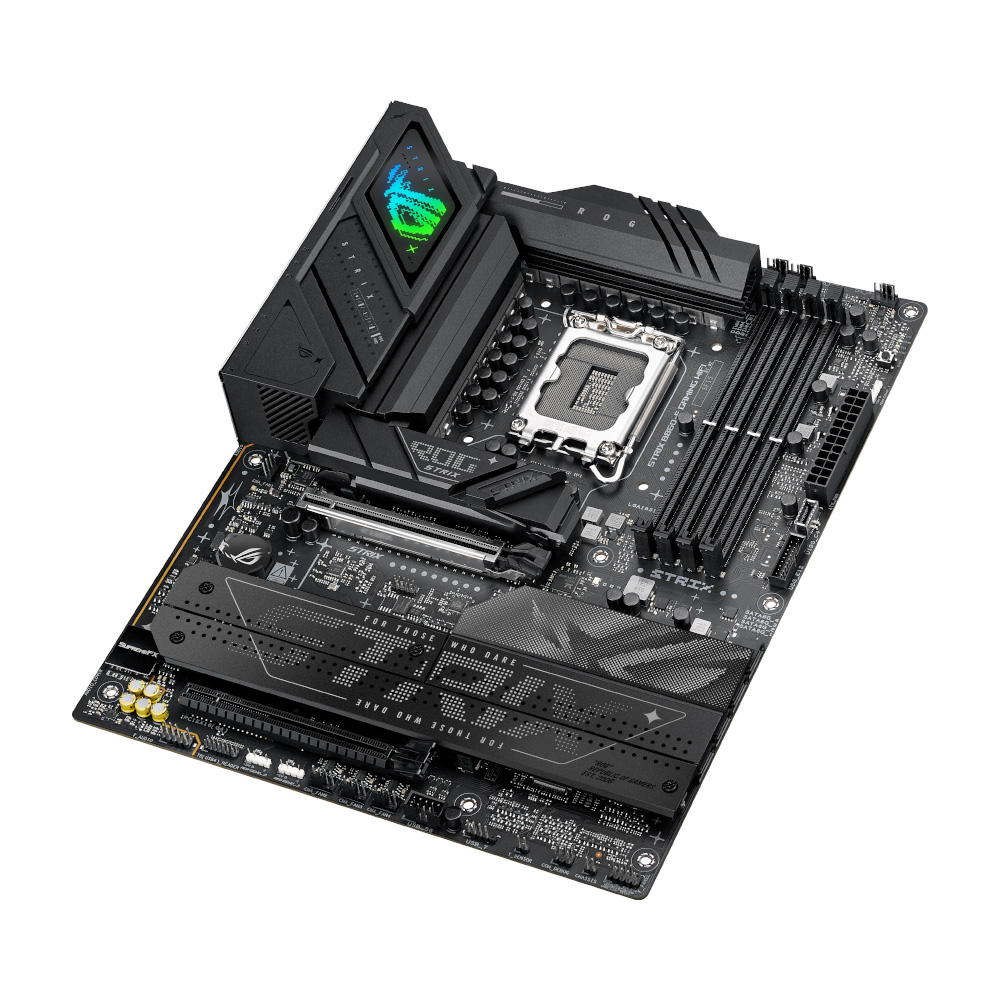

「ROG STRIX B860-F GAMING WIFI」は、Intel B860チップセットを搭載したゲーミングマザーボードです。
16(80A)+1(80A)+2(80A)+1(80A) パワーステージの強力な電源回路を備え、最新のIntel Core Ultra プロセッサーの性能を引き出します。VRM ヒートシンクアレイ、M.2ヒートシンク＆バックプレートなどがシステムを強力に冷却します。
Thunderbolt 4 (40Gbps)ポート、USB 20Gbps Type-Cなどの高速規格を搭載しています。
Intel 2.5G LAN + Wi-Fi 7をサポートし、高速なネットワーク環境を構築することができます。
グラフィックカードの取り外しが簡単なPCIe Slot Q-Release Slimなど、PCの組み立てを容易にする機能「Q-Design」を備えています。







型番 ROG STRIX B860-F GAMING WIFI
フォームファクター ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
チップセット Intel B860 Chipset
対応CPUソケット Intel Socket LGA1851
対応CPU Intel Core Ultra Processors(Series 2)
対応メモリー 4 x DIMM slots, max. 192GB, DDR5
Support up to 9066MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP) memory module
DIMM Fit
ASUS Enhanced Memory Profile III (AEMP III)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
拡張スロット Intel Core Ultra Processors(Series 2)
1 x PCIe 5.0 x16 slot (supports x16)
Intel B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
ストレージ Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Core Ultra Processors(Series 2)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel B860 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*
4 x SATA 6Gb/s ports**
* M.2_4 slot shares bandwidth with PCIEX16(G4). When M.2_4 is occupied with SSD device, PCIEX16(G4) will be disabled.
** Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

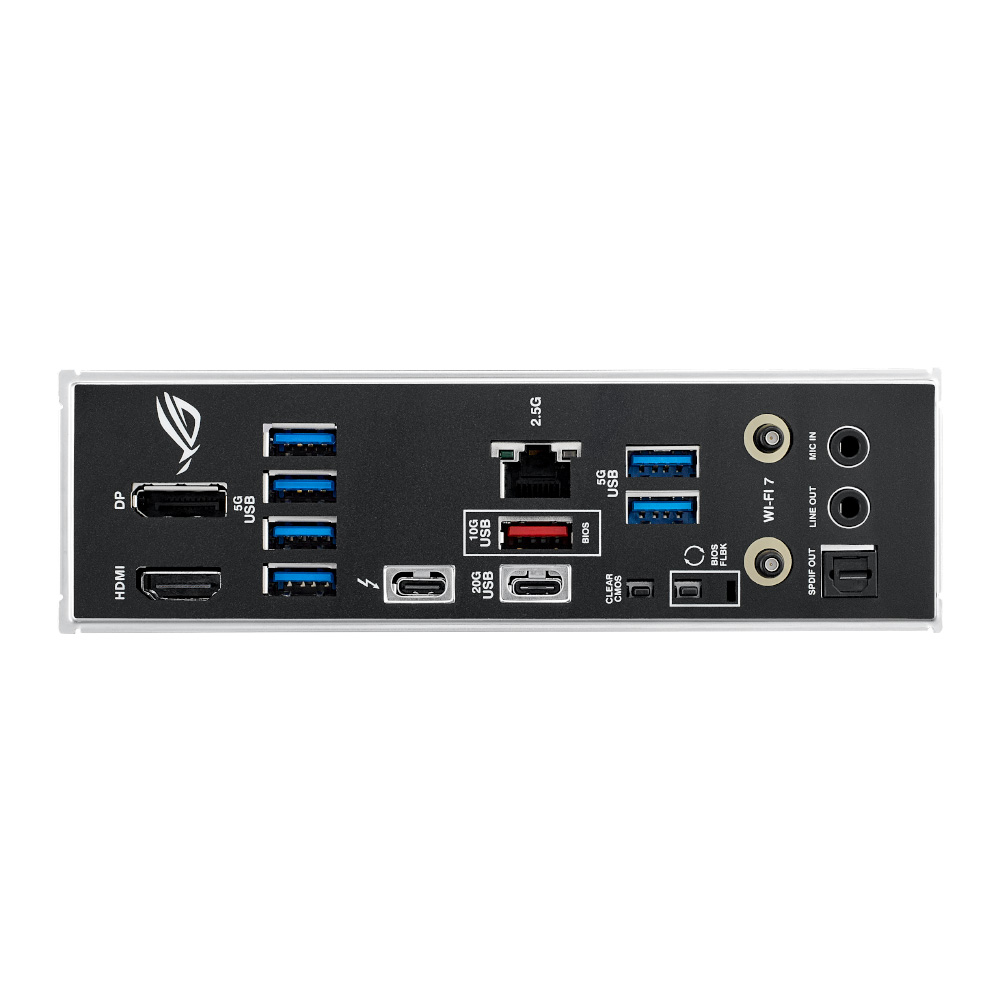

USB Rear USB (Total 9 ports)
1 x Thunderbolt 4 port (1 x USB Type-C)
1 x USB 20Gbps port (1 x USB Type-C)
1 x USB 10Gbps ports (1 x Type-A)
6 x USB 5Gbps ports (6 x Type-A)
Front USB (Total 6 ports)
1 x USB 10Gbps (1 x USB Type-C)
1 x USB 5Gbps header support 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
* USB Type-C power delivery output: max. 5V/3A
Thunderbolt 1 x Thunderbolt (USB4) header
LAN 1 x Intel 2.5Gb Ethernet
ASUS LANGuard
無線機能 Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth v5.4***

*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."
映像出力 1 x DisplayPort**
1 x HDMI port***
1 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs****
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 8K@60Hz with DSC as specified in DisplayPort 1.4.
*** Supports 8K@60Hz with DSC as specified in HDMI 2.1.
**** In Thunderbolt 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
***** VGA resolution support depends on processors' or graphic cards' resolution.
****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
オーディオ ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
LED 3 x Addressable Gen2 headers
OS Windows 11 (22H2 & later)

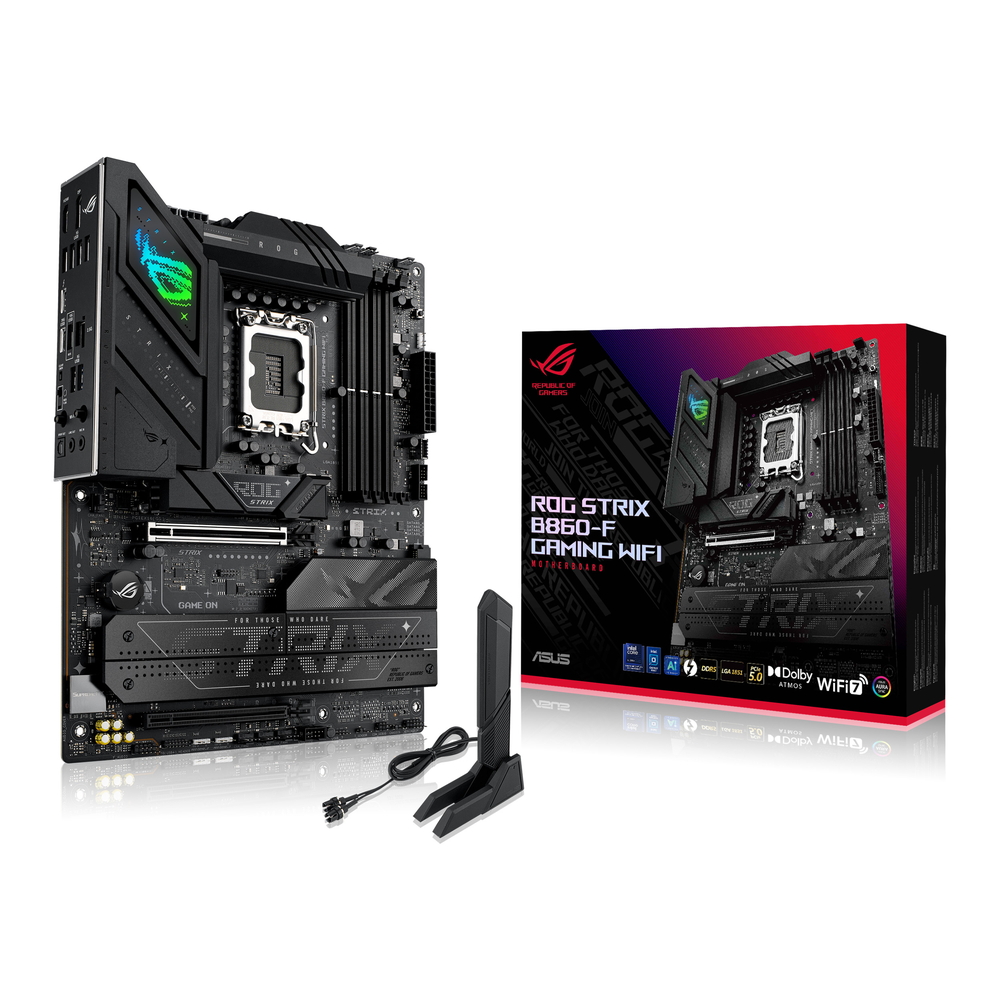

付属品 Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x M.2 Q-Slide package
1 x ROG key chain
1 x ROG Strix stickers
4 x M.2 rubbers
Documentation
1 x Quick start guide

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
