ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION

ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION

AMD X870Eチップセット搭載
「ROG STRIX」マザーボード・「ROG × 初音ミクエディション」

・AMD X870Eチップセット搭載「ROG STRIX」マザーボード
・「ROG × 初音ミクエディション」

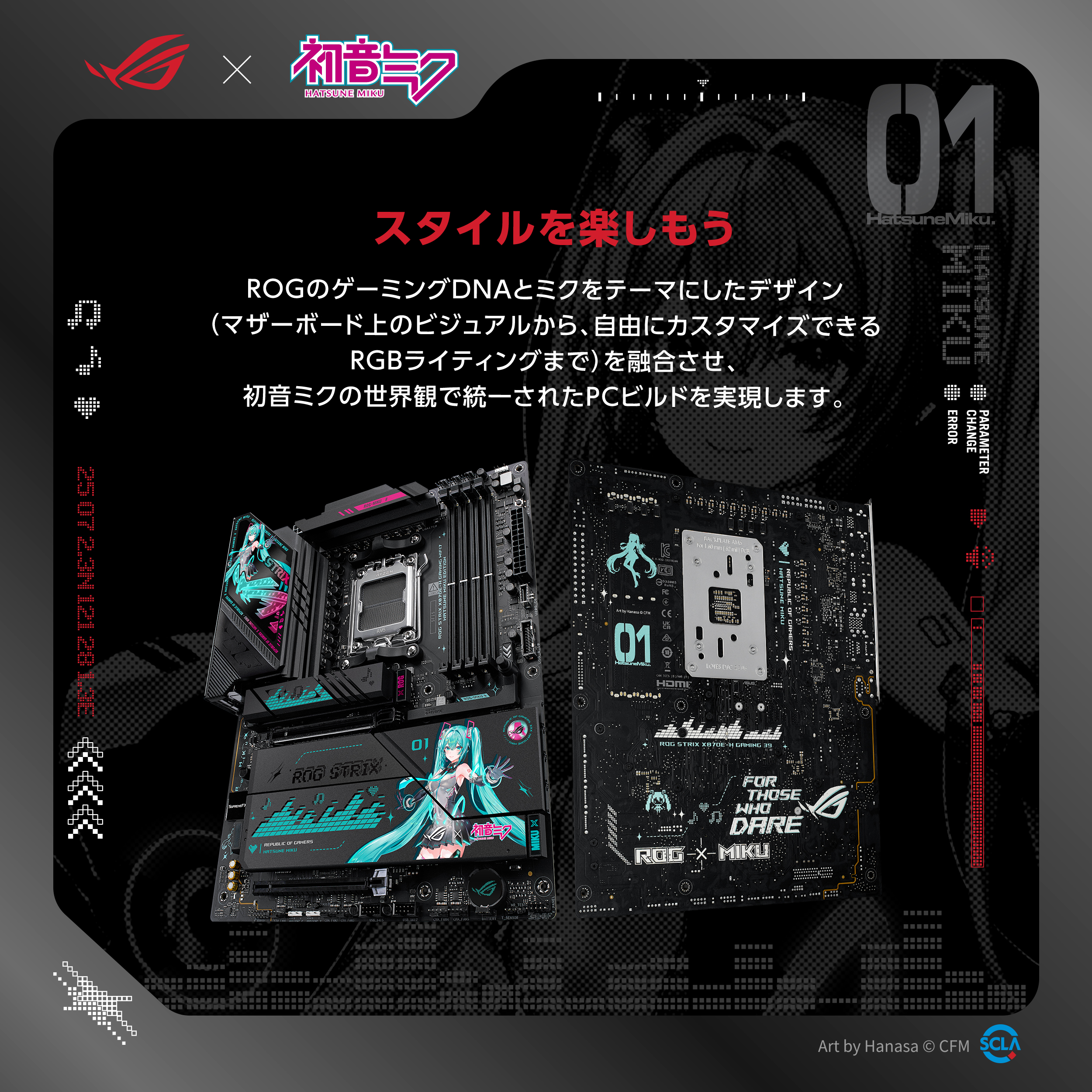

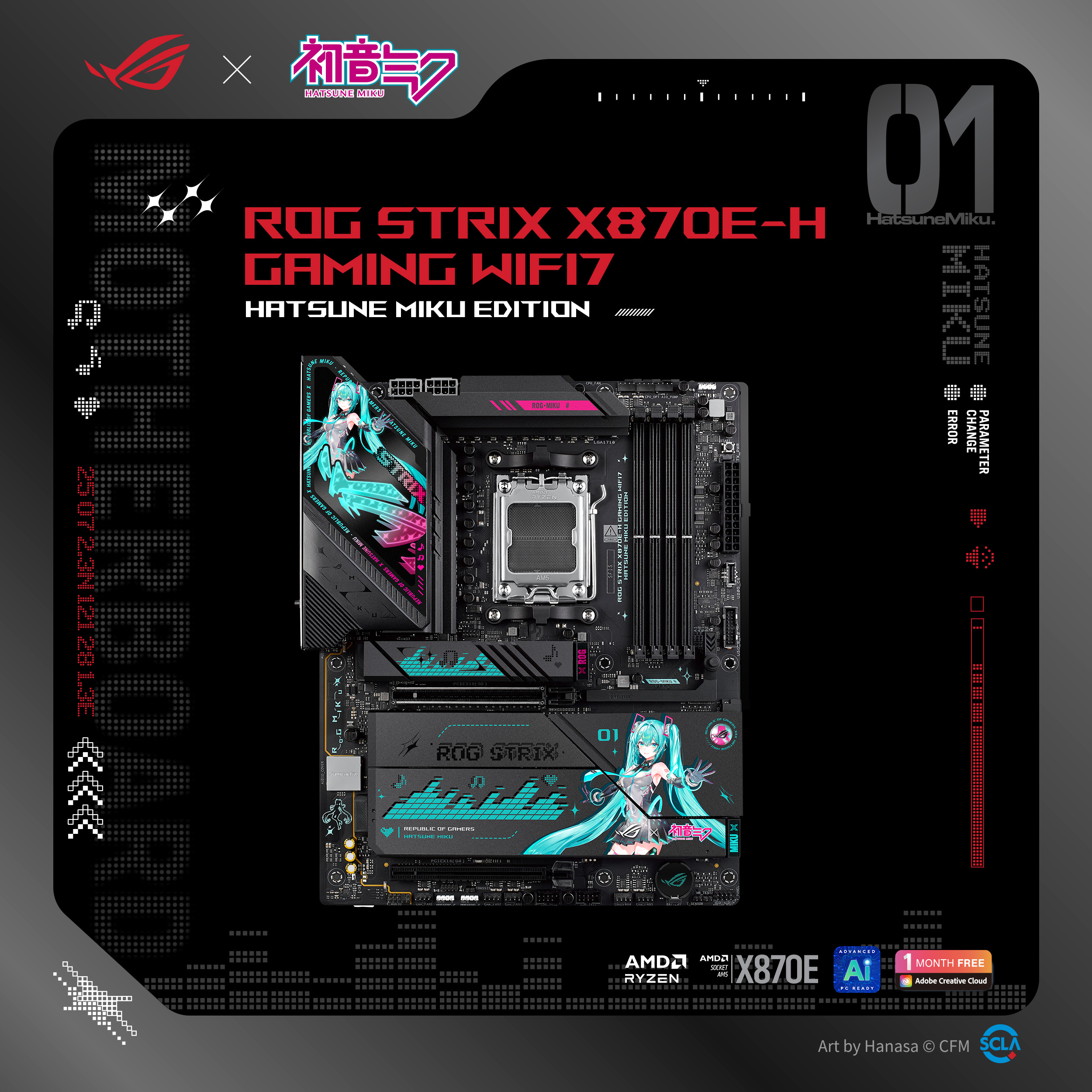

・ROGのゲーミングDNAと初音ミクを象徴するブルーグリーン×ピンクのカラーパレットを融合した特別モデル

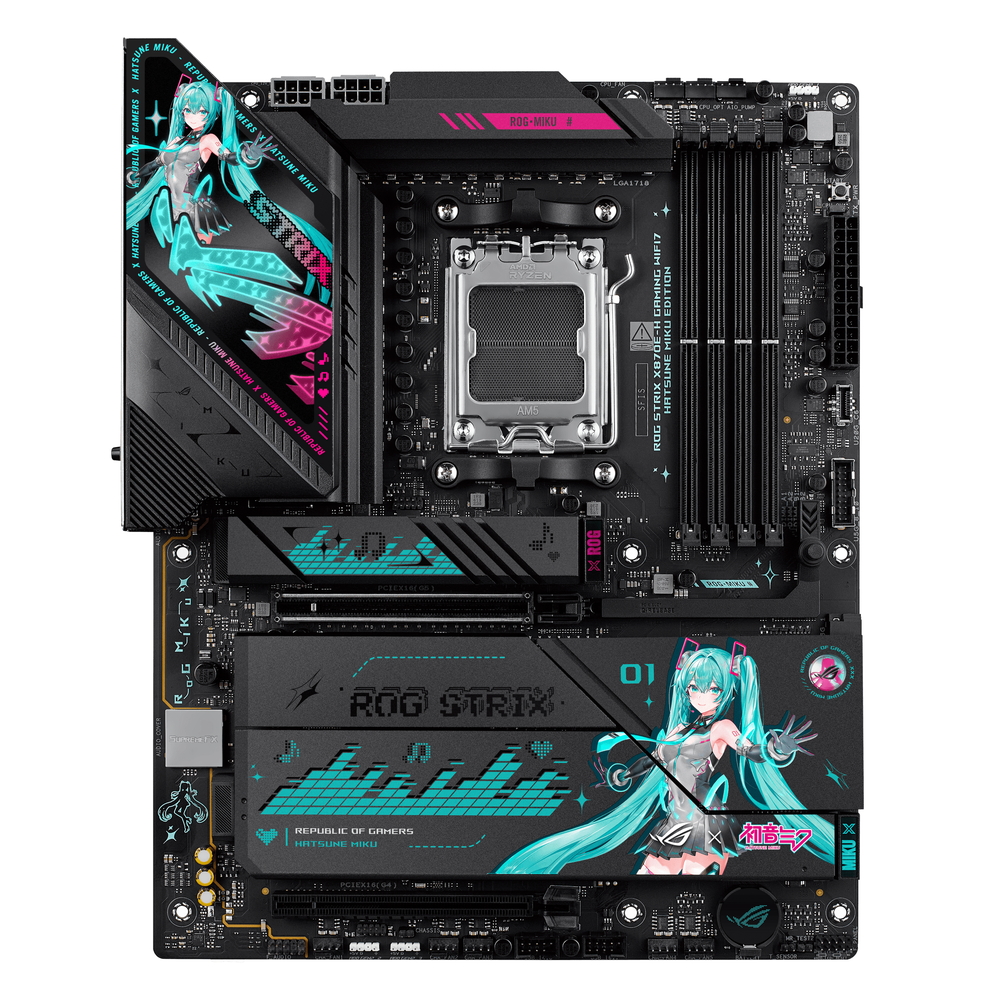

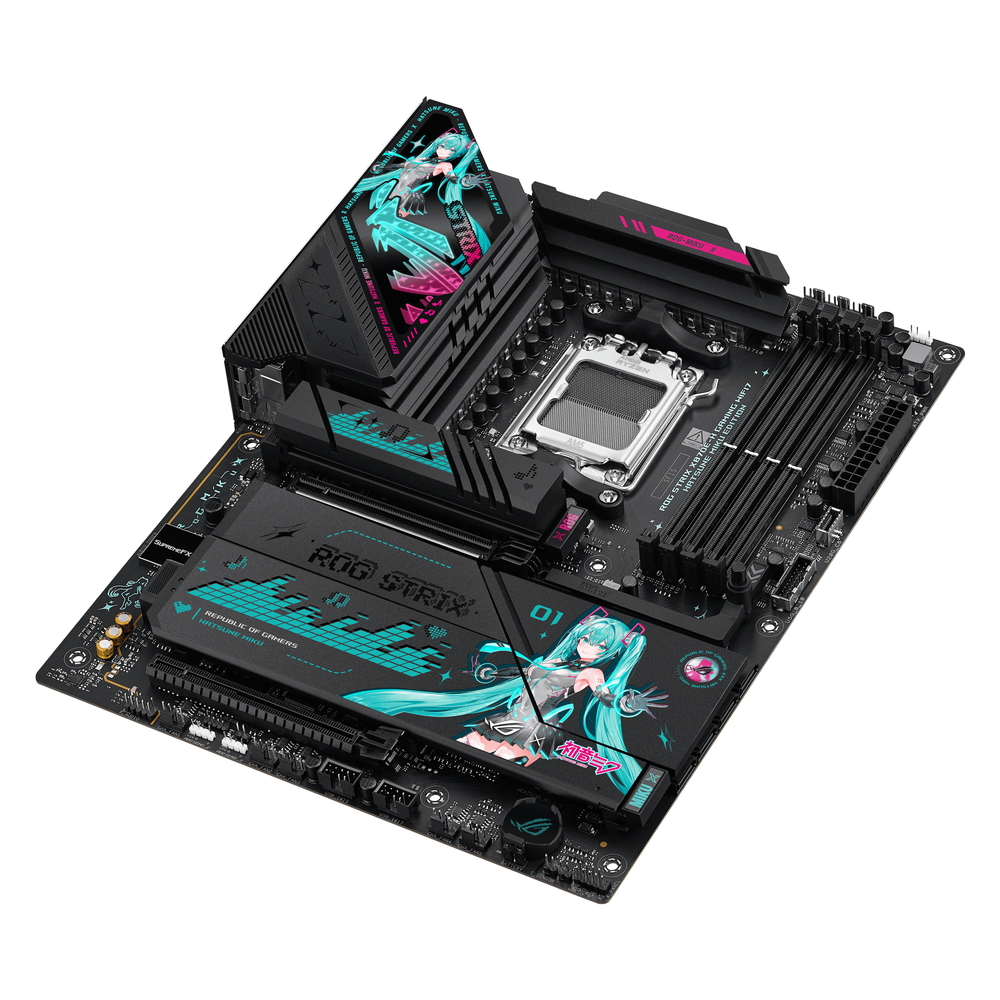

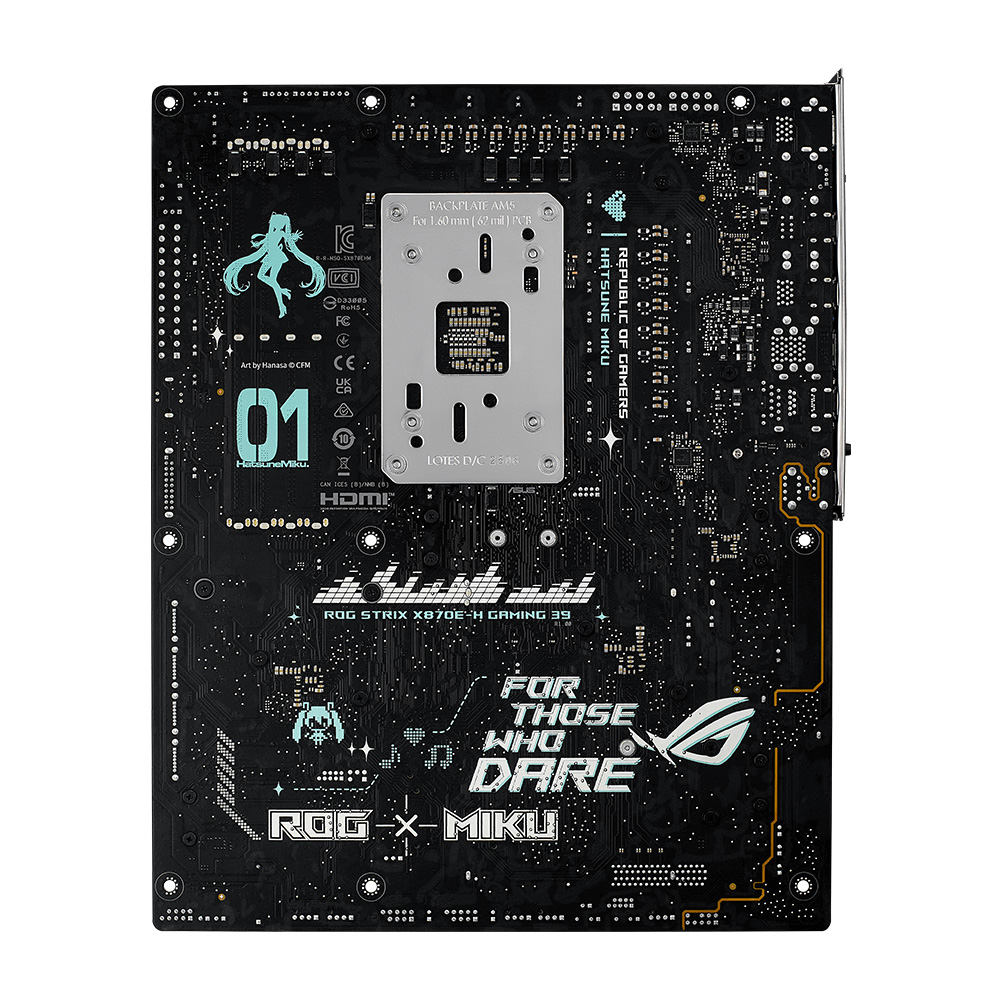

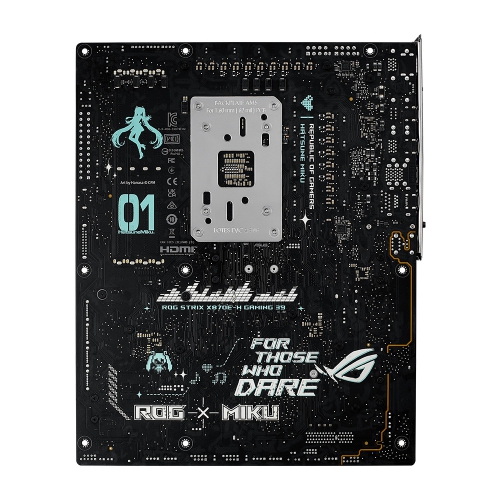

・マザーボード全体にミクをテーマにしたデザインが施されており、各種ヒートシンクやバックプレートのアクセントまで、細部にわたってミクの世界観を表現
・BIOS画面や「Armoury Crate」ソフトウェアもミクをイメージしたビジュアルで統一
・ATXフォームファクター
・AMD Socket AM5
・AMD Ryzen 9000/8000/7000シリーズプロセッサー対応

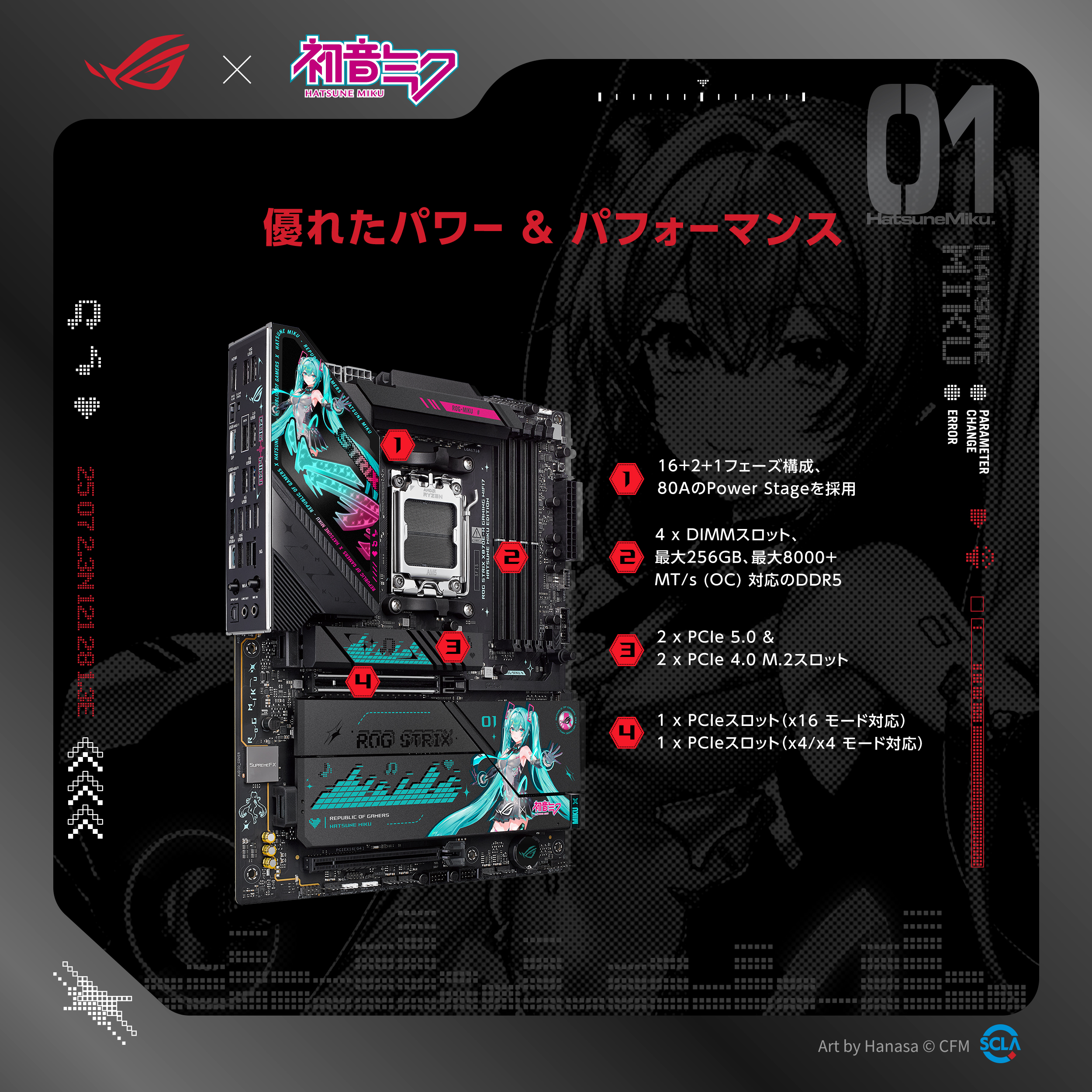

・16(80A) + 2(80A) + 1(80A)パワーステージ

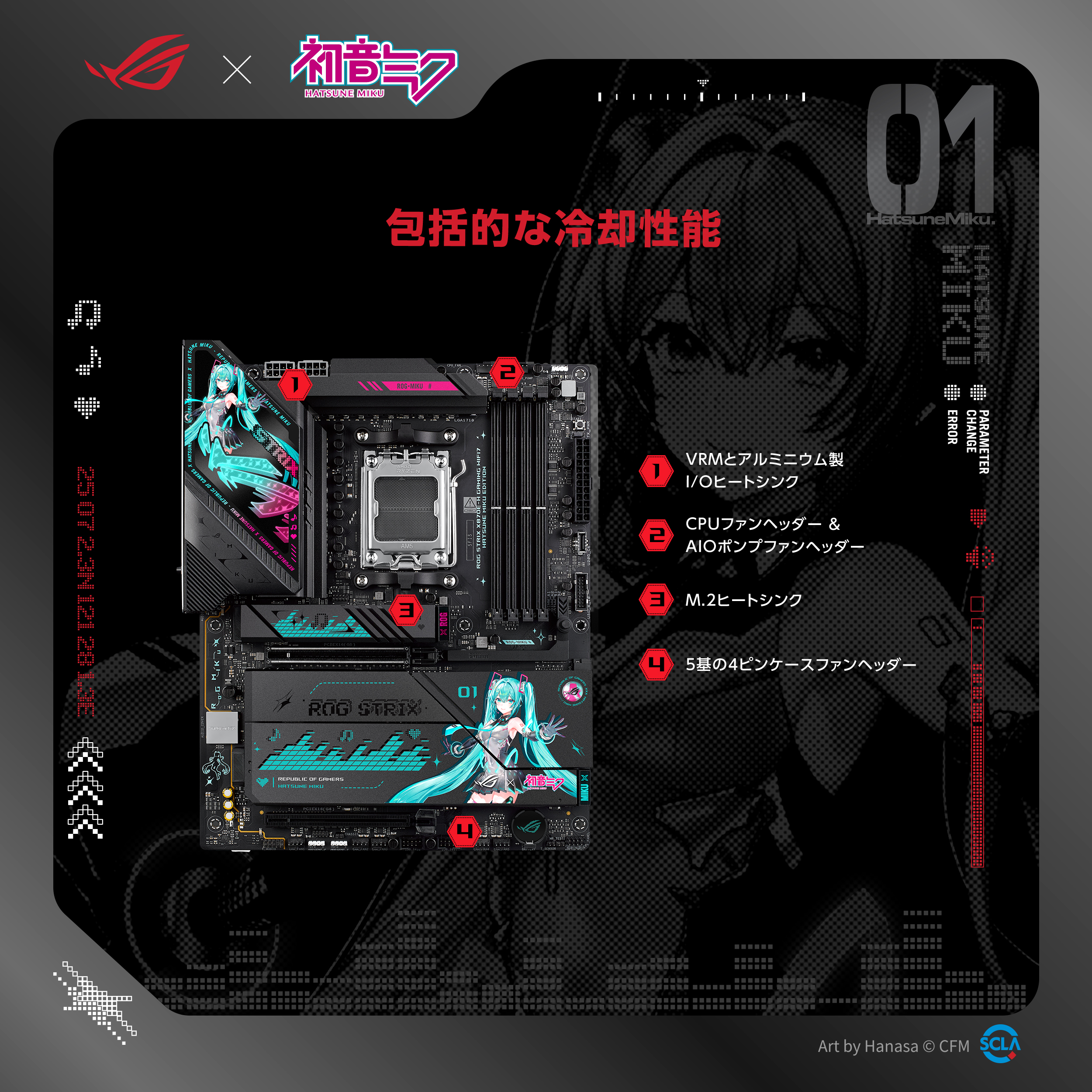

・VRMとアルミニウムI/Oヒートシンク、M.2ヒートシンクなどがシステムを強力に冷却
・PCIe 5.0 スロット、PCIe 5.0 M.2スロット装備
・リアUSB4 (40Gbps)×2基、リアUSB 10Gbps Type-C(30W急速充電対応)、フロントUSB 20Gbps (Type-C)装備
・Wi-Fi 7 + 5Gb LAN装備
・PCIe Slot Q-Release、Q-Antenna、M.2 Q-Latch、M.2 Q-Release
・ASUS AI ADVISOR、AI Cache Boost、AI NETWORKING II、AI OVERCLOCKING、AI COOLING II

型番：ROG STRIX X870E-H GAMING MIKU

JAN：0199291174665

メーカー製品ページ


初音ミクのシグネチャーカラーであるブルーグリーンとピンクを大胆にあしらい、ROGマザーボードならではのアーティスティックな装飾が光ります。ヒートシンクには初音ミク限定デザイン、背面にも特別なグラフィックが施されています。Aura Sync対応で、RGBライティングやエフェクトを他のROG対応パーツと同期し、ミク仕様の統一感あるビルドが可能です。AMD AM5ソケット搭載で、AMD Ryzen 9000/8000/7000シリーズ デスクトッププロセッサーとX870Eチップセットに対応。


























製品名 ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION
フォームファクター ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
チップセット AMD X870E
対応CPUソケット AMD Socket AM5
対応CPU AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
対応メモリー 4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
Supports DIMM Fit / DIMM Fit Pro
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate
(speed), and number of DRAM modules vary depending on the CPU and memory
configuration, for more information please refer to CPU/Memory Support list
under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
Adjustments will be made based on the specifications of mass-produced memory
products available on the market.
** Non-ECC, un-buffered DDR5 memory
supports On-Die ECC function.
拡張スロット AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
- To ensure compatibility of the device
installed, please refer to https://www.asus.com/support/download-center/
]for the list of supported peripherals.
ストレージ Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)*
AMD Ryzen 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2280/22110 (Not supports)**
AMD X870E Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* M.2_2 shares bandwidth with PCIEX16(G5).
When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only.
** M.2_2 will be disabled when using AMD Ryzen 8000 Series Desktop Processors.

AMD RAIDXpert2 Technology*
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
* Specifications vary by CPU types

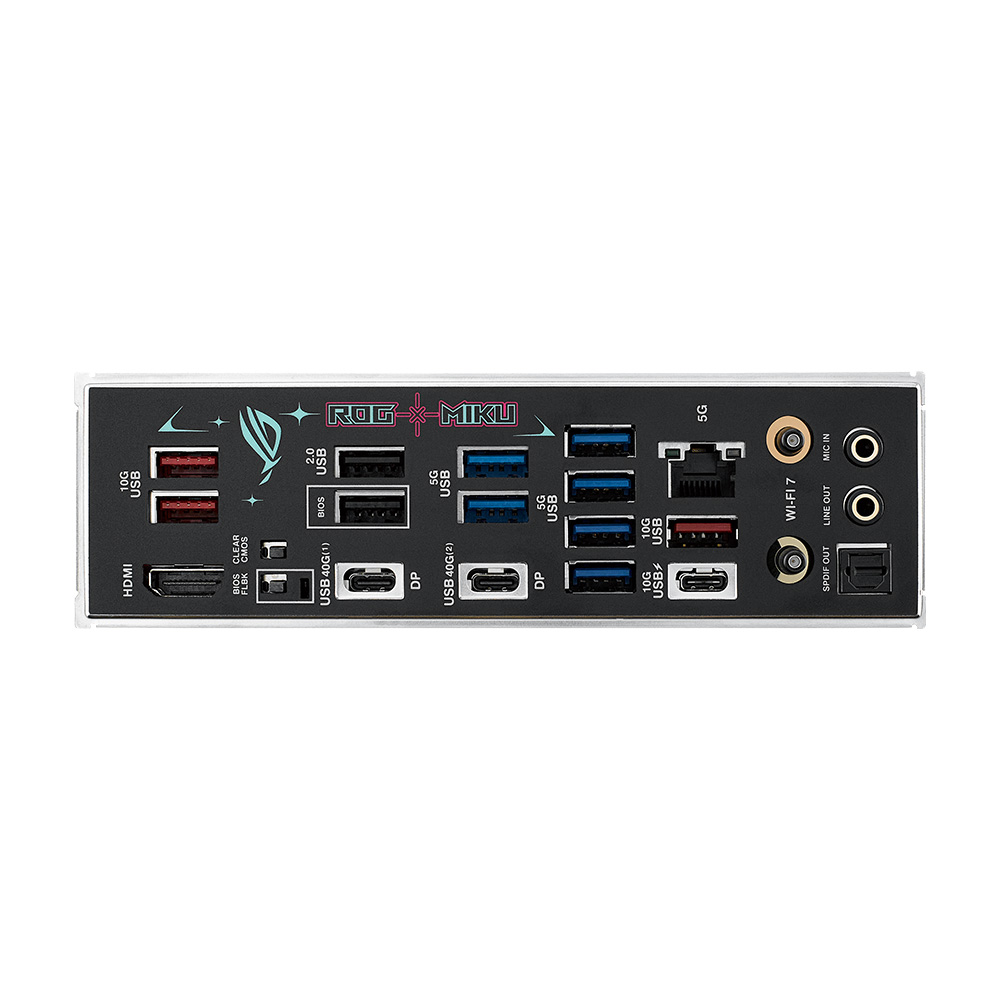

USB Rear USB (Total 14 ports)
2 x USB4 (40Gbps) ports (2 x USB Type-C)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge)**
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C power delivery output: max.5V/3A
** USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
LAN 1 x Realtek 5Gb Ethernet
ASUS LANGuard
無線機能 Wi-Fi 7 (MediaTek MT7925)
2x2 Wi-Fi 7* (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth
Bluetooth v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
映像出力 1 x HDMI port**
2 x USB4 (40Gbps) ports support USB Type-C display outputs***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a
**** VGA resolution support depends on processors' or graphic cards' resolution.
オーディオ Realtek ALC1220P 7.1 Surround Sound
High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
LED 3 x Addressable RGB Gen 2 headers
OS Windows 11

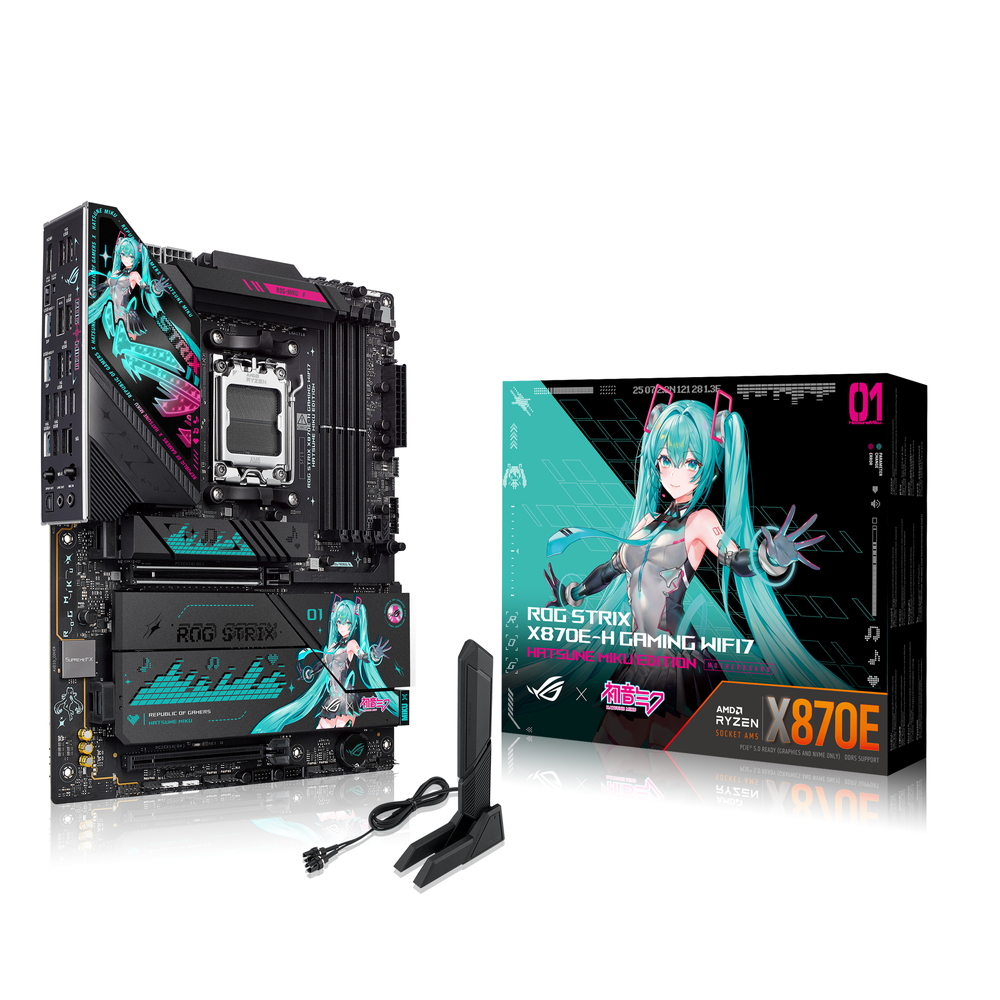

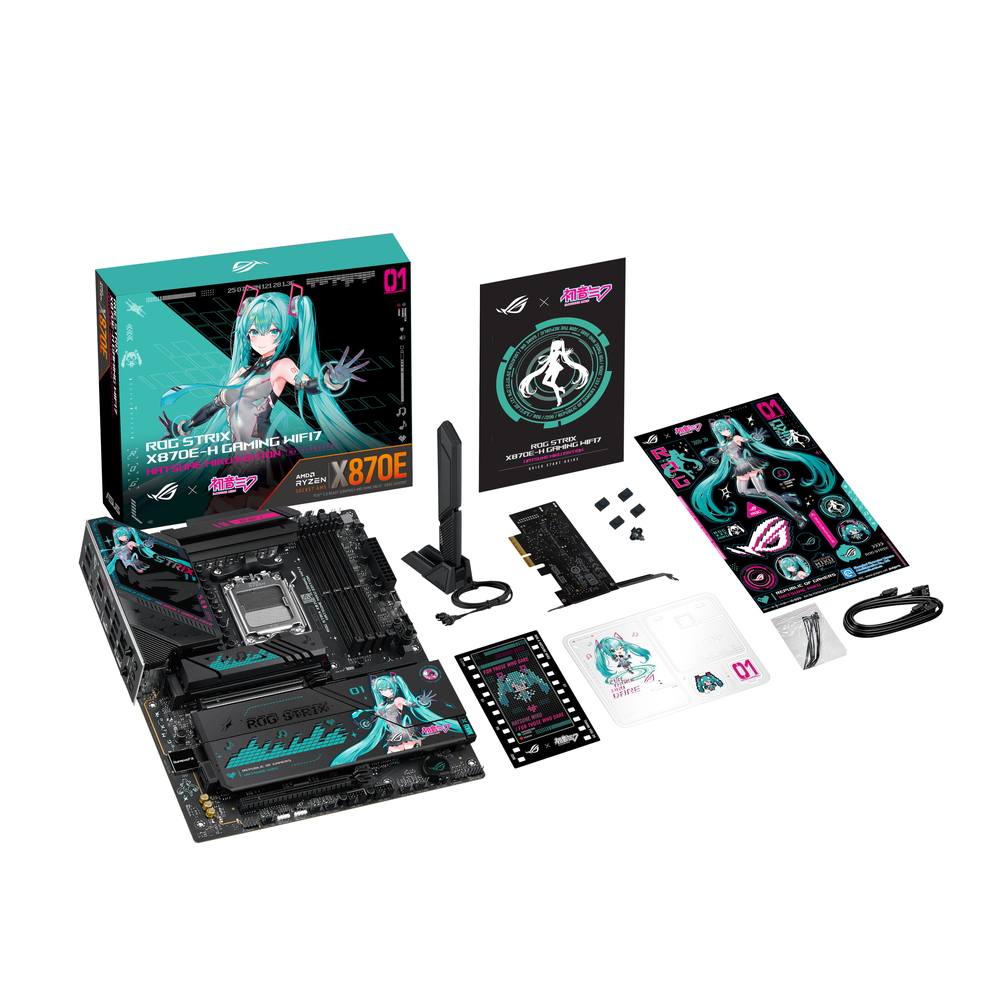

付属品 Cables
2 x SATA 6Gb/s cables

Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ASUS PCIe to Front USB Card (supports 2 x USB 5Gbps Type-A + 1 x USB 10Gbps Type-C ports)
1 x PHONE STAND HATSUNE MIKU EDITION
1 x THANK YOU CARD HATSUNE MIKU EDITION
1 x STICKER HATSUNE MIKU EDITION
4 x M.2 rubbers

Documentation
1 x Quick start guide

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
