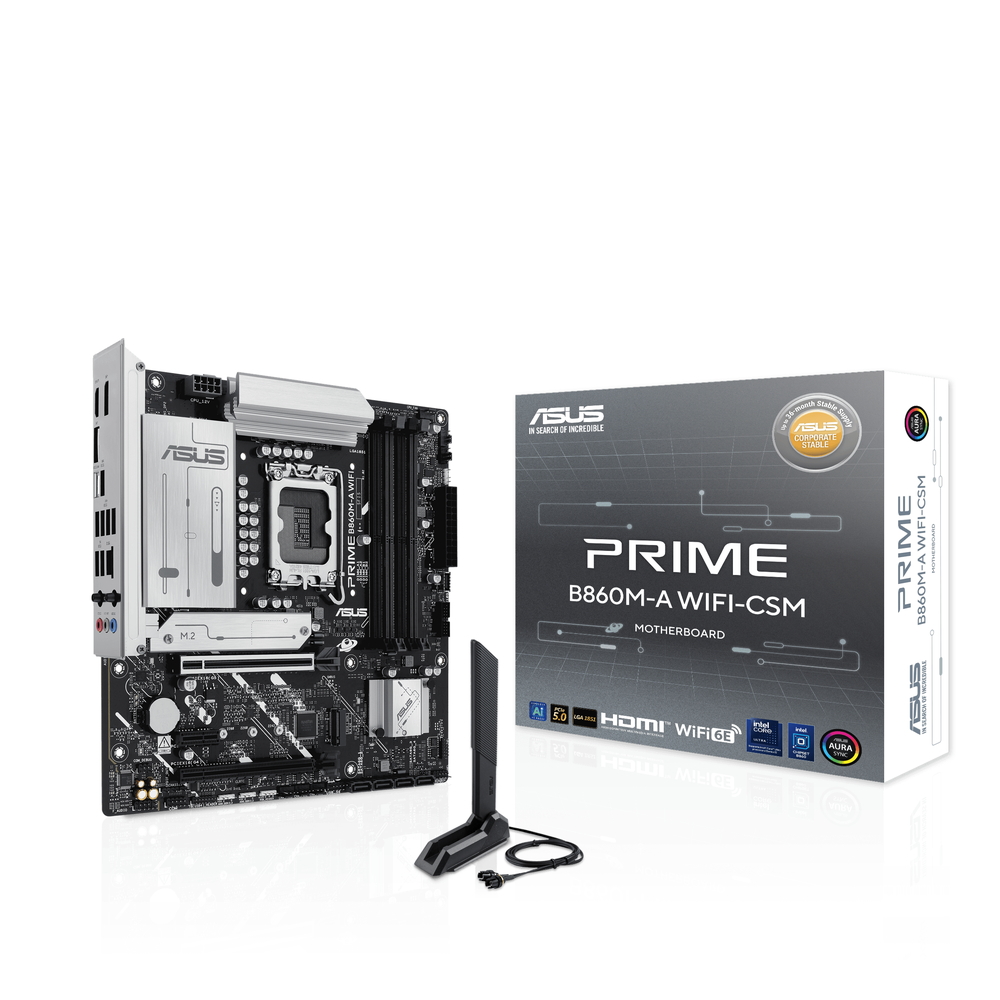

PRIME B860M-A WIFI-CSM

PRIME B860M-A WIFI-CSM

Intel B860チップセット搭載
「PRIME」MicroATXマザーボード・ビジネス向けCSMモデル

・Intel B860チップセット搭載
・「PRIME」マザーボード
・ASUS Corporate Stable Model
・MicroATXフォームファクター
・Intel Socket LGA1851
・Intel Core Ultra プロセッサー(series 2)対応
・7(80A) + 1(80A) + 1(80A) + 1(80A)パワーステージ
・VRM & PCHヒートシンク、M.2ヒートシンクなどがシステムを強力に冷却
・PCIe 5.0 スロット、PCIe 5.0 M.2スロット装備
・USB 20Gbps Type-C装備
・Thunderbolt (USB4)ヘッダー装備
・Wi-Fi 6E + Realtek 2.5Gb LAN
・SafeSlot、Q-Antenna、一体型I/Oパネル
・ASUS AI ADVISOR、DIMM FIT、AEMP III
・強化されたデータ保護を実現するリアルタイム IT 監視および管理ソフトウェア「ASUS Control Center Express」対応

型番：PRIME B860M-A WIFI-CSM

JAN：0197105806290

発売日：2025年1月14日

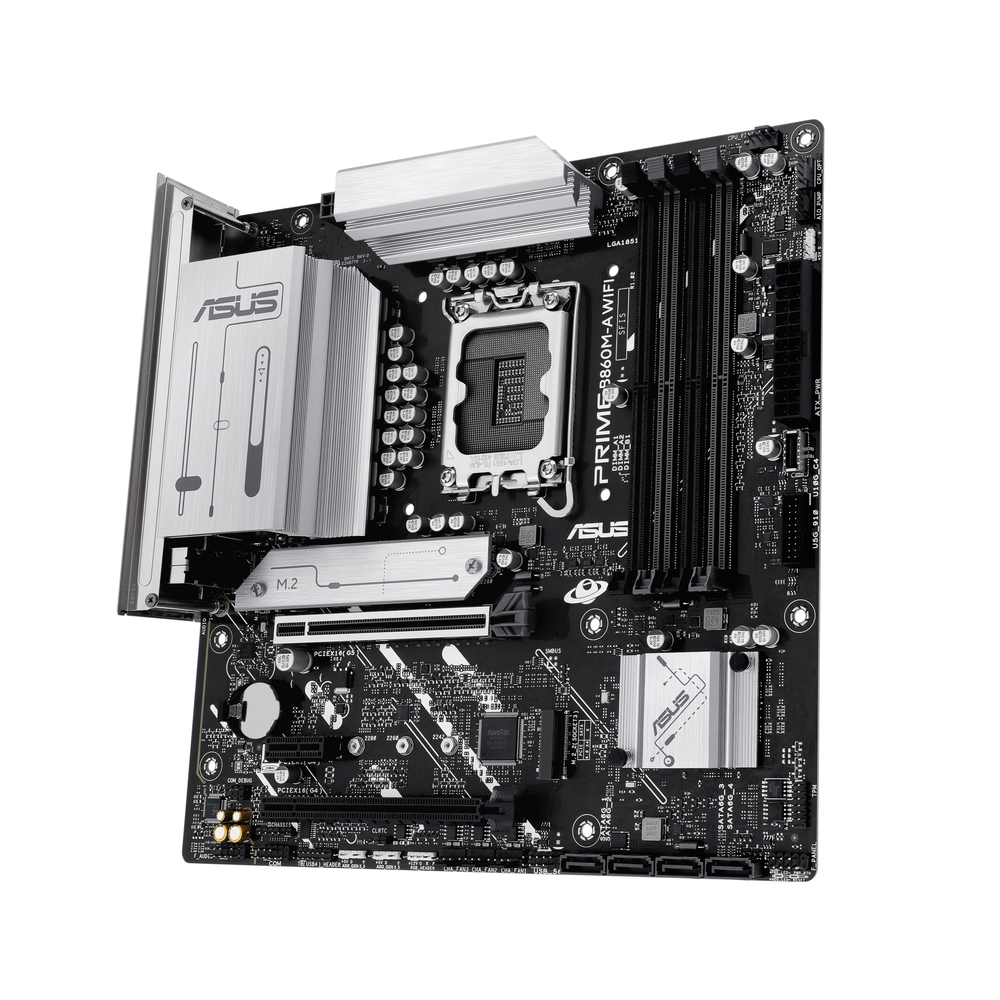

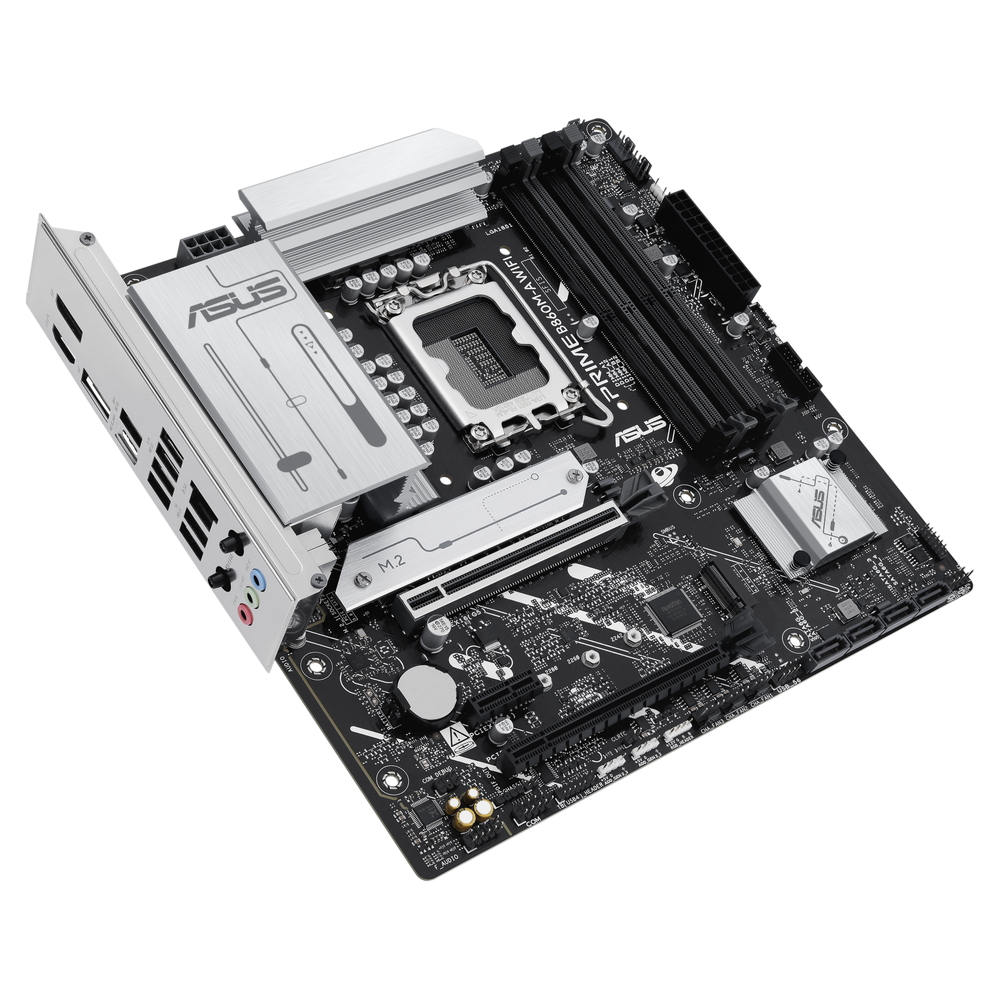

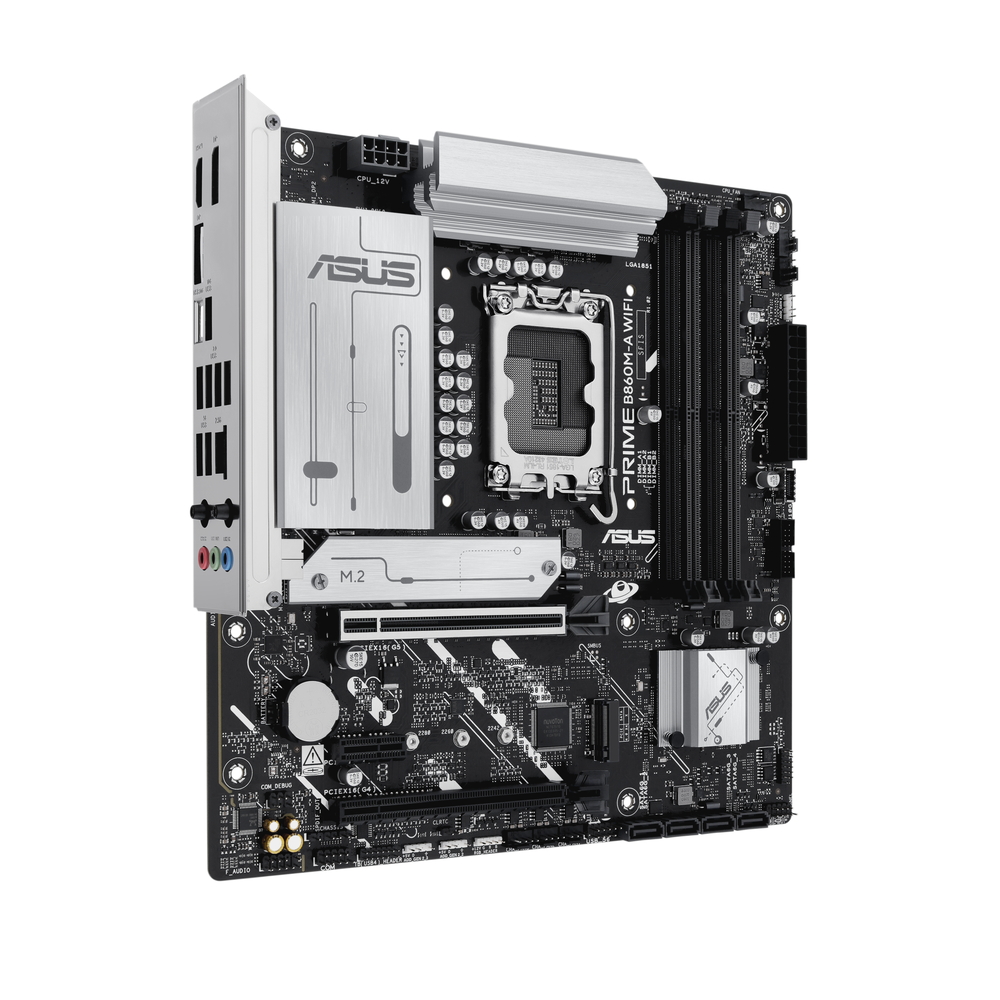

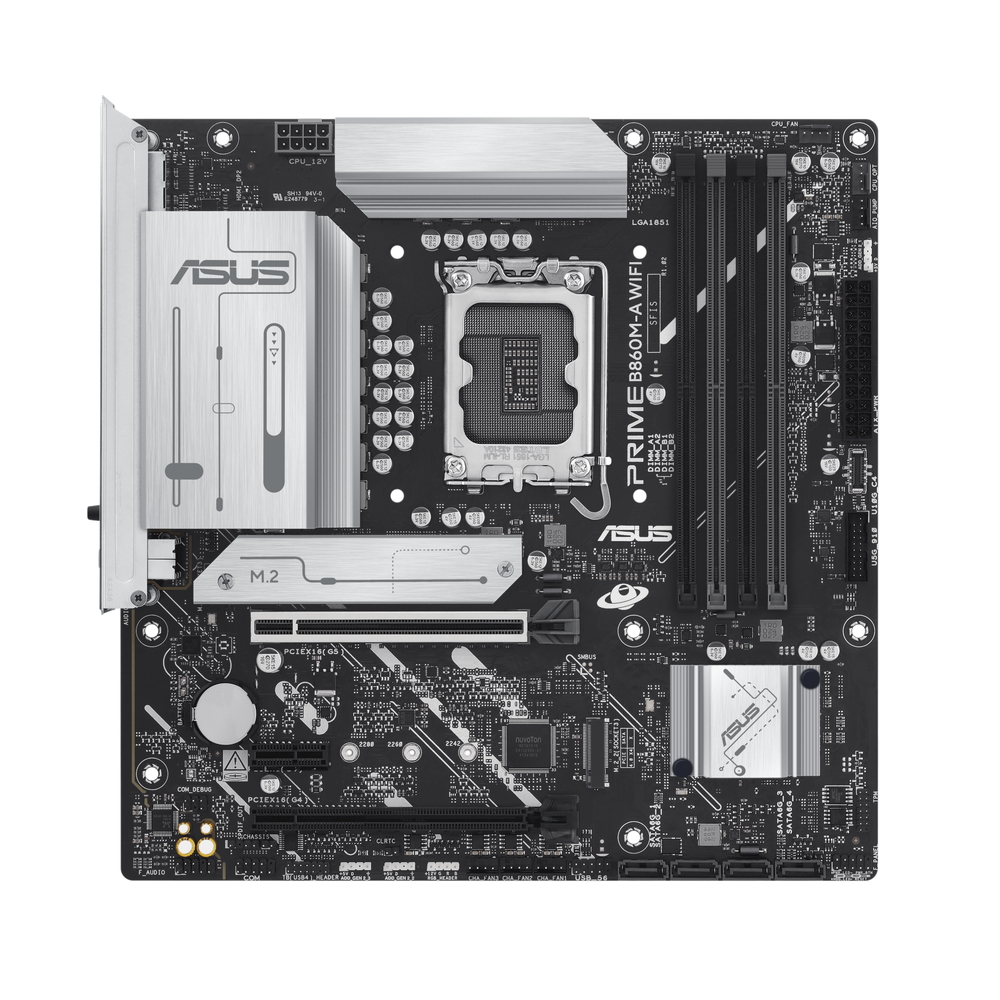

「PRIME B860M-A WIFI-CSM」は、Intel B860チップセットを搭載した「PRIME」シリーズMicroATXマザーボードのビジネス向けモデルです。統合型IT監視・管理ソフトウェア「ASUS Control Center Express」に対応し、ITシステムの集中管理を行うことが可能です。
7(80A) + 1(80A) + 1(80A) + 1(80A)パワーステージの電源回路を備え、最新のIntel Core Ultra プロセッサーの性能を引き出します。VRM ＆ PCHヒートシンク、M.2ヒートシンクなどがシステムを強力に冷却します。
USB 20Gbps Type-Cなどの高速規格を備えています。さらに2.5G LAN + Wi-Fi 6Eをサポートし、高速なネットワーク環境を構築することができます。




型番 PRIME B860M-A WIFI-CSM
フォームファクター micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
チップセット Intel B860 Chipset
対応CPUソケット LGA1851
対応CPU Support Intel Core Ultra Processors (Series 2) , LGA1851*
Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
対応メモリー 4 x DIMM slots, max. 192GB, DDR5
Supports up to 8400+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
拡張スロット Intel Core Ultra Processors(series 2)*
1 x PCIe 5.0 x16 slot
Intel B860 Chipset**
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
ストレージ Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel Core Ultra Processors (Series 2) *
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

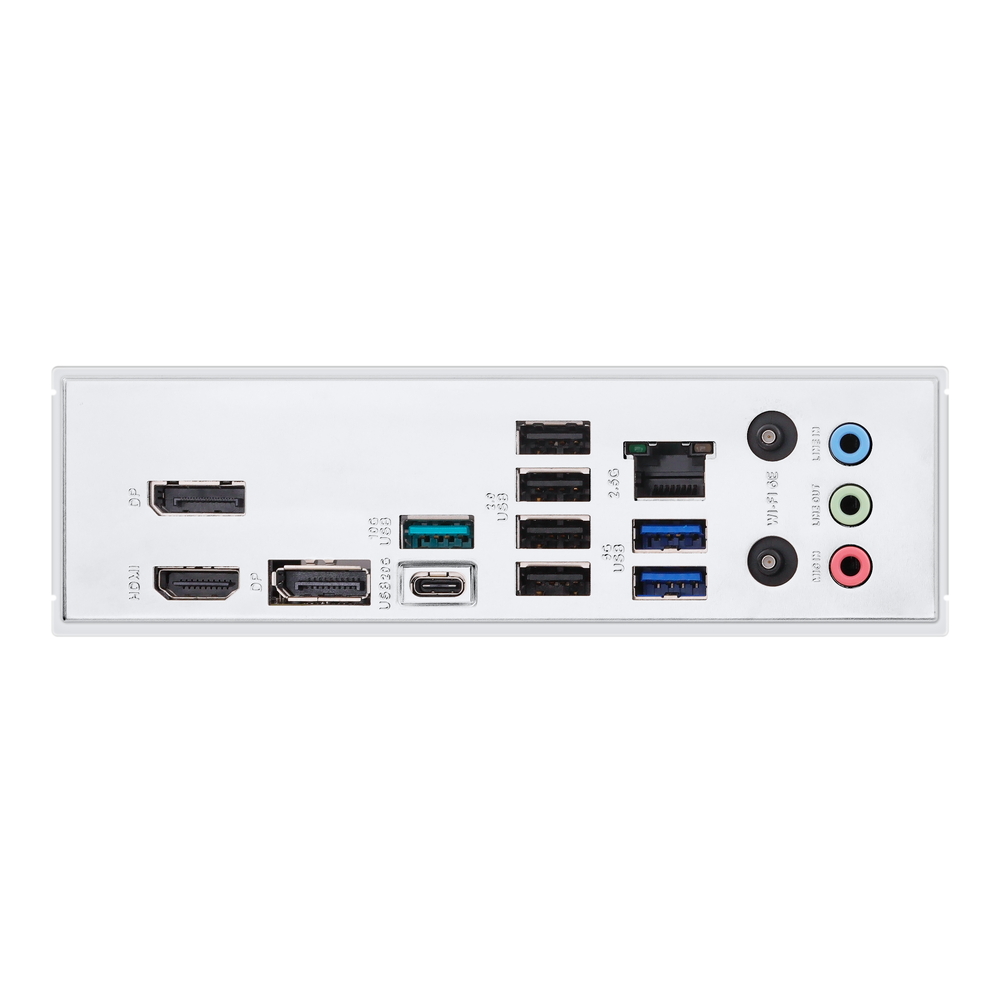

USB Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A )
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)**
Front USB (Total 5 ports)
1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
* USB Type-C power delivery output: max. 5V/3A
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Thunderbolt 1 x Thunderbolt (USB4) header
LAN 1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
無線機能 Wi-Fi 6E
2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.3**
* WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
映像出力 2 x DisplayPort**
1 x HDMI port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
***** VGA resolution support depends on processors' or graphic cards' resolution.
******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
オーディオ Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
LED 3 x Addressable Gen 2 headers
1 x Aura RGB header
OS Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)
付属品 Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber package
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
