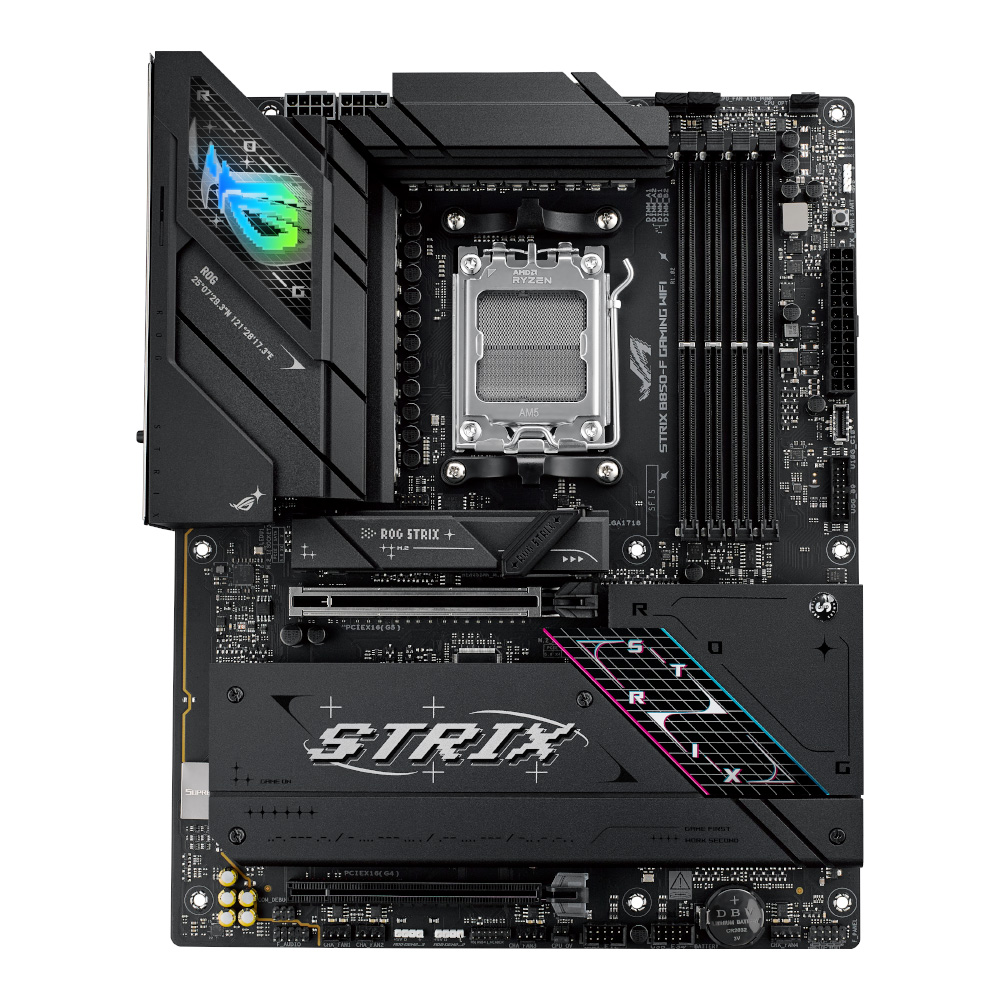

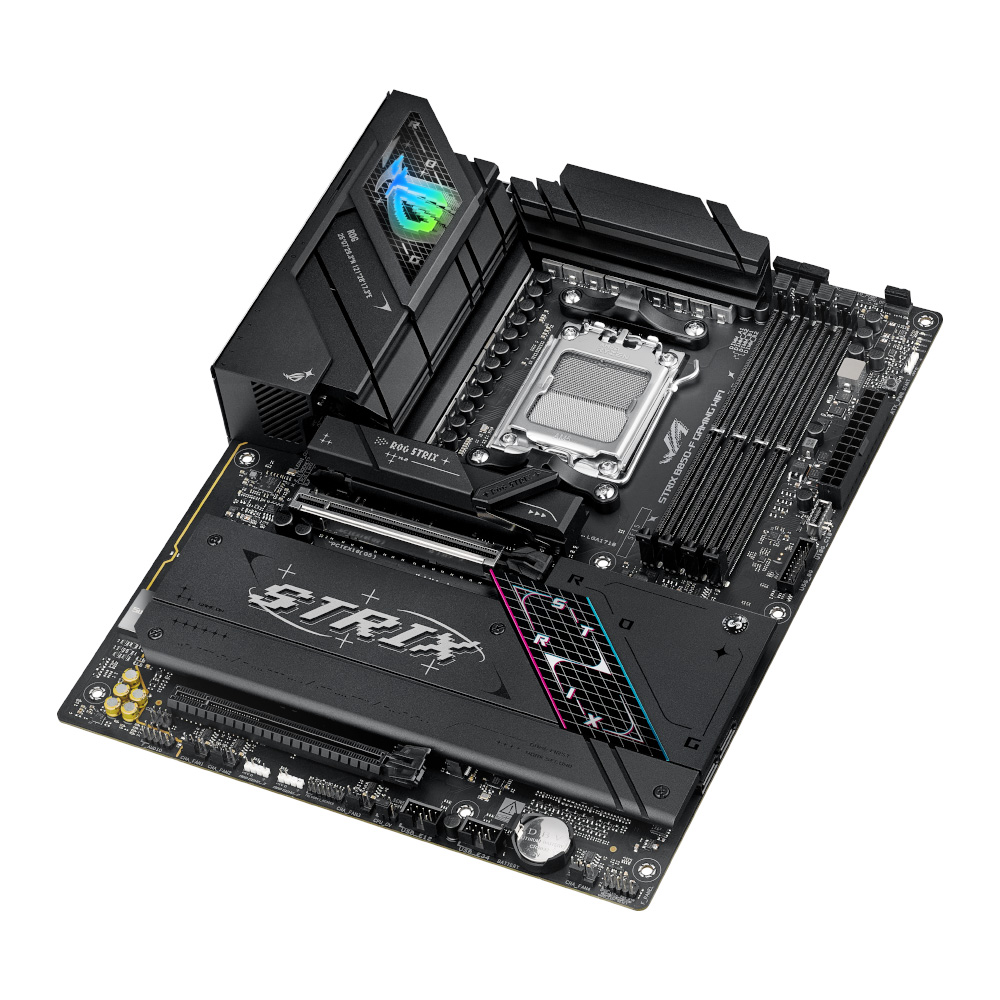

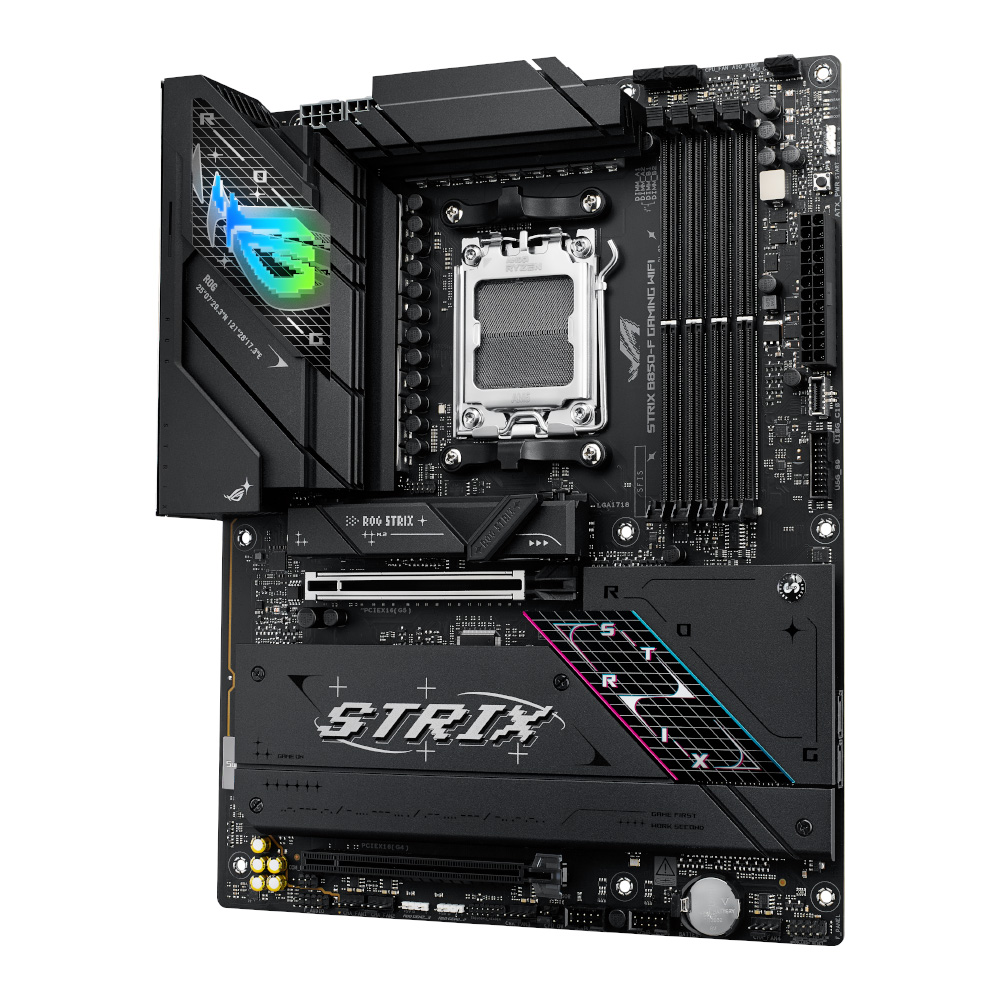

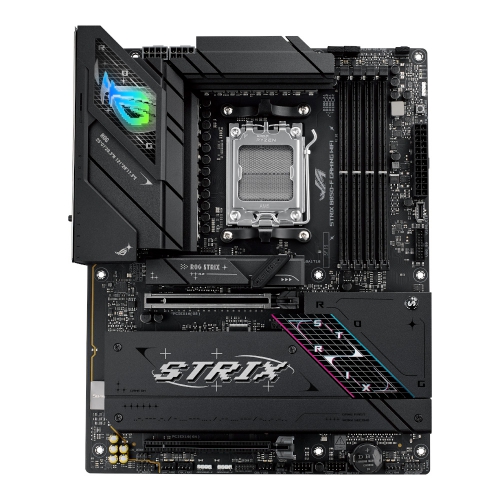

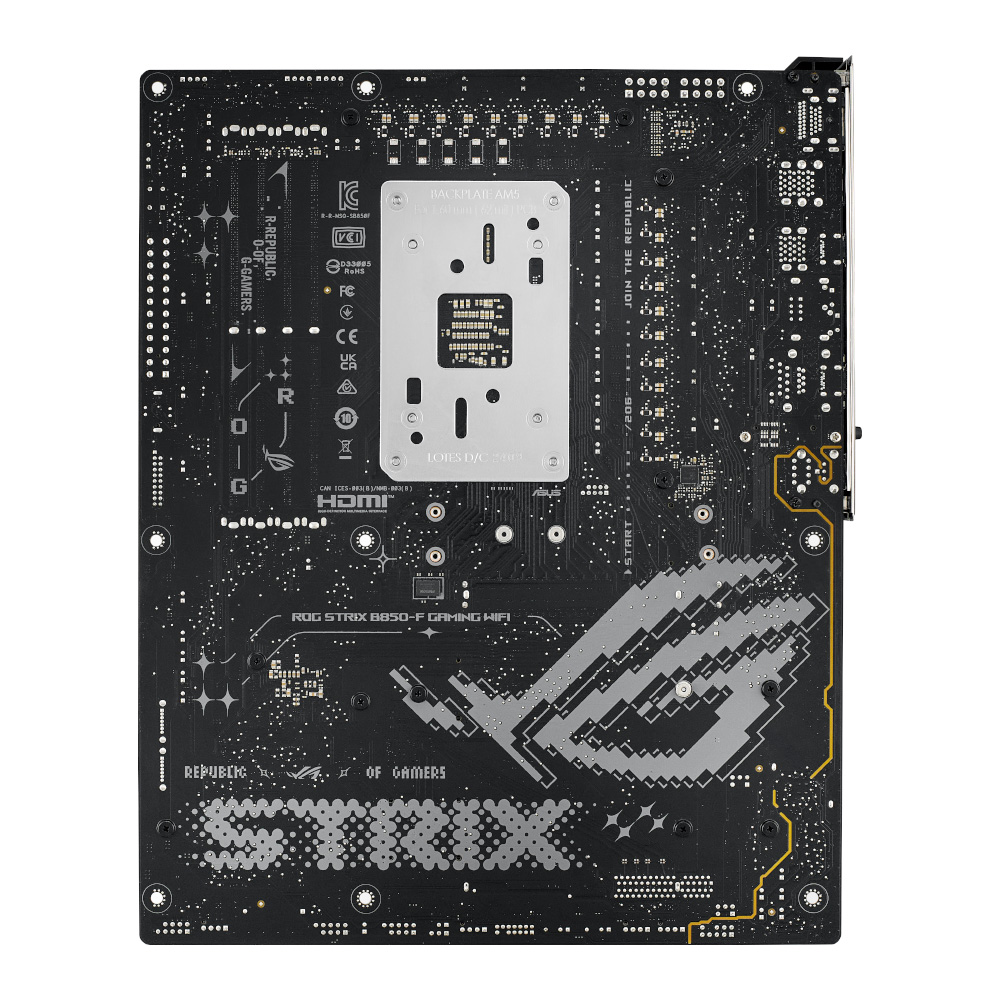

ROG STRIX B850-F GAMING WIFI

ROG STRIX B850-F GAMING WIFI

AMD B850チップセット搭載
「ROG STRIX」ゲーミングマザーボード

・AMD B850チップセット搭載
・「ROG STRIX」マザーボード
・ATXフォームファクター
・AMD Socket AM5
・AMD Ryzen 9000/8000/7000シリーズプロセッサー対応
・16(80A)+2(80A)+2(80A) Dr.Mos 電源ソリューション
・ProCool II 電源コネクター、8層PCB、Digi+ VRM Control
・PCIe 5.0 スロット、PCIe 5.0 M.2スロット装備
・USB 20Gbps (Type-C)
・Wi-Fi 7 + Intel 2.5Gb LAN
・PCIe Slot Q-Release Slim (with PCIe SafeSlot)
・Q-Antenna、M.2 Q-Latch、M.2 Q-Release、M.2 Q-Slide、Q-LED
・AI Cooling II、AI Networking II、AI Advisor、AEMP III
・Dolby Atmos

型番：ROG STRIX B850-F GAMING WIFI

JAN：0197105771024

発売日：2025年1月7日

メーカー製品ページ



「ROG STRIX B850-F GAMING WIFI」は、AMD B850チップセットを搭載したマザーボードです。
16(80A)+2(80A)+2(80A) Dr.Mos 電源ソリューションを備え、最新のAMD Ryzen 9000シリーズプロセッサーの性能を引き出します。
拡大されたVRM ヒートシンクアレイ、M.2ヒートシンクなどがシステムを強力に冷却します。
また、USB 20Gbps (Type-C)、PCIe 5.0スロット、M.2 PCIe 5.0スロットなどを備え、高い拡張性を実現しています・
Intel 2.5G LAN + Wi-Fi 7をサポートし、高速なネットワーク環境を構築することができます。
PCIe Slot Q-Release Slim (with PCIe SafeSlot)、M.2 Q-Latch、M.2 Q-Release、M.2 Q-Slideなど、PCの組み立てやメンテナンスを容易に行える機能を多数備えています。








型番 ROG STRIX B850-F GAMING WIFI
フォームファクター ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
チップセット AMD B850 Chipset
対応CPUソケット AMD Socket AM5
対応CPU AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
対応メモリー 4 x DIMM slots, max. 192GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors
ECC and Non-ECC, Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
拡張スロット AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot with Q-Release Slim
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8/x4 mode)**
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)*
* PCIEX16(G4) slot (supports x4 mode) from AMD B850 Chipset shares bandwidth with M.2_3
** Specifications vary by CPU types.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
ストレージ Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*
AMD Ryzen 7000 & 9000 Series Desktop Processors
M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode)
M.2_2 (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode)
M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)**
AMD B850 Chipset
M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)***
M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4)

2 x SATA 6Gb/s ports

* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen 9000 series CPU.
** Specifications vary by CPU types.
*** M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_3 will be disabled.

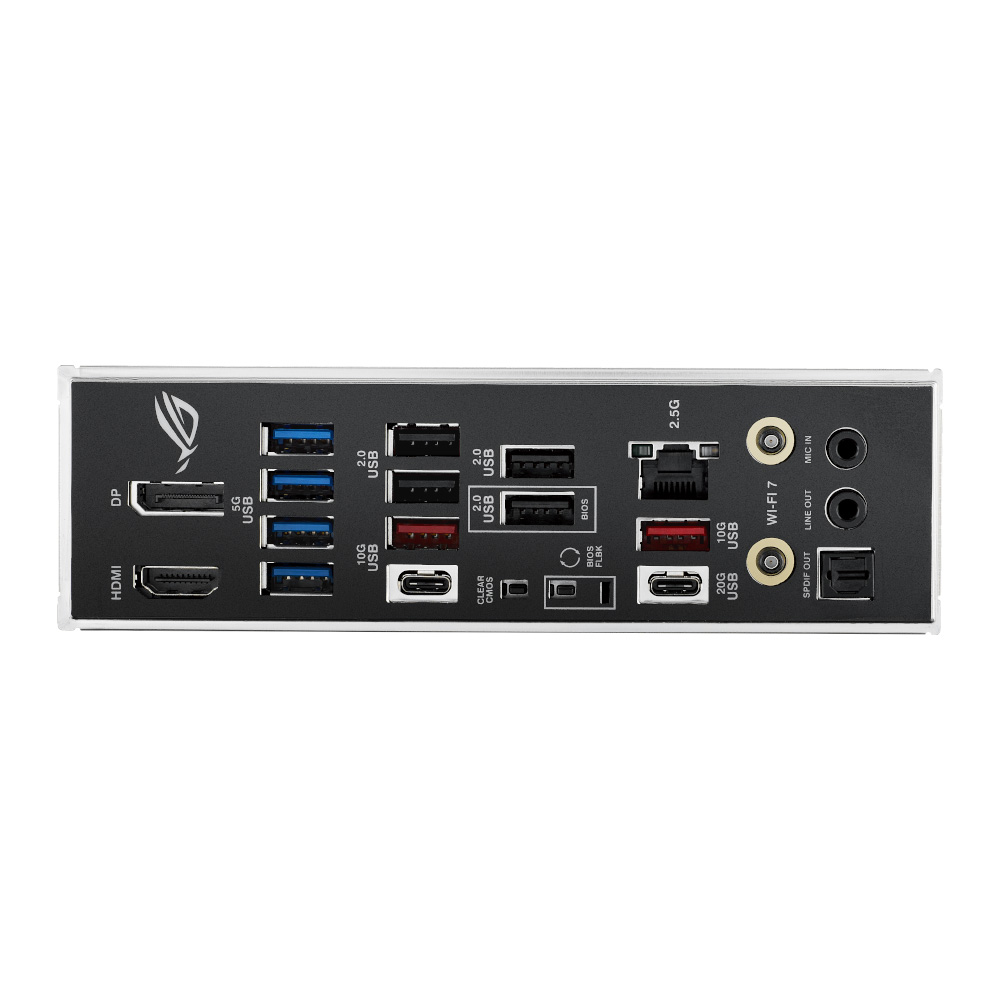

USB Rear USB (Total 12 ports)
1 x USB 20Gbps port (1 x USB Type-C)
3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports)
1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Thunderbolt 1 x Thunderbolt (USB4) header
LAN 1 x Intel 2.5Gb Ethernet
ASUS LANGuard
無線機能 Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4***

*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
映像出力 1 x DisplayPort*
1 x HDMI port**
- Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
* Supports max. 8K@30Hz as specified in DisplayPort 1.4
** Supports 4K@60Hz as specified in HDMI 2.1
*** VGA resolution support depends on processors' or graphic cards' resolution.
オーディオ ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
LED 3 x Addressable Gen 2 headers
OS Windows 11

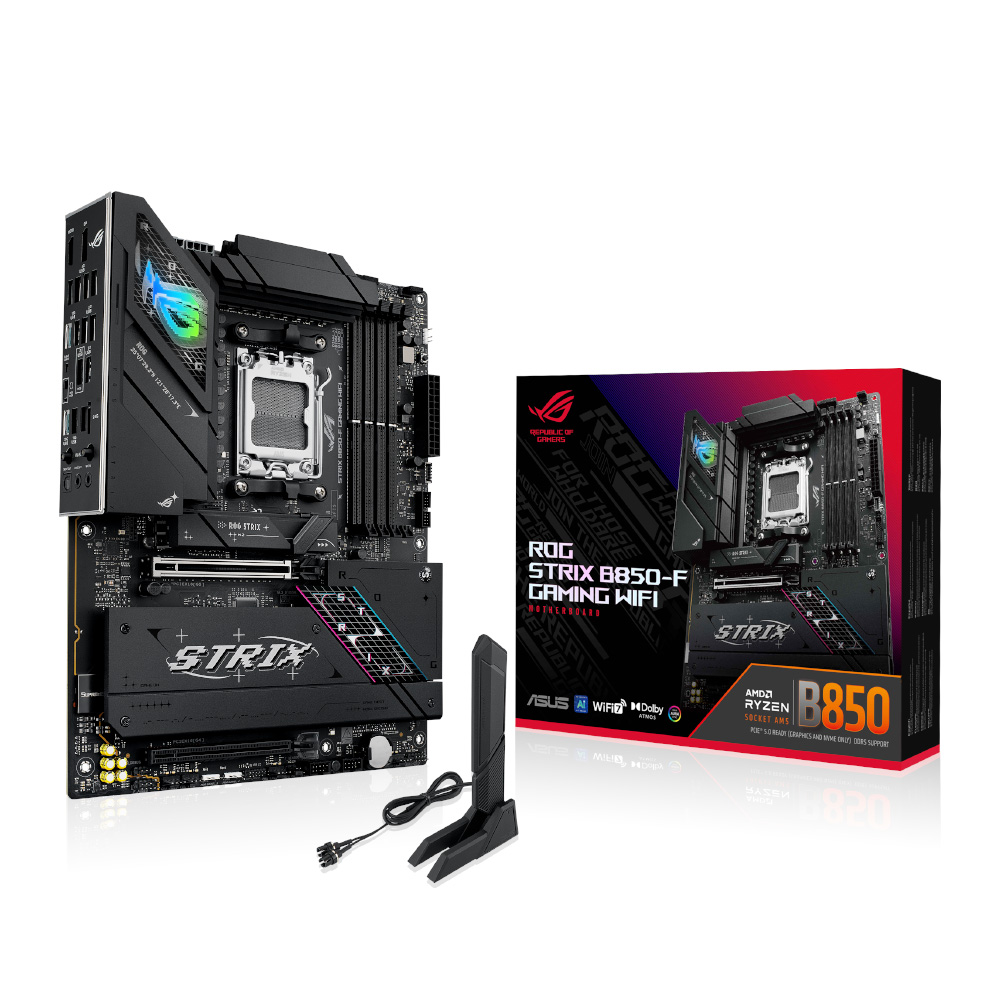

付属品 Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x M.2 Q-Slide package
1 x ROG key chain
1 x ROG Strix stickers
4 x M.2 rubbers
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x Quick start guide

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
