TUF GAMING B850-PLUS WIFI

TUF GAMING B850-PLUS WIFI

AMD B850チップセット搭載
「TUF Gaming」マザーボード

・AMD B850チップセット搭載
・「TUF Gaming」マザーボード
・ATXフォームファクター
・AMD Socket AM5
・AMD Ryzen 9000/8000/7000シリーズプロセッサー対応
・14(80A)+2(80A)+1(80A) Dr.Mos 電源ソリューション
・ProCool II 電源コネクター、Digi+ VRM、8層PCB、堅牢な耐久性と安定性のTUFコンポーネント
・拡大されたVRM&PCHヒートシンク、M.2ヒートシンクなどがシステムを強力に冷却
・PCIe 5.0 スロット、PCIe 5.0 M.2スロット装備
・USB 20Gbps Type-C
・Thunderbolt (USB4)ヘッダー
・Wi-Fi 7 + 2.5Gb LAN
・PCIe Slot Q-Release、Q-Antenna、M.2 Q-Latch、Q-Dashboard
・プリマウントされた I/O シールド、Q-LED、BIOS FlashBack

型番：TUF GAMING B850-PLUS WIFI

JAN：0197105781610

発売日：2025年1月7日

メーカー製品ページ


「TUF GAMING B850-PLUS WIFI」は、AMD B850チップセットを搭載した、高い耐久性が特徴の「TUF GAMING」マザーボードです。
14(80A)+2(80A)+1(80A) Dr.Mos 電源ソリューションを備え、AMD Ryzen 9000シリーズプロセッサーの性能を引き出します。拡大されたVRMやPCHの大型ヒートシンク、M.2ヒートシンクなどを備え、冷却性能も高められています。
拡張性にも優れ、USB 20Gbps Type-Cポートや、PCIe 5.0 スロット、PCIe 5.0 M.2スロットを装備。さらにWi-Fi 7 + 2.5G LANをサポートし、高速なネットワーク環境を構築することができます。
耐久性の高い部品や、さまざまな保護機能によって、過酷な使用環境にも耐えられるように設計されています。








型番 TUF GAMING B850-PLUS WIFI
フォームファクター ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
チップセット AMD B850 Chipset
対応CPUソケット AMD Socket AM5
対応CPU AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
対応メモリー 4 x DIMM slots, max. 192GB, DDR5
Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
* Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
拡張スロット AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)***
2 x PCIe 4.0 x1 slots
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
*** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
ストレージ Total Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)*
AMD B850 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**
4 x SATA 6Gb/s ports
* Specifications vary by CPU types.
** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs.
AMD RAIDXpert2 Technology
Ryzen 9000 series processors: RAID 0/1/5/10
Ryzen 8000 series processors: RAID 0/1
Ryzen 7000 series processors: RAID 0/1/10

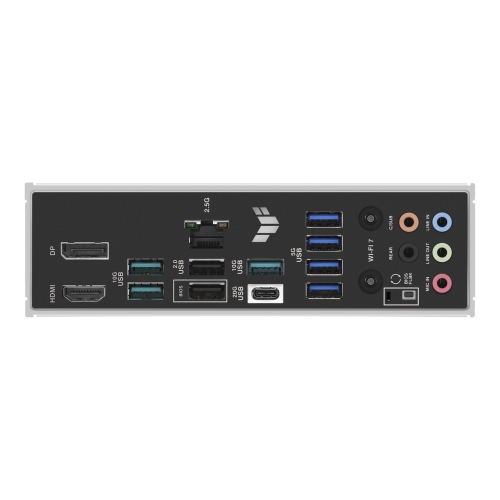

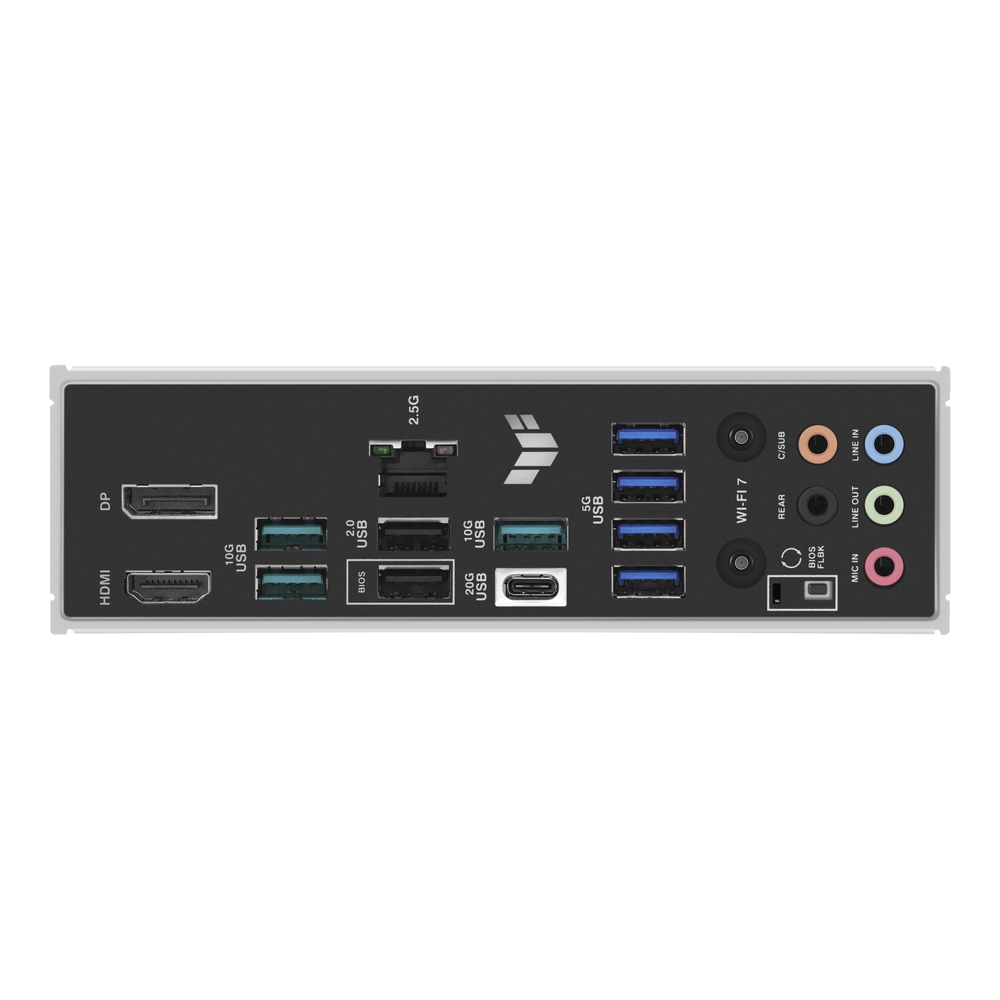

USB Rear USB (Total 10 ports)
1 x USB 20Gbps port (1 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C power delivery output: max. 5V/3A.
Thunderbolt 1 x Thunderbolt (USB4) header
LAN 1 x Realtek 2.5Gb Ethernet
TUF LANGuard
無線機能 Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
Bluetooth v5.4***

* Wi-Fi features may vary depending on the operating system.
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available, please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
映像出力 1 x DisplayPort**
1 x HDMI port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
オーディオ Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
LED 3 x Addressable Gen 2 headers
OS Windows 11

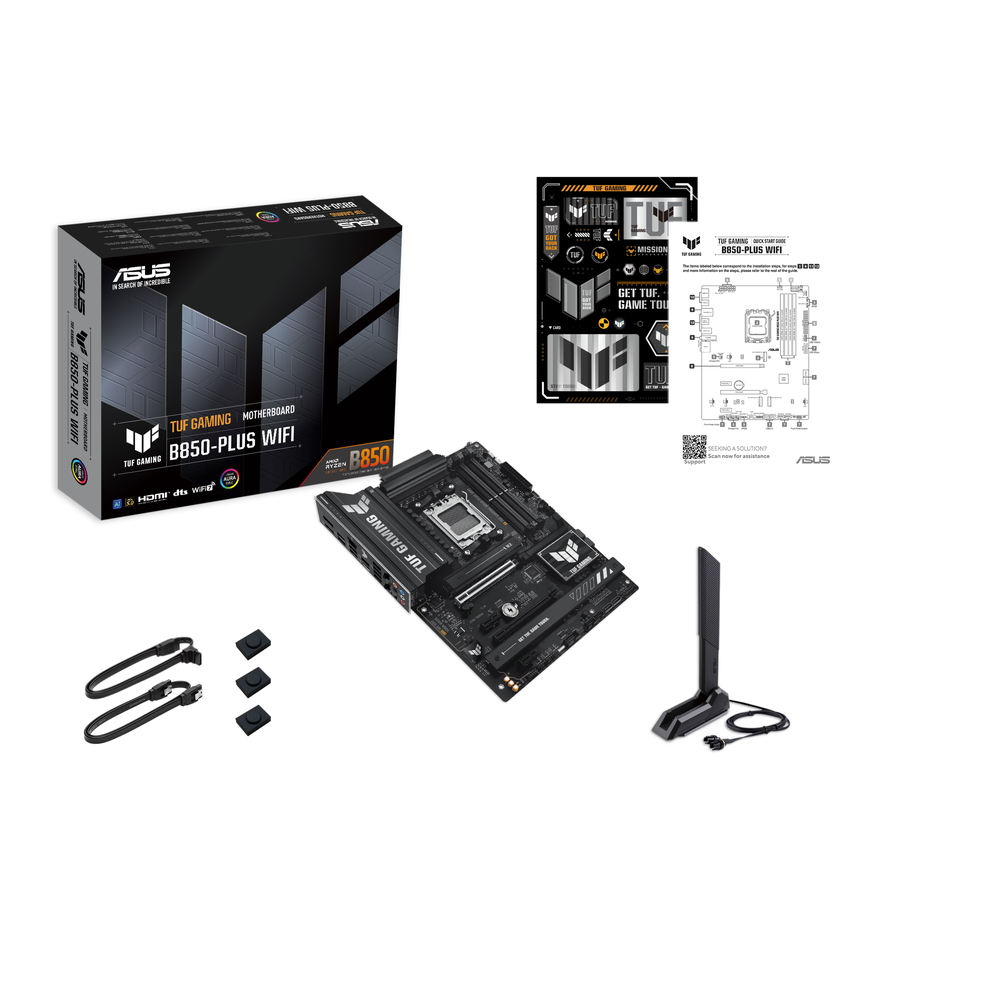

付属品 Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x TUF GAMING sticker
2 x M.2 rubber packages
Documentation
1 x Quick start guide

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
