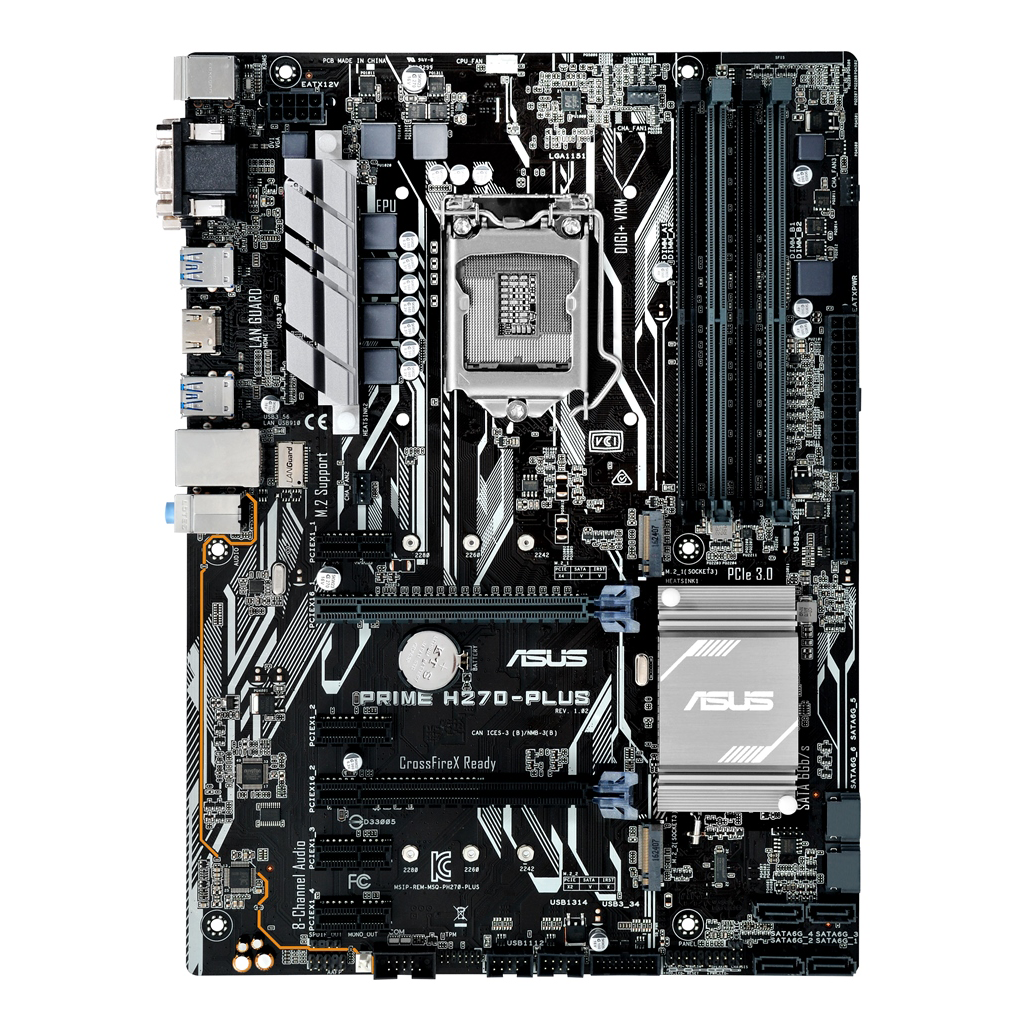

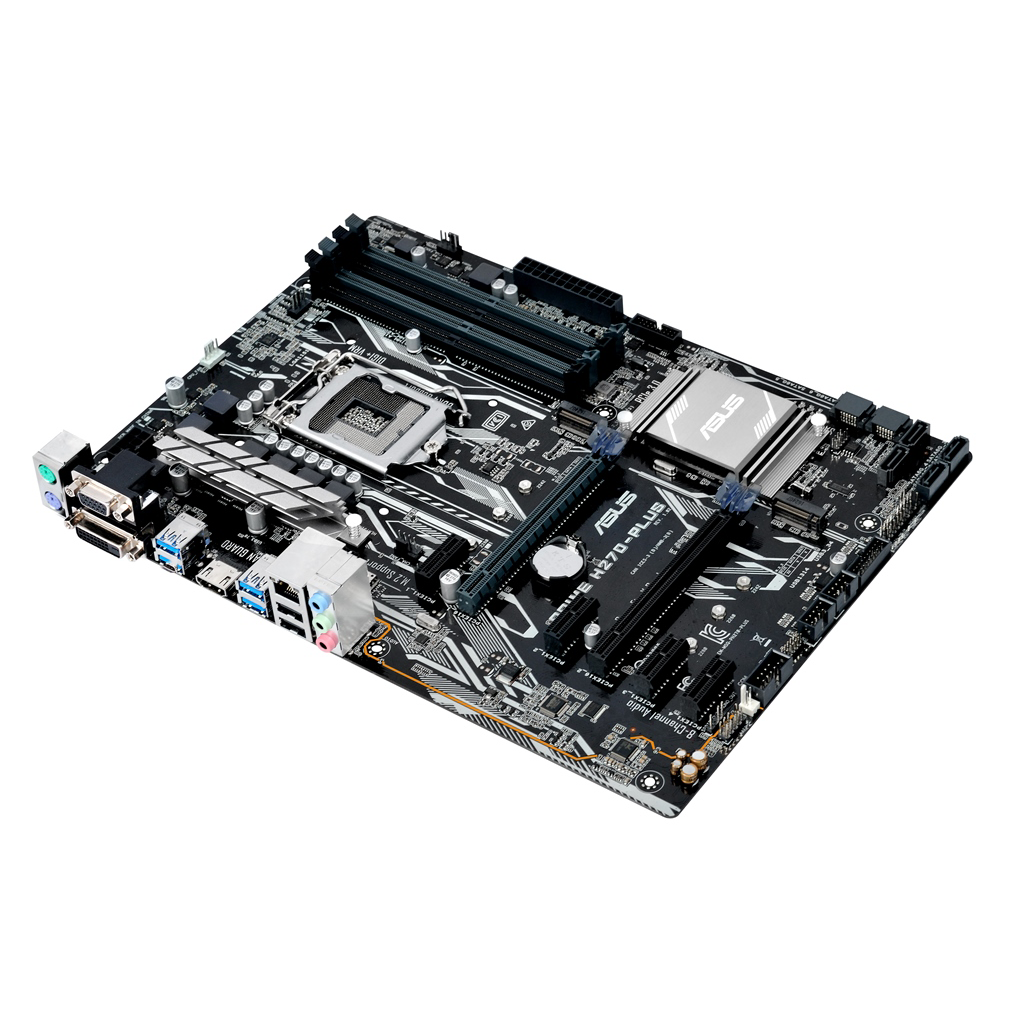

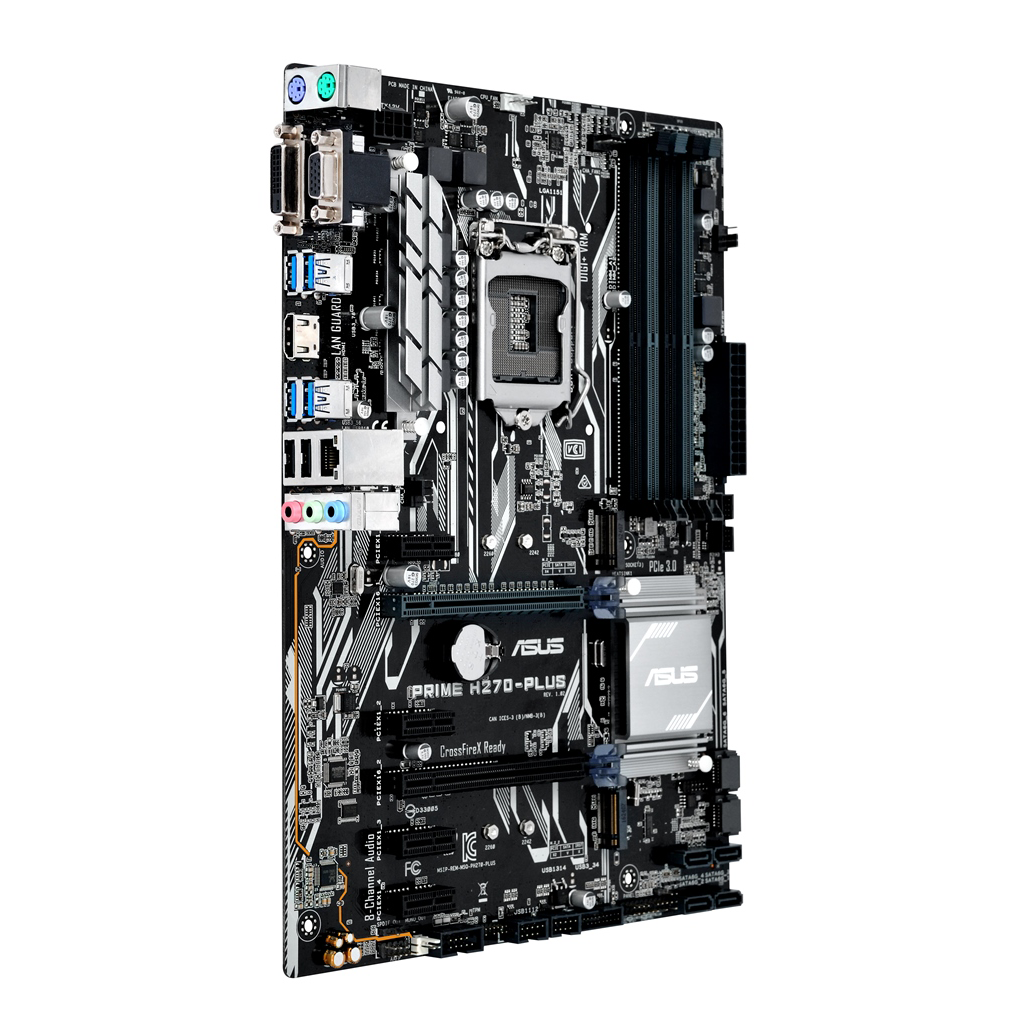

PRIME H270-PLUS

PRIME H270-PLUS

型番：ASU-PRIME/H270-PLUS

製品仕様

CPU　　　 LGA1151 socket for 7th/6th Generation Intel® Core™ i7/ i5/ i3/Pentium®/Celeron® Processors
Supports 14nm CPU
Supports Intel® Turbo Boost Technology 2.0*
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset Intel® H270 Chipset
Memory　　　　 4 x DIMM, maximum 64 GB, DDR4 2400*/ 2133**MHz, non-ECC, un-buffered memory
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
* Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.
Expansion Slots　　 1 x PCI Express 3.0/2.0 x16 slot (at x16 mode)
1 x PCI Express 3.0/2.0 x16 slot (max. at x4 mode, compatible with PCIe x1 and x4 devices)
4 x PCI Express 3.0/2.0 x1 slots
Multi-GPU Support Supports AMD® CrossFireX™ Technology
VGA　　　　　　　 Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support: HDMI/DVI-D/RGB port
 - Supports HDMI 1.4b with max. resolution 4096 x 2160@24Hz / 2560 x 1600@60Hz
 - Supports DVI-D with max. resolution of 1920 x 1200 @60Hz
 - Supports RGB with max. resolution 1920 x 1200@60Hz
Supports Intel® InTru™ 3D/Quick Sync Video/Clear Video HD Technology/Insider™
Supports up to 3 displays simultaneously
Maximum shared memory of 1024 MB (for iGPU exclusively)
Storage　　　　　　　 Intel® H270 Chipset with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology 15 support
 - 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)*
 - 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X2 PCIE mode)**
 - 6 x SATA 6.0 Gb/s ports (gray)
 - Intel® Optane™  Memory Ready***
* When a device in SATA mode is installed on the M.2_1 socket, SATA_1 port cannot be used.
** When a device in SATA mode is installed on the M.2_2 socket, SATA_6 port cannot be used.
***Only M.2_1 socket can support Intel® Optane Memory. Intel® Optane Technology is only supported when using 7th Generation Intel® processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.
LAN Realtek® 8111H Gigabit LAN support LANGuard
Audio　　　　　 Realtek® ALC887 8-channel high definition audio CODEC
 - Audio Shielding: Ensures precision analog/digital separation and greatly reduces multi-lateral interference
 - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
 - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity.
 - Supports jack-detection and front panel jack-retasking
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB　　 Intel® H270 Chipset
 - 8 x USB 3.0/2.0 ports (4 ports @mid-board; 4 ports @back panel, blue, Type A)
 - 6 x USB 2.0/1.1 ports (4 ports @mid-board; 2 ports @back panel)

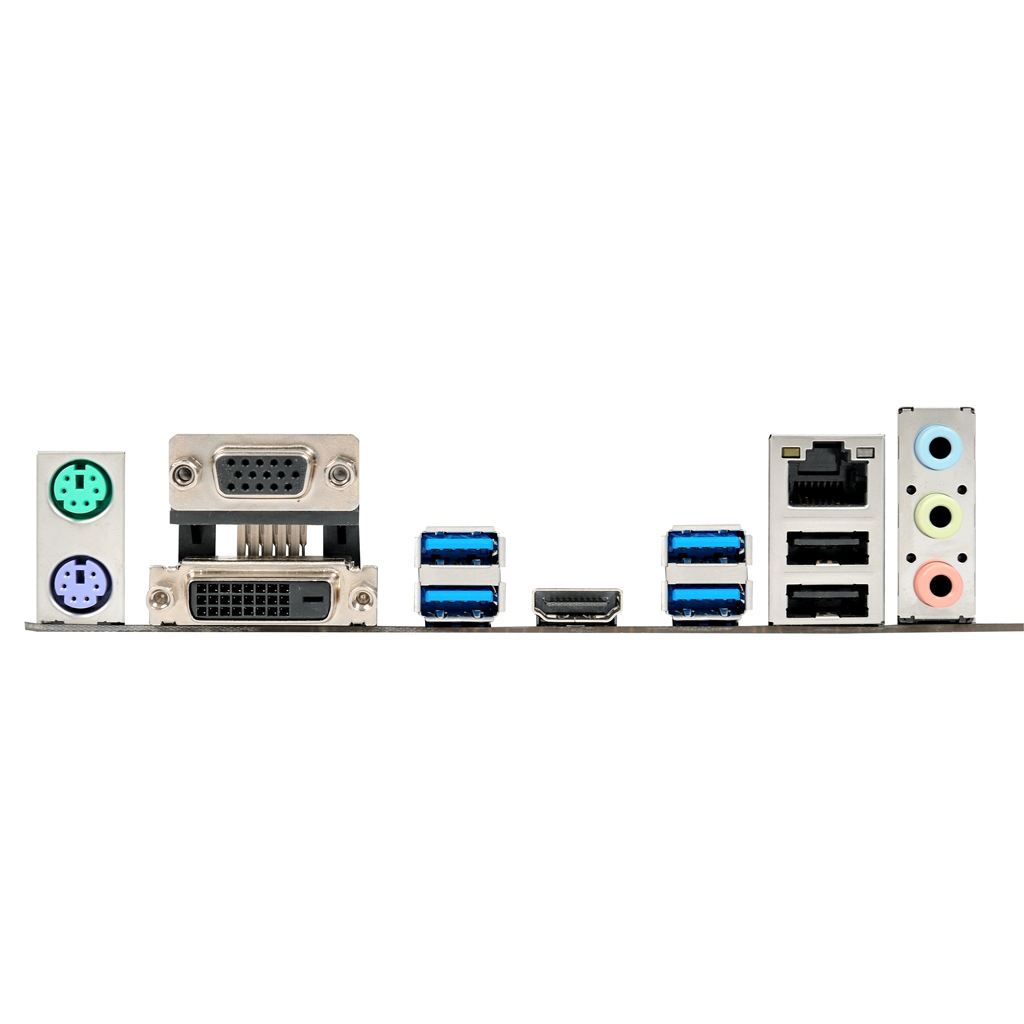

Back Panel I/O Ports　　　　　　　　 1 x PS/2 keyboard
1 x PS/2 mouse port
1 x HDMI port
1 x DVI-D port
1 x RGB port
1 x LAN (RJ45) ports
4 x USB 3.0/2.0 ports ( blue, Type A)
2 x USB 2.0/1.1 ports
3-Jack 8-Channel Audio I/O ports
Internal I/O Connectors　　　　　　　　　　　　　　　　 2 x USB 3.0/2.0 connectors support additional 4 USB ports (19-pin)
2 x USB 2.0/1.1 connectors support additional 4 USB ports
6 x SATA 6.0 Gb/s connectors (gray)
2 x M.2 Socket 3 (for M Key)
1 x 4-pin CPU Fan connector (PWM mode)*
3 x 4-pin Chassis Fan connectors for 3-pin (DC mode) and 4-pin (PWM mode) coolers control*
1 x Front panel audio connector (AAFP)
1 x Mono Out header
1 x System panel connector**
1 x S/PDIF out header
1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
1 x TPM header
1 x COM header
1 x Clear CMOS jumper
* By default, the CPU/Chassis Q-Fan control setting is set to Auto mode, which detects the CPU and chassis fans installed and changes the control mode automatically.
** Chassis intrusion header is built in the system panel connector.
Accessories　　　　 2 x Serial ATA 6.0Gb/s cables
1 x I/O Shield
2 x M.2 screws
1 x Support DVD
1 x User's manual
Operating System Support　　　 Windows® 10 (64-bit)
Windows® 8.1 (64-bit)*
Windows® 7 (64-bit/32-bit)*
*Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors
Form Factor ATX form factor: 12.0 in. x 8.7 in. (30.5 cm x 22.1cm)

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
