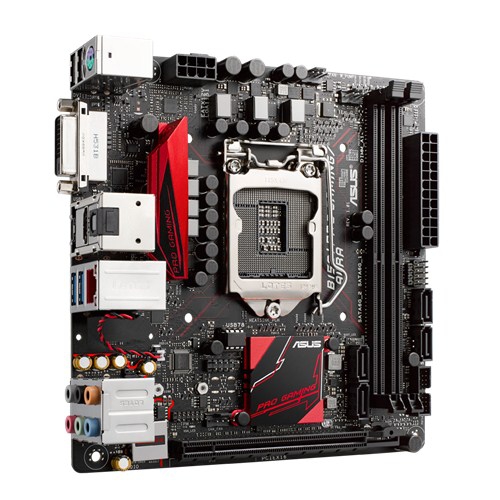

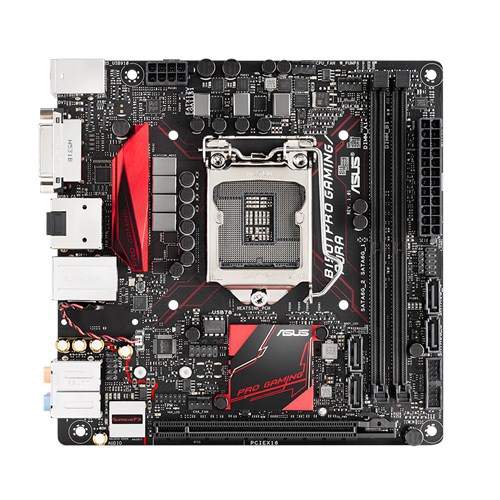

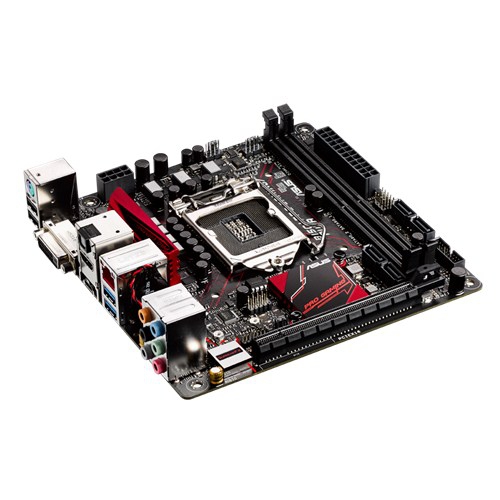

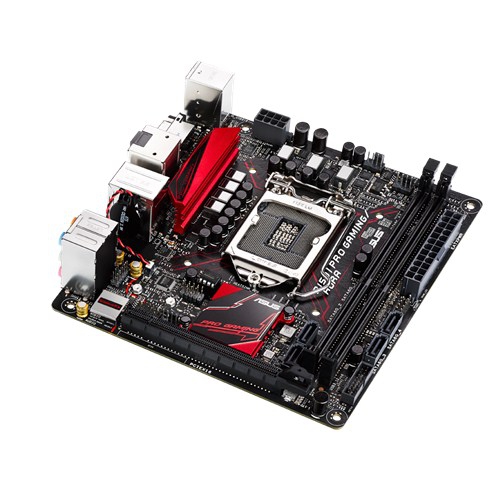

Compact gaming punch with awesome RGB lighting
型番:ASU-B150I/PRO/GAMING/AURA
LGA1151 socket for 6th-genereation Intel? Core? i7 / Core i5 / Core i3, Pentium? and Celeron processors
Dual-channel DDR4 2133 support
SupremeFX: Flawless audio that makes you part of the game
Sonic Radar ll: Scan and detect your enemies to dominate
Intel Gigabit Ethernet and LANGuard: Top-speed protected networking
RAMCache: Speed up your game loads
Gamer's Guardian: Highly-durable components and smart DIY features
M.2: Ultra-speedy transfers for faster gaming
CPU | Intel Socket 1151 for 6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 * The Intel Turbo Boost Technology 2.0 support depends on the CPU types. |
Chipset | Intel B150 |
Memory | 2 x DIMM, Max. 32GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. |
Graphic | Integrated Graphics Processor- Intel HD Graphics support Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider |
Expansion Slots | 1 x PCIe 3.0/2.0 x16 (x16 mode) |
Storage | Intel B150 chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)* 4 x SATA 6Gb/s port(s), |
LAN | Intel I219V, 1 x Gigabit LAN Controller(s), GameFirst technology Anti-surge LANGuard |
Audio | SupremeFX 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 112 dB SNR stereo playback output Audio Feature : - SupremeFX Shielding Technology - Optical S/PDIF out port(s) at back panel - Sonic Radar II |
USB Ports | Intel B150 chipset : 5 x USB 3.0/2.0 port(s) (3 at back panel, blue, 2 at mid-board) Intel B150 chipset : 4 x USB 2.0/1.1 port(s) (2 at back panel, , 2 at mid-board) |
Special Features | Gamer's Guardian: - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable Components - DIGI+ VRM ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite 3 - Ai Charger - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - USB 3.0 Boost - Disk Unlocker Remote Entertainment - Media Streamer - HyStream ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert 2+ ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Push Notice ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-DIMM RAMCache AURA: RGB Lighting Control |
Operating System Support | Windows 10 , 64bit Windows 8.1 , 64bit Windows 7 , 32bit/64bit |

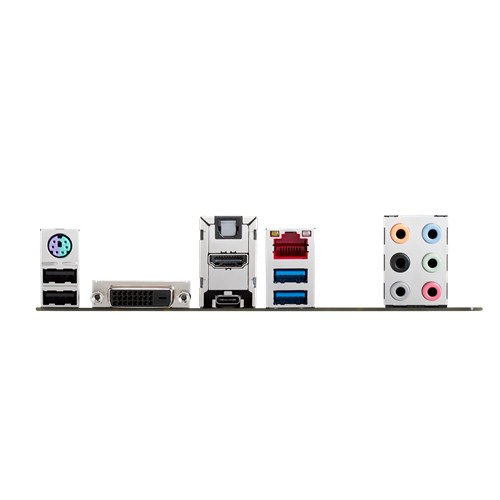

Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI 1 x HDMI 1 x LAN (RJ45) port(s) 3 x USB 3.0 Type-A + Type-C 2 x USB 2.0 1 x Optical S/PDIF out 6 x Audio jack(s) |
Internal I/O Ports | 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices 1 x TPM header 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x Clear CMOS jumper(s) 1 x Water Pump header (4-pin) 1 x 14-1 pin TPM connector |
Accessories | User's manual ASUS Q-Shield M.2 2242 mounting kit 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x pack of cable tie 1 x CPU installation tool 1 x Supporting DVD 1 x 12 in 1 Cable Label (s) |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information |
Manageability | WfM 2.0, DMI 3.0, WOL by PME, PXE |
Support Disc | Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version) |
Form Factor | Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm ) |
Note | *:For a 2242 storage device, use the bundled 2242 mounting kit. |
※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
