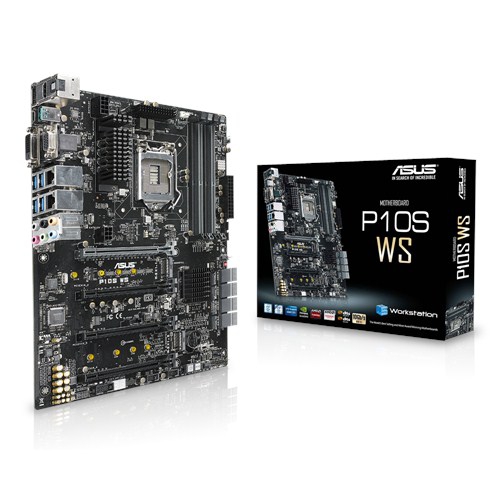

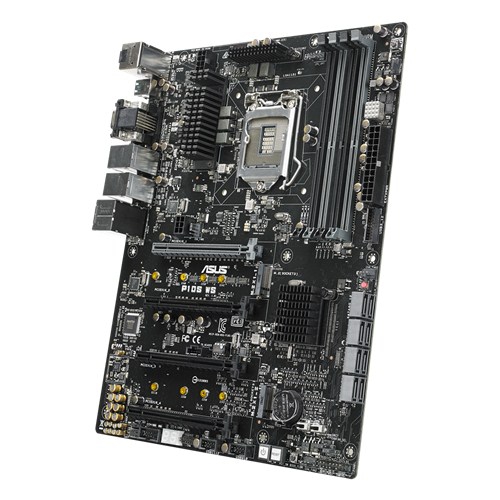

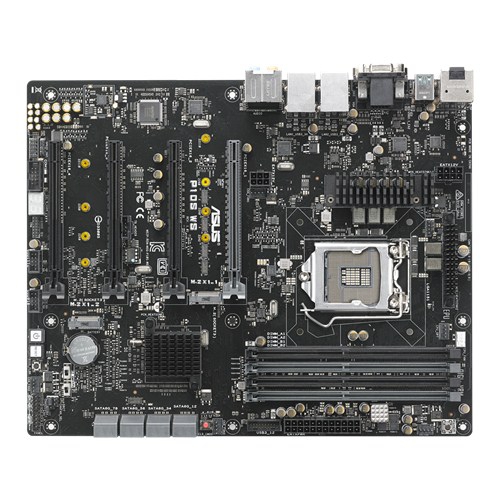

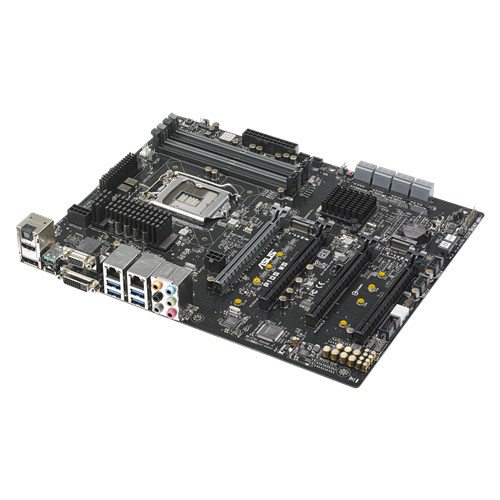

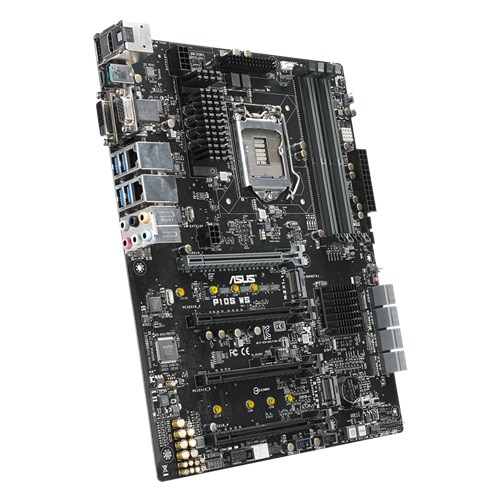

P10S WS

P10S WS

Xeon E3-1200 v5シリーズに対応するワークステーションマザーボード

特徴

- LGA1151対応
- Intel Xeon E3-1200 v5、Core i7/i5/i3、Pentium、CeleronシリーズCPU対応
- Intel C236チップセット搭載
- DDR4メモリ×4枚(最大64GB)対応
- PCIe 3.0 x16×4
- SATA 6Gb/s×8、M.2×2
- USB 3.1 Type-A×1、USB 3.1 Type-C×1、USB 3.0×6、USB 2.0×4
- 1000BASE-T×2
- ATXフォームファクター

製品仕様

対応CPUIntel Socket 1151 Core i7/Core i5/Core i3/for Xeon E3-1200 v5 and 6th genereation CoreTM, Pentium and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology
搭載チップセットBuild in Intel C236
対応メモリ4 x DIMM, Max. 64GB, DDR4- 2133 MHz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
グラフィックス機能Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI-D/DisplayPort ports
VGA port
- Supports VGA with max. resolution 1920 x 1200 @ 60 Hz
- Supports HDMI with max. resolution 4096 x 2160 @ 60 Hz / 4096 x 2160 @ 24 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 512 MB
Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
マルチGPU対応Supports AMD Quad-GPU CrossFireX Technology
拡張スロット1 x PCIe 3.0/2.0 x16 (x16/x8)
1 x PCIe 3.0/2.0 x16 (x8 mode) *1
1 x PCIe 3.0/2.0 x16 (x4 mode) *2
1 x PCIe 3.0/2.0 x16 (x4 mode) *2
ストレージ機能Intel C236 Chipset :
8 x SATA 6Gb/s port(s),
2 x M.2 Socket 3*3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology Enterprise supports
LAN機能Intel I210, 1000BASE-T/100BASE-TX/10BASE-T×2
Support Teaming Technology
オーディオ機能Realtek ALC1150 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR recording input (Line-in)
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- DTS Connect
- DTS Studio Sound
- Optical S/PDIF out port(s) at back panel
- BD Audio Layer Content Protection
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Top notch audio sensation delivers according to the audio configuration
Separate layer for left and right track, ensuring both sound deliver equal quality
USB機能Built-in Controller :
4 x USB 2.0 port(s) (Type-A, 4 at mid-board)
Built-in Controller : *4
6 x USB 3.0 port(s) (4 at back panel, , Type-A)
Built-in Controller :
2 x USB 3.1 port(s) (2 at back panel, , Type-A + Type-C)
独自機能ASUS EPU :
- EPU
ASUS Digital Power Design :
(3 -phase for CPU, 2 -phase for iGPU)
- Industry leading Digital 1 Phase DRAM Power Design
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
動作対応OSWindows 10
Windows 8.1
Windows 7 SP1
Windows Server 2008 R2
Windows Server 2012 R2

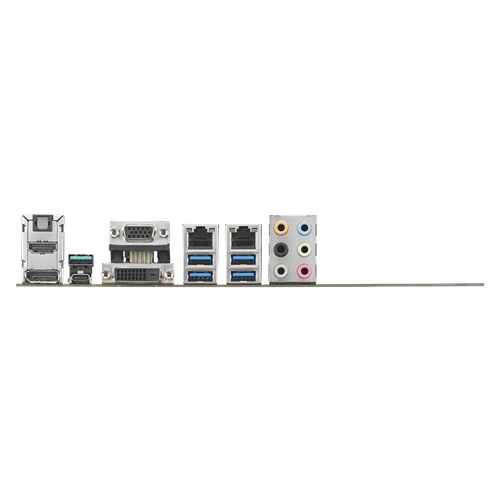

背面インターフェース1 x DVI-D
1 x DisplayPort
1 x HDMI
2 x LAN (RJ45) port(s)
1 x USB 3.1 Type-A
1 x USB 3.1 Type-C
4 x USB 3.0
1 x Optical S/PDIF out
1 x 8-channel Audio I/O
1 x VGA
基板上インターフェース1 x AAFP connector
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3
1 x COM port(s) connector(s)
8 x SATA 6Gb/s connector(s)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
1 x CPU fan with PWM control
4 x Chassis Fan connector(s) (4 x 4 -pin)
1 x S/PDIF out header(s)
1 x 8-pin EATX 12 V Power connector
1 x 6-pin EATX 12 V_1 Power connector(s)
1 x 24-pin EATX Power connector(s)
1 x System panel(s) (Q-Connector)
1 x DRCT header(s)
1 x MemOK! button(s)
1 x EPU switch(es)
1 x Power-on button(s)
1 x Clear CMOS button(s)
1 x USB BIOS Flashback button(s)
1 x 14-1 pin TPM connector
主な付属品User's manual
I/O Shield
1 x COM port cable(s)
8 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package
1 x Q-connector(s) (2 in 1)
1 x SCD
BIOS機能16 MB Flash ROM, EFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0a, ASUS EZ Flash Utility, ASUS CrashFree BIOS 3
管理機能WfM 2.0, DMI 3.0, WOL by PME, WOR by PME, PXE
フォームファクター(サイズW×D)ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
その他*1 Switched from PCIEX16_1
*2 From PCH
*3 6 x SATA 6Gb/s with 2* M.2 (SATA 6Gb/s & PCIe Gen3 x1 link, NGFF 22110/2280/2260/2242)
*4 6 x USB 3.0 ports (2 ports Type A at front panel, 4 ports Type A at back panel)

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
