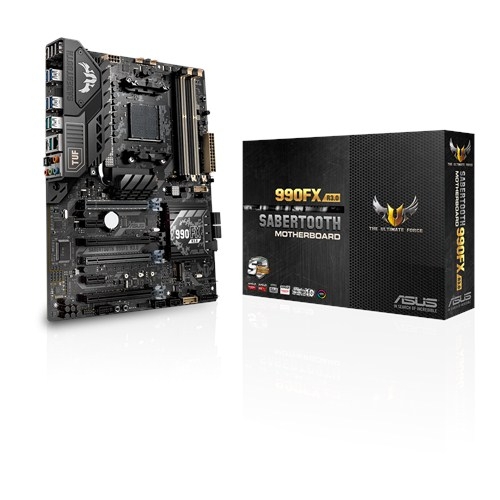

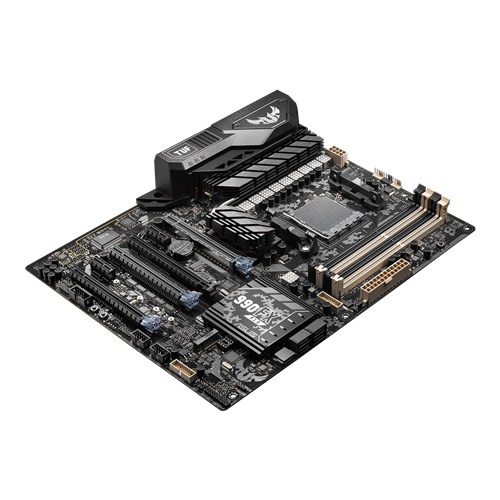

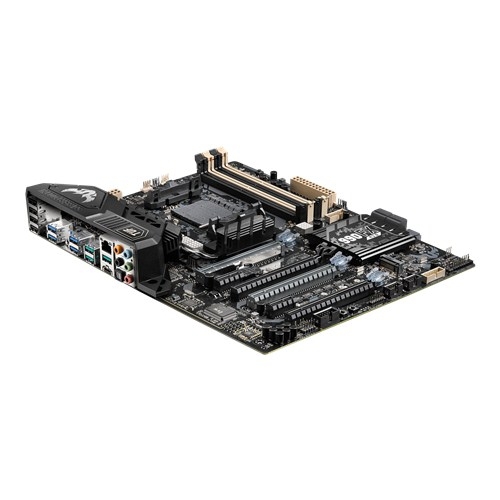

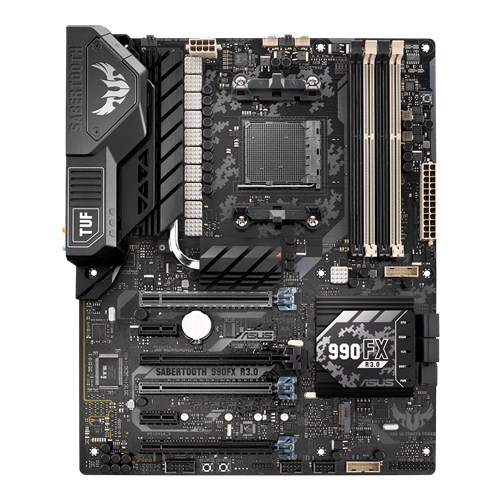

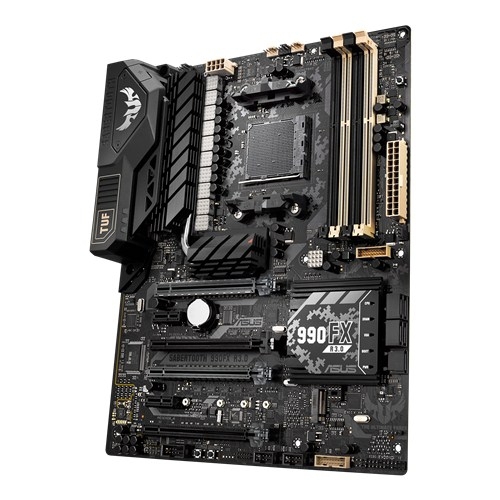

SABERTOOTH 990FX R3.0

SABERTOOTH 990FX R3.0

型番：ASU-SABERTOOTH/990FX/R3.0

特徴

- Socket AM3+対応
- AMD FX/Phenom II/Athlon II/Sempron 100シリーズCPU対応
- AMD 990FX+AMD SB950チップセット搭載
- DDR3メモリ×4枚（最大32GB）対応
- PCIe 2.0 x16×4、PCIe 2.0 x1×2
- SATA 6Gb/s×5、M.2×1
- USB 3.1 Type-A×3、USB 3.1 Type-C×1、USB 3.0×6、USB 2.0×8
- 1000BASE-T×1
- 高機能ファンコントロール機能「TUF Thermal Radar 2」
- デジタル電源回路の「TUF ENGINE!」
- 搭載チップを静電気から守る「TUF ESD Guards 2」
- Military Standard規格をクリアしたコイル/コンデンサ/MOSFETを搭載
- LEDで拡張スロットのロック部分が鮮やかに光る「Aura」機能を搭載
- 重いカードも安心な高耐久PCI Expressスロット「SafeSlot」
- 優れた信号特性を実現した高性能LANポート「TUF LANGuard」
- USB 3.1の転送速度をブーストする「USB 3.1 Boost」機能
- ATXフォームファクター

製品仕様

対応CPUAMD AM3+ FX/Phenom II/Athlon II/Sempron 100 Series Processors
Supports AM3+ 32 nm CPU
Supports CPU up to 8 cores
Supports CPU up to 220 W
AMD Cool 'n' Quiet Technology
搭載チップセット AMD 990FX/SB950
対応メモリ4 x DIMM, Max. 32GB, DDR3- 1866/1600/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory
デュアルチャンネル Memory Architecture
System BusUp to 5.2 GT/s HyperTransport 3.0
マルチGPU対応Supports NVIDIA 3-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology
拡張スロット3 x PCIe 2.0 x16 (dual x16 or x16/x8/x8) *1
1 x PCIe 2.0 x16 (x4 mode, black) *2
2 x PCIe 2.0 x1
ストレージ機能AMD SB950 controller :
5 x SATA 6Gb/s port(s),
Support Raid 0, 1, 5, 10, JBOD
AMD SB950 controller :
1 x M.2 Socket 3, gray, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)
LAN機能Intel I211, 1000BASE-T/100BASE-TX/10BASE-T×1
オーディオ機能Realtek ALC1150 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- Blu-ray audio layer Content Protection
- Optical S/PDIF out port(s) at back panel
- BD Audio Layer Content Protection
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
USB機能ASMedia USB 3.1 controller :
1 x USB 3.1/3.0/2.0 port(s) (1 at back panel, , Type-C, Reversible, Support 3A power output)
ASMedia USB 3.1 controller :
3 x USB 3.1/3.0/2.0 port(s) (3 at back panel, teal blue, Type-A, Support 3A power output)
ASMedia USB 3.0 Hub :
8 x USB 3.0/2.0 port(s) (4 at back panel, blue, 4 at mid-board)
AMD SB950 controller :
8 x USB 2.0/1.1 port(s) (4 at back panel, , 4 at mid-board)
独自機能TUF ENGINE! Power Design :
- 8 +2 Digital Phase Power Design
- TUF Components (Alloy choke, Cap. & MOSFET; certified by military-standard)
- ASUS DIGI+ Power Control Utility
Ultimate COOL! Thermal Solution :
- TUF Thermal Radar 2
Safe & Stable! Guardian Angel :
- TUF ESD Guards 2
- TUF LANGuard
ASUS Exclusive Features :
- USB BIOS Flashback
- MemOK!
- AI Suite 3
- Onboard Button : Power
- Front Panel USB 3.0 Support
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.1 Boost
- Turbo LAN
Remote Entertainment
- Media Streamer
ASUS EZ DIY :
- Precision Tweaker 2
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
AURA: RGB Lighting Control
動作対応OSWindows 10
Windows 8.1
Windows 7

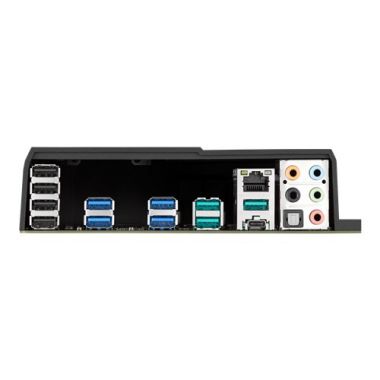

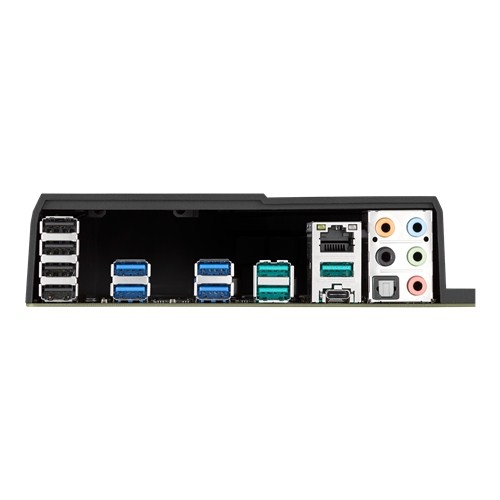

背面インターフェース1 x LAN (RJ45) port(s)
1 x USB 3.1 Type-C
3 x USB 3.1 (teal blue)Type-A
4 x USB 3.0 (blue)
4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
1 x Optical S/PDIF out
5 x Audio jack(s)
基板上インターフェース2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin, beige)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD)
1 x TPM connector(s)
1 x COM port(s) connector(s)
5 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x System panel(s) (Q-Connector)
1 x DRCT header(s)
1 x MemOK! button(s)
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x USB BIOS Flashback button(s)
1 x Water Pump header (4-pin)
主な付属品User's manual
ASUS Q-Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
1 x TUF Certification card(s)
1 x TUF 5 Year Warranty manual(s) (by region)
1 x TUF Inside sticker(s)(white)
BIOS機能64 Mb Flash ROM, UEFI BIOS, PnP, SLP2.1, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS,
ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information
管理機能WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
サポートDVDの内容Drivers
Anti-virus software (OEM version)
ASUS Update
ASUS Utilities
フォームファクター（サイズW×D）ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
その他*1: When running dual graphics cards, be sure to insert the card in the first and third PCIex16 slot to get the best performance.
*2: When M.2 bandwidth is set to x4, PCIex16_2 will have no function.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
