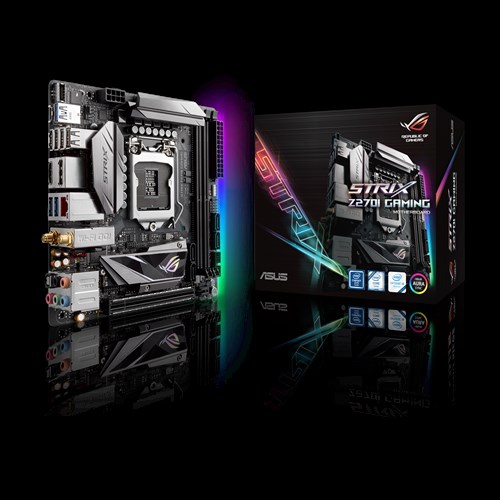

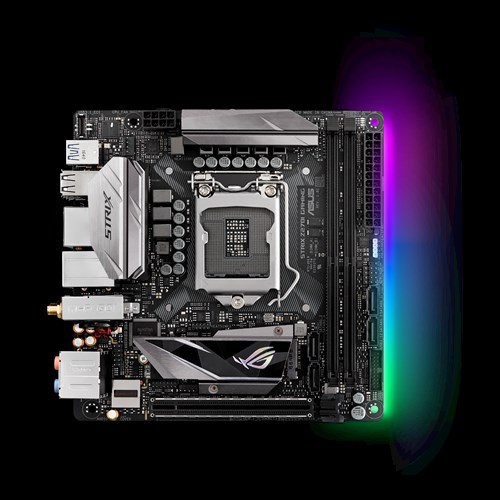

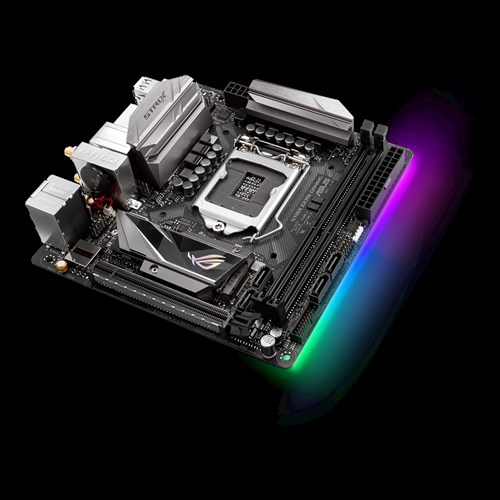

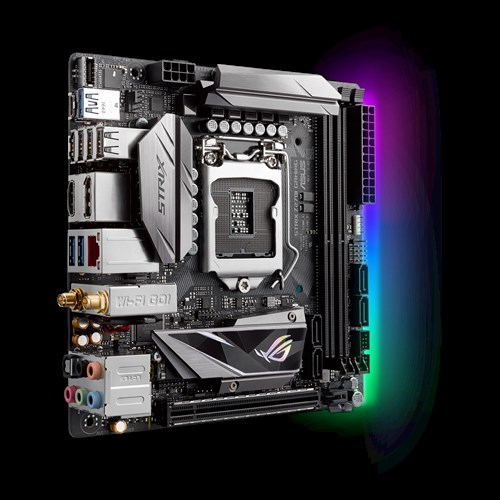

ROG Strix Z270I Gaming

ROG Strix Z270I Gaming

型番：ASU-STRIX/Z270I/GAMING

特徴

- LGA1151対応
- Intel Core i7/i5/i3、Pentium、CeleronシリーズCPU対応
- Intel Z270チップセット搭載
- DDR4メモリ×2枚（最大32GB）対応
- DisplayPort×1、HDMI×1
- PCIe 3.0 x16×1

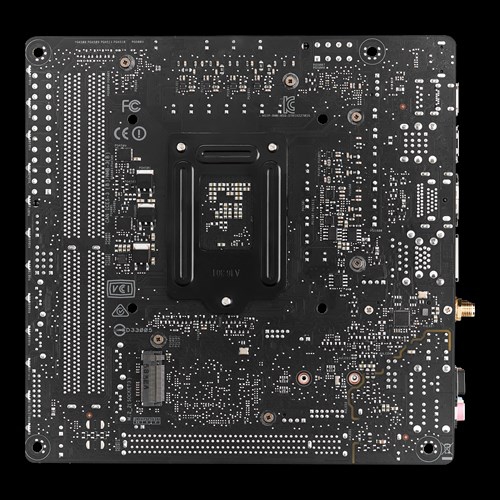

- M.2×2（1つは裏側）、SATA 6Gb/s×4
- USB 3.1×1、USB 3.0×6、USB 2.0×4
- 1000BASE-T×1、IEEE802.11ac/n/a/g/b
- Bluetooth 4.1
- デジタル電源回路「DIGI+ Power Control」
- 鮮やかに光るイルミネーション機能「Aura」
- 高性能ファンコントロール機能「Fan Xpert 4」
- ゲーム用オーディオ機能「ROG SupremeFX」
- Mini-ITXフォームファクター

製品仕様

対応CPUIntel Socket 1151 for 7th/6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
搭載チップセット Intel Z270
対応メモリ2 x DIMM, Max. 32GB, DDR4- 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
グラフィックス機能Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
拡張スロット1 x PCIe 3.0/2.0 x16
ストレージ機能Intel Z270 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*1
4 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Supports Intel Smart Response Technology*2
Intel Optane Memory Ready *3
LAN機能Intel I219V
Anti-surge LANGuard
ROG GameFirst Technology
Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)
無線機能Wi-Fi IEEE802.11ac/n/a/g/b
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
Bluetooth機能Bluetooth 4.1*4
オーディオ機能ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual Headphone Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- Supports up to 32-Bit/192kHz playback *5
Audio Feature :
- SupremeFX Shielding Technology
- Optical S/PDIF out port(s) at back panel
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Sonic Radar III
- Sonic Studio III
USB機能Intel Z270 Chipset :
6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board)
Intel Z270 Chipset :
4 x USB 2.0 port(s)
ASMedia USB 3.1 controller : *6
1 x USB 3.1 front panel connector port(s)
R.O.G.シリーズ独自搭載機能ROG RAMCache II
ROG CloneDrive
Overwolf
GameFirst IV
独自機能OC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
TPU
- Auto Tuning, TurboV, GPU Boost
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors
Gamer's Guardian:
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- ESD Guards
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Gaming Aesthetics :
- AURA-RGB Lighting
Digi+VRM

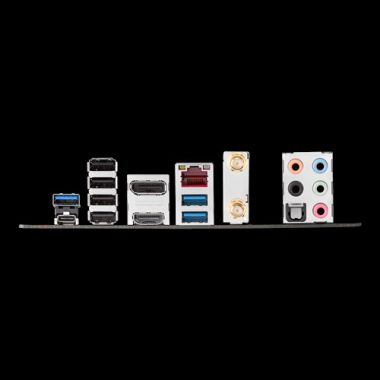

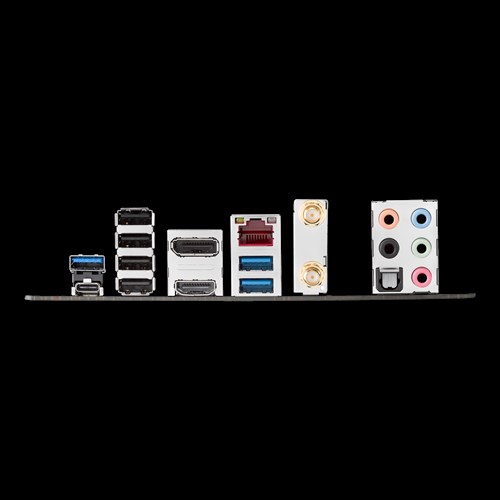

背面インターフェース1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.0 Type-A + Type-C *8
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.1)
基板上インターフェース1 x RGB Header(s)
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
1 x TPM connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector
1 x Thermal sensor connector
1 x USB 3.1 front panel connector
主な付属品User's manual
M.2 2242 mounting kit
I/O Shield
4 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x ROG Strix stickers
1 x 10-in-1 ROG cable label
1 x Extension Cable for RGB strips (80 cm)
1 x Panel cable
1 x ROG coasters
BIOS機能128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.
管理機能DMI3.0, WOL by PME, PXE
OSWindows 10 64-bit
Windows 8.1 64-bit *7
Windows 7 32-bit *7
Windows 7 64-bit *7
フォームファクター（サイズW×D）Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
その他*1 For a 2242 storage device, use the bundled 2242 mounting kit.
*2 This function will work depending on the CPU installed.
*3 Intel Optane Technology only supported when using 7th Generation Intel Processors. Before using Intel Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.
*4 Support for the Bluetooth specifcation depend on the Windows version. Windows 7 / 8 supports Bluetooth 4.0.
*5 Due to limitations in HDA bandwidth, 32-bit/192kHz is not supported for
8-Channel audio and due to Windows 7 limitations, 32-bit playback is unavailable for Windows 7.
*6 Supports 3A power output
*7 Windows 8.1 64-bit and Windows 7 32/64-bit are only supported when using 6th Generation Intel Processors.
*8 3 x Type-A [blue] and 1 x Type-C ports at back panel
* ROG GameFirst IV is only available for Windows 10/8.1 64-bit.
* 2 x M.2 2242 Mounting Kit

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
