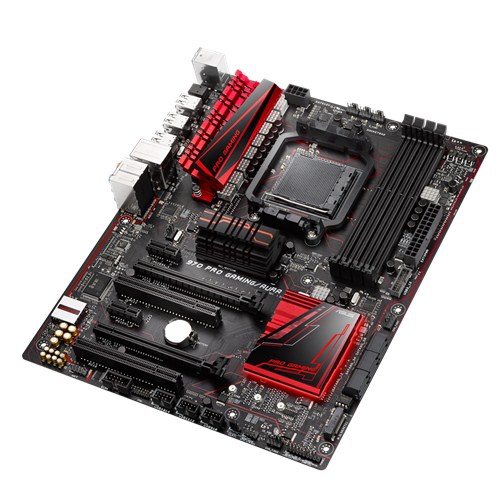

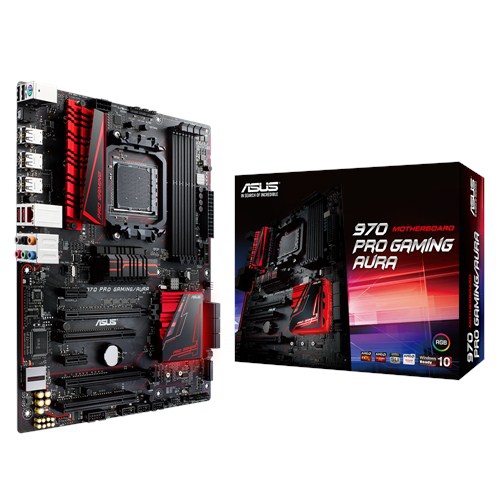

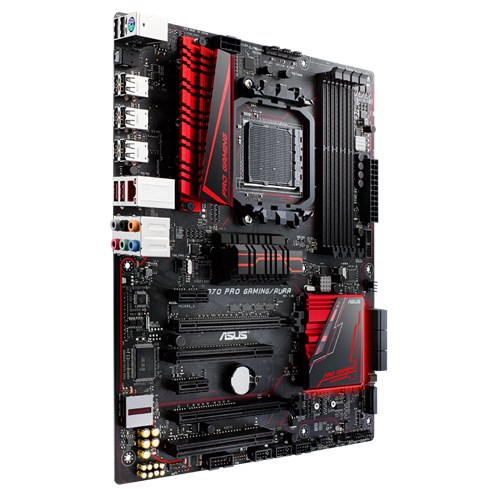

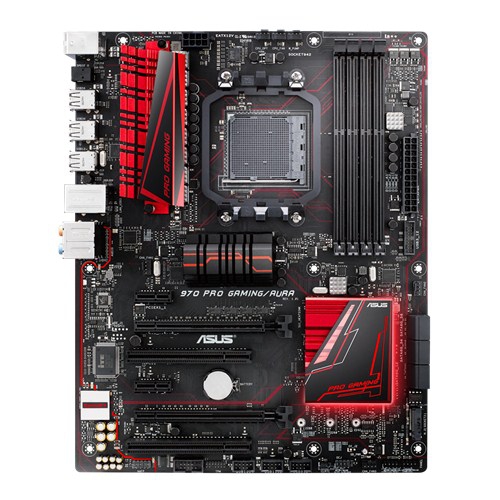

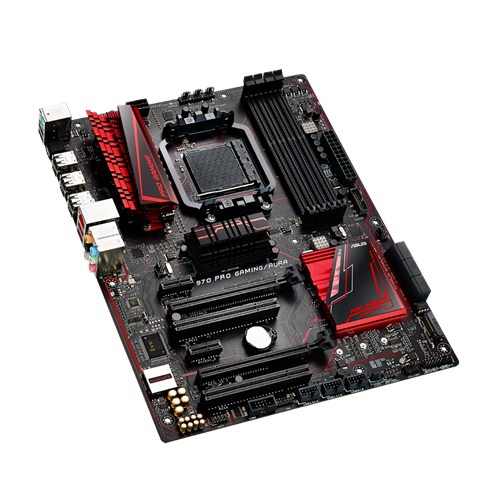

970 PRO GAMING/AURA

970 PRO GAMING/AURA

チップセットクーラーが鮮やかに光るゲーム用AMD 970マザーボード

型番：ASU-970/PRO/GAMING/AURA

メーカー製品ページ

特徴

- Socket AM3+対応
- AMD FX、Phenom II、Athlon II、Sempron 100シリーズCPU対応
- AMD 970＋AMD SB950チップセット搭載
- DDR3メモリ×4枚（最大32GB）対応
- PCIe 2.0 x16×2、PCIe 2.0 x1×2、PCI×2
- SATA 6Gb/s×6、M.2×1
- USB 3.1 Type-A×2、USB 3.0×2、USB 2.0×14
- 1000BASE-T×1
- チップセットクーラーが鮮やかに光る「Aura」機能を搭載
- ゲーム用オーディオ機能の「SupremeFX」を搭載
- ネットワークゲームの通信優先度を高める「GameFirst IV」機能を搭載
- デジタル電源回路の「DIGI+ VRM」を搭載
- 省電力を実現する電力制御チップの「EPU」を搭載
- CPUファン＋ケースファンを細かく設定できる「Fan Xpert 2」機能を搭載
- USB 3.1の転送速度をブーストする「USB 3.1 Boost」機能を搭載
- ATXフォームファクター

製品仕様

対応CPUAMD AM3+ FX/Phenom II/Athlon II/Sempron 100 Series Processors
Supports AM3+ 32 nm CPU
Supports CPU up to 125 W
AMD Cool 'n' Quiet Technology
搭載チップセットBuild in AMD 970/SB950
対応メモリ4 x DIMM, Max. 32GB, DDR3- 2133(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory *
デュアルチャンネル Memory Architecture
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows OS when you want to install 4GB or more memory on the motherboard.
* Due to CPU spec., AMD 100 series CPUs support up to DDR3 1066MHz. With ASUS design, this motherboard can support up to DDR3 1333MHz.
System BusUp to 4.8 GT/s HyperTransport 3
マルチGPU対応Supports NVIDIA Quad-GPU SLI Technology
Supports AMD Quad-GPU CrossFireX Technology
拡張スロット2 x PCIe 2.0 x16 (x16 or dual x8)
2 x PCIe 2.0 x1
2 x PCI
ストレージ機能AMD SB950 controller :
6 x SATA 6Gb/s port(s), black,
Support Raid 0, 1, 5, 10
1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (PCIE 2.0 x4)
LAN機能Intel I211-AT, 1000BASE-T/100BASE-TX/10BASE-T×1, GameFirst technology
Anti-surge LANGuard
オーディオ機能SupremeFX 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 115 dB SNR stereo playback output
Audio Feature :
- SupremeFX Shielding Technology
- Optical S/PDIF out port(s) at back panel
- Sonic Radar II
USB機能ASMedia USB 3.1 controller :
2 x USB 3.1 port(s) (2 at back panel, , Type-A)
ASMedia USB 3.0 controller :
2 x USB 3.0 port(s) (2 at mid-board)
AMD SB950 controller :
x USB 2.0 port(s) (8 at back panel, , 6 at mid-board)
独自機能Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- DIGI+ VRM
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger+
- USB 3.1 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert 2
ASUS EZ DIY :
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Media Streamer
RAMCache
AURA: RGB Lighting Control
動作対応OSWindows 10 64ビット
Windows 8.1 64ビット
Windows 7 64ビット/32ビット

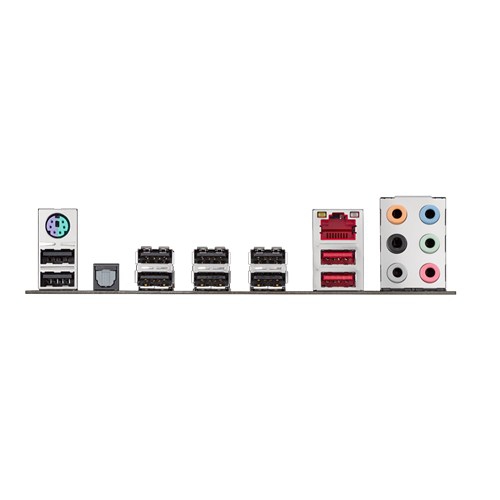

背面インターフェース1 x PS/2 keyboard/mouse combo port(s)
1 x LAN (RJ45) port(s)
2 x USB 3.1 (red)Type-A
8 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
基板上インターフェース1 x ReTry jumper
1 x Safe Boot jumper
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
1 x TPM header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x Water Pump header (4-pin)
1 x Slow Mode jumper(s)
主な付属品User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x pack of cable tie
1 x Supporting DVD
1 x SLI bridge(s)
1 x 12 in 1 Cable Label (s)
BIOS機能64 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, F12 PrintScreen, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information
管理機能WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
サポートDVDの内容Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)
フォームファクター（サイズW×D）ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
