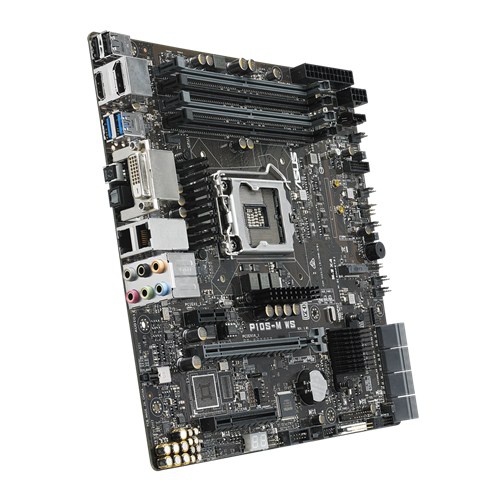

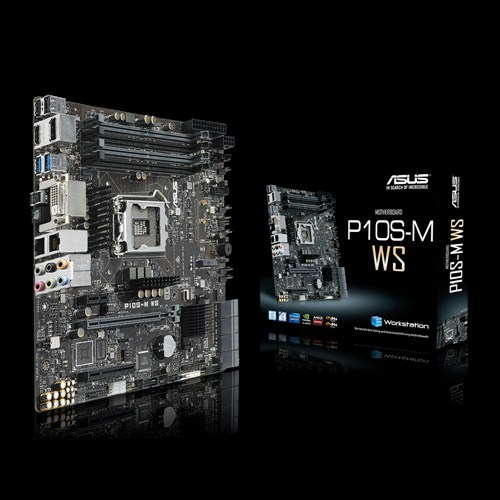

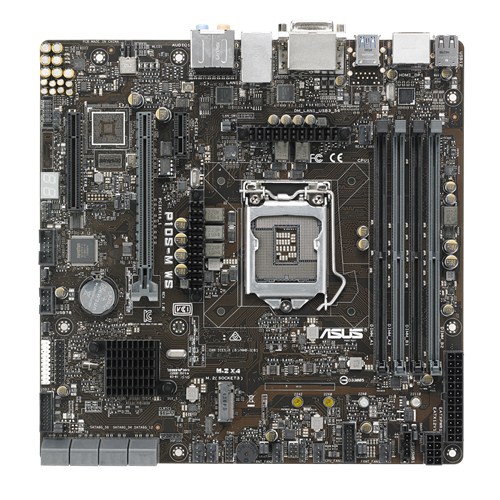

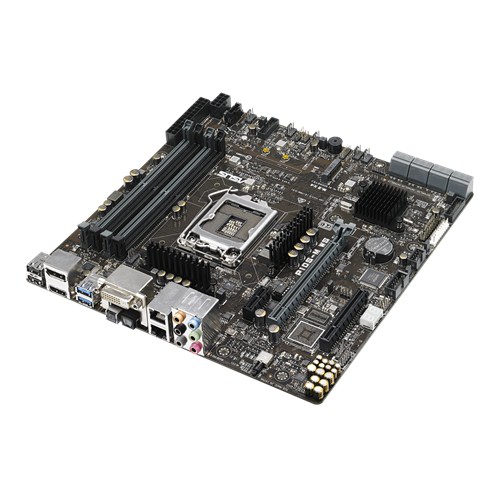

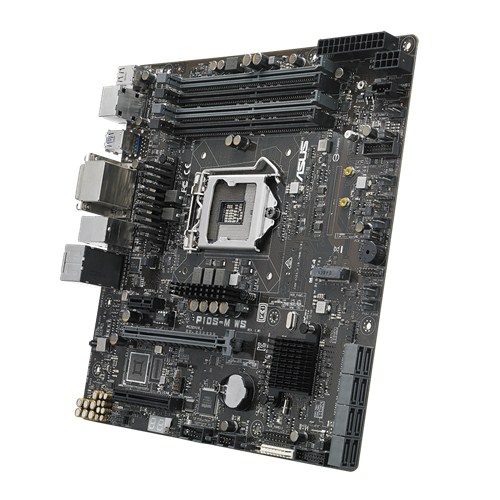

P10S-M/WS

P10S-M/WS

型番：ASU-P10S-M/WS

特徴

- LGA1151対応
- Intel Xeon E3-1200 v5、Core i7/i5/i3、Pentium、CeleronシリーズCPU対応
- Intel C236チップセット搭載
- DDR4メモリ×4枚（最大64GB）対応
- DisplayPort×1、HDMI×1、DVI-D×1
- PCIe 3.0 x16×1、PCIe 3.0 x8×1、PCIe 3.0 x1×1
- SATA 6Gb/s×8、M.2×1
- USB 3.0×6、USB 2.0×4
- 1000BASE-T×2
- 32Gb/sの転送速度に対応するPCIe 3.0 x4接続のM.2スロットを搭載
- microATXフォームファクター

製品仕様

対応CPUIntel Socket 1151 Core i7/Core i5/Core i3/for Xeon E3-1200 v5 and 6th genereation CoreTM, Pentium and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology
搭載チップセットBuild in Intel C236
対応メモリ4 x DIMM, Max. 64GB, DDR4- 2133 MHz ECC, Non-ECC, Un-buffered Memory
デュアルチャンネル Memory Architecture
グラフィックス機能Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI-D/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 60 Hz / 4096 x 2160 @ 24 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 512 MB
Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Supports up to 3 displays simultaneously
拡張スロット1 x PCIe 3.0/2.0 x1 (x1 mode) *1
1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x8 (x4 mode) *1
ストレージ機能Intel C236 Chipset :
8 x SATA 6Gb/s port(s),
1 x M.2 Socket 3*2, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology Enterprise supports
LAN機能Intel I210, 1000BASE-T/100BASE-TX/10BASE-T×2
Support Teaming Technology
オーディオ機能Realtek ALC1150 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR recording input (Line-in)
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- DTS Connect
- DTS Studio Sound
- Optical S/PDIF out port(s) at back panel
- BD Audio Layer Content Protection
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Top notch audio sensation delivers according to the audio configuration
Separate layer for left and right track, ensuring both sound deliver equal quality
USB機能Intel C236 Chipset :
4 x USB 2.0 port(s) (2 at back panel, )
Intel C236 Chipset :
6 x USB 3.0 port(s) (2 at back panel, )
独自機能ASUS Digital Power Design :
(3 -phase for CPU, 2 -phase for iGPU)
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
動作対応OSWindows 10 64ビット
Windows 8.1 64ビット
Windows 7 64ビット
Windows Server 2008 R2
Windows Server 2012 R2

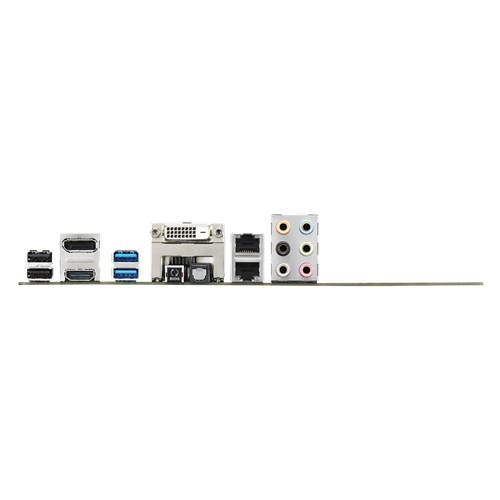

背面インターフェース1 x DVI-D
1 x DisplayPort
1 x HDMI
2 x LAN (RJ45) port(s)
2 x USB 3.0
2 x USB 2.0
1 x Optical S/PDIF out
1 x USB BIOS Flashback Button(s)
1 x 8-channel Audio I/O
基板上インターフェース1 x AAFP connector
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3
1 x TPM header
8 x SATA 6Gb/s connector(s)
1 x CPU fan with PWM control
1 x S/PDIF out header(s)
1 x 8-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
1 x Front panel connector(s) (1 x 19 -pin)
1 x AUX panel header(s)
4 x Front fan
1 x Rear fan
1 x COM port header
1 x Chassis intrusion header
主な付属品User's manual
I/O Shield
1 x COM port cable(s)
8 x SATA 6Gb/s cable(s)
1 x SCD
1 x ASWM Enterprise SDVD
1 x OSG manual
1 x Metal Plate for LGA1151
BIOS機能16 MB Flash ROM, EFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0a, ASUS EZ Flash Utility, ASUS CrashFree BIOS 3
管理機能WfM 2.0, DMI 3.0, WOL by PME, WOR by PME, PXE
フォームファクター（サイズW×D）mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
その他*1 From PCH
*2 7 x SATA 6Gb/s with 1 x M.2 (SATA 6Gb/s & PCI-E Gen3 x4 link, NGFF 22110/2280/2260/2242)

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
