MAXIMUS VIII EXTREME

MAXIMUS VIII EXTREME

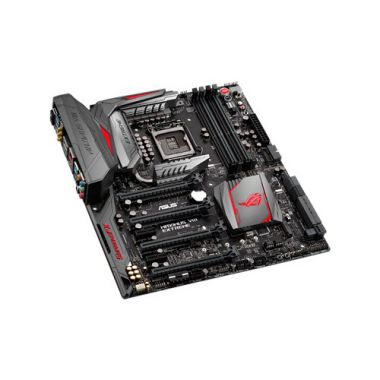

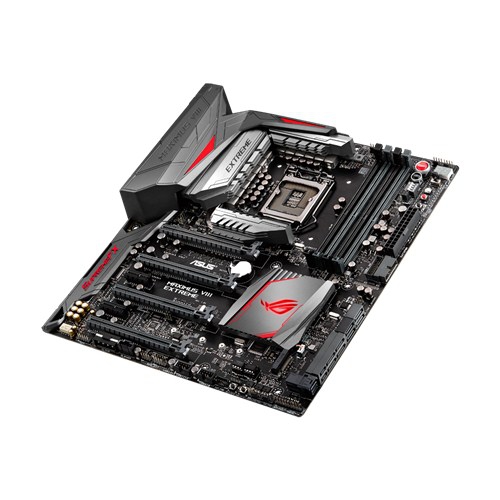

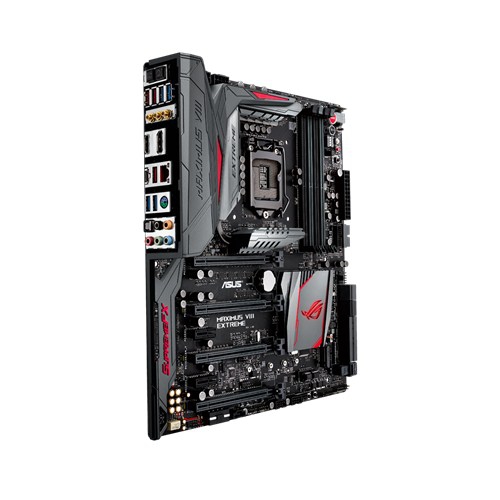

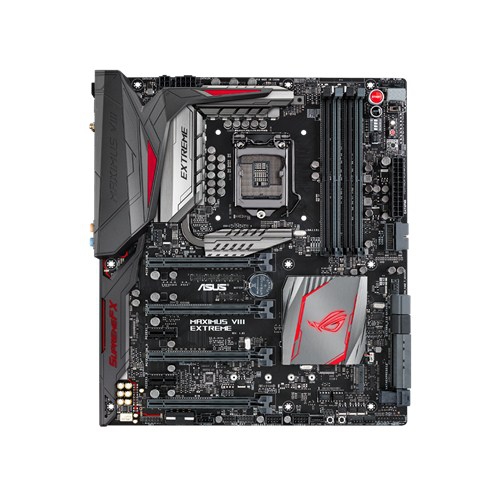

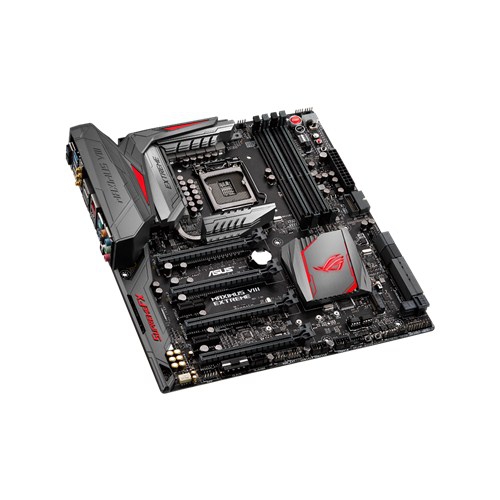

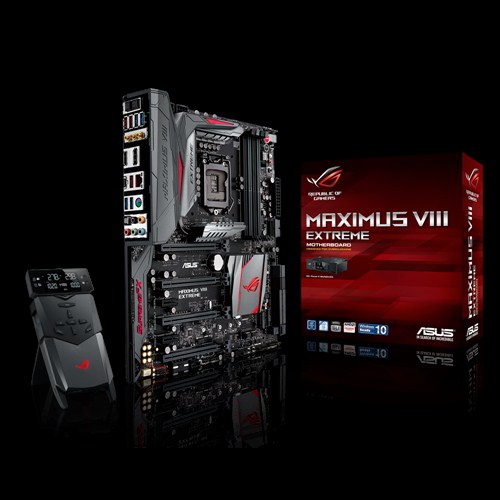

オーバークロック用外付け操作パネルを付属するプロ仕様のオーバークロッカー向けIntel Z170マザーボード

型番：ASU-MAXIMUS/VIII/EXTREME

メーカー製品ページ

特徴

- LGA1151対応
- Intel Core i7/i5/i3、Pentium、CeleronシリーズCPU対応
- Intel Z170チップセット搭載
- DDR4メモリ×4枚（最大64GB）対応
- DisplayPort 1.2×1、HDMI 1.4×1
- PCIe 3.0 x16×4、PCIe 3.0 x1×2
- SATA 6Gb/s×8、SATA Express×2、M.2×1、U.2×1
- USB 3.1 Type-A×3、USB 3.1 Type-C×1、USB 3.0×8、USB 2.0×6
- 1000BASE-T×1、IEEE802.11ac/n/a/g/b
- Bluetooth 4.0
- デジタル電源回路「Extreme Engine Digi+」
- 外部クロックジェネレーターチップ「PRO Clock」
- オーバークロック専用チップ「TPU」
- 省電力を実現する電力制御チップ「EPU」
- CPUファン＋ケースファンを細かく設定できる「Fan Xpert 3」
- USB 3.1をブーストする「USB 3.1 Boost」
- ExtendedATXフォームファクター

製品仕様

CPU Intel Socket 1151 for 6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset Intel Z170
Memory4 x DIMM, Max. 64GB, DDR4 3866(O.C.) /3800(O.C.) /3733(O.C.) /3600(O.C.) /3500(O.C.) /3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
GraphicIntegrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/DisplayPort 1.2 ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 512 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Multi-GPU SupportSupports NVIDIA Quad-GPU SLI Technology
Supports AMD 4-Way CrossFireX Technology
Expansion Slots3 x PCIe 3.0/2.0 x16 (x16 or dual x8 or x8/x4/x4, gray)
1 x PCIe 3.0/2.0 x16 (x4 mode, gray)
2 x PCIe 3.0/2.0 x1 (black)
StorageIntel Z170 chipset :
1 x M.2 x4 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*1
6 x SATA 6Gb/s port(s), gray, , 4 ports from 2 x SATA Express
2 x SATA Express port
1 x U.2 port
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology supports*2
Supports Intel Smart Response Technology*2
ASMedia ASM1061 controller :
2 x SATA 6Gb/s port(s), black, *3,
LANIntel I219V, 1 x Gigabit LAN Controller(s), GameFirst technology
Intel LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
Anti-surge LANGuard
Wireless Data NetworkWi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Up to 1300Mbps transfer speed
BluetoothBluetooth V4.0
AudioROG SupremeFX 2015 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- SupremeFX Shielding Technology
- ESS ES9023P DAC: dB SNR, dB THD+N (Max. kHz/ -bit)
- TI RC4580 2VRMS audio OP AMP(s)
Audio Feature :
- Gold-plated jacks
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- Sonic SenseAmp
- Sonic Studio II
- Sonic Radar II
USB PortsIntel Z170 chipset :
8 x USB 3.0 port(s) (4 at back panel, blue, 4 at mid-board)
Intel Z170 chipset : *4
6 x USB 2.0 port(s) (6 at mid-board)
ASMedia USB 3.1 controller :
2 x USB 3.1 port(s) (2 at back panel, red, Type-A)
Intel USB 3.1 controller :
2 x USB 3.1 port(s) (2 at back panel, , Type-A + Type-C)
OC Panel II2.6 " LCM display
EXTREME/NORMAL mode switch
EXTREME Mode for subzero OC benching:
- VGA Hotwire
- Subzero Sense
- Slow Mode
- Pause Switch
- ProbeIt
- ReTry button
- Safe Boot button
2 x Thermal sensor connectors
4 x 4-pin extra fan connectors *5
NORMAL Mode for in-chassis usage:
- OC button
- FanSpeed control button
- LCM backlight on/off button
I/O Ports:
- POWER：1 x SATA power connector
- ROG_EXT port：1 x 18-1 pin data connection port
ROG Exclusive FeaturesStart Button
Reset Button
LN2 Mode
Extreme Engine Digi+ :
- MicroFine Alloy Chokes
- 10K Black Metallic Capacitors
- OptiMOS MOSFET
Mem TweakIt
ROG Extreme OC kit :
- ReTry button
- Safe Boot button
- Start button
- Reset button
- Slow Mode
- LN2 Mode
- PCIe x16 Lane Switch
- Debug LED
- EZ Plug
- DRAM channel jumper
ProbeIt
KeyBot II
- One-click Overclocking
- X.M.P.
- DirectKey
- ClrCMOS
- Power On
UEFI BIOS features :
- O.C. Profile
- GPU.DIMM Post
- Tweakers' Paradise
- ROG SSD Secure Erase
- Graphic Card Information Preview
ROG RAMDisk
iROG
Extreme Tweaker
USB BIOS Flashback
Overclocking Protection :
- COP EX (Component Overheat Protection - EX)
Special FeaturesOC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance
5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App
ASUS Wi-Fi GO!
- Wi-Fi GO! Function: Cloud GO!, Remote Desktop, Remote Keyboard & Mouse, File Transfer
- Wi-Fi GO! & NFC Remote app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systems
ASUS Exclusive Features :
- GPU Boost
- MemOK!
- AI Suite 3
- Ai Charger+
- USB 3.1 Boost
- Disk Unlocker
- Mobo Connect
- PC Cleaner
Remote Entertainment
- Media Streamer
- HyStream
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS USB BIOS Flashback
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
RAMCache
Operating System SupportWindows 10 , 64bit
Windows 8.1 , 64bit
Windows 7 , 32bit/64bit

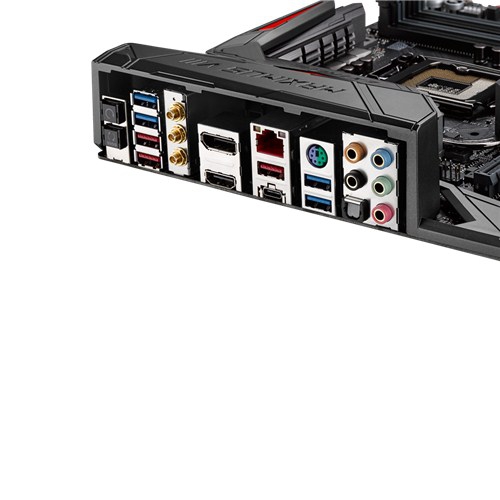

Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.1 (black)Type-C
3 x USB 3.1 (red)Type-A
4 x USB 3.0 (blue)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x Clear CMOS button(s)
1 x USB BIOS Flashback Button(s)
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0/3.0+HS)
Internal I/O Ports1 x U.2 port
1 x AAFP connector
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
2 x SATA Express connector: gray, Compatible with 4 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
1 x CPU OPT Fan connector(s) (4 -pin)
4 x Chassis Fan connector(s) (4 -pin)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x 4-pin EZ_PLUG Power connector(s)
1 x System panel(s) (Q-Connector)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x MemOK! button(s)
1 x Slow Mode switch(es)
9 x ProbeIt Measurement Points
3 x Thermal sensor connector(s)
1 x DRAM channel jumper
1 x Power-on button(s)
1 x Reset button(s)
1 x BIOS Switch button(s)
1 x SLI/CFX button (2/3/4-way adjustments)
1 x Water Pump header (4-pin)
1 x LN2 Mode jumper(s)
1 x ROG extension (ROG_EXT) header(s)
1 x Safe Boot button
1 x ReTry button
AccessoriesUser's manual
ASUS Q-Shield
8 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD
1 x ASUS 3T3R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x Fan Extension Card (3 x 4-pin fan out)
1 x Fan Extension card screw pack
1 x SLI bridge(s)
1 x CrossFire cable(s)
1 x Q-connector(s) (1 in 1)
3 x Thermal sensor cable pack(s)
1 x 12 in 1 ROG Cable Label(s)
ROG Fan Label
1 x 5-pin to 5-pin cable
1 x ROG Door Hanger(s)
OC Panel II :
1 x OC Panel II(s)
1 x OC Panel II 5.25-inch bay metal case
1 x OC Panel II Cable(s)
1 x OC Panel II screw pack(s)
BIOS1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.
ManageabilityWfM2.0, DMI3.0, WOL by PME, PXE
Support Disc Drivers
ROG GameFirst technology
ROG RAMDisk
ROG RAMCache
ROG CPU-Z
ROG Mem TweakIt
Overwolf
ROG Keybot II
Kaspersky Anti-Virus
DAEMON Tools Pro Standard
ASUS WebStorage
ASUS Utilities
Form FactorExtended ATX Form Factor
12 inch x 10.7 inch ( 30.5 cm x 27.2 cm )
Note*1 The M.2 slot shares bandwidth with U.2 slot and SATA Express 1 slot. Please refers to user manual for detail information.
*2 This function will work depending on the CPU installed.
*3 These SATA ports are for data hard drives only. ATAPI devices are not supported.
*4 2 x USB2.0 port at mid-board comes from the ROG extension (ROG_EXT) port.
*5 2 of the Fan connectors on OC Panel support PWM mode.
