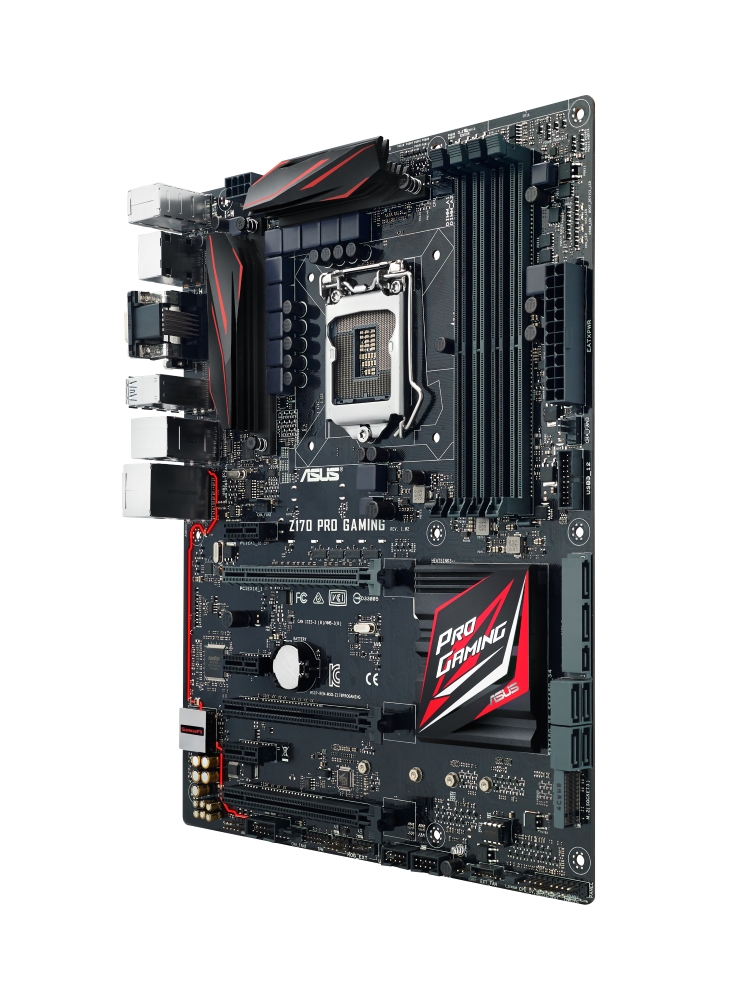

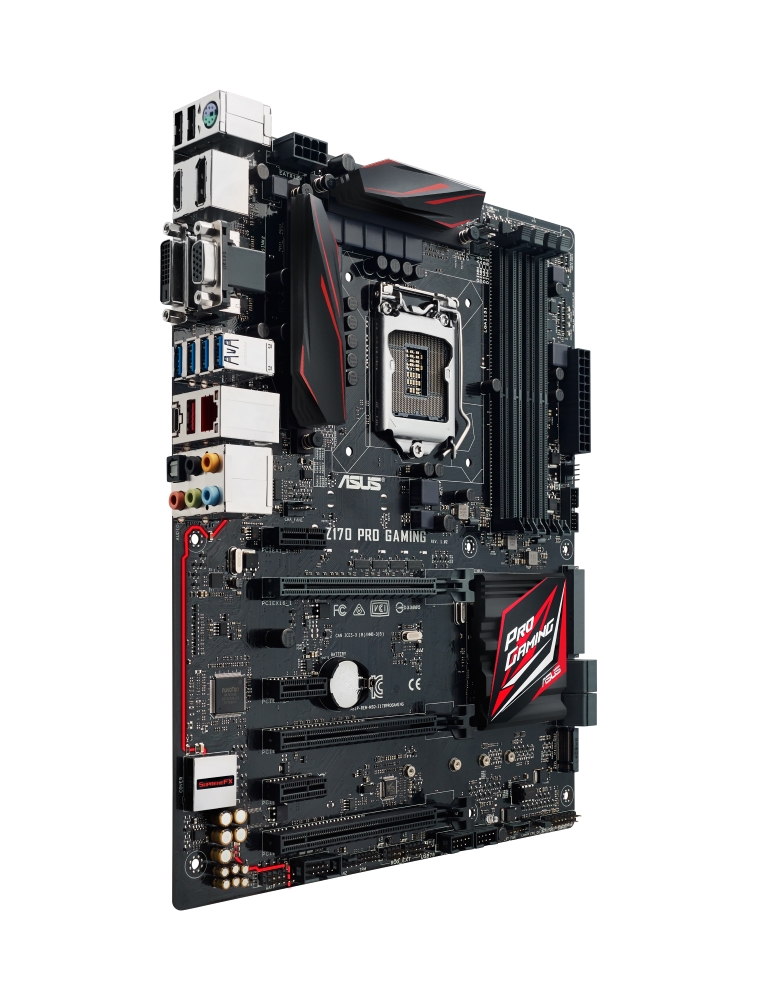

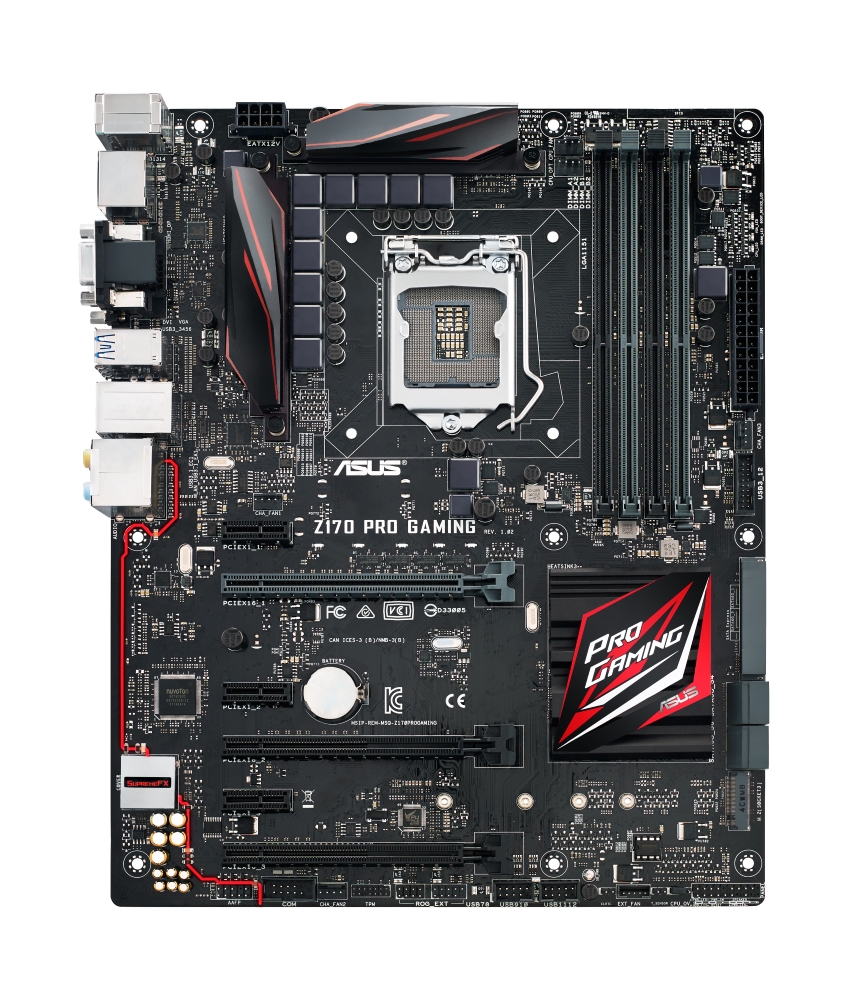

Z170 PRO GAMING

Z170 PRO GAMING

ゲームPCに最適な機能を満載したゲーマー向けIntel Z170マザーボード

  • 第6世代 LGA1151ソケット Intel® Core™ デスクトッププロセッサ
  • デュアル DDR4 3400 (OC) サポート
  • PRO Clock技術, 5-Way Optimization機能と第2世代T-Topology: 簡単かつ安定したオーバークロック
  • SupremeFX: ゲームをクリアな音質で楽しめるオーディオ機能
  • Intel ギガビットLAN, LANGuard & GameFirst III: ネットワークゲームを快適に楽しめる高速LAN機能
  • RAMCache: ゲームでのデータ読み込みを高速化
  • USB 3.1 Type-A/C & M.2: 超高速転送インターフェース
  • Gamer's Guardian: 高耐久高品質な搭載パーツ
  • Sonic Radar ll: 敵の足音を画面上にグラフィカルに表示

型番：ASU-Z170-PRO/GAMING

メーカー製品HP

CPU LGA1151 socket for 6th Generation Core™ i7/i5/i3/Pentium®/Celeron® Processors
Supports 14nm CPU
Supports Intel® Turbo Boost Technology 2.0*
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
　 ** Refer to www.asus.com for Intel® CPU support list.
Chipset Intel® Z170 Express Chipset
Memory 4 x DIMM, max. 64GB, DDR4 3400(O.C.)*/3333(O.C.)*/3200(O.C.)*/3100(O.C.)*/3000(O.C.)*/2933(O.C.)*/2800(O.C.)*/
2666(O.C.)*/2600(O.C.)*/2400(O.C.)*/2133 MHz, non-ECC, un-buffered memory
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs. Please refer to Memory QVL(Qualified Vendors List) for details.
Expansion Slots 2 x PCI Express 3.0 x16 slots (single at x16 mode or dual at x8 mode)
1 x PCI Express 3.0 x16 slot (max. at x4 mode)
3 x PCI Express 3.0 x1 slots
VGA Integrated Graphics Processor - Intel® HD Graphics support
Multi-VGA output support: DisplayPort, HDMI, D-sub, DVI ports
Supports DisplayPort 1.2* with max. resolution 4096 x 2160@24Hz / 3840 x 2160@60Hz
Supports HDMI 1.4b with max. resolution 4096 x 2160@24Hz / 2560 x 1600@60Hz
Supports DVI with max. resolution 1920 x 1200@60Hz
Supports D-sub with max. resolution 1920 x 1200 @60Hz
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 3 displays simultaneously
Maximum shared memory of 512MB
*DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
Multi-GPU support Supports NVIDIA® Quad-GPU SLI™ Technology
Supports AMD® Quad-GPU CrossFireX™ Technology
Storage Intel® Z170 Express Chipset with RAID 0, 1, 5, 10 and Intel® Rapid Storage Technology 14 support
 - 1 x SATA Express port (gray, compatible with 2 x SATA 6.0 Gb/s ports)
 - 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE x4 mode)
 - 4 x SATA 6.0 Gb/s ports (gray)
 - Supports Intel® Smart Response Technology, Intel® Rapid Start Technology**
** These functions will work depending on the CPU installed.
LAN Intel Gigabit LAN
Anti-surge LANGuard
GameFirst III
Audio SupremeFX 8-Channel High Definition Audio CODEC
 - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
 - High quality 115dB SNR stereo playback output
Audio Features :
 - SupremeFX Shielding™ Technology
 - Headphone AMP
 - Optical S/PDIF out port at back panel
 - Sonic Radar II
USB ASMedia® USB 3.1 Controller - supports ASUS USB 3.1 Boost
 - 2 x USB 3.1 ports (1 Type-A, red; 1 Type-C, black at back panel)
Intel® Z170 Express Chipset
 - 6 x USB 3.0/2.0 ports (2 ports at mid-board; 4 ports at back panel, blue)
 - 8 x USB 2.0/1.1 ports (6 ports at mid-board; 2ports at back panel, black)
ASUS Gaming Features Gamer's Guardian

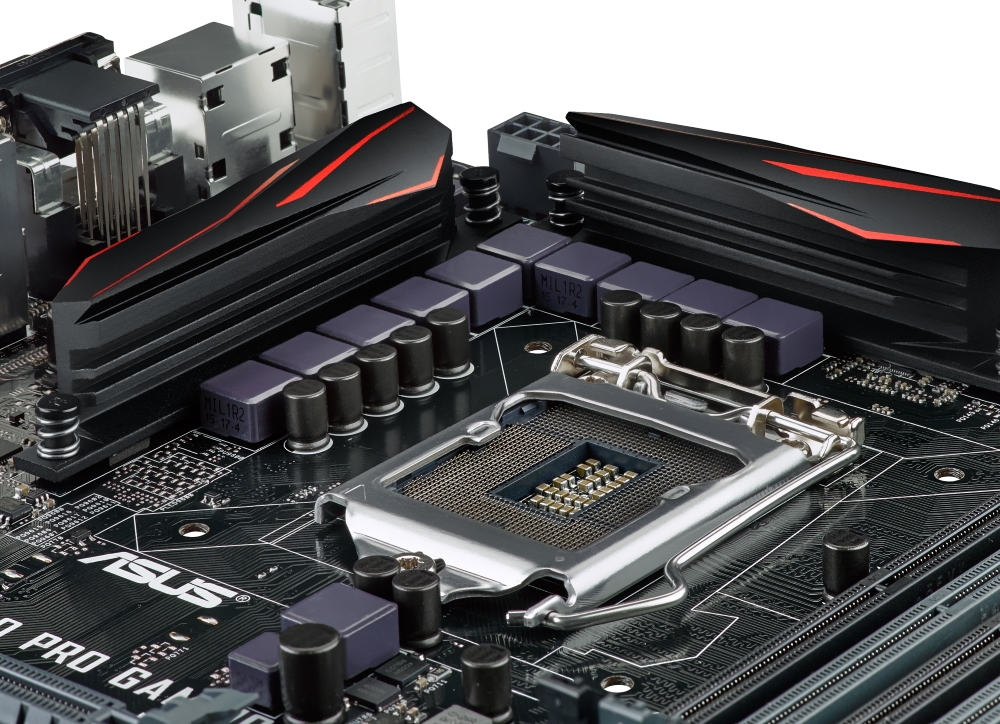

 - DIGI+ VRM
 - DRAM Overcurrent Protection
 - ESD Guards on VGA, LAN, Audio, KBMS and USB3.0/2.0 ports
 - Highly durable components
 - Stainless Steel Back I/O
Performance Optimization
  ASUS Dual Intelligent Processors 5
  - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 3, and Turbo App
    DIGI+ VRM
    - ASUS DIGI+ VRM Utility
    EPU
    - EPU
    TPU
   - Auto Tuning, TurboV, GPU Boost
   Fan Xpert 3 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
  RAM Cache
Media Streamer
- Pipe music or movies from your PC to a smart TV, your entertainment goes wherever you go!
- Media Streamer app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systems
EZ DIY
Push Notice
 - Monitor your PC status with smart devices in real time
UEFI BIOS EZ Mode featuring friendly graphics user interface
 -  O.C. Tuner
 -  CrashFree BIOS 3
 -  EZ Flash 3
Q-Design
 - ASUS Q-Shield
 - ASUS Q-DIMM
 - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
 - ASUS Q-Slot
ASUS Exclusive Features
 - USB 3.1 Boost featuring speedy USB 3.1 transmission
 - AI Suite 3
 - Disk Unlocker
 - AI Charger+
 - ASUS CPU-Z

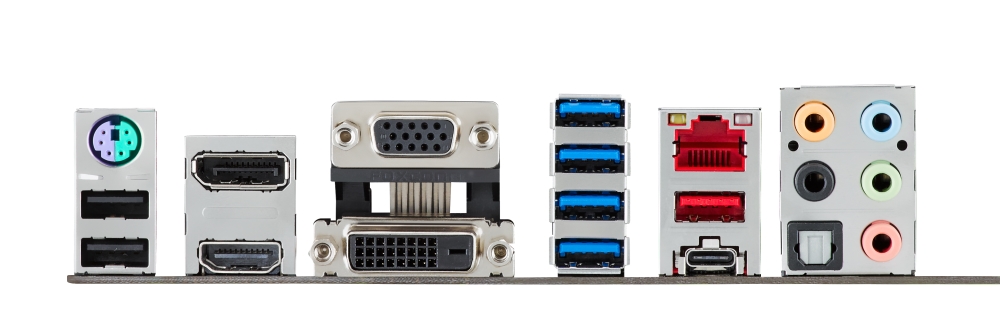

Back Panel I/O Ports 1 x PS/2 keyboard/mouse combo port
1 x Optical SPDF out
1 x HDMI
1 x DisplayPort
1 x DVI
1 x D-sub
1 x LAN (RJ45) port
2 x USB 3.1 ports (1 Type-A, red; 1 Type-C, black at back panel)
4 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
8-channel audio I/O ports
Internal I/O Connectors 1 x 19-pin USB 3.0/2.0 connector supports additional 2 USB 3.0/2.0 ports
3 x USB 2.0/1.1 connectors support additional 6 USB 2.0/1.1 ports (one connector via ROG_EXT header)
1 x System panel header
1 x Front panel audio connector (AAFP)
4 x SATA 6.0 Gb/s connectors (gray)
1 x M.2 Socket 3 for M Key, type 2242/2260/2280/22110 devices
1 x SATA Express connector: gray, compatible with 2 x SATA 6.0 Gb/s ports
1 x CPU fan connector (4-pin)
1 x CPU OPT fan connector (4-pin)
3 x Chassis Fan connectors (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) coolers control
1 x Thermal sensor header
1 x COM connector
1 x TPM header
1 X CPU_OV
1 X EXT_FAN
1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
1 x ROG extension (ROG_EXT) header(s)
1 x Clear CMOS jumper (2-pin)
BIOS  128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 2.8, ACPI 5.1, Multi-language BIOS, ASUS EZ Flash 3,
CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, F3 Shortcut function, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability WfM 2.0, DMI 3.0, WOL by PME, PXE
Accessories 4 x Serial ATA 6.0Gb/s cables
1 x User manual
1 x I/O shield
1 x ROG SLI bridge connector
1 x PRO GAMING Cable Labels
1 x M.2 screw package
1 x CPU Installation Tool
1 x Support DVD
Support DVD Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)
Operating System Support Windows® 10
Windows® 8.1 / Windows® 8
Windows® 7
*64-bit supported only
Form Factor ATX Form Factor, 12”x 9.6” (30.5cm x 24.4cm)

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
