J3455M-E

J3455M-E

型番：ASU-J3455M-E

特徴

- Intel Celeron J3455 CPUをオンボード搭載
- DDR3メモリ×2枚（最大16GB）対応
- HDMI×1、D-Sub 15ピン×1
- PCIe 2.0 x16×1、PCIe 2.0 x1×2
- SATA 6Gb/s×2
- USB 3.0×4、USB 2.0×4
- 1000BASE-T×1
- CPUファン＋ケースファンを細かく設定できる「Fan Xpert」
- microATXフォームファクター



製品仕様

対応CPU Intel Celeron Quad-Core J3455 SoC onboard Processors
対応メモリ 2 x U-DIMM, Max. 16GB, DDR3- 1866/1600/1333 MHz Non-ECC, Un-buffered Memory
デュアルチャンネル Memory Architecture
* The default memory operation frequency is dependent on its Serial Presence Detect (SPD), which is the standard way of accessing information from a memory module. Under the default state, some memory modules for overclocking may operate at a lower frequency than the vendor-marked value.
* Due to the chipset limitation, we recommend that you use single-sided 4GB or 8GB, or double-sided 8GB DDR3 per DIMM slot. The maximum memory for the two DIMM slots is 16GB.
グラフィックス機能 Integrated Graphics Processor
Multi-VGA output support : HDMI/RGB ports
- Supports HDMI with max. resolution 3840 x 2160 @ 30 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 512 MB
拡張スロット 1 x PCIe 2.0 x16 (x1 mode)
2 x PCIe 2.0 x1
ストレージ機能 2 x SATA 6Gb/s port(s),
LAN機能 Realtek RTL8111H, 1000BASE-T/100BASE-TX/10BASE-T×1
オーディオ機能 Realtek ALC887-VD2 8-Channel High Definition Audio CODEC *1
USB機能 Built-in Controller :
4 x USB 3.0 port(s) (2 at back panel, blue)
Built-in Controller :
4 x USB 2.0 port(s) (2 at back panel, black)
独自機能 ASUS Exclusive Features :
- AI Suite 3
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS EZ Flash 3
- ASUS MyLogo 2
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
動作対応OS Windows 10 64ビット

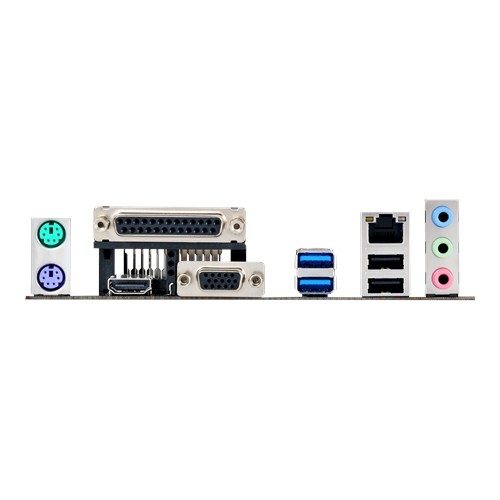

背面インターフェース 1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0 (blue)
2 x USB 2.0
1 x Parallel port(s)
3 x Audio jack(s)
基板上インターフェース 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)

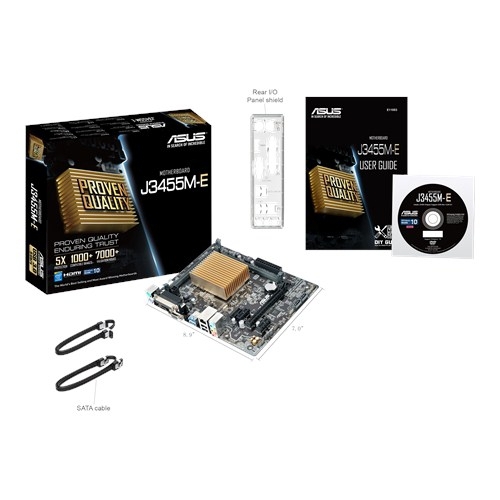

主な付属品 User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
BIOS機能 128Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0,SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
管理機能 Wfm 2.0, DMI 3.0, WOL by PME
サポートDVDの内容 Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)
フォームファクター（サイズW×D） mATX Form Factor
8.9 inch x 7.0 inch ( 22.6 cm x 17.8 cm )
その他 *1:Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
