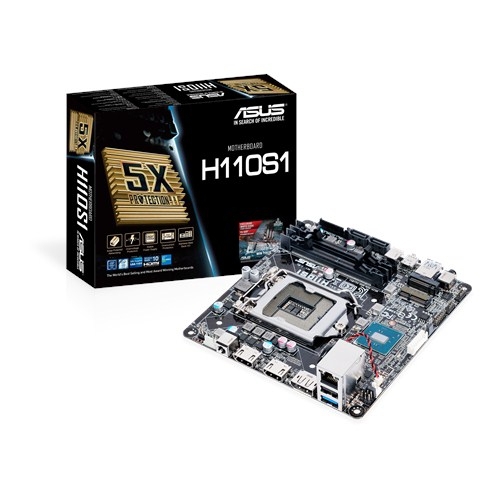

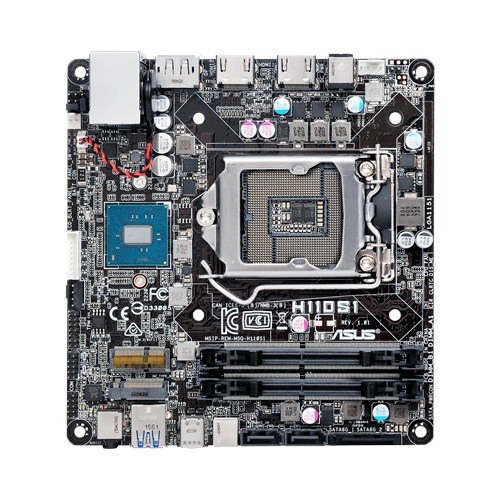

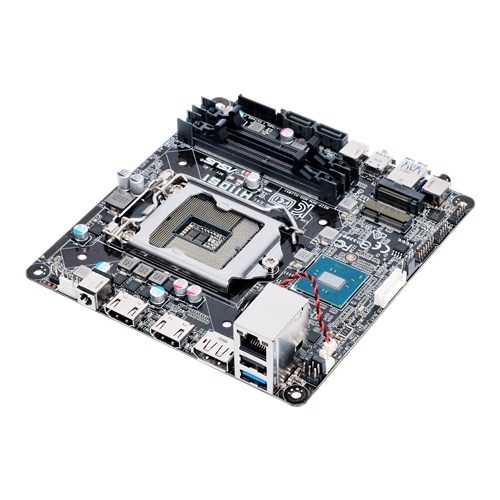

H110S1

H110S1

型番：ASU-H110S1

特徴

5X Protection II: Advanced hardware safeguards for all-round protection
High-speed memory: DDR4 compatibility

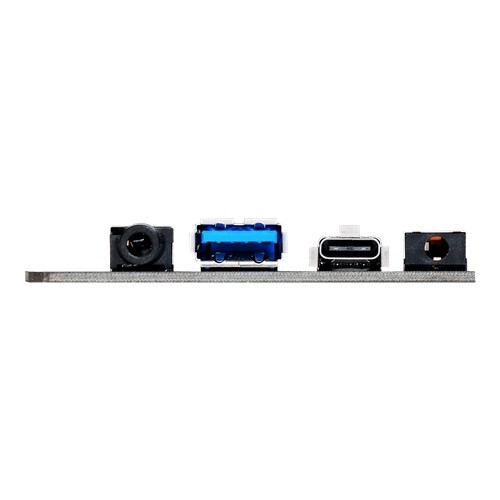

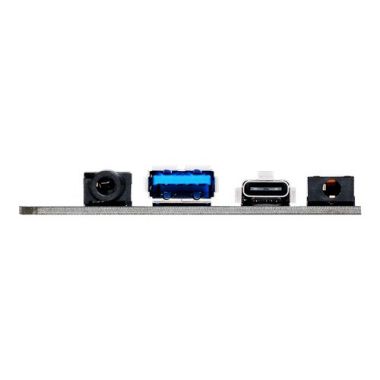

Future-proof: USB 3.0 Type-C connector
Supports multiple graphics outputs: DisplayPort, 2 x HDMI and LVDS
Fan Xpert: Dedicated CPU and case-fan controls



製品仕様

CPU Intel for 6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset Intel H110
Memory 2 x SO-DIMM, Max. 32GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
Graphic Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : Dual HDMI/LVDS/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports LVDS with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB
Supports up to 2 displays simultaneously
Storage Intel H110 chipset :
1 x M.2 Socket 3, with M key, type 2280 storage devices support (both SATA & PCIE mode)
2 x SATA 6Gb/s port(s)
LAN Intel I219V, 1 x Gigabit LAN
Audio Realtek ALC3236 4-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
USB Ports Intel H110 chipset :
1 x USB 3.0 port(s) (Type-C)
Intel H110 chipset :
2 x USB 3.0 port(s) (1 at back panel, )
Intel H110 chipset :
1 x USB 2.0 port(s) (1 at back panel, )
Special Features ASUS 5X Protection II :
- ASUS LANGuard - 2.5X higher surge tolerance
- ASUS Overvoltage Protection - World-class circuit-protecting power design
- ASUS DIGI+ VRM - 3 Phase digital power design
- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
100% All High-quality Conductive Polymer Capacitors
Media Streamer
Operating System Support Windows 10 , 64bit
Windows 8.1 , 64bit
Windows 7 , 32bit/64bit *1

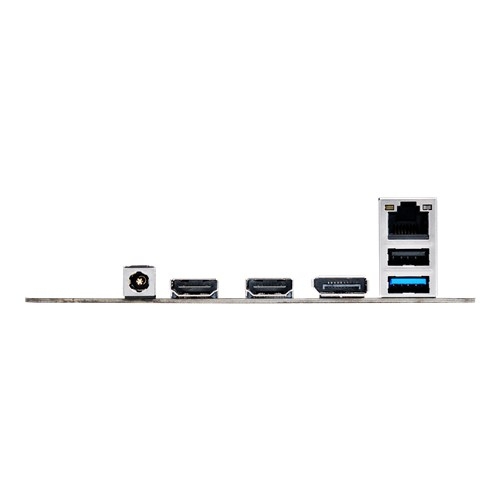

Back I/O Ports 1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.0 (blue)
1 x USB 2.0
1 x DC power connector(s)
Internal I/O Ports 1 x M.2 Socket 3 with M key, type 2280 storage devices support (both SATA & PCIE mode)
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
1 x SATA power connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x Clear CMOS jumper(s)
1 x Backlight inverter voltage selection header
1 x FPD brightness header
1 x Panel voltage selection header
1 x Panel off header
1 x LVDS connector(s)
1 x 14-1 pin TPM connector
1 x System panel connector
1 x M.2 Socket 1 with E key, type 2230 for Wi-Fi/BT devices support or PCIE/USB mode

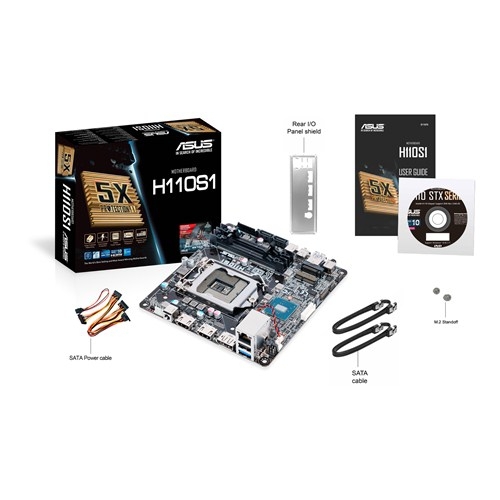

Accessories User's manual
I/O Shield
1 x SATA power cable
2 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package
1 x Supporting DVD
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3,CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function,F6 Qfan Control
Manageability WfM 2.0, DMI 3.0, WOL by PME
Support Disc Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)
Form Factor Mini STX Form Factor
5.8 inch x 5.5 inch ( 14.7 cm x 14 cm )
Note *1: Please refer to ASUS website and download “Windows 7 installation guide” and “ASUS EZ installer” to install Windows 7.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
