H110I-PLUS

H110I-PLUS

シンプルな構成で質実剛健なMini-ITXサイズのIntel H110マザーボード

型番：ASU-H110I-PLUS

メーカー製品ページ

特徴

- LGA1151対応
- Intel Core i7/i5/i3、Pentium、CeleronシリーズCPU対応
- Intel H110チップセット搭載
- DDR4メモリ×2枚（最大32GB）対応
- HDMI×1、DVI-D×1、D-Sub 15ピン×1
- PCIe 3.0 x16×1
- SATA 6Gb/s×4
- USB 3.0×4、USB 2.0×6
- 1000BASE-T×1
- デジタル電源回路「DIGI+ VRM」
- 省電力を実現する電力制御チップ「EPU」
- CPUファン＋ケースファンを細かく設定できる「Fan Xpert」
- USB 3.0をブーストする「USB 3.0 Boost」
- Mini-ITXフォームファクター

製品仕様

対応CPUIntel for 6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
搭載チップセット Intel H110
対応メモリ2 x DIMM, Max. 32GB, DDR4- 2133 MHz Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
グラフィックス機能Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/DVI-D/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Supports up to 2 displays simultaneously
拡張スロット1 x PCIe 3.0/2.0 x16
ストレージ機能Intel H110 chipset :
4 x SATA 6Gb/s port(s)
LAN機能Realtek RTL8111H, 1000BASE-T/100BASE-TX/10BASE-T×1
オーディオ機能Realtek ALC887 7.1-Channel High Definition Audio CODEC *1
- Supports : Jack-detection, Front Panel Jack-retasking
USB機能Intel H110 chipset :
4 x USB 3.0/2.0 port(s) (2 at back panel, blue, 2 at mid-board)
Intel H110 chipset :
6 x USB 2.0/1.1 port(s) (4 at back panel, , 2 at mid-board)
独自搭載機能ASUS 5X Protection II :
- ASUS LANGuard - 2.5X higher surge tolerance
- ASUS Overvoltage Protection - World-class circuit-protecting power design
- ASUS DIGI+ VRM - 6 Phase digital power design
- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Anti-Surge
- USB 3.0 Boost
- Mobo Connect
- PC Cleaner
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-DIMM
100% All High-quality Conductive Polymer Capacitors
Media Streamer
動作対応OSWindows 10 64ビット
Windows 8.1 64ビット
Windows 7 64ビット/32ビット *2

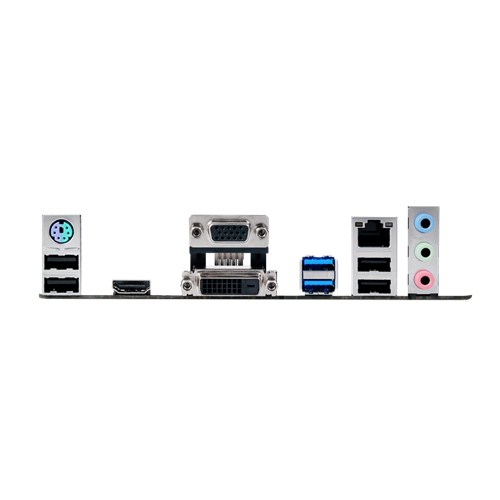

背面インターフェース1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0 (blue)
4 x USB 2.0
3 x Audio jack(s)
基板上インターフェース1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector

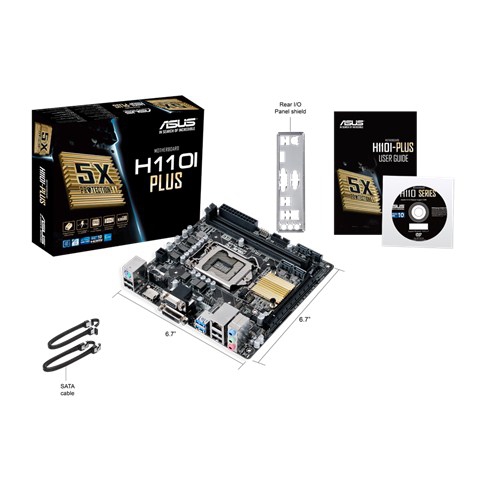

主な付属品User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
BIOS機能128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3,CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information
管理機能WfM 2.0, DMI 3.0, WOL by PME, PXE
サポートDVDの内容Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)
フォームファクター（サイズW×D）Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
その他*1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
*2: Please refer to ASUS website and download “Windows 7 installation guide” and “ASUS EZ installer” to install Windows 7.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
