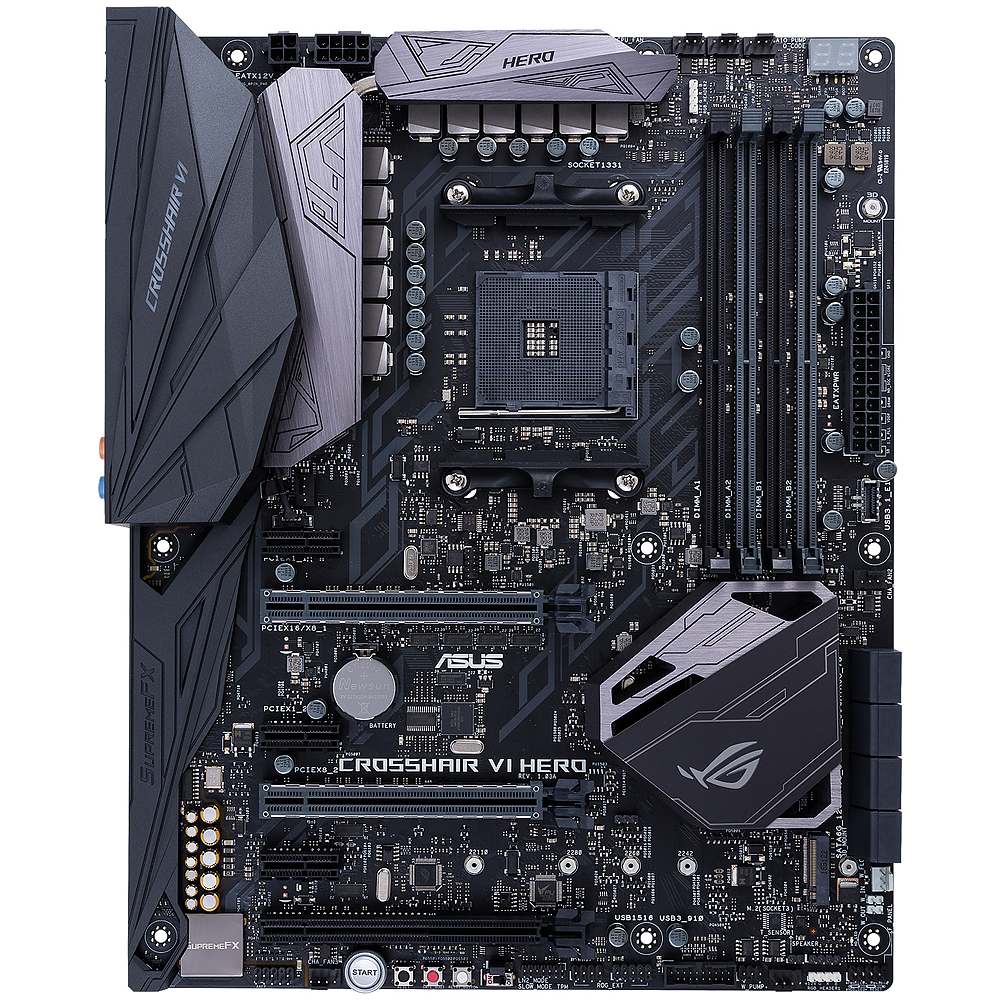

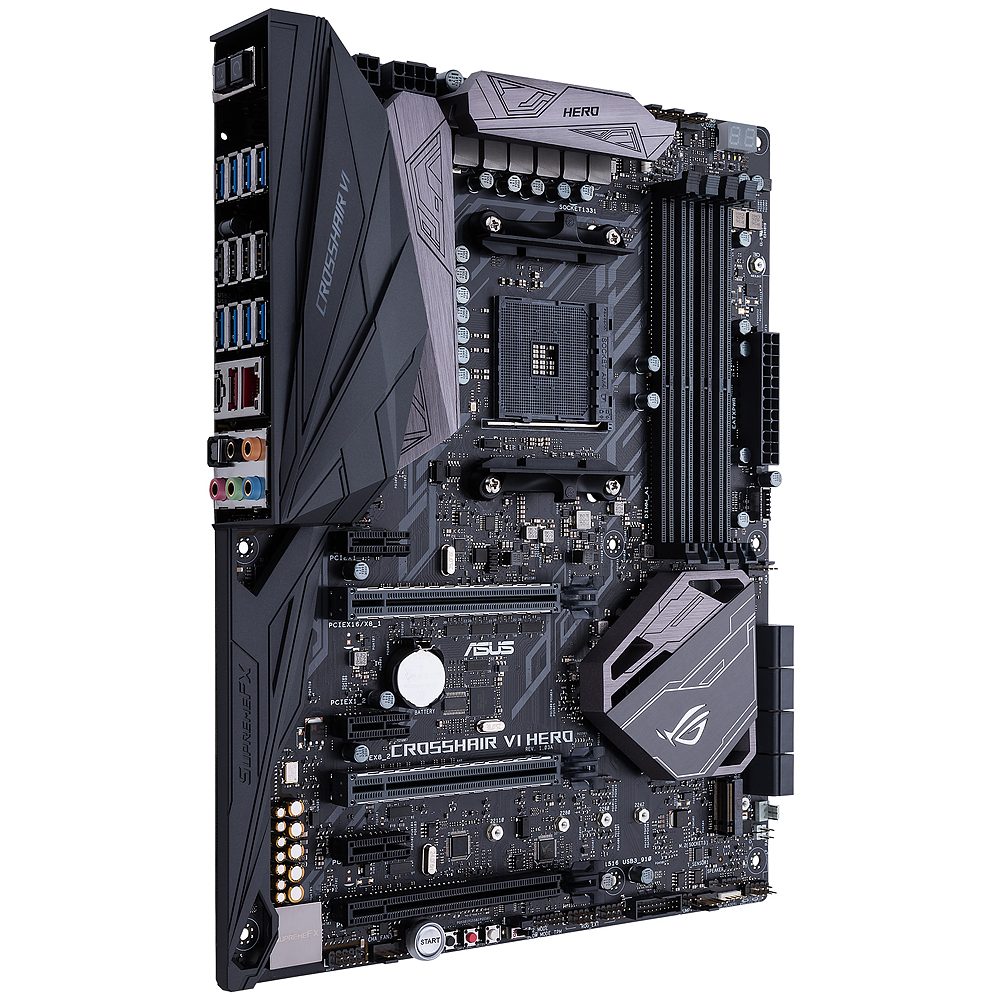

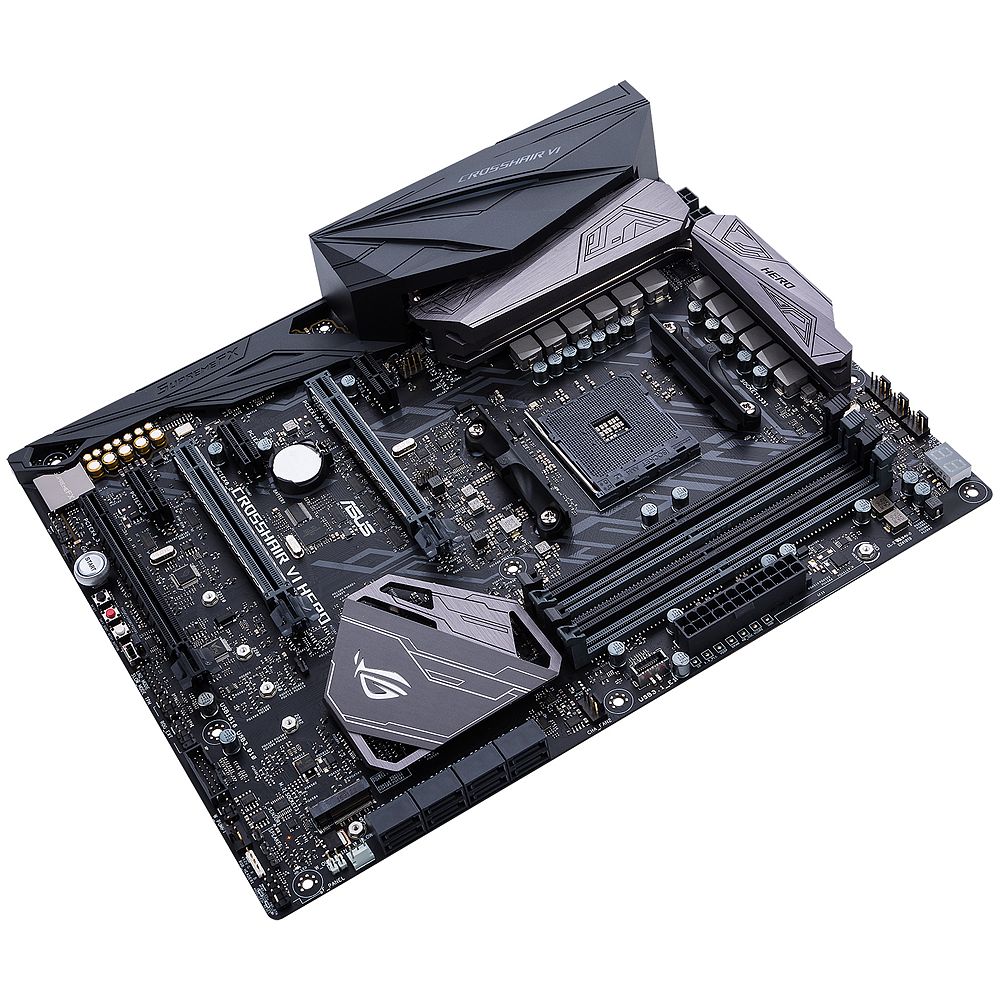

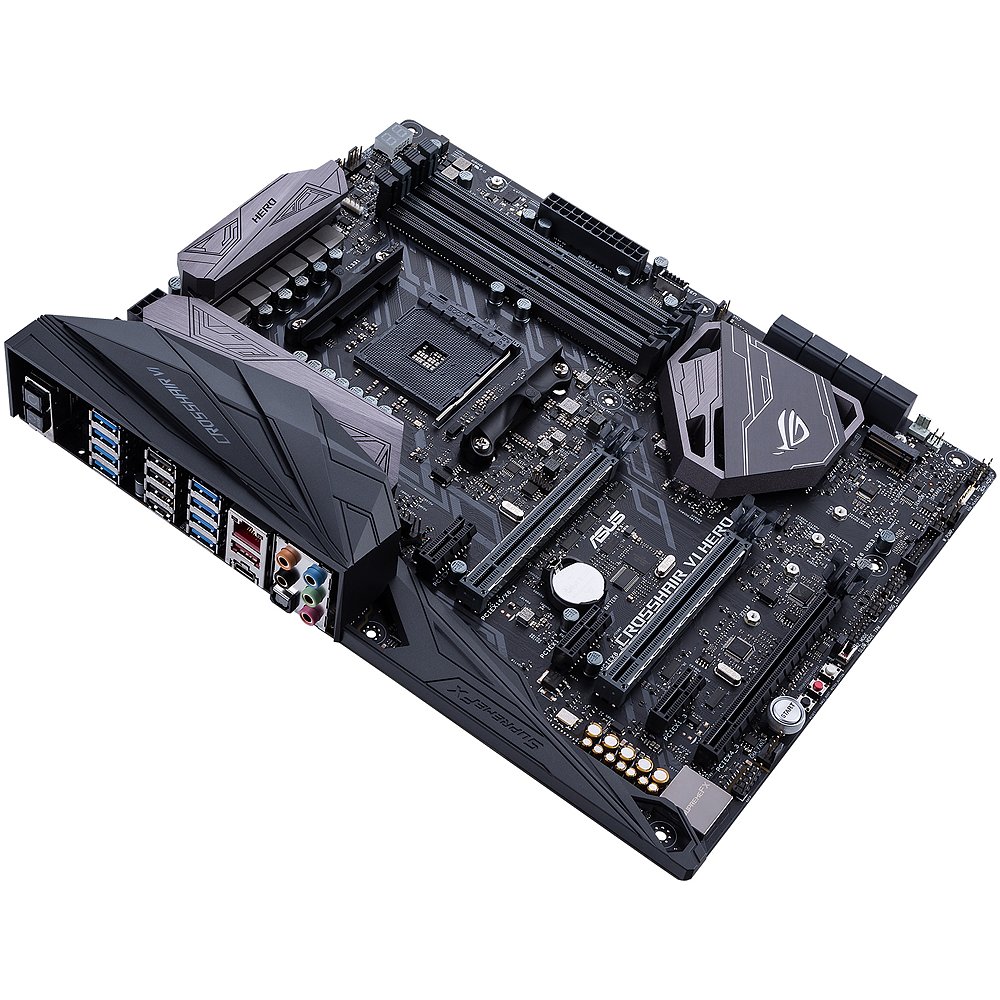

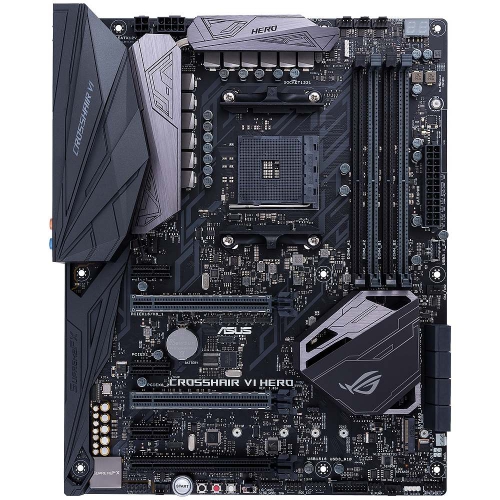

CPU AM4 socket for AMD? Ryzen?/7th Generation A-series/Athlon? Processors
Supports 14nm CPU
Chipset AMD? X370
Memory AMD Ryzen? Processors
4 x DIMM, max. 64GB, DDR4 2666/2400/2133 MHz, non-ECC, un-buffered memory*
AMD 7th Gen A-series/Athlon? Processors
4 x DIMM, max. 64GB, DDR4 2133 MHz, non-ECC, un-buffered memory*
Dual channel memory architecture
* Hyper DIMM support is subject to the physical characteristics of individual CPUs. Please refer to Memory QVL(Qualified Vendors List) for details.
Expansion Slots AMD Ryzen? Processors
- 2 x PCIe 3.0 x16 SafeSlots (supports x16, x8/x8)
AMD 7th Generation A-series/Athlon? Processors
- 1 x PCIe 3.0 x16 SafeSlot (supports x8)
AMD X370 chipset
- 1 x PCIe 2.0 x16 (max. at x4 mode)*
- 3 x PCIe 2.0 x1
* PCIeX4_3 slot shares bandwidth with PCIeX1_1, PCIeX1_2 and PCIeX1_3.
Multi-GPU Supports NVIDIA? 2-Way SLI? Technology
Supports AMD? CrossFireX? Technology
Storage AMD Ryzen? Processors
- 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD 7th Generation A-series/Athlon? Processors
- 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110(SATA mode) storage devices support
AMD X370 chipset with RAID 0, 1, 10 support
- 8 x SATA 6Gb/s ports
LAN Intel? Ethernet Controller I211-AT
Anti-surge LANGuard
ROG GameFirst IV
Audio ROG SupremeFX S1220 8-Channel high-definition CODEC
- Supports up to 32-Bit/192kHz playback*
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Impedance sense for front and rear headphone outputs
- ES9023P High Definition DAC
- SupremeFX Shielding Technology
- Jack-detection, Multi-streaming, and Front Panel Jack-retasking
- Optical S/PDIF out port at back panel
Audio Feature:
- Sonic Studio III
- Sonic Radar III
*Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio
USB AMD Ryzen? Processors
- 4 x USB 3.0 ports (4 ports at back panel[blue])
AMD X370 chipset:
- 1 x USB 3.1 front panel connector
- 6 x USB 3.0 ports (4 ports at back panel[blue], 2 ports at mid-board [grey])
- 6 x USB 2.0 ports (4 ports at back panel, 2 ports at mid-board [black])
ASMedia? USB 3.1 controller:
- 2 x USB 3.1 ports (2 ports at back panel, Type-A and Type-C)
ROG Exclusive Features Extreme Engine Digi+
- MicroFine Alloy Choke
- 10K Black Metallic Capacitors
Start Button
Reset Button
Safe Boot Button
Retry Button
BIOS Flashback Button
Clear CMOS Button
LN2 Mode
KeyBot II
- One-click overclocking
- DirectKey
- Power On
UEFI BIOS features :
- Extreme Tweaker
- Tweakers' Paradise
- ROG SSD Secure Erase
- O.C. Profile
- Graphics Card Information Preview
Special Features ASUS Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App
ASUS Exclusive Features
- AI Suite 3
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS C.P.R.(CPU Parameter Recall)
ASUS Q-Design
- SafeSlot
- Q-Code
- Q-Shield
- Q-Connector
- Q-LED (DRAM[yellow], CPU[red], VGA[white], Boot Device LED[green])

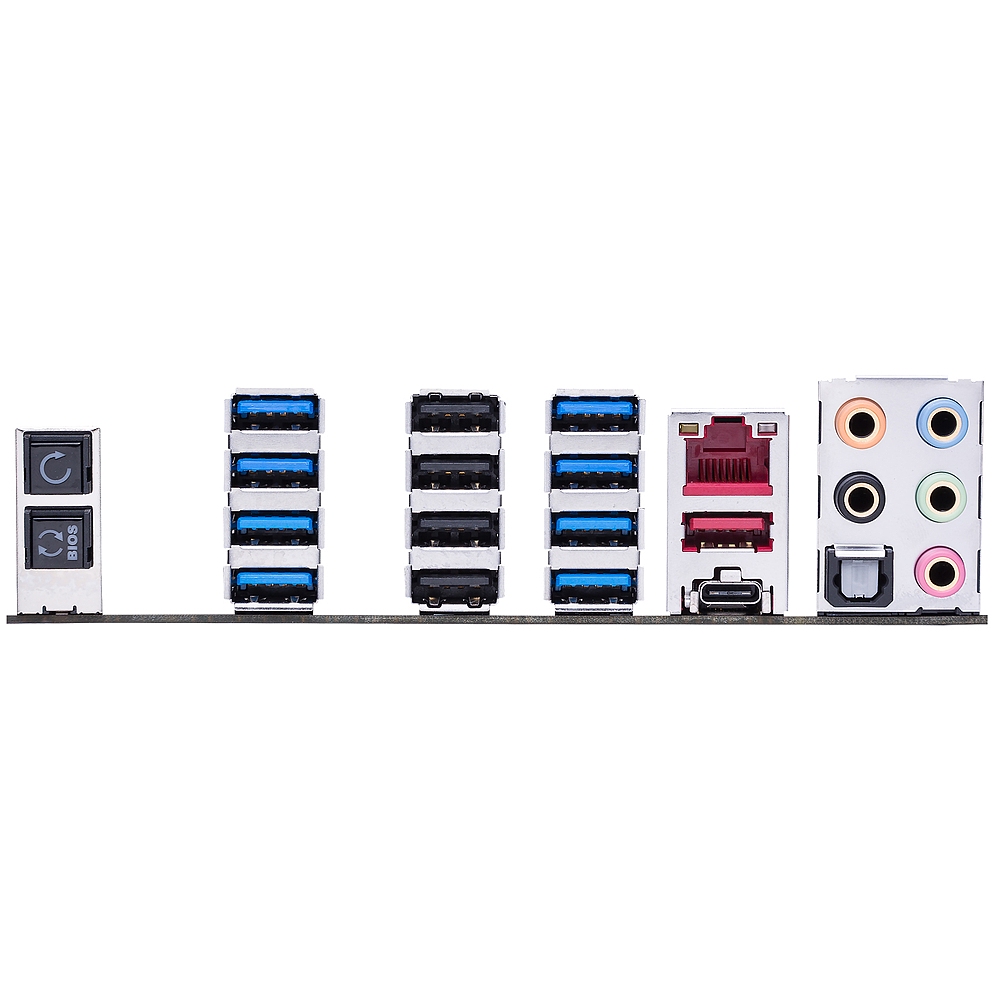

Back I/O Ports 1 x Clear CMOS button
1 x BIOS Flashback button
1 x M.2 Wi-Fi Slot
2 x USB 3.1 ports ( 1 x Type-C [black] and 1 x Type-A [red] )
8 x USB 3.0 ports [blue]
4 x USB 2.0 ports [black]
1 x Anti-surge LAN (RJ45) port
1 x Optical S/PDIF out
5 x Gold-plated audio jacks

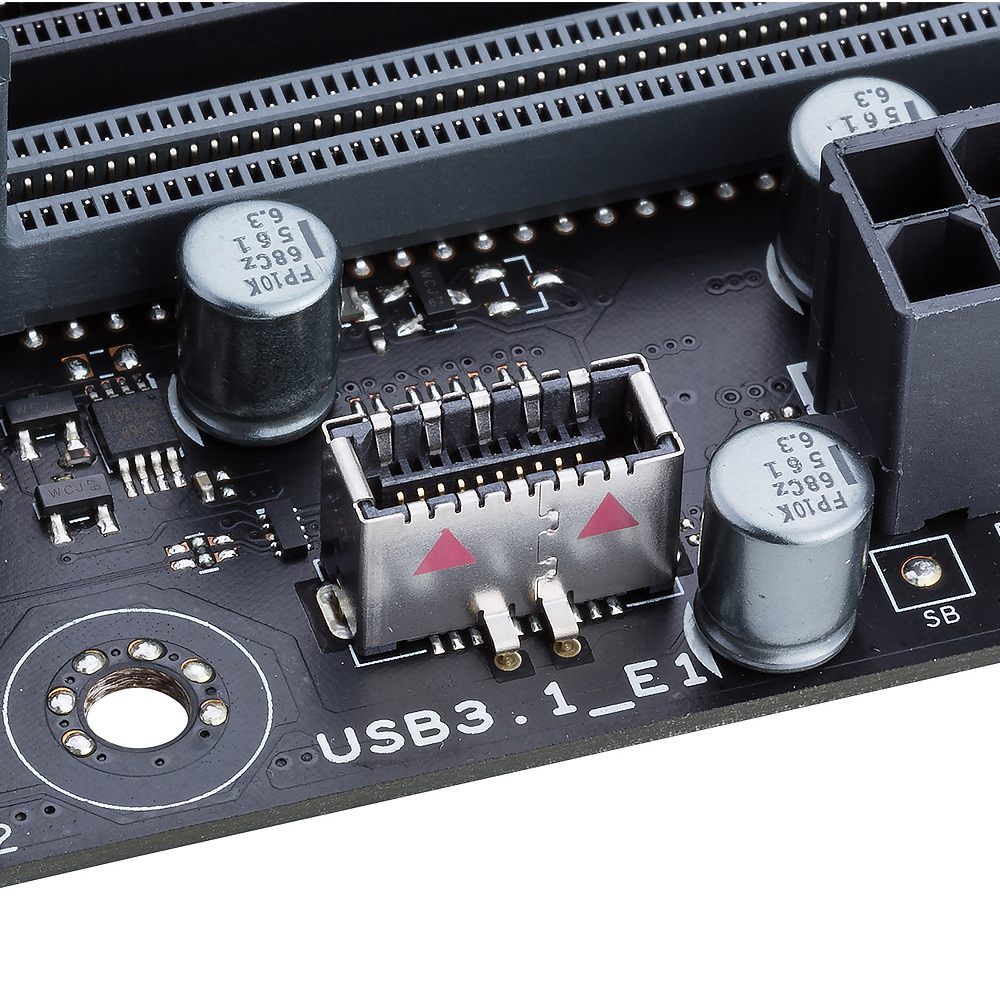

Internal connectors 1 x USB 3.1 front panel connector
1 x USB 3.0 header supports additional 2 USB 3.0 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports [ via ROG_EXT header ]
8 x SATA 6Gb/s connectors
1 x M.2 Socket 3 for M Key, type 2242/2260/2280/22110 storage devices support (Supports PCIE 3.0 x4 and SATA modes)
1 x ROG extension (ROG_EXT) header
1 x 4-Pin CPU fan connector
1 x 4-Pin CPU_OPT fan connector
1 x 4-Pin AIO_PUMP connector
1 x 4-Pin W_PUMP+ connector
1 x 3-Pin W_FLOW connector
1 x 2-Pin W_IN connector
1 x 2-Pin W_OUT connector
3 x 4-Pin Chassis fan connectors
1 x Thermal sensor connector
1 x 24-pin EATX power connector
1 x 8-pin EATX 12V power connector
1 x 4-pin EATX 12V power connector
1 x Start button
1 x Reset button
1 x Safe Boot button
1 x Retry button
1 x LN2 mode jumper
1 x Slow mode switch
1 x System panel connector
1 x Front panel audio connector (AAFP)
2 x Aura RGB Strip headers
1 x TPM connector
1 x Speaker Header
Accessory User guide
Support DVD
I/O Shield
1 x SLI? HB Bridge(2-way-M)
2 x 2-in-1 SATA 6Gb/s Cables
1 x Q-Connector
1 x M.2 Screw Package
1 x 3D Printing Mount Screw Package
1 x Extension Cable for RGB strips
1 x ROG Coaster
1 x 10-in-1 ROG cable label
1 x ROG sticker
BIOS "128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log,
F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information"
Manageability WfM 2.0, WOL by PME, PXE
Software Drivers
ROG GameFirst IV*
ROG MemTweakIt
ROG Keybot II
Kaspersky? Anti-Virus
DAEMON Tools Software
ASUS WebStorage
ASUS Utilities
*ROG GameFirst IV is only available for Windows 10/8.1 64-bit
Form Factor ATX Form Factor
12 inch x 9.6 inch (30.5cm x 24.4cm)
