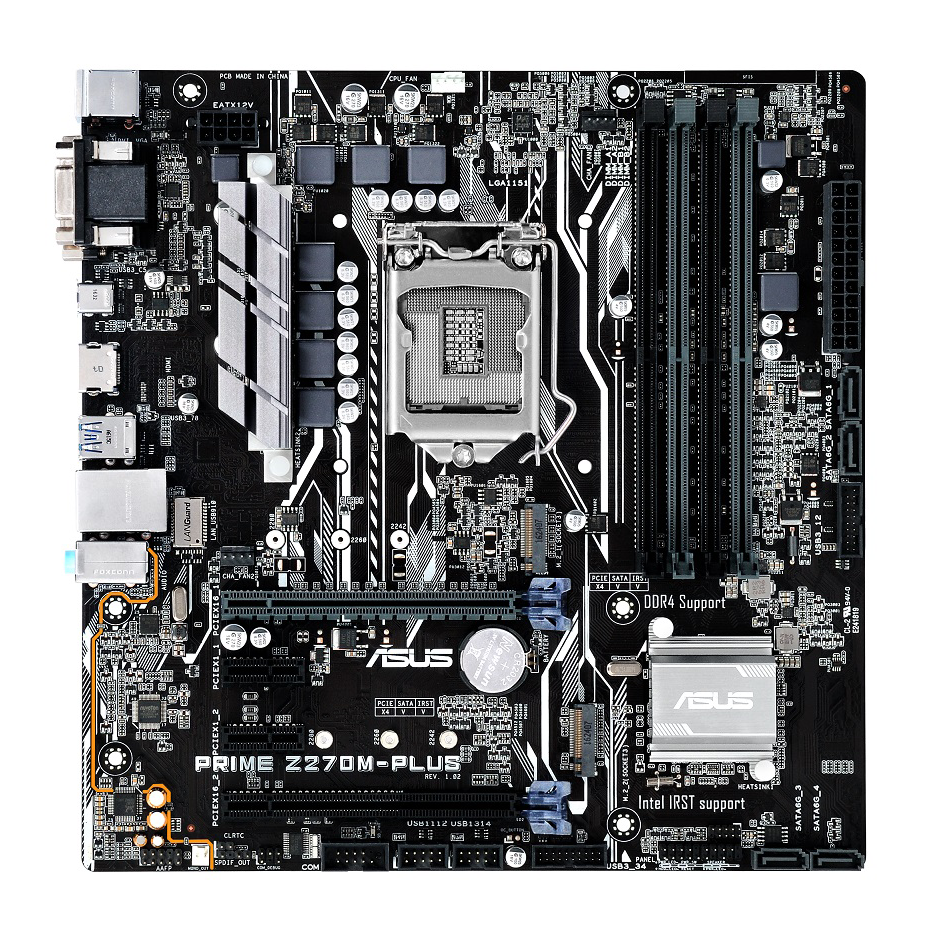

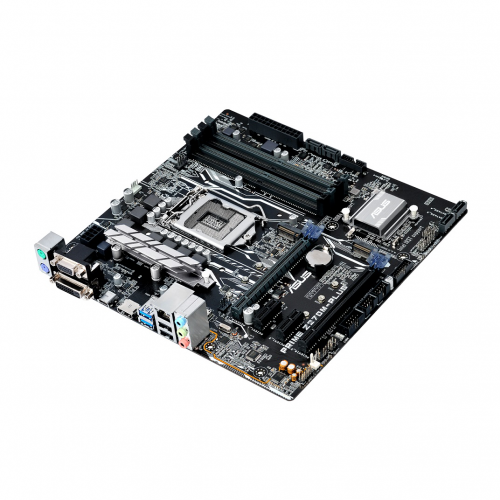

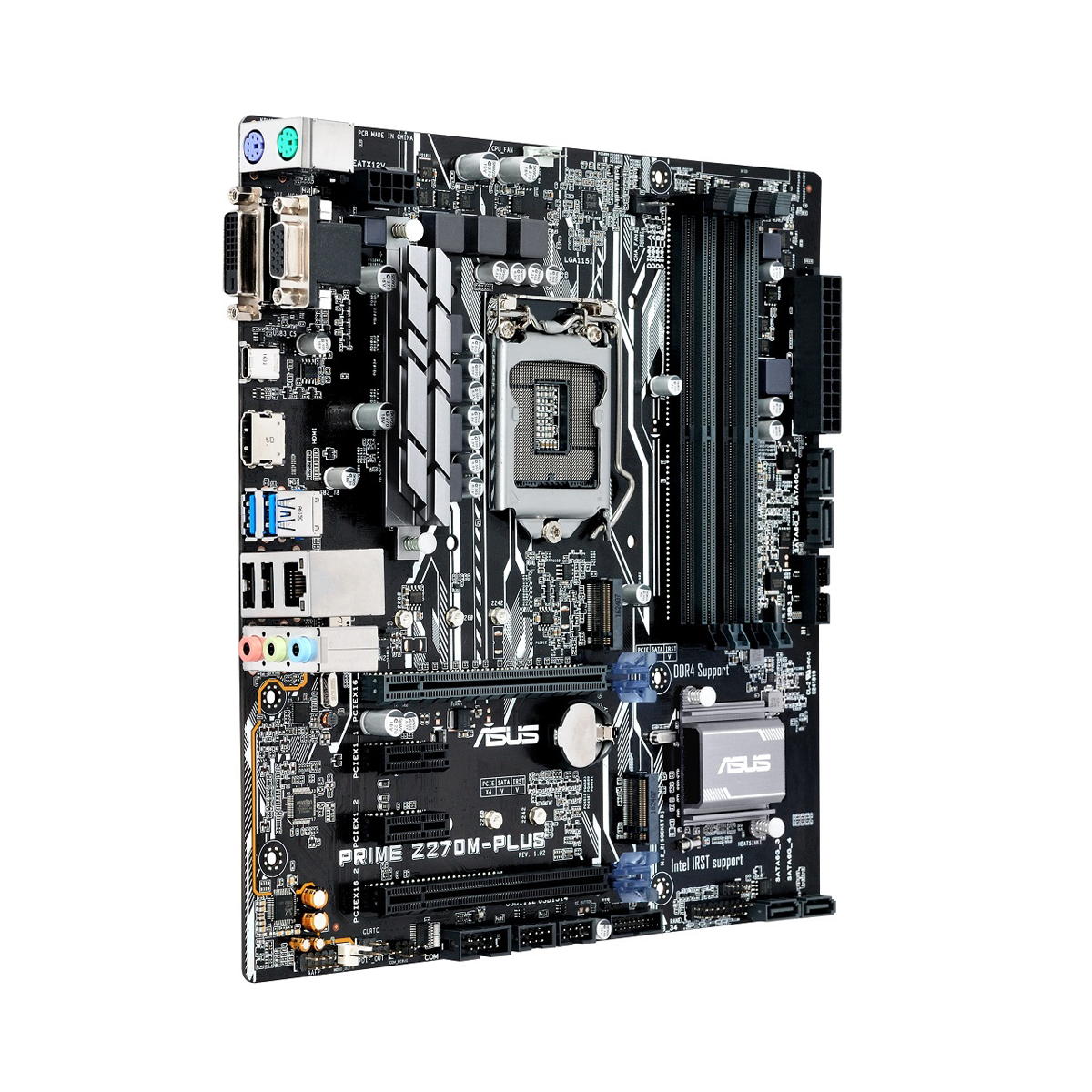

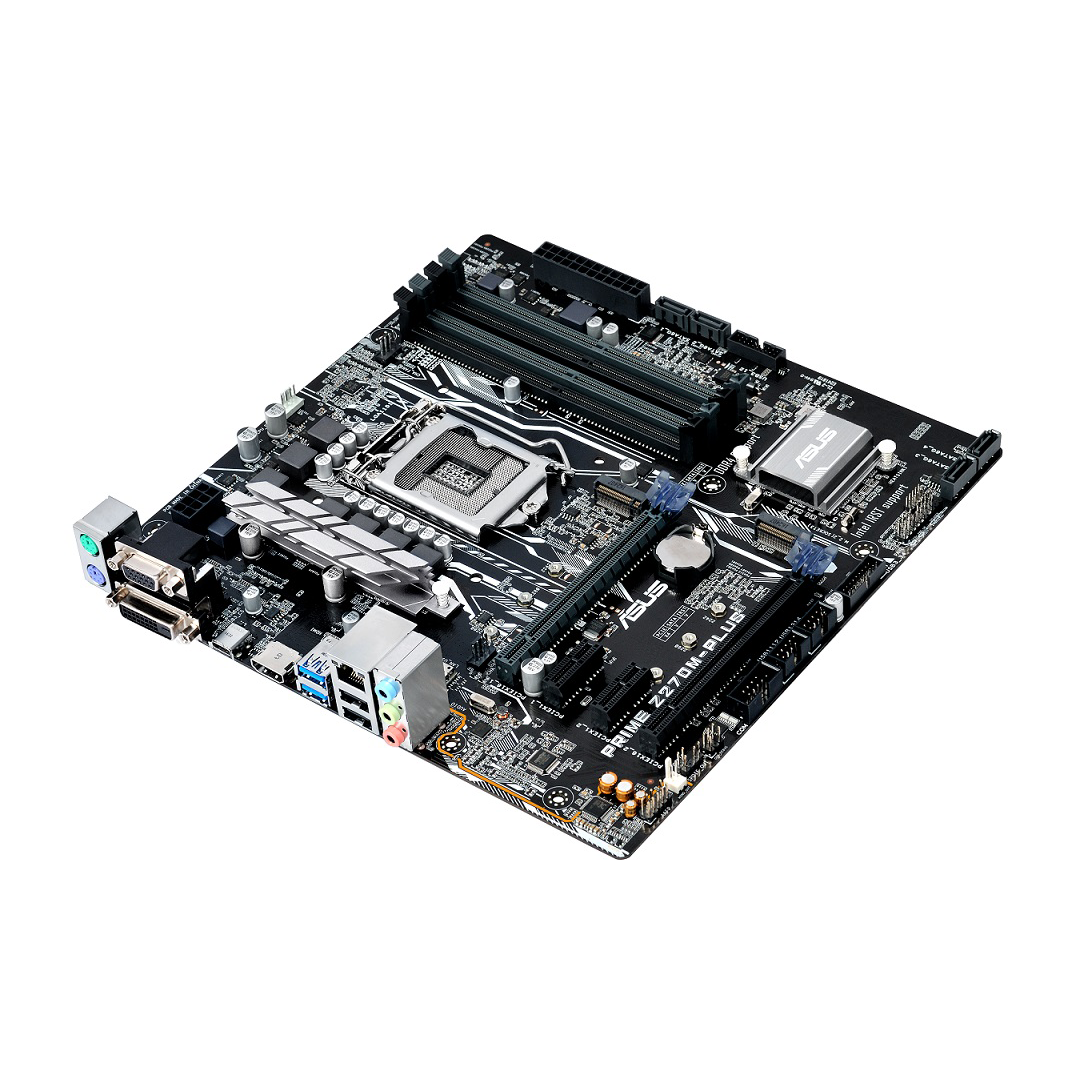

PRIME Z270M-PLUS

PRIME Z270M-PLUS

型番：ASU-PRIME/Z270M-PLUS

製品仕様

CPU LGA1151 socket for 7th/6th Generation Intel® Core™ i7/ i5/ i3/Pentium®/Celeron® Processors
Supports 14nm CPU
Supports Intel® Turbo Boost Technology 2.0*
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset Intel® Z270 Chipset
Memory 4 x DIMM, max. 64GB DDR4
3866(O.C.)*/ 3733(O.C.)*/ 3600(O.C.)*/ 3466(O.C.)*/ 3400(O.C.)*/ 3333(O.C.)*/ 3300(O.C.)*/ 3200(O.C.)*/ 3000(O.C.)*/ 2800(O.C.)*/ 2666(O.C.)*/ 2400(O.C.)*/ 2133 MHz Non-ECC, Un-buffered Memory
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
*The maximum memory frequency supported varies by processor
Expansion Slots 1 x PCI Express 3.0/2.0 x16 slot (at x16 mode)
1 x PCI Express 3.0/2.0 x16 slot (max. at x4 mode, compatible with PCIe x1, x2 and x4 devices)
2 x PCI Express 3.0/2.0 x1 slots
Multi-GPU Support Supports AMD® CrossFireX™ Technology
VGA Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support: HDMI/DVI-D/RGB port
 - Supports HDMI 1.4b with max. resolution 4096 x 2160@24Hz / 2560 x 1600@60Hz
 - Supports DVI-D with max. resolution of 1920 x 1200@60Hz
 - Supports RGB with max. resolution 1920 x 1200@60Hz
Supports Intel® InTru™ 3D/Quick Sync Video/Clear Video HD Technology/Insider™
Supports up to 3 displays simultaneously
Maximum shared memory of 1024MB(for iGPU exclusively)
Storage Intel® Z270 Chipset with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology 15 support
 - 2 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)*
 - 4 x SATA 6.0 Gb/s ports
 - Intel® Optane™  Memory Ready**
 - Supports Intel® Smart Response Technology***
* When a device in SATA mode is installed on the M.2_1 socket, SATA_1 port cannot be used.
** Intel® Optane Technology is only supported when using 7th Generation Intel® processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.
*** These functions will work depending on the CPU installed.
LAN Intel® I219-V Gigabit LAN
- Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)
Audio Realtek® ALC887 8-channel high definition audio CODEC
 - Audio Shielding: Ensures precision analog/digital separation and greatly reduces multi-lateral interference
 - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
 - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity.
 - Supports jack-detection and front panel jack-retasking
USB Intel® Z270 Chipset
 - 1 x 5Gb/s USB Type C port (@back panel), supports 3A power output
 - 6 x USB 3.0/2.0 ports (4 ports @mid-board; 2 ports @back panel)
 - 6 x USB 2.0/1.1 ports (4 ports @mid-board; 2 ports @back panel)

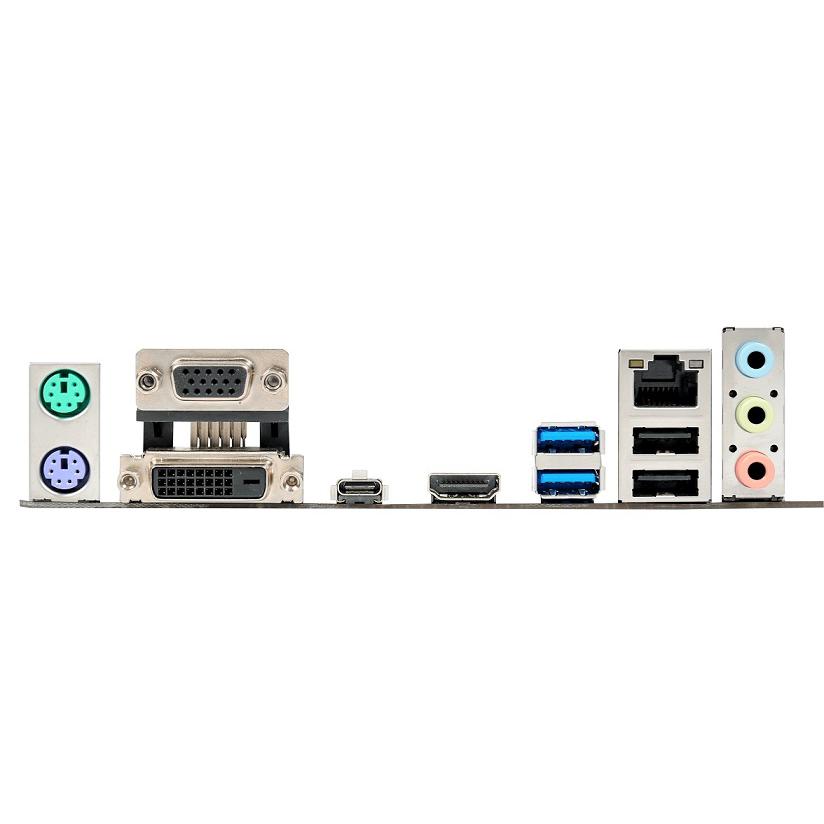

Back Panel I/O Ports 1 x PS/2 keyboard port(purple)
1 x PS/2 mouse port(green)
1 x HDMI port
1 x DVI-D port
1 x RGB port
1 x LAN (RJ45) ports
2 x USB 3.0/2.0 ports (teal blue, Type A)
1 x 5Gb/s USB Type C port
2 x USB 2.0/1.1 ports
3-Jack 8-Channel Audio I/O ports
Internal I/O Connectors 2 x USB 3.0/2.0 connectors support additional 4 USB ports (19-pin)
2 x USB 2.0/1/1 connectors support additional 4 USB ports
4 x SATA 6.0 Gb/s connectors (gray)
2 x M.2 Socket 3 (for M Key)
1 x 4-pin CPU Fan connector for both 3-pin (DC mode) and 4-pin (PWM mode) CPU coolers control*
2 x 4-pin Chassis Fan connectors for 3-pin (DC mode) and 4-pin (PWM mode) coolers control
1 x Front panel audio connector (AAFP)
1 x System panel connector
1 x S/PDIF out header
1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
1 x COM header
1 x Mono out header
1 x Clear CMOS jumper
* By default,the CPU Q-Fan and the CHA FAN control setting is set as default in Auto mode for detecting the type of CPU fan installed and switches to the control mode automatically.
BIOS  128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen,  and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability WfM 2.0, DMI 3.0, WOL by PME, PXE
Accessories 2 x Serial ATA 6.0Gb/s cables
1 x I/O Shield
2 x M.2 screws
1 x Support DVD
1 x User's manual
Operating System Support Windows® 10 64-bit
Windows® 8.1 64-bit*
Windows® 7(64-bit/32-bit)*
*Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors
Form Factor mATX form factor: 9.6 in. x 9.4 in. (24.38c cm x 23.88cm)

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
