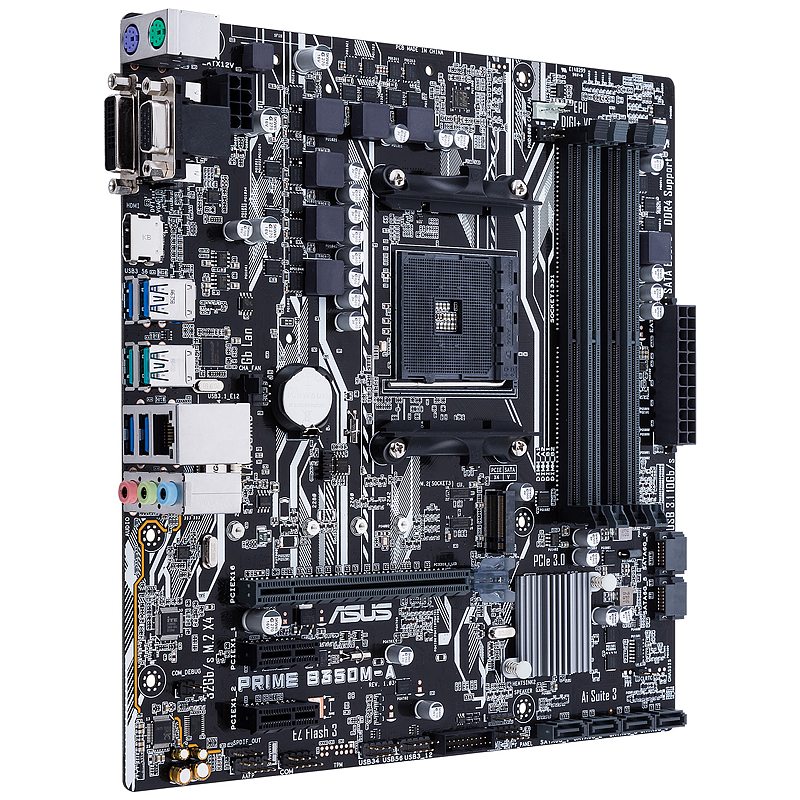

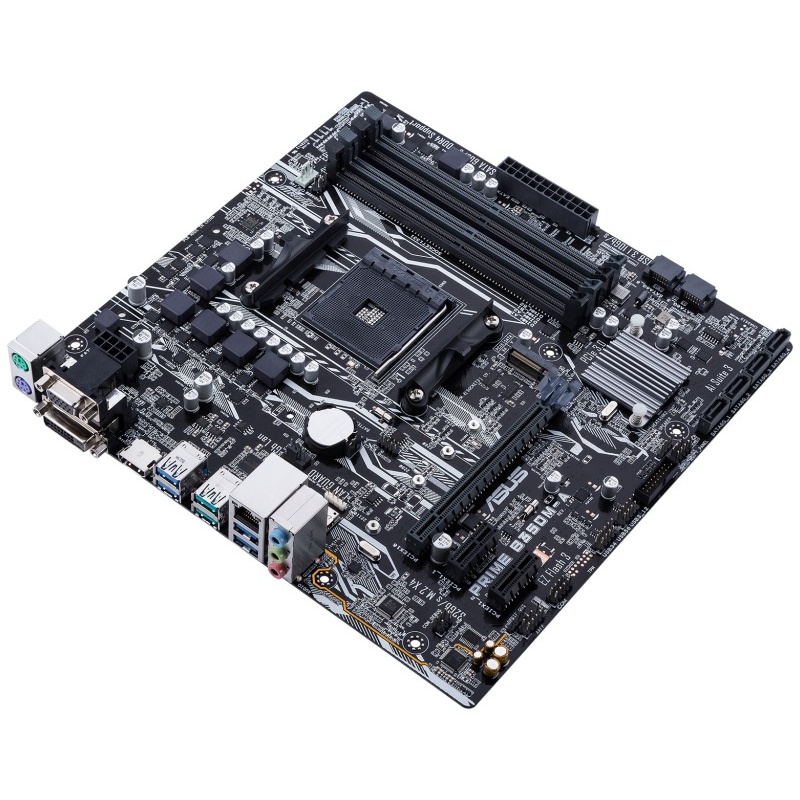

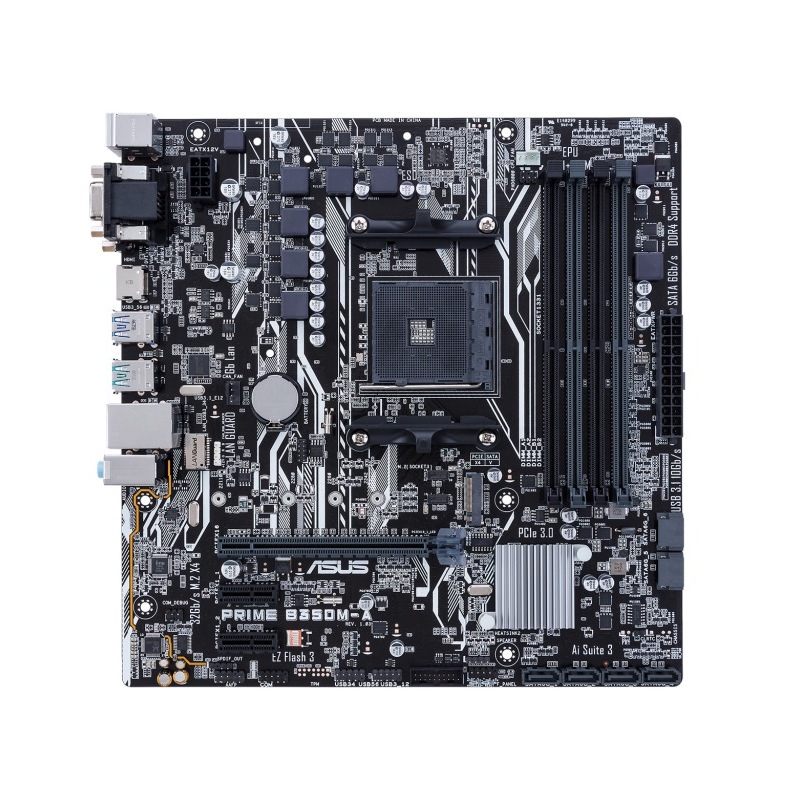

PRIME B350M-A

PRIME B350M-A

型番：ASU-PRIME/B350M-A

特徴





製品仕様

CPU AM4 socket for AMD Ryzen?/7th Generation A-series/Athlon? Processors
Supports CPU up to 8 cores*
* Due to CPU limitation, CPU cores supported varies by processor.
Chipset AMD B350 Chipset
Memory AMD Ryzen? Processors
4 x DIMMs, max. 64GB, DDR4 2666/2400/2133 MHz,ECC and non-ECC, un-buffered memory
AMD 7th Generation A-series/Athlon? Processors
4 x DIMMs, max. 64GB, DDR4 2400/2133 MHz, non-ECC un-buffered memory
Dual Channel memory architecture
Expansion Slots AMD Ryzen? Processors
"1 x PCI Express 3.0/2.0 x16 slot(max.@x16 mode)

"
AMD 7th Generation A-series/Athlon? Processors
1 x PCI Express 3.0/2.0 x16 slot(max.@x8 mode)
AMD?B350 Chipset:
2 x PCI Express 2.0 x1 slots
VGA Integrated AMD Radeon? R Series Graphics in the 7th Generation A-Series APU
Multi-VGA output support: HDMI, DVI-D, D-Sub port
- Supports HDMI 1.4b with max. resolution 4096 x 2160@24Hz / 2560 x 1600@60Hz
- Supports DVI-D with max. resolution up to 1920 x 1200 @60Hz
- Supports D-Sub with max. resolution up to 1920 x 1200 @60Hz
- Maximum shared memory of 2048 MB
Storage - 6 x Serial ATA 6.0 Gb/s connectors with RAID 0, RAID 1 and RAID 10 support
AMD Ryzen? Processors
- 1 x M.2 socket 3 with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes)storage devices support*C33*When a SATA / PCIE mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports
*When a SATA / PCIE mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports
AMD 7th Generation A-series/Athlon? Processors
- 1 x M.2 socket 3 with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x2 and SATA modes)storage devices support*C33*When a SATA / PCIE mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports
*When a SATA mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports
LAN Realtek? 8111H Gigabit LAN Controller
Audio Realtek? ALC 887-VD2 8-Channel High Definition Audio CODEC
*Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
USB ASMedia USB 3.1 controllers:
- 2 x USB 3.1 ports (2 ports at back)
AMD Ryzen?/7th Generation A-series/Athlon? Processors
- 4 x USB 3.0 ports (4 ports at back panel)
AMD?B350 Chipset:
- 2 x USB 3.0/2.0 ports ( 2 ports at mid-board)
- 4 x USB 2.0/1.1 ports ( 4 ports at mid-board)
ASUS Unique Features Dependable Stability
ASUS 5X PROTECTION III
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
Superb performance
UEFI BIOS
- Most advanced options with fast response time
Easy PC DIY
Safe motherboard mounting
- Component-free areas to minimize damage risk
Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
UEFI BIOS EZ Mode
- featuring friendly graphics user interface
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Quiet Thermal Solution Quiet Thermal Design:
- Stylish Fanless Design: Chipset Heat-sink
- ASUS Fan Xpert

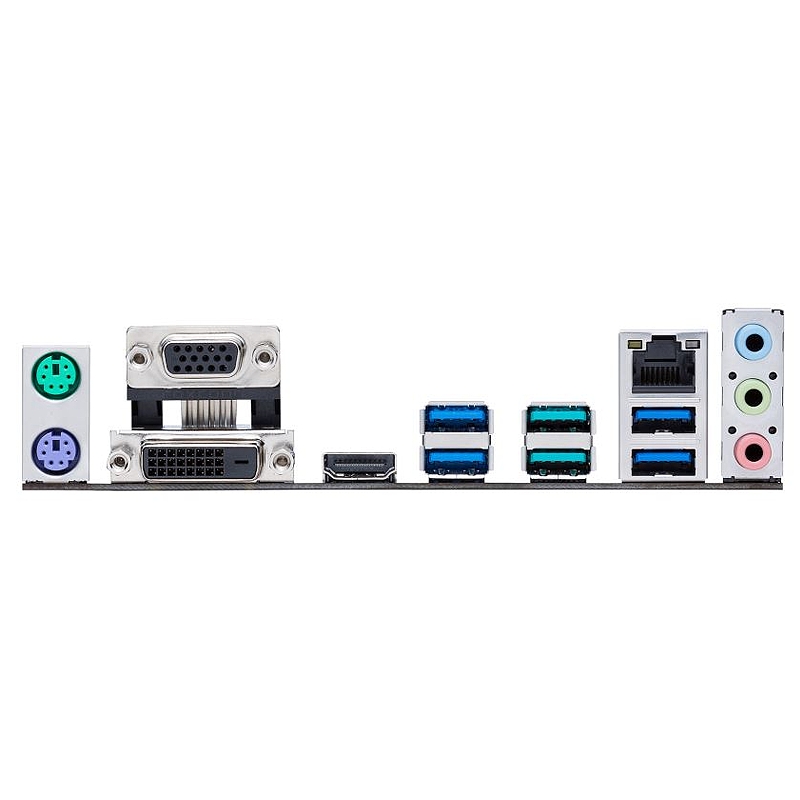

Back Panel I/O Ports 1 x PS/2 keyboard (purple)
1 x PS/2 mouse port (green)
1 x HDMI port
1 x DVI-D port
1 x D-Sub port
1 x LAN (RJ-45) port
2 x USB 3.1 ports
4 x USB 3.0/2.0 ports
3 x Audio jacks support 8-channel audio output
1 x USB 3.0 connector supports additional 2 USB 3.0 ports
Internal I/O Connectors 2 x USB 2.0/1.1 connectors support additional 4 USB 2.0/1.1 ports
6 x SATA 6.0Gb/s connectors
1 x M.2 Socket 3 for M Key, type 2242/2260/2280/22110 devices,(both SATA & PCIE mode)
1 x COM connector
1 x CPU Fan connector
1 x Fan RGB header
1 x Chassis Fan connector (Support DC & PWM mode)
1 x Front panel audio connector
1 x 24-pin EATX Power connector
1 x 8-pin ATX 12V Power connector
1 x 2-pin Clear CMOS
1 x System Panel connector
1 x Speaker connector
1 x S/PDIF out header
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
Manageability WfM 2.0, DMI 3.0, WOL by PME, PXE
Accessories 2 x Serial ATA 6.0Gb/s cables
1 x I/O shield
1 x M.2 screw package
1 x User's manual
Support DVD Drivers
ASUS Utilities
ASUS Update
Anti-virus software (OEM version)
Operating System Support Windows? 10 (64-bit)
Form Factor uATX Form Factor, 9.6" x 9.45" (24.4 cm x 24 cm)

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
