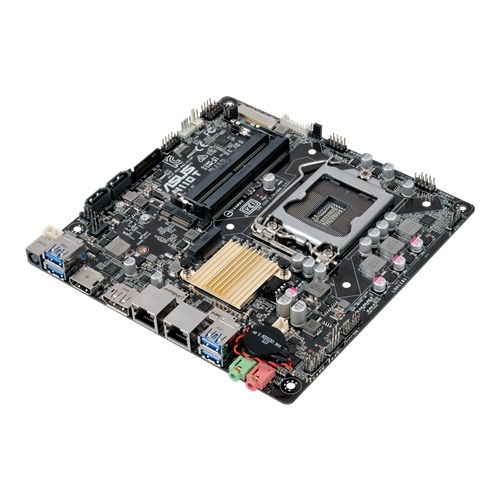

H110T

H110T

型番：ASU-H110T

特徴

- LGA1151対応
- Intel Core i7/i5/i3、Pentium、CeleronシリーズCPU対応
- Intel H110チップセット搭載
- DDR4メモリ×2枚（最大32GB）対応
- DisplayPort×1、HDMI×1、LVDS×1
- SATA 6Gb/s×2、M.2×1
- USB 3.0×4、USB 2.0×5
- 1000BASE-T×2
- デジタル電源回路「DIGI+ VRM」
- CPUファン＋ケースファンを細かく設定できる「Fan Xpert」
- Mini-ITXフォームファクター（Thin Mini-ITX）

製品仕様

対応CPUIntel for 6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
搭載チップセット Intel H110
対応メモリ2 x SO-DIMM, Max. 32GB, DDR4- 2133 MHz Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
グラフィックス機能Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/LVDS/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports LVDS with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB
Supports up to 2 displays simultaneously
ストレージ機能Intel H110 chipset :
1 x M.2 Socket 3, with M key, type 2242/2260 storage devices support (both SATA & PCIE mode)
2 x SATA 6Gb/s port(s)
LAN機能Realtek RTL8111H, 1000BASE-T/100BASE-TX/10BASE-T×1
Intel I219V, 1 x 1000BASE-T/100BASE-TX/10BASE-T LAN
オーディオ機能Realtek ALC887 7.1-Channel High Definition Audio CODEC *1
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
USB機能Intel H110 chipset :
4 x USB 3.0/2.0 port(s) (4 at back panel, blue)
Intel H110 chipset :
5 x USB 2.0/1.1 port(s) (5 at mid-board)
独自機能ASUS 5X Protection II :
- ASUS LANGuard - 2.5X higher surge tolerance
- ASUS Overvoltage Protection - World-class circuit-protecting power design
- ASUS DIGI+ VRM - 3 Phase digital power design
- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Mobo Connect
- PC Cleaner
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
100% All High-quality Conductive Polymer Capacitors
Media Streamer
動作対応OSWindows 10 64ビット
Windows 8.1 64ビット
Windows 7 64ビット/32ビット *2

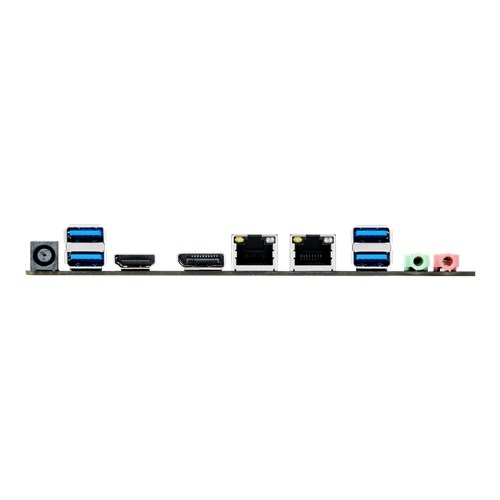

背面インターフェース1 x DisplayPort
1 x HDMI
2 x LAN (RJ45) port(s)
4 x USB 3.0 (blue)
2 x Audio jack(s)
1 x DC power connector(s)

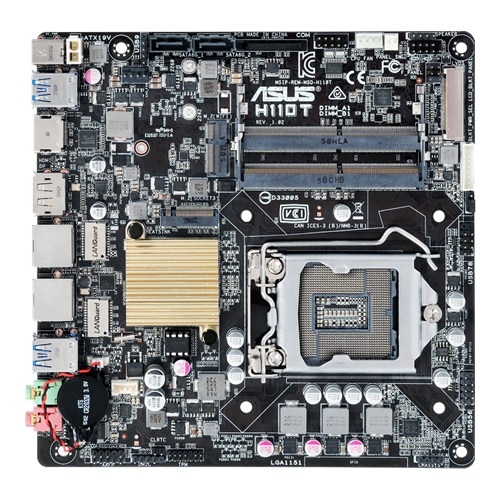

基板上インターフェース3 x USB 2.0 connector(s) support(s) additional 5 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260 storage devices support (both SATA & PCIE mode)
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
1 x SATA power connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s) ()
1 x Front panel audio connector(s) (AAFP)
1 x Chassis Intrusion connector(s)
1 x Clear CMOS jumper(s)
1 x 2-pin internal DC power connector
1 x Stereo speaker connector
1 x DMIC header
1 x Backlight inverter voltage selection header
1 x FPD brightness header
1 x Panel voltage selection header
1 x Panel off header
1 x LVDS connector(s)
1 x 14-1 pin TPM connector
1 x System panel connector
1 x M.2 Socket 1 with E key, type 2230 for Wi-Fi/BT devices support or PCIE/USB mode

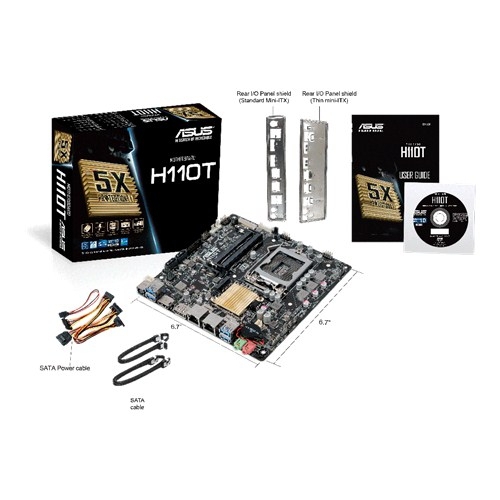

主な付属品User's manual
I/O Shield
Thin Mini ITX I/O Shield
1 x SATA power cable
2 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package
1 x Supporting DVD
BIOS機能128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3,CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function,F6 Qfan Control
管理機能WfM 2.0, DMI 3.0, WOL by PME
サポートDVDの内容Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)
フォームファクター（サイズW×D）Thin Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
その他*1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
*2: Please refer to ASUS website and download “Windows 7 installation guide” and “ASUS EZ installer” to install Windows 7.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
