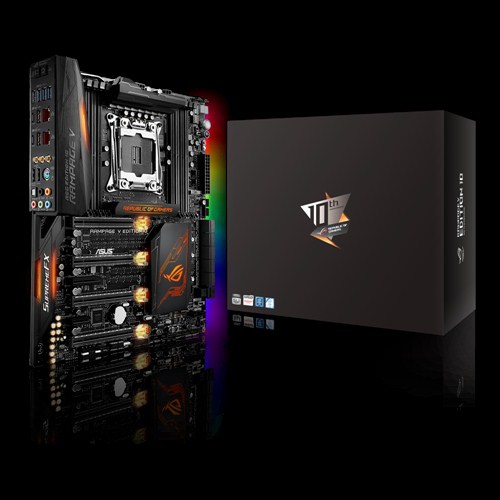

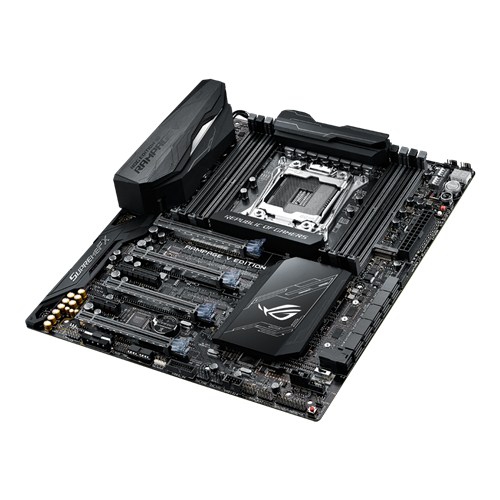

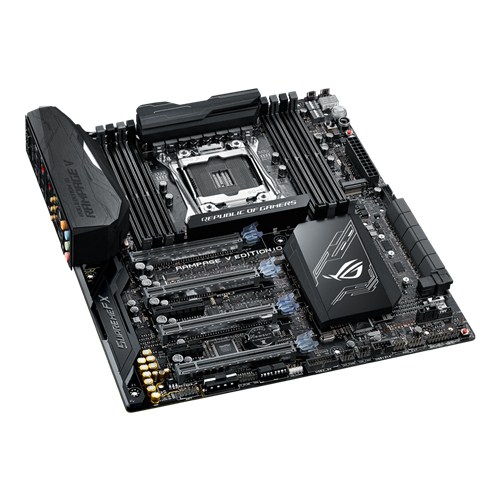

ROG RAMPAGE V EDITION 10

ROG RAMPAGE V EDITION 10

R.O.G.シリーズ10周年記念モデル、オーバークロッカーとゲーマーのための究極のIntel X99搭載ExtendedATXマザーボード

型番：ASU-RAMPAGE/V/EDITION/10

メーカー製品ページ

特徴

- LGA2011-v3対応
- Intel Core i7シリーズCPU対応
- Intel X99チップセット搭載
- DDR4メモリ×8枚（最大128GB）対応
- PCIe 3.0 x16×4、PCIe 2.0 x4×1、PCIe 2,0 x1×1
- SATA 6Gb/s×10、M.2×1、U.2×1
- USB 3.1 Type-A×2、USB 3.1 Type-C×2、USB 3.0×8、USB 2.0×6
- 1000BASE-T×2、IEEE802.11ac/n/a/g/b
- Bluetooth 4.0

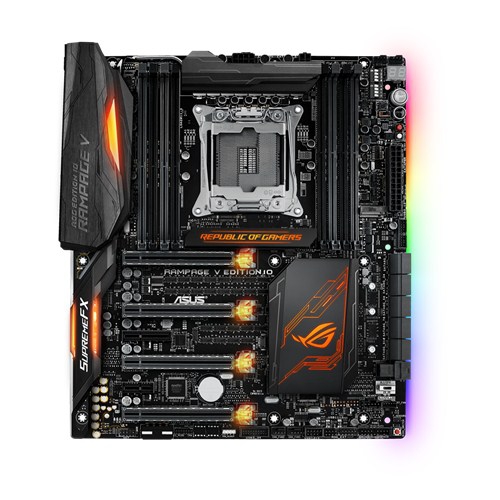

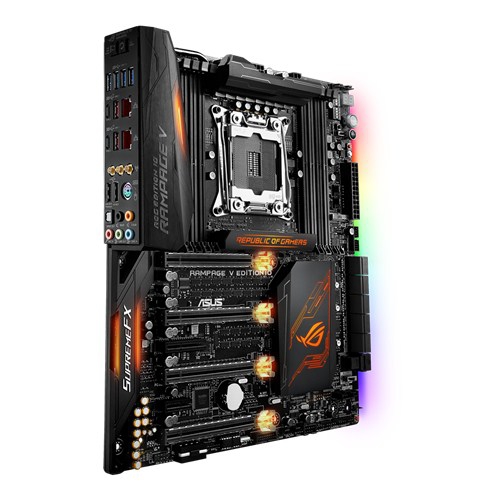

- LEDでマザーボードを鮮やかに光らせる「ROG Aura」機能を搭載
- ゲームを高音質で楽しめるUSB DACの「SupremeFX Hi-Fi」を付属
- ゲーム用の「SupremeFX」オーディオ機能をオンボード搭載
- 安定性を高めたLGA2011-v3完全互換の独自ソケット「OC Socket」を搭載
- デジタル電源回路「Extreme Engine Digi+」
- オーバークロック専用チップの「TPU」を搭載
- 省電力を実現する電力制御チップの「EPU」を搭載
- ネットワークゲームの通信優先度を高める「GameFirst IV」機能を搭載
- 業界最高水準の高性能ファンコントロール機能「Fan Xpert 4」を搭載
- 重いカードも安心な高耐久PCI Expressスロット「SafeSlot」を搭載
- USB 3.1の速度を上げる「USB 3.1 Boost」機能を搭載
- ExtendedATXフォームファクター

製品仕様

対応CPUIntel Socket 2011-v3 Core i7 X-Series Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Max Technology 3.0
搭載チップセット Intel X99
対応メモリ8 x DIMM, Max. 128GB, DDR4- 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133(O.C.) MHz Non-ECC, Un-buffered Memory
Quad Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
マルチGPU対応Supports NVIDIA 4-Way SLI Technology *1
Supports NVIDIA 3-Way SLI Technology
Supports NVIDIA 2-Way SLI Technology
Supports AMD 4-Way CrossFireX Technology *1
Supports AMD 3-Way CrossFireX Technology
Supports AMD 2-Way CrossFireX Technology
拡張スロット4 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x8/x8, x16/x8/x8/x8 or x8/x8/x8/x8 mode with 40-LANE CPU; x16, x8/x8 or x8/x8/x8 mode with 28-LANE CPU) *2
1 x PCIe 2.0 x4 *3
1 x PCIe 2.0 x1
ストレージ機能New Intel Core i7 X-Series Processors :
1 x M.2 Socket 3, with M Key, type 2260/2280/22110 storage devices support ( Supports PCIE SSDs only)*4
1 x U.2 port, support PCIe 3.0 x4 NVM Express storage*4
Intel X99 chipset :
10 x SATA 6Gb/s port(s),
Support Raid 0, 1, 5, 10
Supports Intel Smart Response Technology*5
LAN機能Intel I218V, 1000BASE-T/100BASE-TX/10BASE-T×1
Intel I211-AT, 1000BASE-T/100BASE-TX/10BASE-T×1
Dual Gigabit LAN controllers- 802.3az Energy Efficient Ethernet (EEE) appliance
Anti-surge LANGuard
ROG GameFirst Technology
無線機能Wi-Fi 802.11ac/n/a/g/b
Supports dual band frequency 2.4/5 GHz
Support ASUS Wi-Fi Go! Utility
Up to 1300Mbps transfer speed
Bluetooth機能Bluetooth 4.0
オーディオ機能ROG SupremeFX 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- SupremeFX Shielding Technology
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Sonic Studio II
- Sonic Radar II
USB機能Intel X99 chipset : *3
4 x USB 3.0 port(s) (4 at mid-board)
Intel X99 chipset : *6
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
ASMedia USB 3.1 controller :
2 x USB 3.1 port(s) (2 at back panel, black, Type-C)
ASMedia USB 3.1 controller : *3
2 x USB 3.1 port(s) (2 at back panel, red, Type-A)
ASMedia USB 3.0 controller :
4 x USB 3.0 port(s) (4 at back panel, blue)
R.O.G.シリーズ独自搭載機能1 x DRAM channel switch
ROG RAMCache
Extreme Engine Digi+ :
- IR3555 PoweIRstage
- MicroFine Alloy Chokes
- 10K Black Metallic Capacitors
ROG Extreme OC kit :
- ReTry button
- Safe Boot button
- Start button
- Reset button
- Slow Mode
- LN2 Mode
- PCIe x16 Lane Switch
ProbeIt
KeyBot II
- One-click Overclocking
- X.M.P.
- DirectKey
- ClrCMOS
- Power On
UEFI BIOS features :
- O.C. Profile
- GPU.DIMM Post
- Tweakers' Paradise
- ROG SSD Secure Erase
- Graphic Card Information Preview
ROG RAMDisk
Extreme Tweaker
独自機能5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
ASUS Wi-Fi GO!
- Wi-Fi GO! Function: Cloud GO!, Remote Desktop, Remote Keyboard & Mouse, File Transfer
ASUS Exclusive Features :
- MemOK!
- AI Suite 3
- Ai Charger+
- Anti-Surge
- USB 3.1 Boost
Remote Entertainment
- Media Streamer
- HyStream
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert 4
ASUS EZ DIY :
- ASUS CrashFree BIOS
- ASUS EZ Flash 3
- ASUS USB BIOS Flashback
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
- Push Notice
ASUS Q-Design :
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-DIMM
- ASUS Q-Connector
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Turbo App
動作対応OSWindows 10 64ビット
Windows 8.1 64ビット/32ビット
Windows 7 64ビット/32ビット

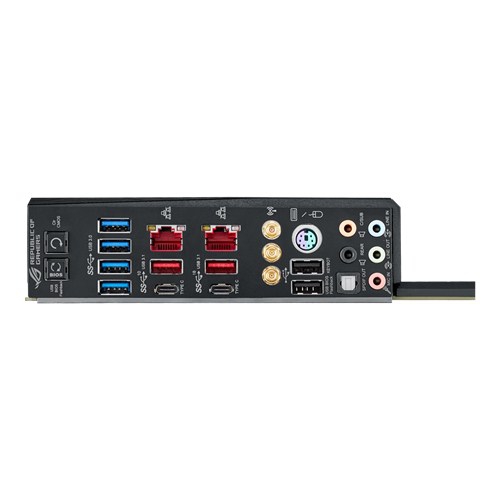

背面インターフェース1 x PS/2 keyboard/mouse combo port(s)
2 x LAN (RJ45) port(s)
2 x USB 3.1 (black)Type-C
2 x USB 3.1 (red)Type-A
4 x USB 3.0 (blue)
2 x USB 2.0 (one port can be switched to USB BIOS Flashback)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x Clear CMOS button(s)
3 x Wi-Fi antenna port(s)
1 x USB BIOS Flashback Button(s)
基板上インターフェース1 x Aura RGB Strip Header
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 for M Key, type 2260/2280/22110 storage devices support ( Support PCIE SSD only)
1 x TPM header
10 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x Power Fan connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x SLI/CFX switch (2/3-WAY adjustments)
1 x Front panel audio connector(s) (AAFP)
1 x MemOK! button(s)
1 x Slow Mode switch(es)
9 x ProbeIt Measurement Points
1 x Thermal sensor connector(s)
1 x EZ Plug connector(s) (4-pin Molex power connector)
1 x Power-on button(s)
1 x Reset button(s)
1 x BIOS Switch button(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x Water Pump header (4-pin)
1 x LN2 Mode jumper(s)
1 x ROG extension (ROG_EXT) header(s)
1 x Safe Boot button
1 x ReTry button
1 x U.2 connector
1 x System panel connector
1 x DRAM channel switch
1 x PCIe x16 lane switch
主な付属品User's manual
SupremeFX Hi-Fi Kit:
- 1 x SupremeFX Hi-Fi
- 1 x SupremeFX Hi-Fi cable
1 x 2-Way SLI bridge(s)
10 x SATA power cable
1 x M.2 Screw Package
2 x CPU installation tool
1 x ASUS 3T3R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x Fan Extension Card (3 x 4-pin fan out)
1 x Fan Extension card screw pack
1 x 3-Way SLI bridge(s)
1 x 4-Way SLI bridge(s)
1 x Q-connector(s) (1 in 1)
1 x 12 in 1 ROG Cable Label(s)
ROG Fan Label
1 x 5-pin to 5-pin cable
1 x Extension Cable for RGB strips (80 cm)
3 x Thermistor cable(s)
1 x USB drive with utilities and drivers
1 x I/O frame
2 x ROG coasters
BIOS機能128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.
管理機能WfM 2.0, WOL by PME, PXE
フォームファクター（サイズW×D）Extended ATX Form Factor
12 inch x 10.7 inch ( 30.5 cm x 27.2 cm )
その他*1 28-LANE CPUs can only support up to 3-Way SLI/ 3-Way CrossFireX
*2 The PCIEx8_4 slot shares bandwidth with M.2 and U.2.
*3 The PCIEx4_1 slot shares bandwidth with front USB3_34 ports and back USB3.1_EC1_EA2 ports. If a X2 device is connected to the PCIEx4_1 slot, the front USB3_34 ports will be disabled. If a X4 or higher device is connected to the PCIEx4_1 slot, both front USB3_34 and back USB3.1_EC1_EA2 ports will be disabled.
*4 These ports share bandwidth with PCIEx8_4 slot.
*5 These functions will work depending on the CPU installed.
*6 2 x USB2.0 port at mid-board shares with ROG extension (ROG_EXT) port.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
