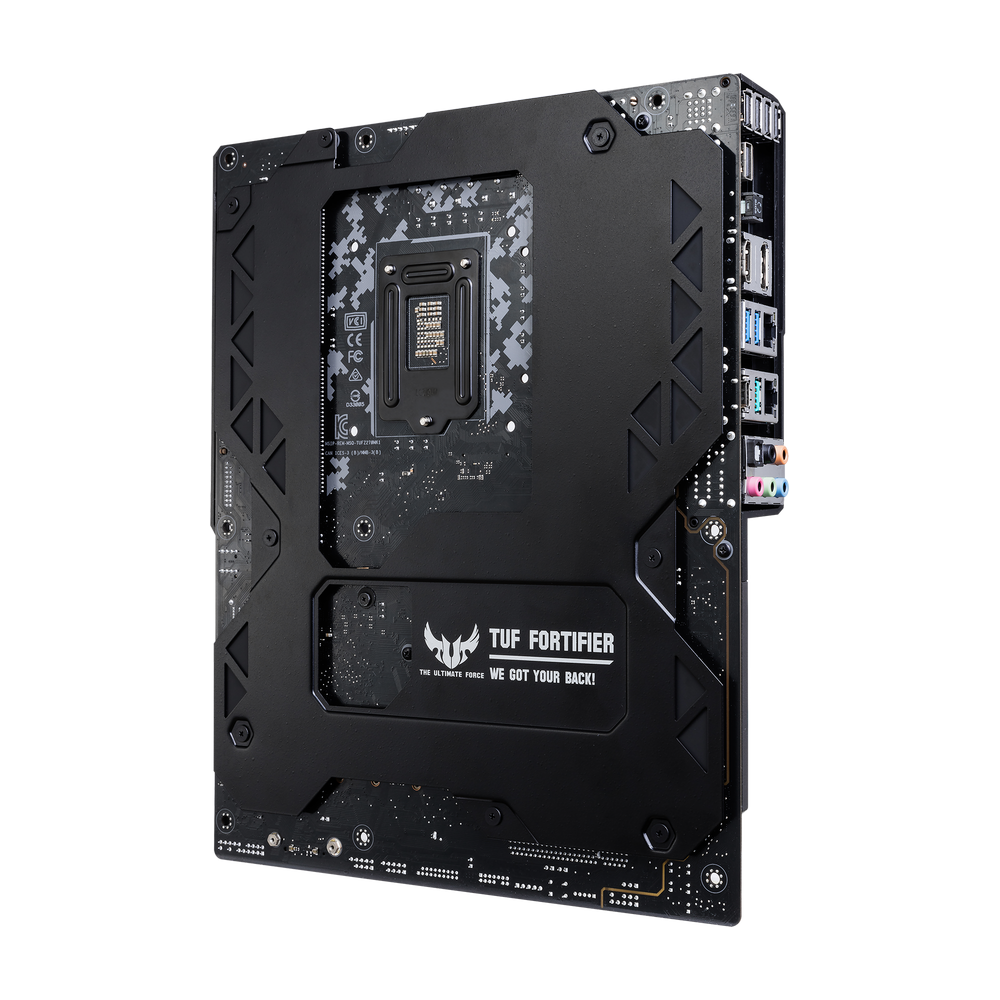

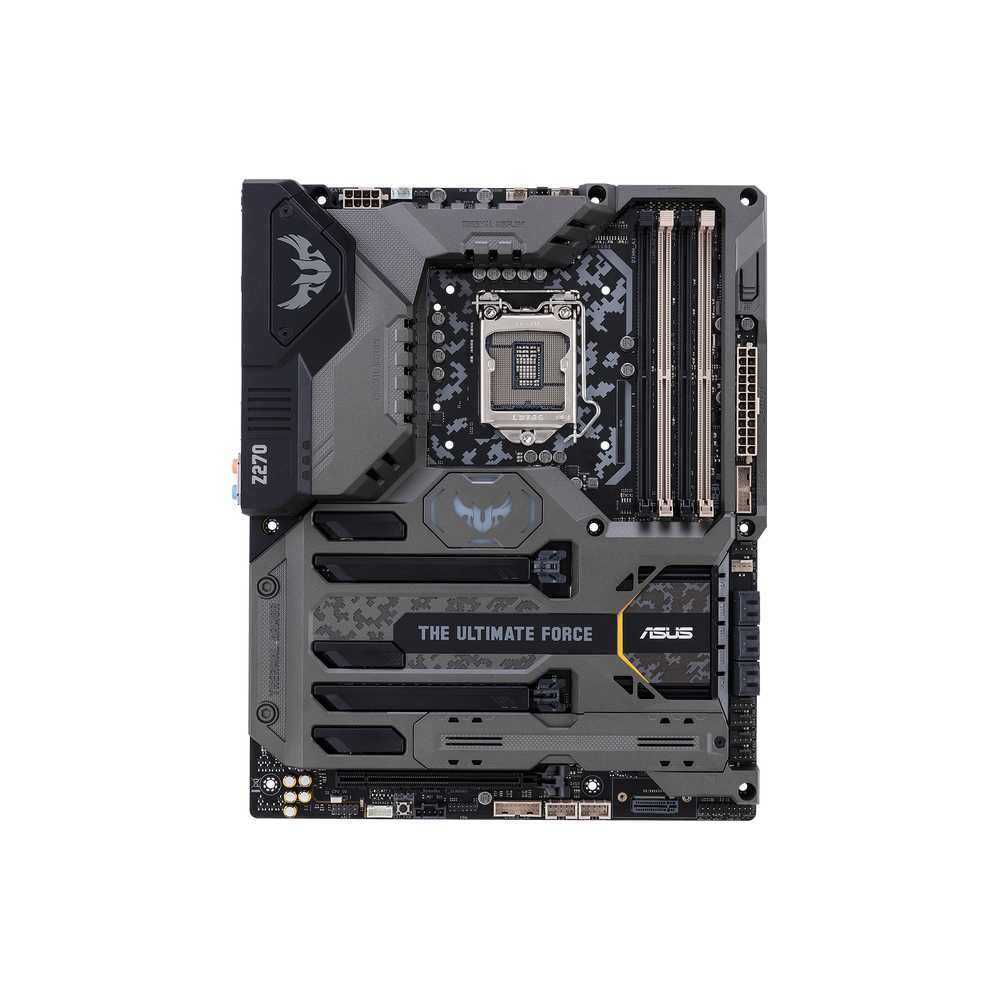

製品仕様

CPU LGA1151 socket for 7th & 6th Generation Intel® Core™ i7/ i5/ i3/Pentium®/Celeron® Processors
Supports 14nm CPU
Supports Intel® Turbo Boost Technology 2.0*
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset Intel® Z270 Chipset
Memory 4 x DIMM, max. 64GB DDR4
3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133 MHz Non-ECC, Un-buffered Memory
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)*
* Hyper DIMM support is subject to the physical characteristics of individual CPUs. Please refer to Memory QVL(Qualified Vendors List) for details.
Expansion Slots 2 x PCI Express 3.0/2.0 x16 slots (single at x16 or dual at x8/x8 mode)
1 x PCI Express 3.0/2.0 x16 slot* (max. at x4 mode, compatible with PCIe x1, x2 and x4 devices)
3 x PCI Express 3.0/2.0 x1 slots
VGA Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support: DisplayPort/HDMI port
Supports DisplayPort 1.2* with max. resolution 4096 x 2304@60Hz
Supports HDMI 1.4b with max. resolution 4096 x 2160@30Hz
Supports Intel® InTru™ 3D/Quick Sync Video/Clear Video HD Technology/Insider™
Maximum shared memory of 1024MB
* DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
Multi-GPU support Supports NVIDIA® 2-Way/Quad-GPU SLI™ Technology
Supports AMD® 3-Way/Quad-GPU CrossFireX™ Technology
Storage Intel® Z270 Chipset with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology 15 support
 - 1 x M.2_1 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE 3.0 x4 mode)*
 - 1 x vertical M.2_2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE 3.0 x4 mode)
 - 6 x SATA 6.0 Gb/s ports
 - Ready for Intel® Optane Memory**
 - Supports Intel® Smart Response Technology
*The M.2_1 socket shares SATA_1 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device.
**Intel® Optane Technology only supported when using 7th Generation Intel® Processors. Before using Intel® Optane memory modules, ensure that you have updated your  motherboard drivers and BIOS to the latest version from ASUS support website.
LAN Gigabit Intel LAN connection- 802.3az Energy Efficient Ethernet (EEE) appliance
Intel® I219-V Gigabit LAN- Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)
Intel® I211 Gigabit LAN controller
TUF LANGuard
ASUS Turbo LAN Utility
Audio Realtek® S1220A 8-Channel High Definition Audio CODEC
 - Power pre-regulator reduces power input noise to ensure consistent performance
 - Separate layer for left and right track, ensuring both sound deliver equal quality
 - Impedance sense for front and rear headphone outputs
 - Audio shielding ensures precise analog/digital separation and greatly reduced multi-lateral interference
 - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
 - Unique de-pop circuit to reduce start-up popping noise to audio outputs
 - Premium Japan-made audio capacitors provides warm, natural, and immersive sound with exceptional clarity and fidelity
 - High quality 120dB SNR stereo playback output (Line-out@back) & 113dB SNR recording input (Line-in) support
 - Supports up to 32-Bit/192kHz playback*
 - DTS® HeadphoneX
 - DTS® Connect
 - Supports jack-detection, multi-streaming, front panel jack-retasking (MIC)
 - Optical S/PDIF out port at back I/O
 *Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio
USB Intel® Z270 Chipset-
 - 6 x USB 3.0/2.0 ports (4 ports @mid-board, 2 port @back panel, blue)
 - 8 x USB 2.0/1.1 ports (4 ports @mid-board, 4 port @back panel, black)
ASMedia® USB 3.1 controllers- supports 3A power output
 - 1 x USB 3.1/3.0/2.0 ports @back panel (teal blue, Type A)
 - 1 x USB 3.1/3.0/2.0 port @back panel (Type C)

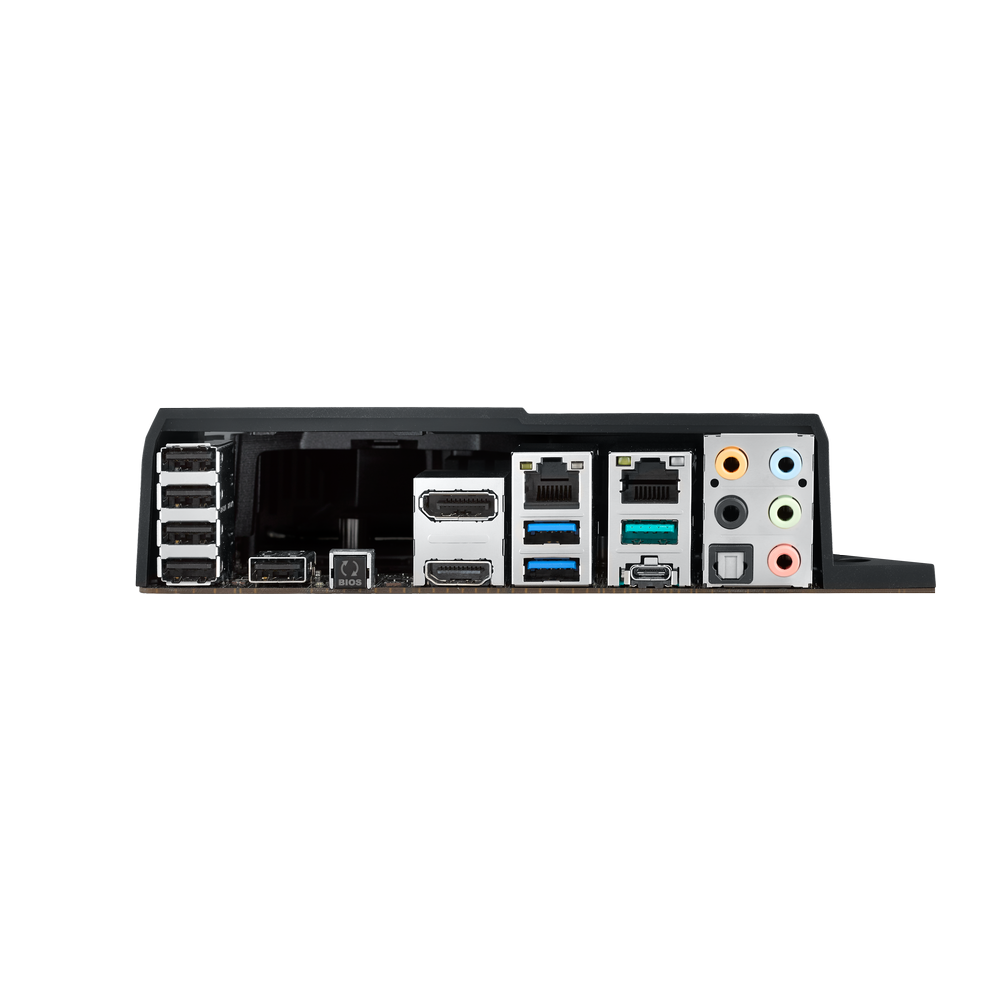

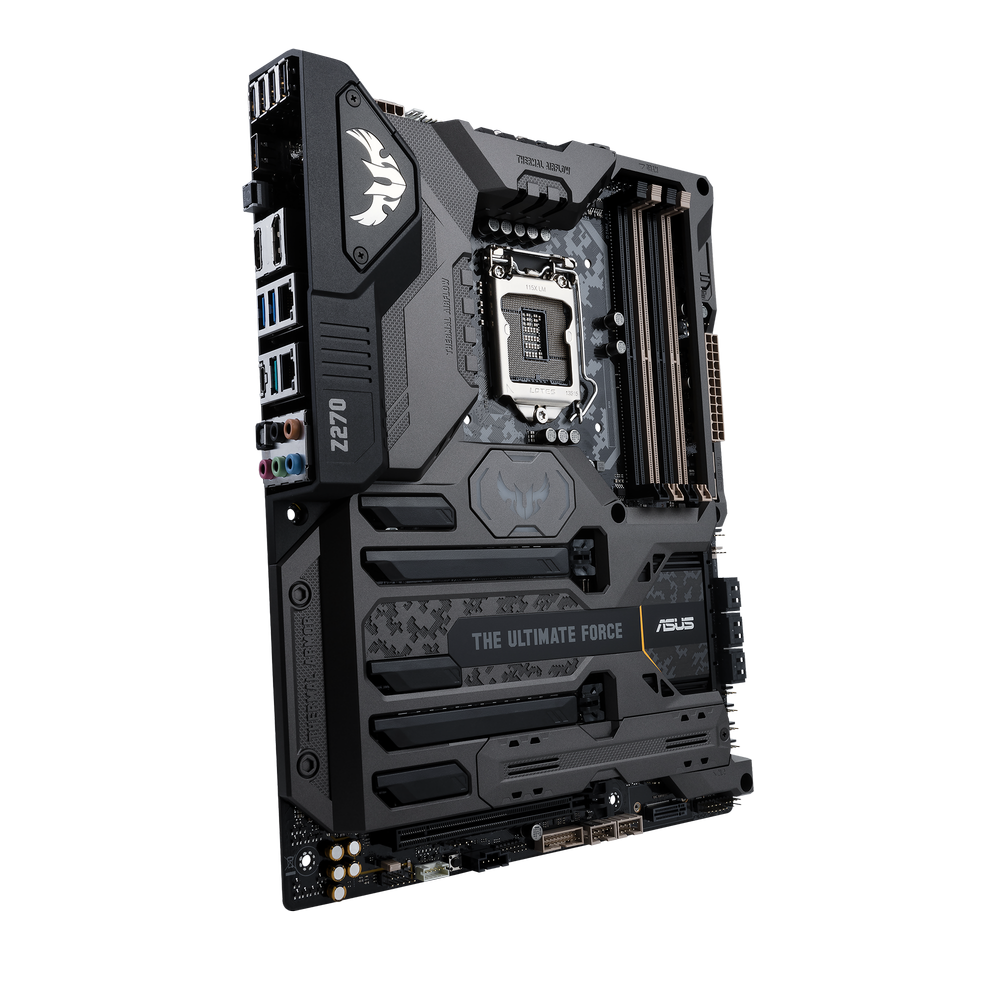

Back Panel I/O Ports 1 x DisplayPort
1 x HDMI port
1 x TUF Detective USB port
1 x USB BIOS Flashback Button
1 x Optical S/PDIF out
2 x LAN (RJ45) ports
1 x USB 3.1/3.0/2.0 port (teal blue, Type A)
1 x USB 3.1/3.0/2.0 port (Type C)
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports (black, one supports USB BIOS Flashback)
8-channel Audio I/O ports
Internal I/O Connectors 2 x USB 3.0/2.0 connectors support additional 4 USB ports (19-pin)
2 x USB 2.0/1/1 connectors support additional 4 USB ports
1 x M.2_1 Socket 3 (for M Key, type 2242/2260/2280/22110 devices)
1 x vertical  M.2_2 Socket 3 (for M Key, type 2242/2260/2280 devices)
6 x SATA 6.0Gb/s connectors
1 x CPU Fan connector (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) CPU coolers control with auto detection support
1 x CPU OPT Fan connector (4-pin)
1 x W_Pump+ header (4-pin)
5 x Chassis Fan connectors (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) coolers control
1 x H_AMP_FAN (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) control
1 x Assistant Fan connectors (4-pin)
1 x Front panel audio connector (AAFP)
1 x S/PDIF out header
1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX series support
1 x TPM connector
1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
1 x System Panel(Q-Connector)
1 x COM port
1 x MemOK! button
1 x Clear CMOS jumper
3 x T_Sensor (Thermal Sensor) headers
1 x 5-pin EXT_FAN(Extension Fan) connector
Accessory 1 x M.2 screw
4 x Serial ATA 6Gb/s cables
1 x SLI HB BRIDGE(2-WAY-M)
1 x ASUS Q-Shield
1 x 2 in 1 Q-connector
1 x vertical M.2 bracket set
1 x TUF Accessory Package
 - 2 x PCIe x16 slot dust covers
 - 3 x PCIe x1 slot dust covers
1 x CPU Installation Tool
1 x TUF INSIDE sticker
1 x TUF Certification card
1 x TUF 5 Year Warranty manual (by region)
User's manual
Operating System Support Windows® 10 64-bit
Windows® 8.1 64-bit*
Windows® 7*
*Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors
Form Factor ATX Form Factor, 12”x 9.6” (30.5cm x 24.4cm)
