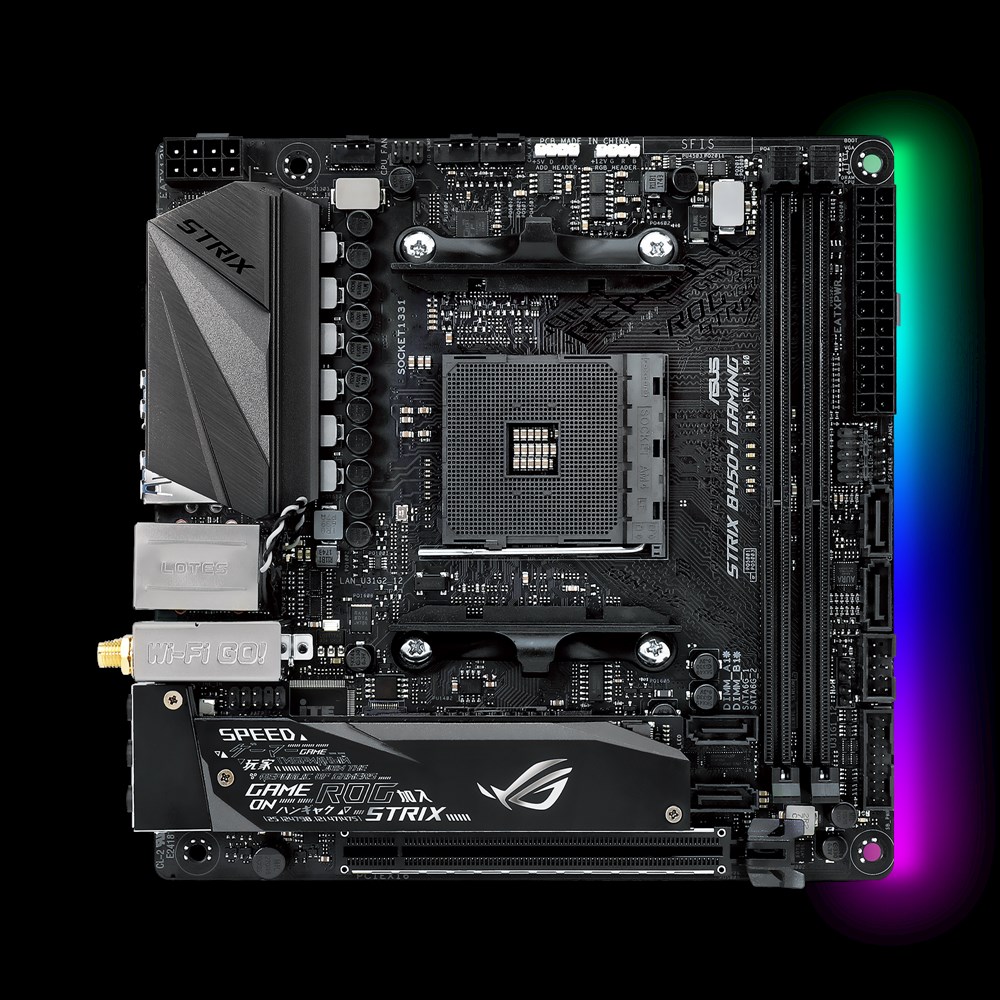

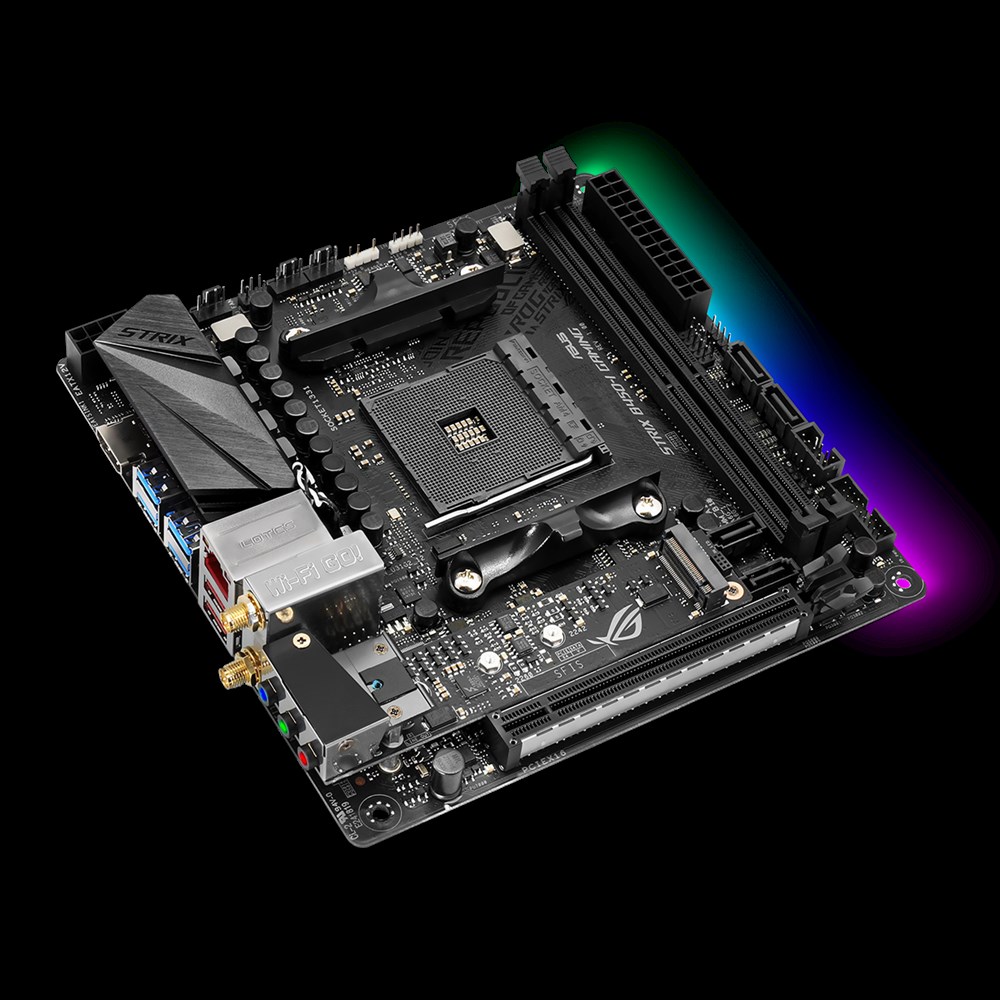

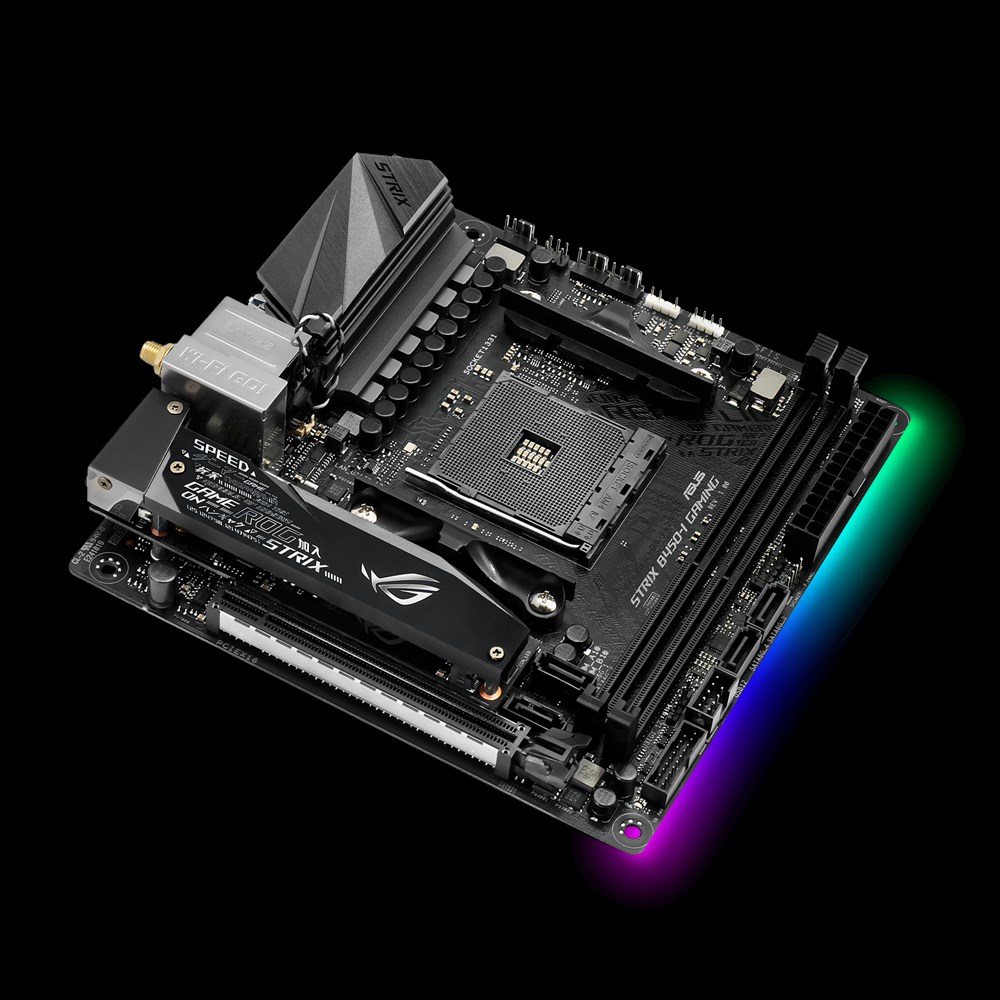

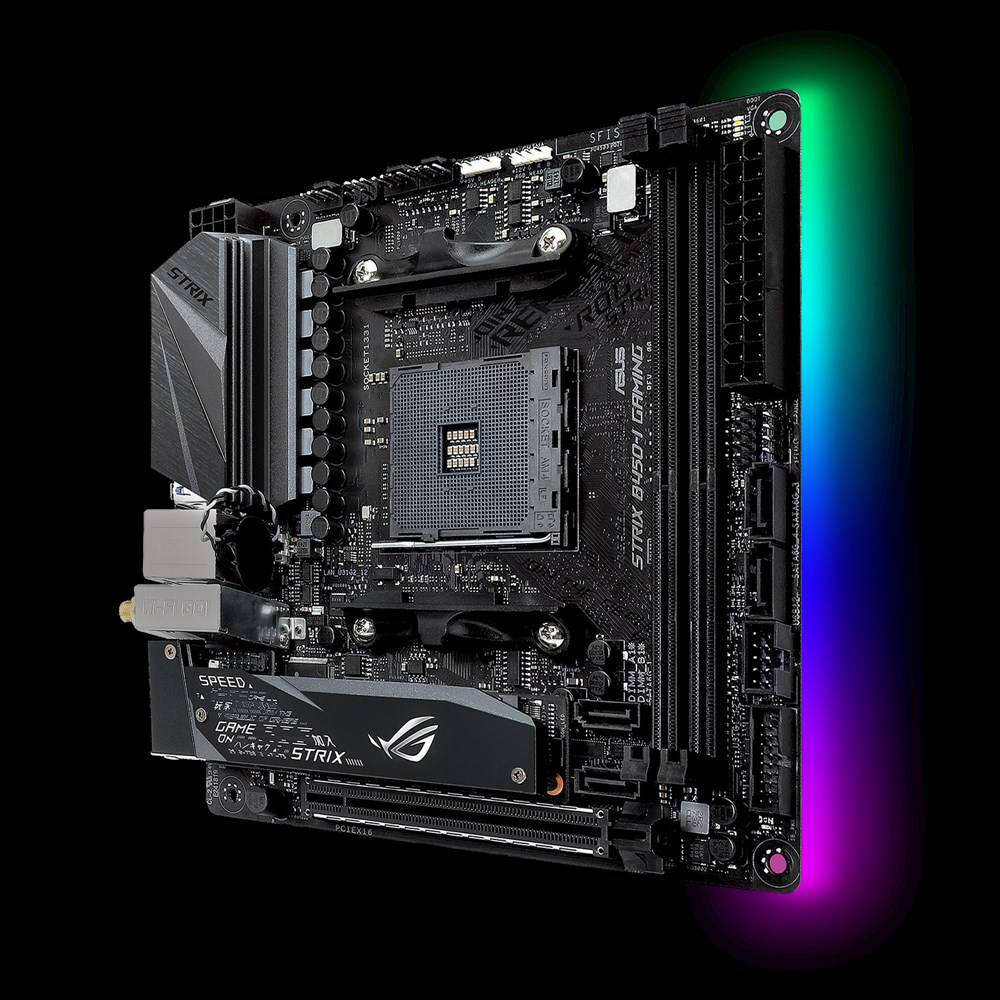

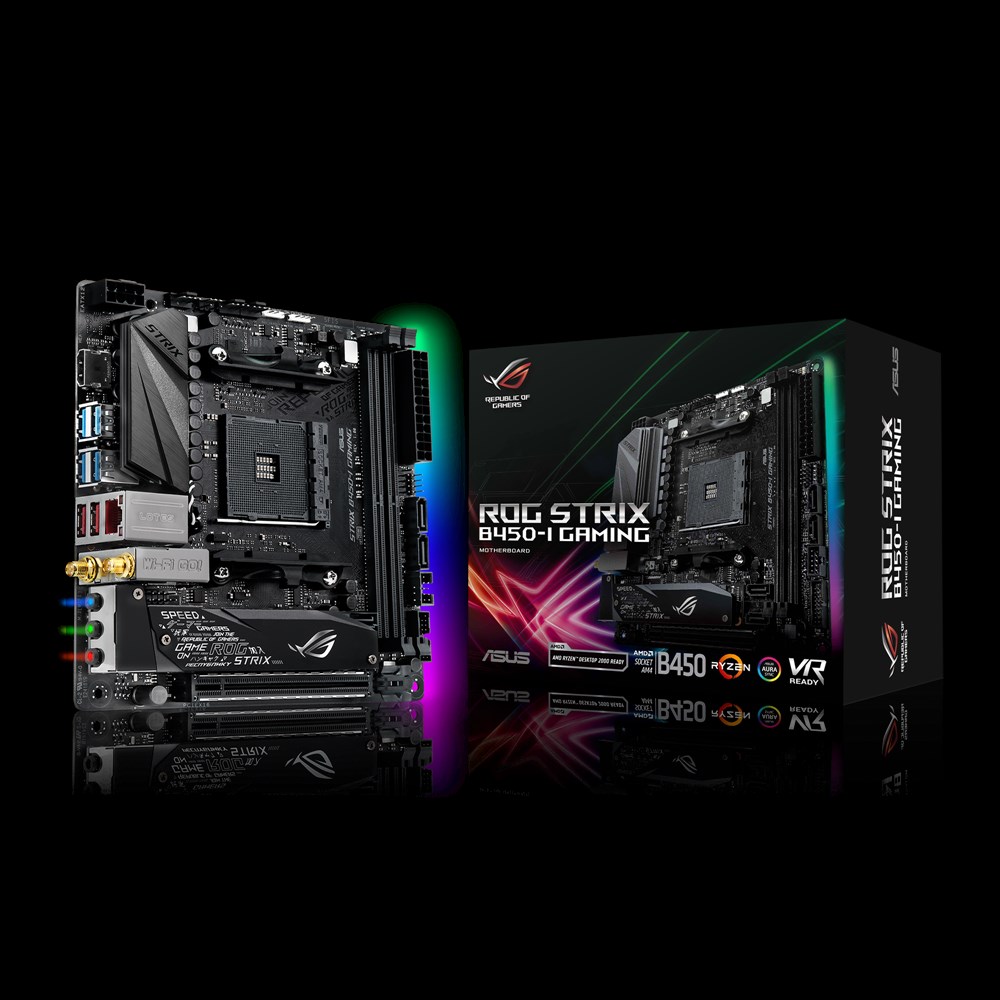

ROG STRIX B450-I GAMING

ROG STRIX B450-I GAMING

型番：ASU-ROG/STRIX/B450-I/GAMING

JAN：192876081112

特徴

AMD Ryzen(TM)プロセッサ用AM4ソケット搭載
高速メモリ&ストレージ: デュアルチャンネルDDR4 3600MHz(OC)、NVM Express(R) RAID対応
Aura Sync RGB: アドレスサブルRGBストリップを含む、対応する多彩なPCギアによるシンクロしたLEDイルミネーション
オンボードM.2ヒートシンク: M.2ドライブを冷却し、安定したストレージパフォーマンスと信頼性を提供
ゲーミングコネクティビティ: デュアルM.2、USB 3.1 Gen 2 Type-Aコネクターを搭載
ゲーミングネットワーク: Intel Gigabitイーサネット、MU-MIMO対応2x2 802.11ac Wi-Fi、ASUS LANGuard、GameFirst テクノロジー搭載
5-Way Optimization: PCビルドに合わせてカスタマイズされたオーバークロックと冷却の設定を提供し、自動的にシステム全体のチューニングを施します。
ゲーミングオーディオ: 「SupremeFX S1220A」と「Sonic Studio III」の組み合わせで風景を描くような奥行きのあるサウンドを実現し、アクションへの没入感を向上
ゲーマーズガーディアン: プレマウンテッド I/O シールド、ASUS Safeslot、最高の耐久性を実現するプレミアムコンポーネントを採用

製品仕様

対応CPUAMD AM4 Socket AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Ryzen 1st Generation Processors
搭載チップセット AMD B450
メインメモリAMD Ryzen 2nd Generation Processors
2 x DIMM, Max. 32GB, DDR4- 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory *
AMD Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors
2 x DIMM, Max. 32GB, DDR4- 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory *
デュアルチャンネル Memory Architecture
グラフィックス機能Integrated Graphics in the AMD Ryzen with Radeon Vega Graphics/ 7th Generation A-Series APU
Multi-VGA output support : HDMI ports
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
Maximum shared memory of 2048 MB (for iGPU exclusively)
拡張スロットAMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
ストレージ機能AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors :
1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280 storage devices support (PCIE 3.0 x 4 mode)*1
AMD Ryzen with Radeon Vega Graphics Processor : *2
1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD B450 chipset :
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
LAN機能Intel I211-AT, 1000BASE-T/ 100BASE-TX/ 10BASE-T×1
Anti-surge LANGuard
ROG GameFirst IV
無線機能Wi-Fi IEEE802.11ac/n/a/g/b
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
Bluetooth機能Bluetooth v4.2, 4.0LE, 3.0+HS
オーディオ機能ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback *3
LED-illuminated audio jacks
Audio Feature :
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link
USB機能AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation/7th Generation A-Series/Athlon X4 Processors :
4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
AMD B450 chipset :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, red, Type-A)
AMD B450 chipset :
2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
AMD B450 chipset :
2 x USB 2.0 port(s) (2 at mid-board)
ROGシリーズ独自搭載機能ROG RAMCache II
ROG CPU-Z
Overwolf
GameFirst IV
独自機能5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
Fan Xpert4
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
- ESD Guards on LAN, Audio,and USB ports
ASUS TPU :
- Auto Tuning
- TurboV
ASUS EPU :
- EPU
AURA :
- Aura Lighting Control
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- ASUS Grid
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Digi+VRM
Turbo APP
- featuring system performance tuning for selected applications

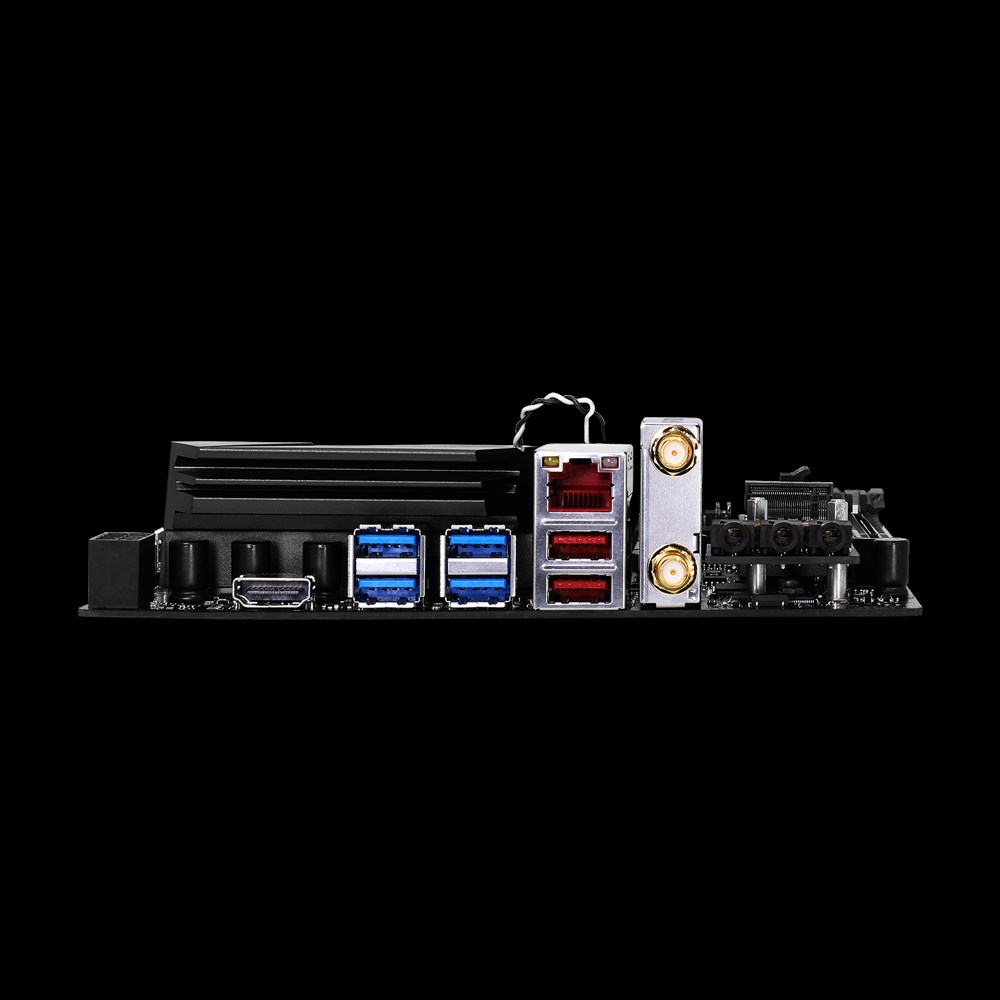

背面インターフェース1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 (red)Type-A,
4 x USB 3.1 Gen 1 (blue) ,
3 x LED-illuminated audio jacks
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2)
基板上インターフェース1 x Aura Addressable Strip Header(s)
1 x Aura RGB Strip Header(s)
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
2 x M.2 Socket 3 for M Key, type 2242/ 2260/ 2280 devices
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) ( x 4 -pin)
1 x Chassis Fan connector(s) ( x 4 -pin)
1 x AIO_PUMP connector ( x 4 -pin)
1 x 8-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Thermal sensor connector
1 x Speaker connector
主な付属品User's manual
M.2 mounting kit
I/O Shield
2 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x ROG Strix stickers
1 x Cable ties pack(s)
1 x Extension cable for Addressable LED
1 x Panel cable
BIOS機能256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log,
F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information, Secure Erase, User Profile, F4 AURA ON/OFF, F9 Search
管理機能WOL, PXE
サポートDVDの内容Drivers
ASUS Utilities
Anti-virus software
フォームファクター（サイズW×D）Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
その他*1 The M.2_2 slot shares with PCIE x16. When M.2_2 slot runs in PCIE mode, the PCIE x16 slot will run at x8 mode.
*2 M.2_2 is unsupported when using these CPUs.
*3 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.


※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
